Prado Unifit Single Hardwired Outlet with Trim Ring

$117.00

Select a Trim Ring Finish

Choose a Cover Plate Type

Select a Cover Plate Finish

Prado Unifit Single Hardwired Outlet with Trim Ring

Rated 4.9 out of 5
Based on 17 reviews
$117.00
Icon Description Typically Ships Same Day

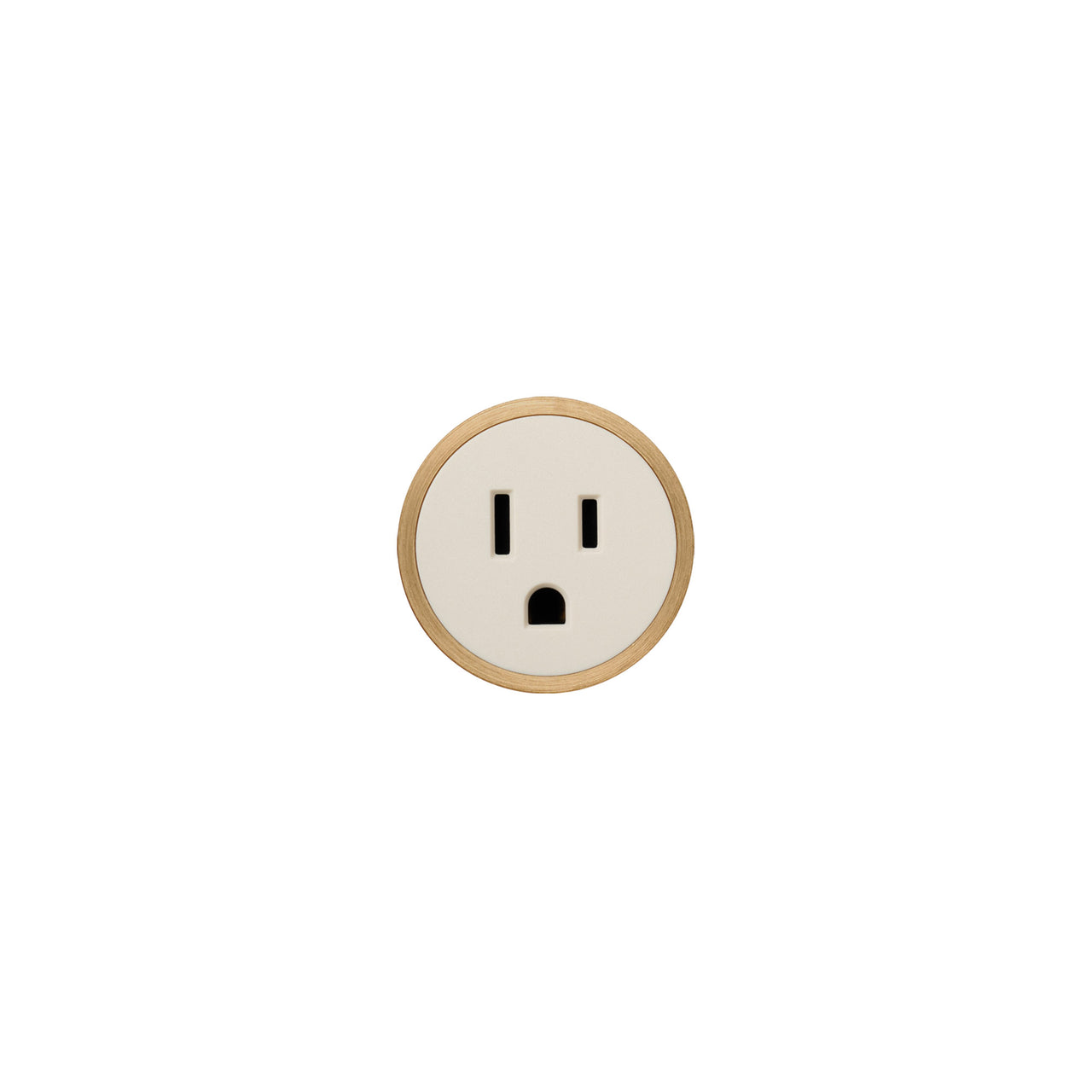

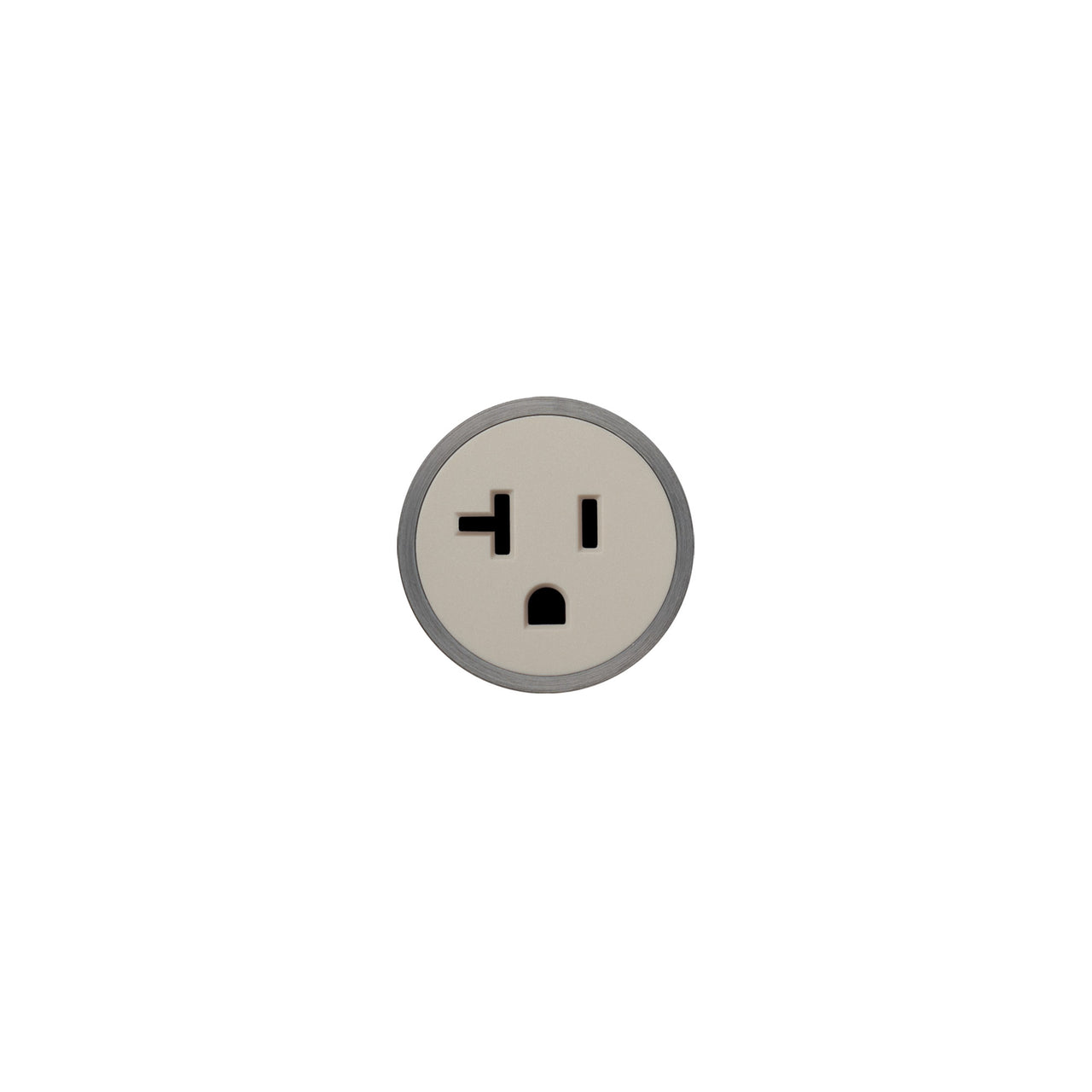

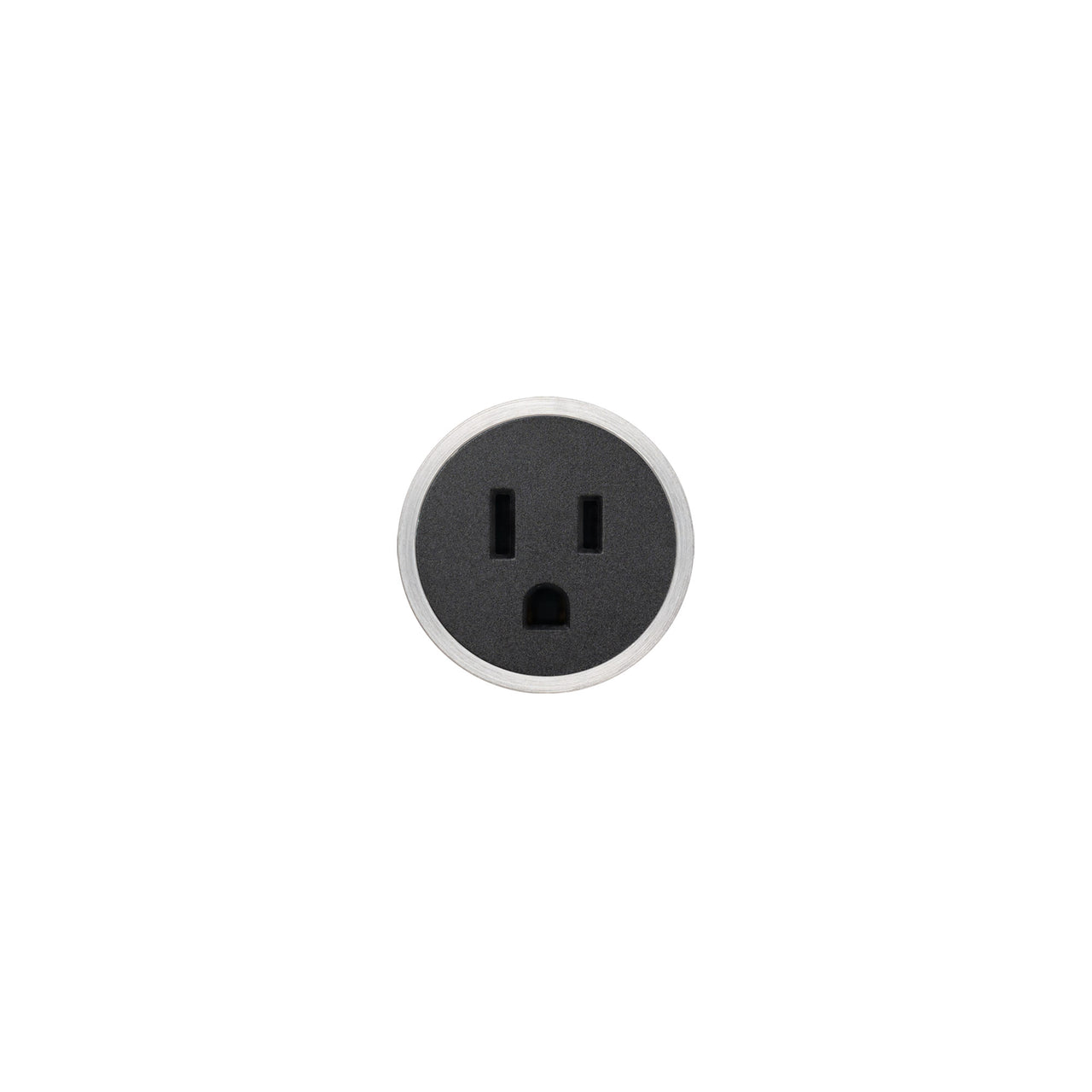

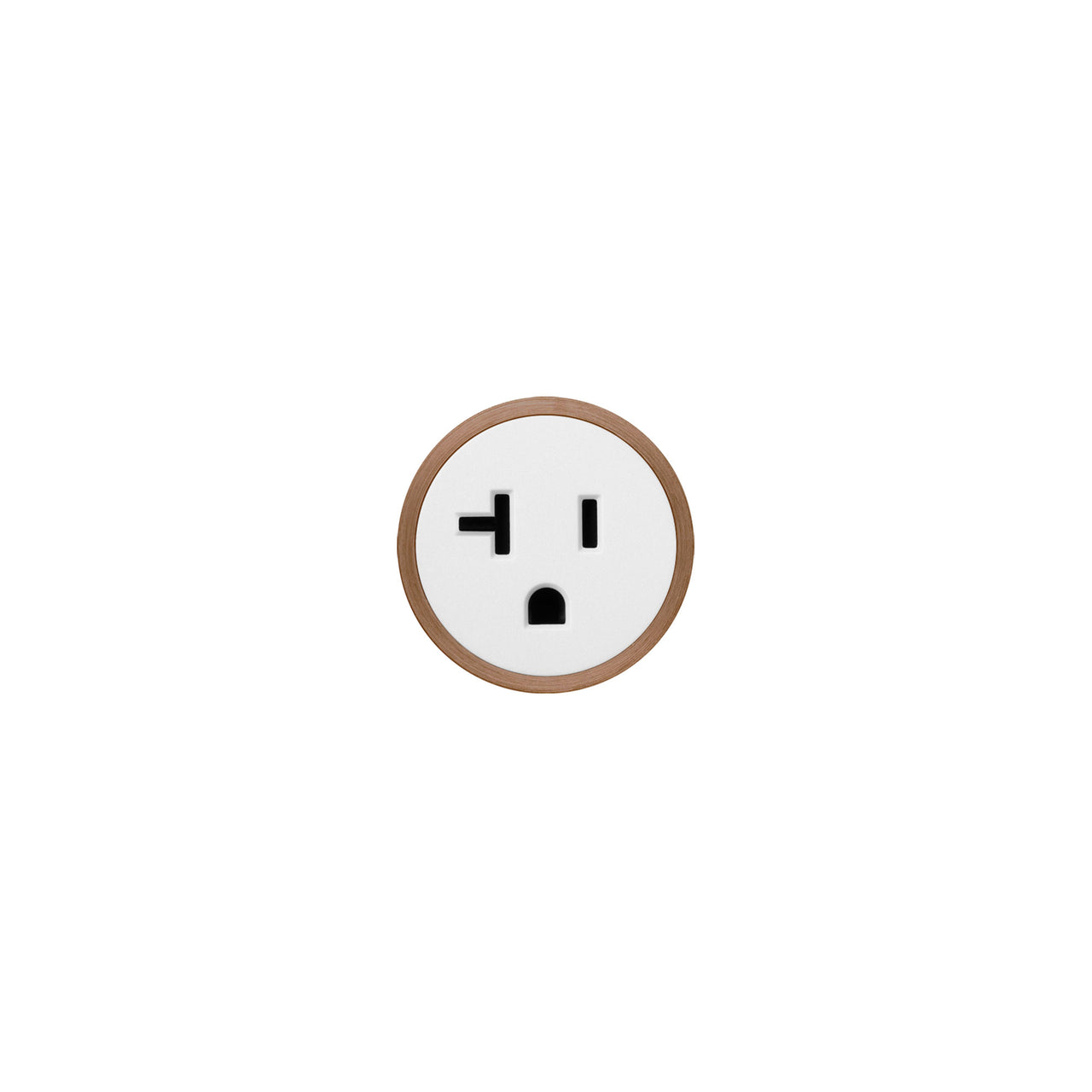

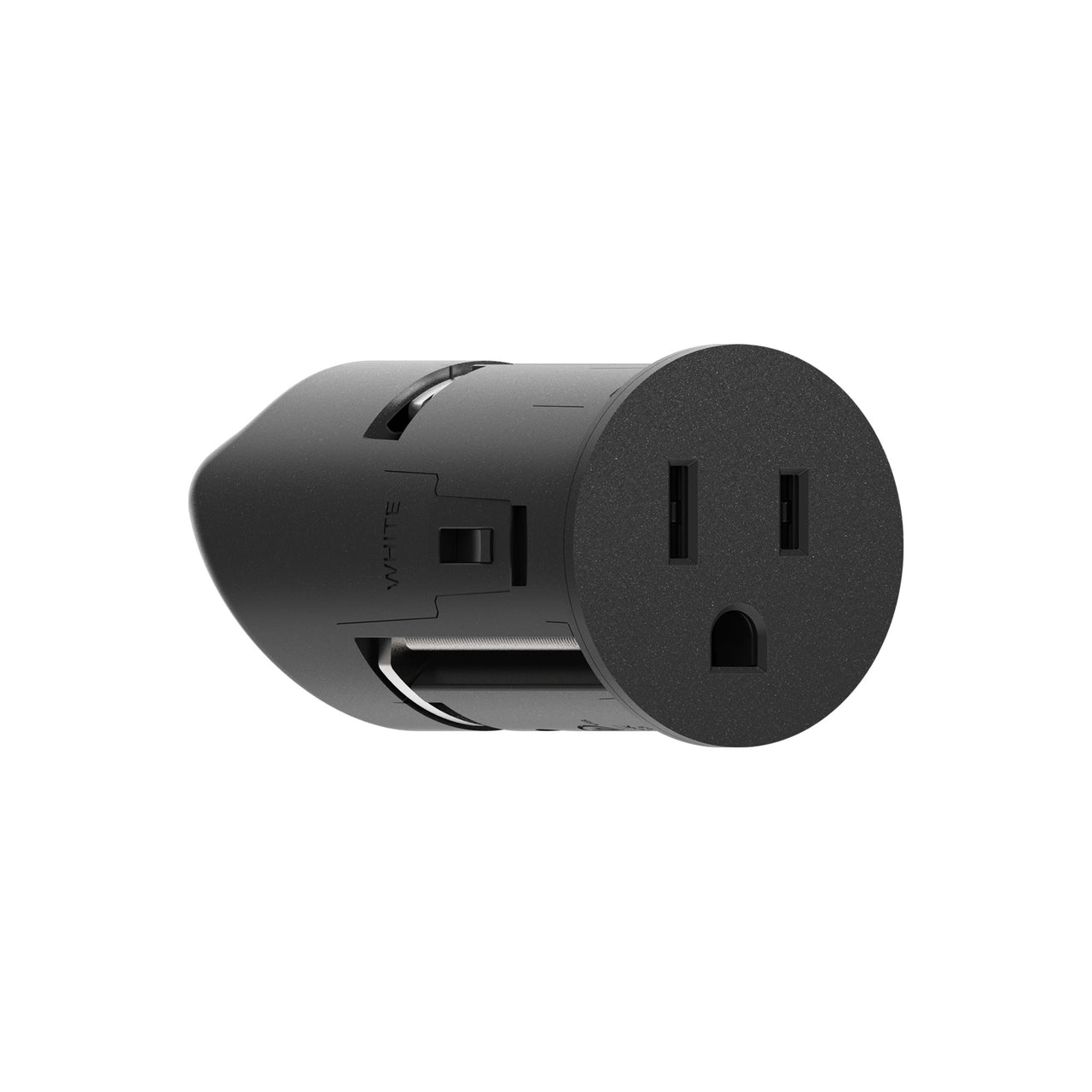

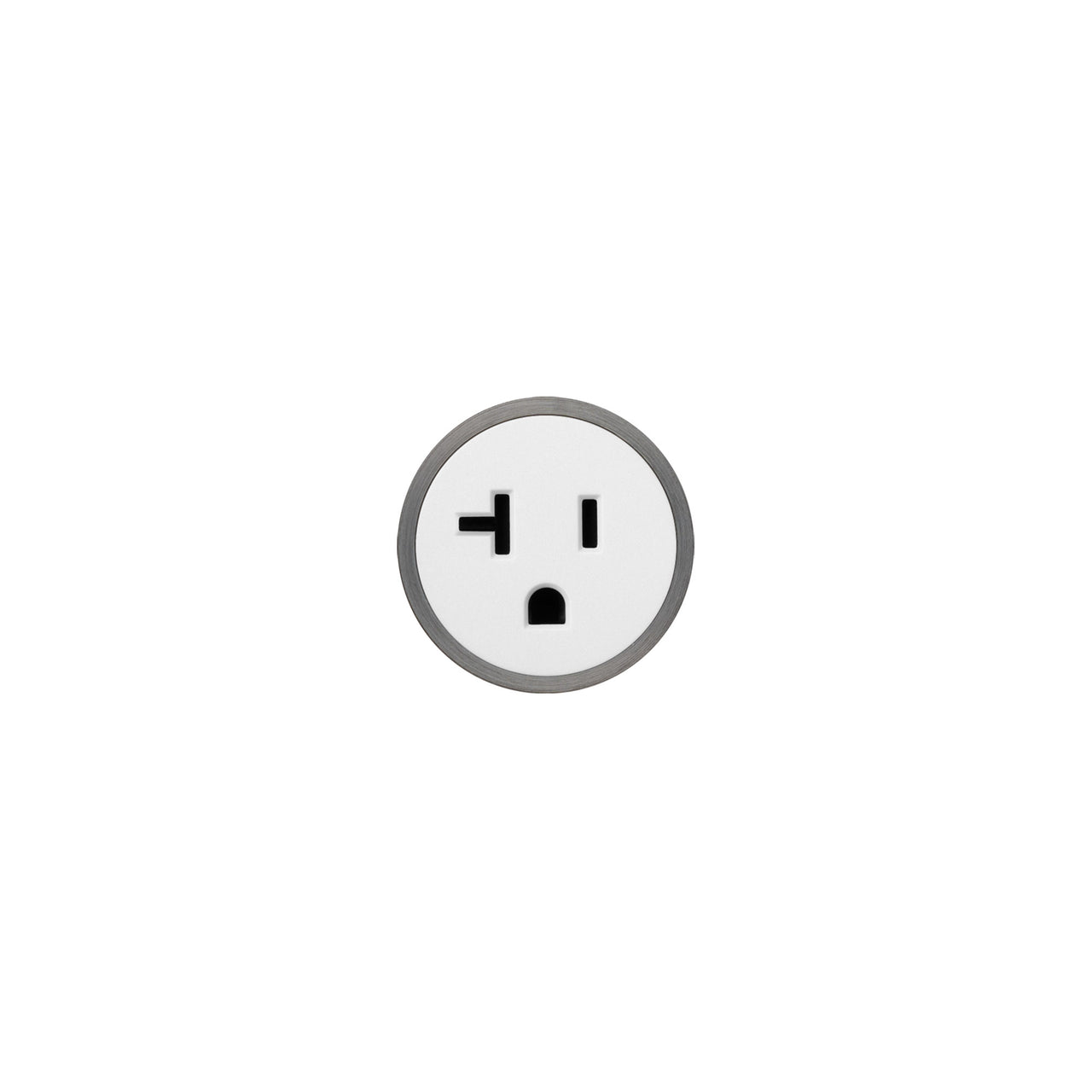

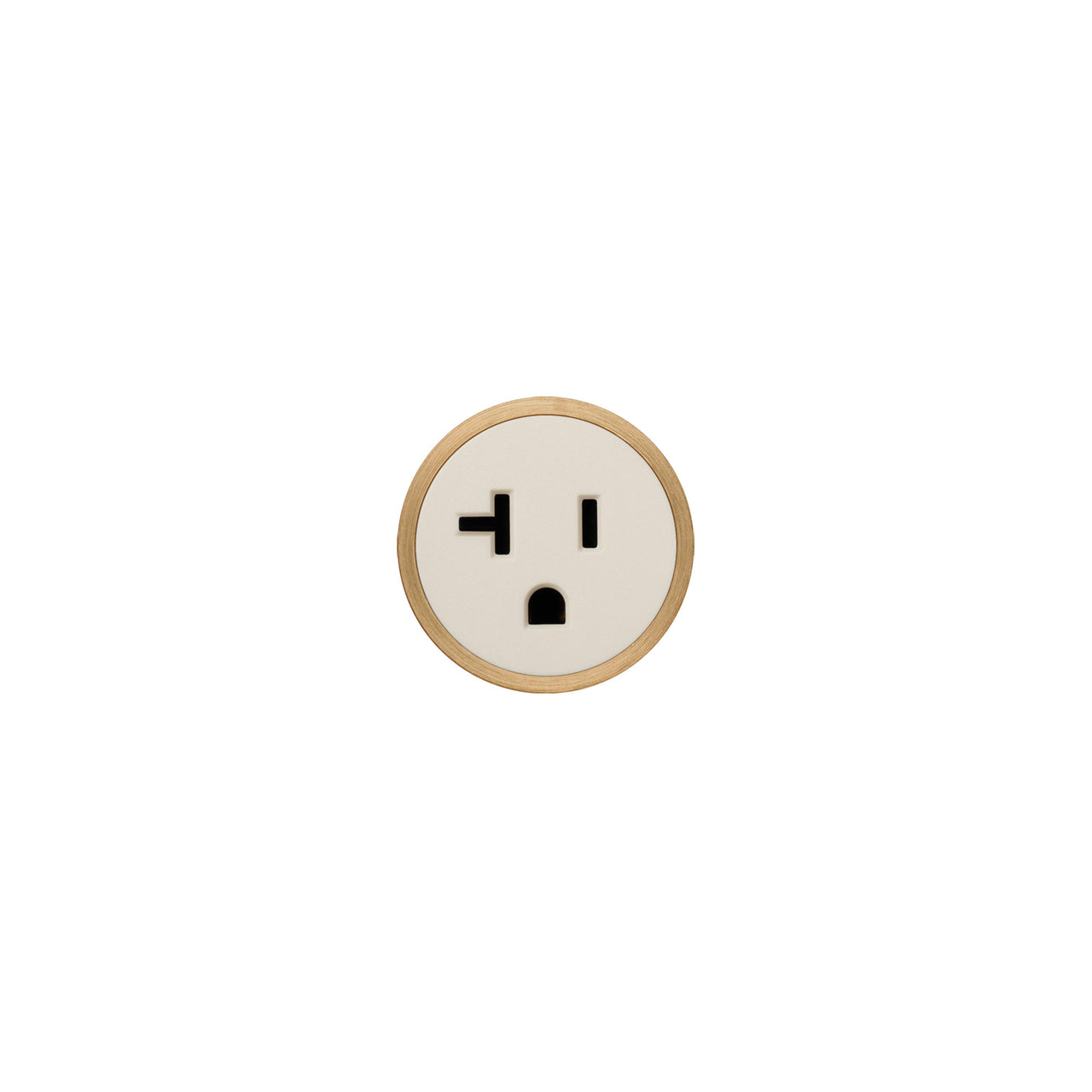

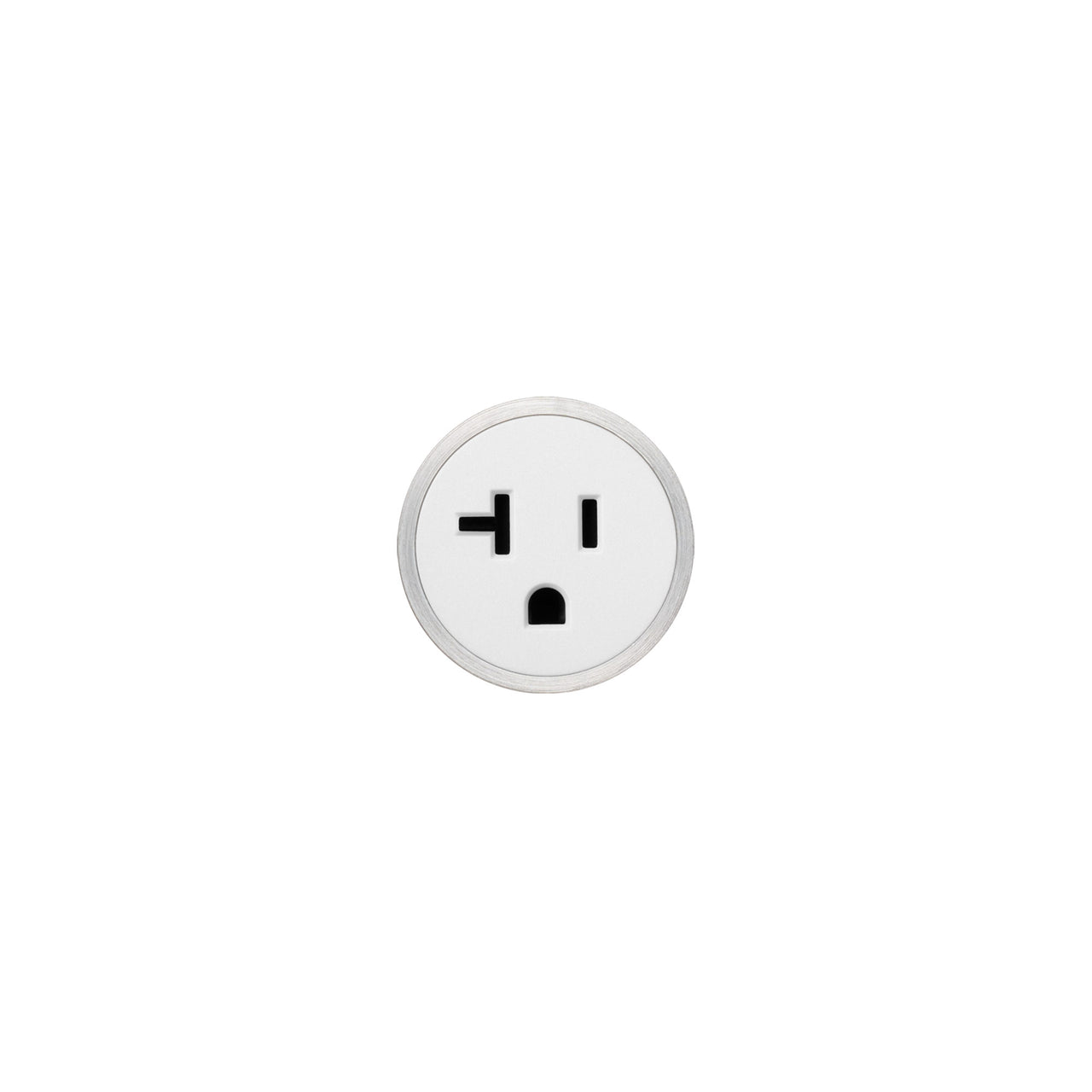

A discreet power source designed for simple installation into stone, quartz, or tile walls. This trim ring series comes with a metal ring around the unit perimeter for added aesthetic appeal.

Includes: (1) Unifit Single 15/20 Amp Outlet, (1) 1.75" Single Trim Ring, (1) Cover Plate



Upgrade Your Space

Enhance your home or office with Prado Unifit Single Hardwired Outlets, the ultimate solution for seamlessly integrating power into any rigid surface, such as drywall, stone, and tile. These outlets, crafted from high-quality materials, are designed for simple installation and offer convenient power with a clean and modern look.

Smart, Stylish, and Discreet

Prado Unifit Single Hardwired Outlets are engineered to blend effortlessly into any wall surface. With their minimalist design and various trim options, these outlets can be mounted flush or surface, making them a versatile choice for any interior. They’re perfect for those who appreciate a discreet solution that doesn’t scream “electrical outlet,” allowing them to integrate seamlessly into your space without detracting from your décor.

Simple Installation

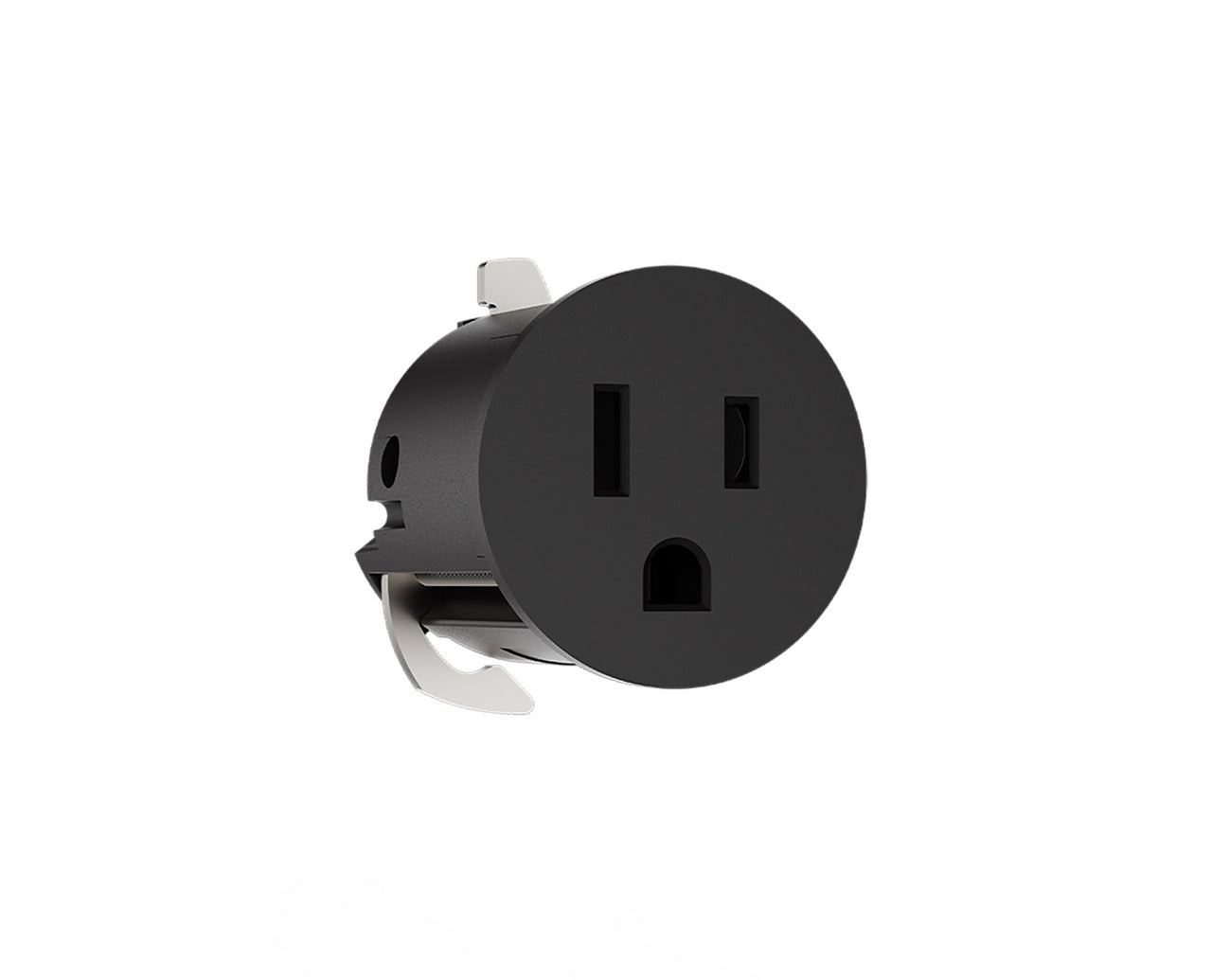

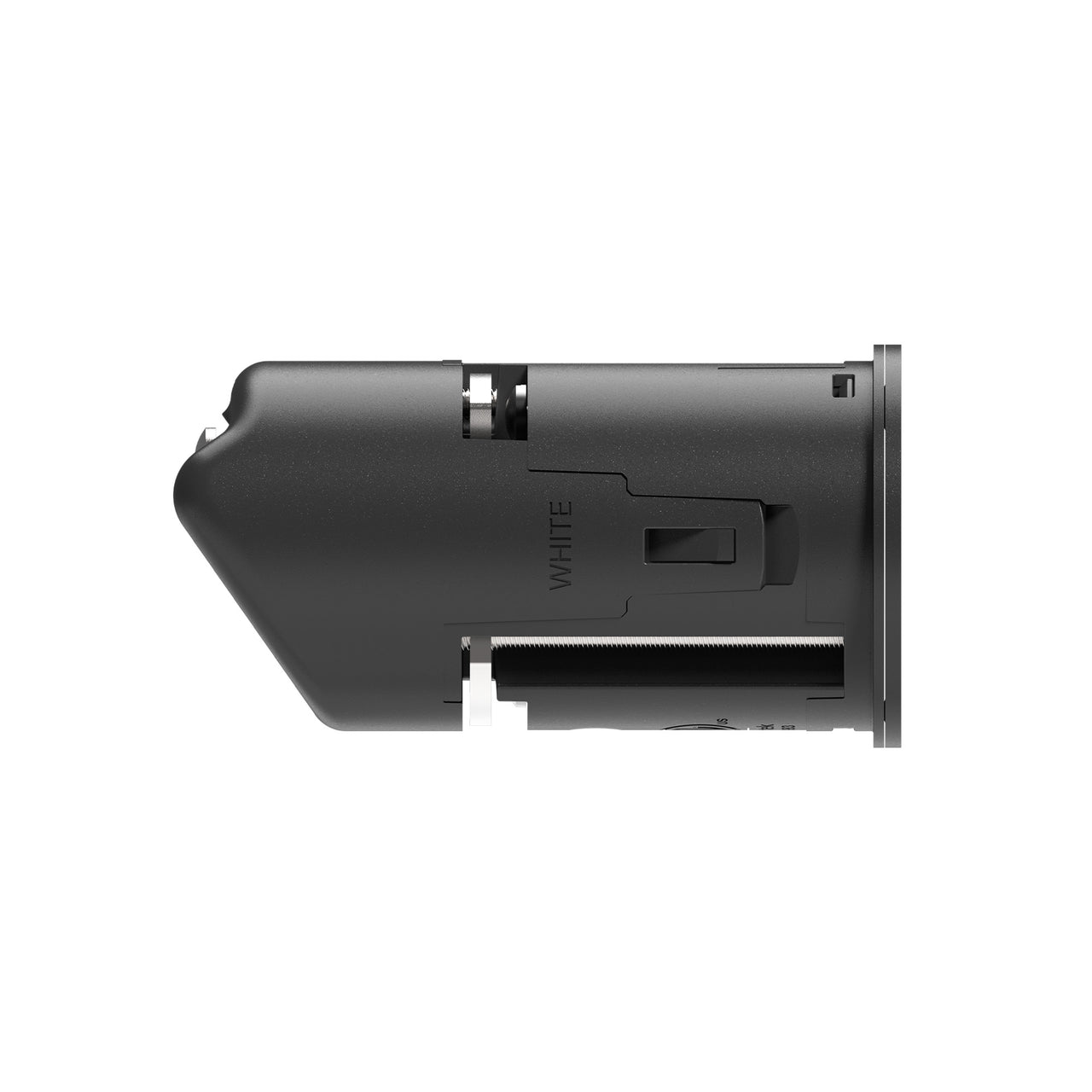

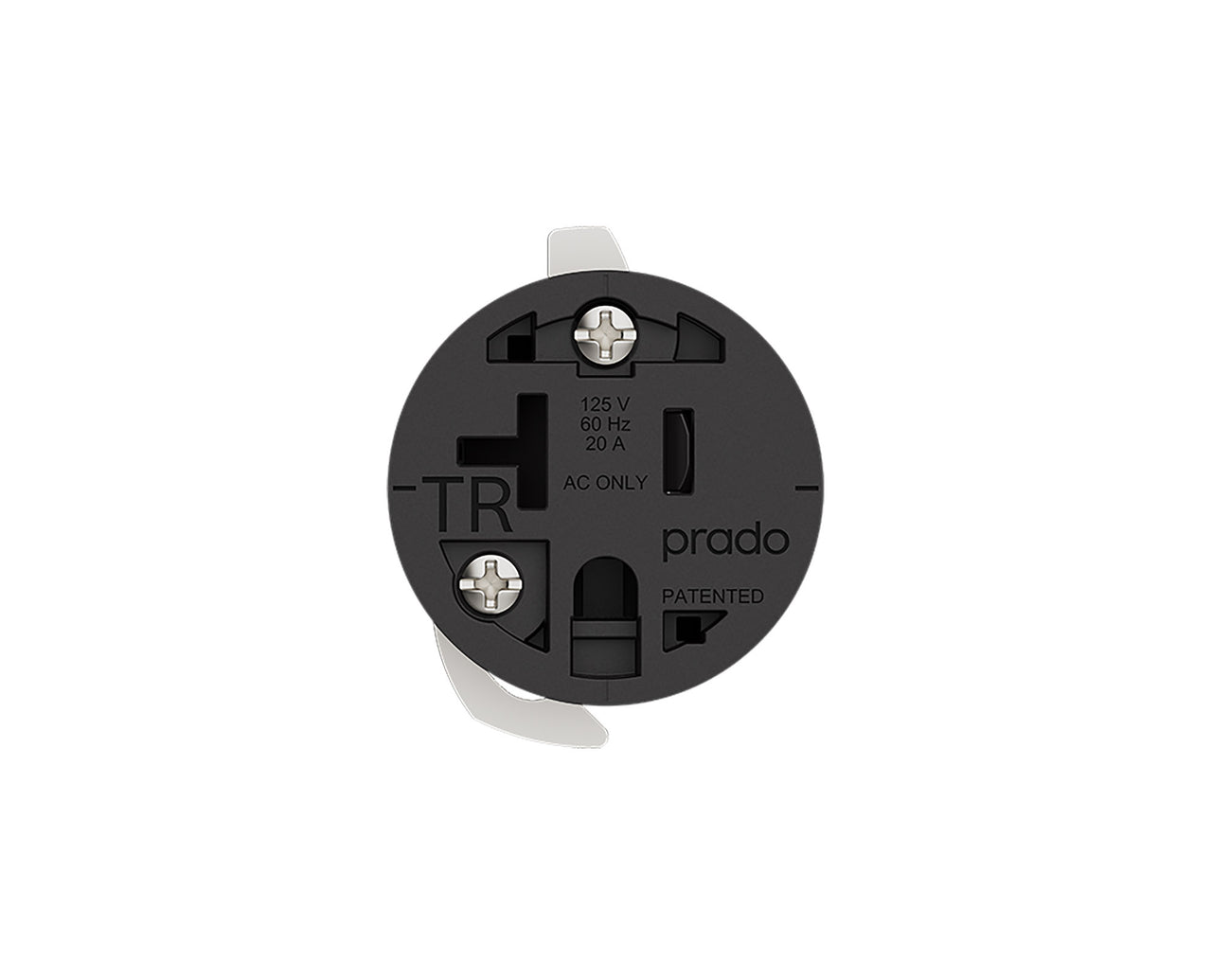

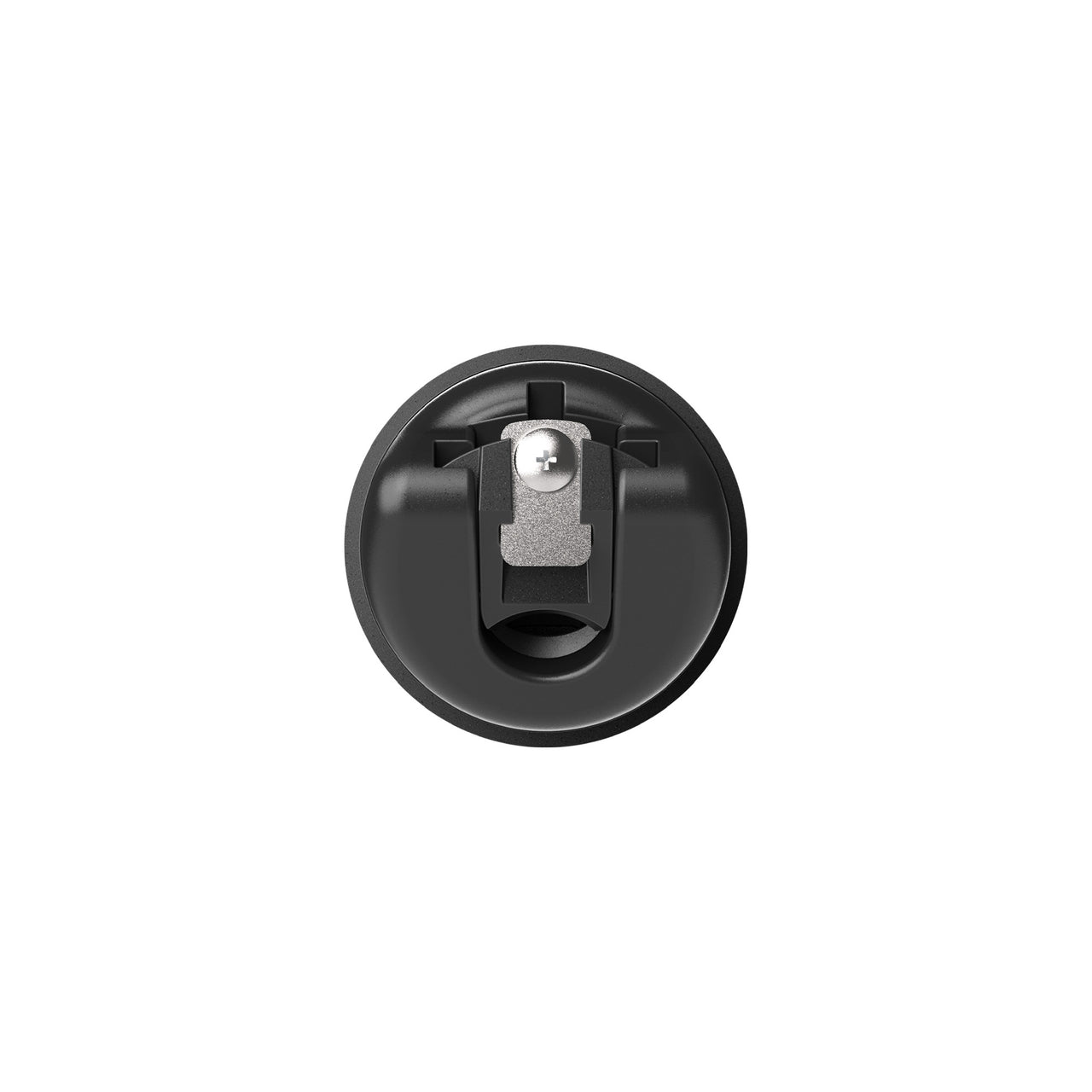

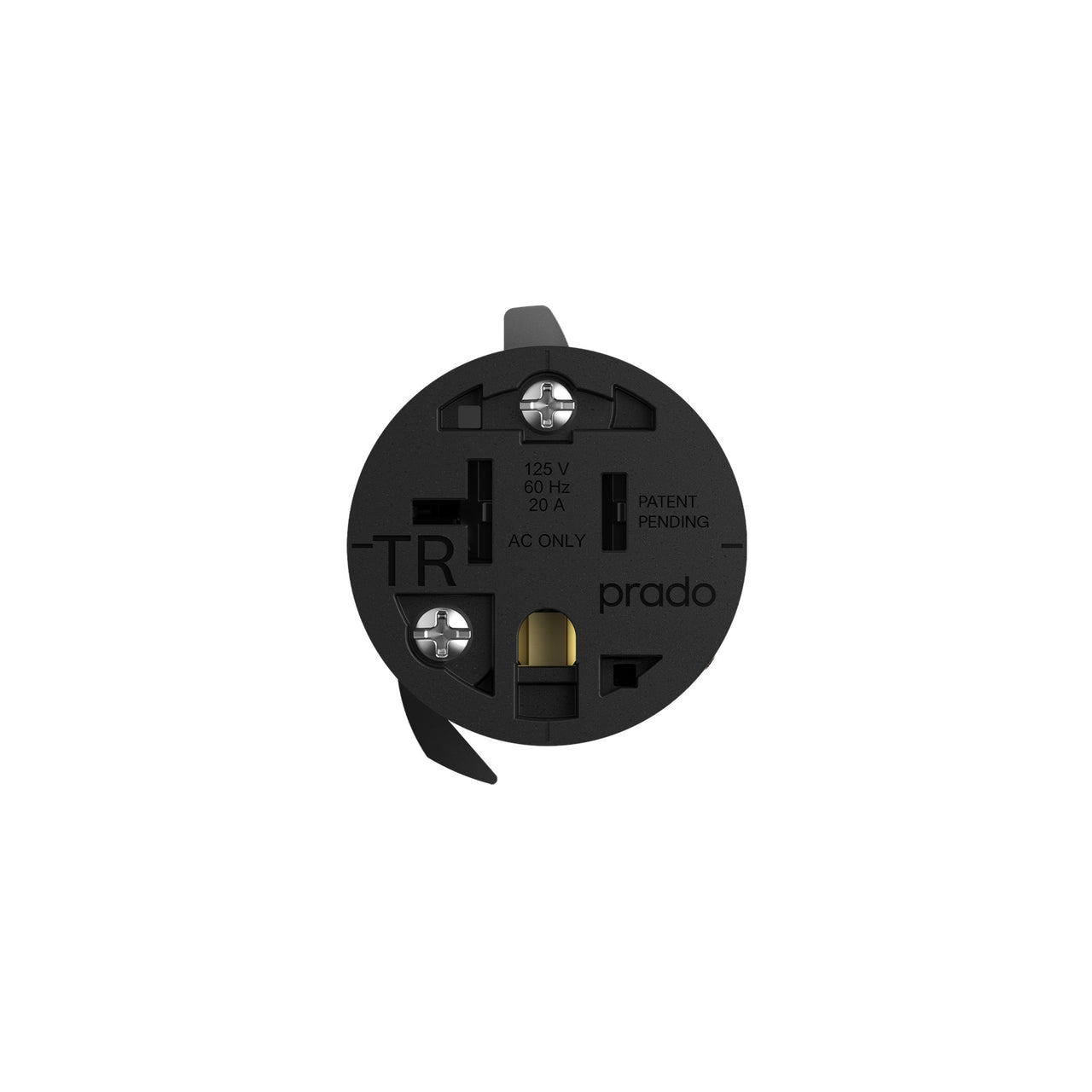

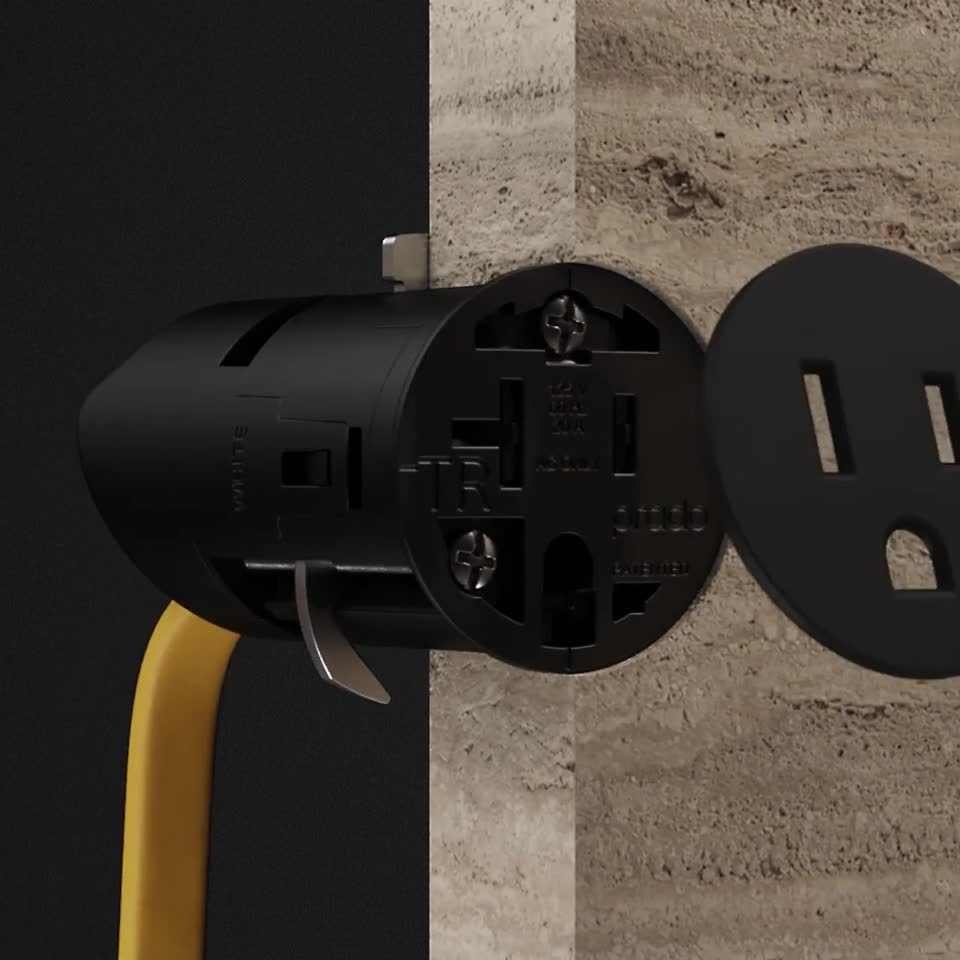

A new self-contained junction box cap allows for installation without a back box. The self-contained cap serves as the junction box and strain relief, safely securing wires while making installation a breeze and making it possible to daisy chain (or wire outlets into a series) with unmatched ease. The outlets feature internal screws concealed beneath a cover, simplifying frontal installation with just a standard screwdriver. No proprietary installation tools are required.

Safety First

Safety is at the core of Prado Unifit’s design. Each outlet is ETL Listed for use in the US & Canada and features tamper-resistant mechanisms to protect your family from electrical hazards. Additionally, these outlets can be used with a GFI/GFCI circuit, providing enhanced protection when connected to a GFI/GFCI at the circuit breaker. This ensures that your electrical setup adheres to safety standards and offers maximum protection against electrical faults.

Wireable In Series

The self-contained cap offers the ability to wire outlets in series (connect multiple units together). Simply install two or more capped units and daisy chain them together to enjoy access to multiple convenient and minimalist power points with ease.

Built to Last with Peace of Mind

Prado Unifit Single Hardwired Outlets undergo rigorous testing to ensure they meet the highest standards of durability and performance. While these outlets are designed to withstand daily use, we understand that you may need assurance in your investment. Enjoy peace of mind with a 1-year warranty, assuming the product is in new and saleable condition with all original packaging intact. Should you need to return the product within this period, and it meets these conditions, you can receive a full credit.

Application

  • Granite, Quartz, Stone, Tile, Drywall, and Wood

Outlet Dimensions

  • Cover Plate Diameter: 1-1/2" (38.1mm)
  • Outlet Diameter: 1-3/8" (34.9mm)
  • Outlet Length: 2-2/3" (67.7mm)

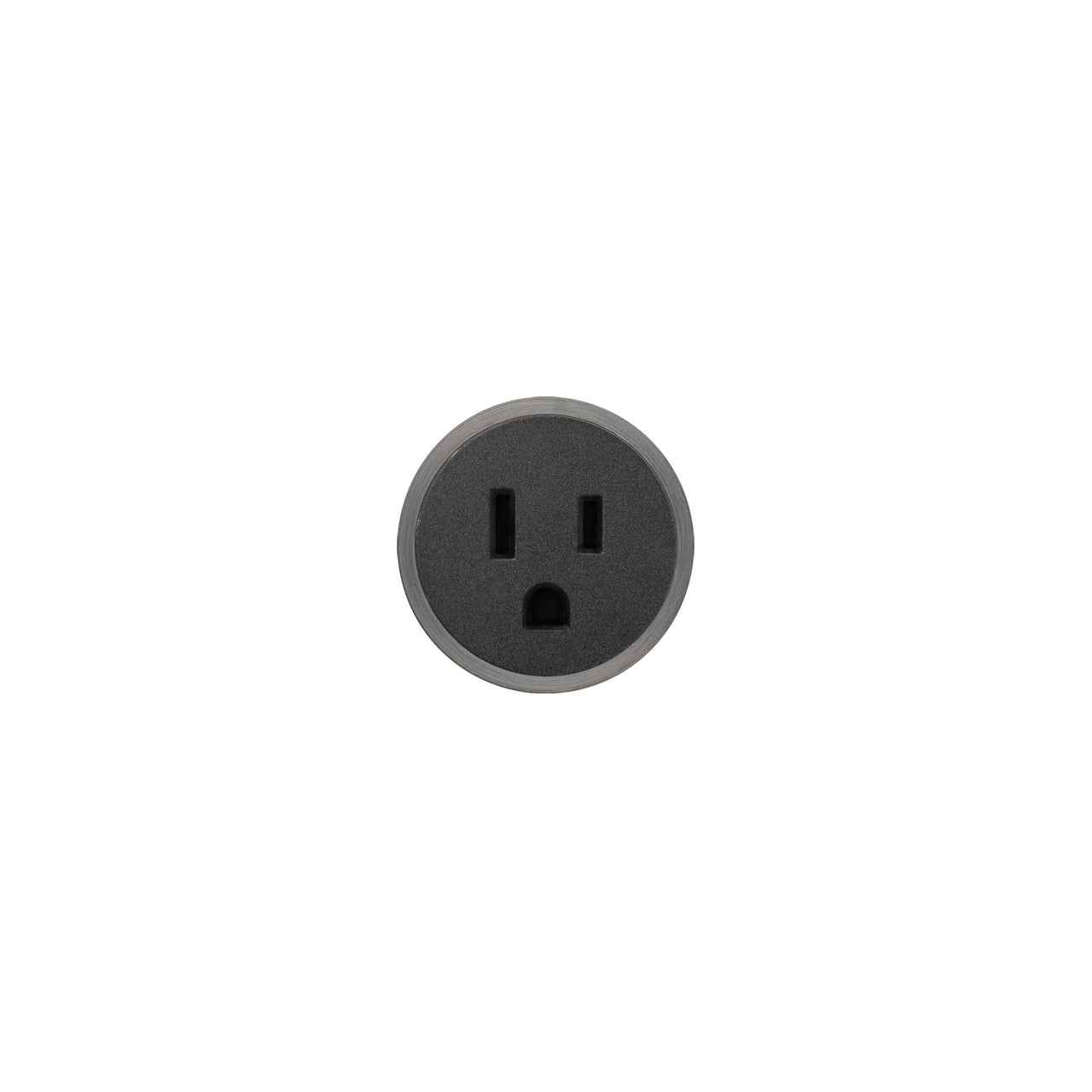

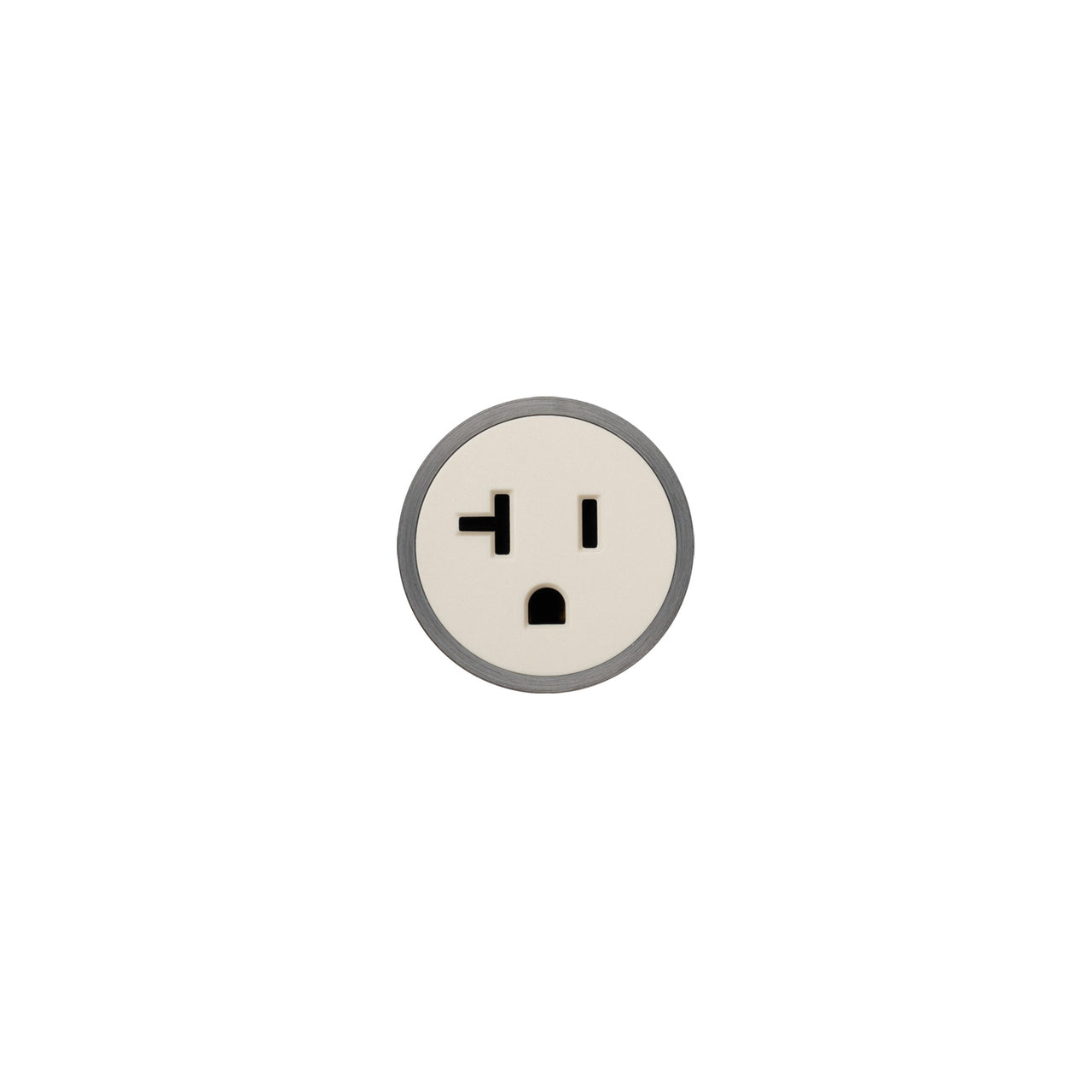

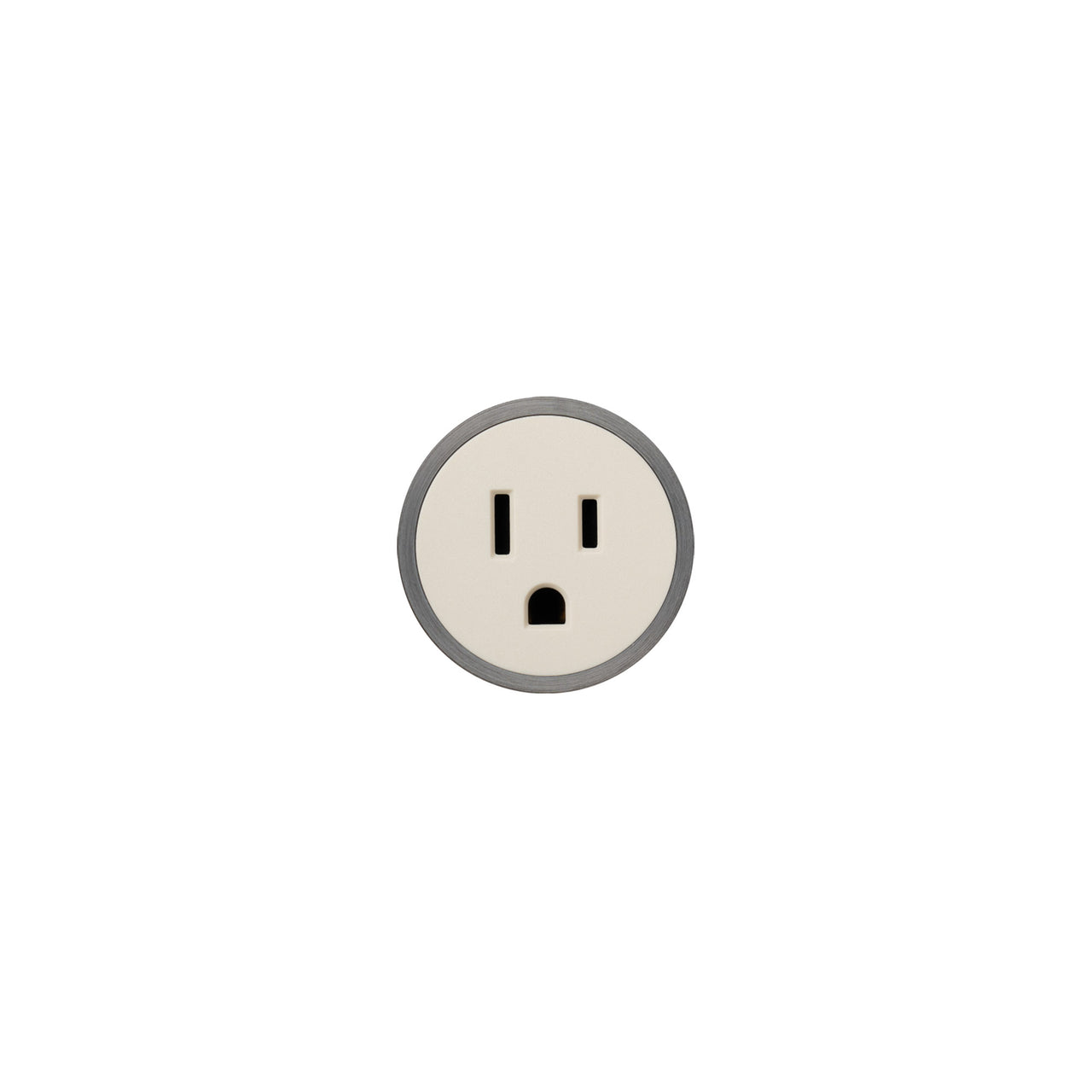

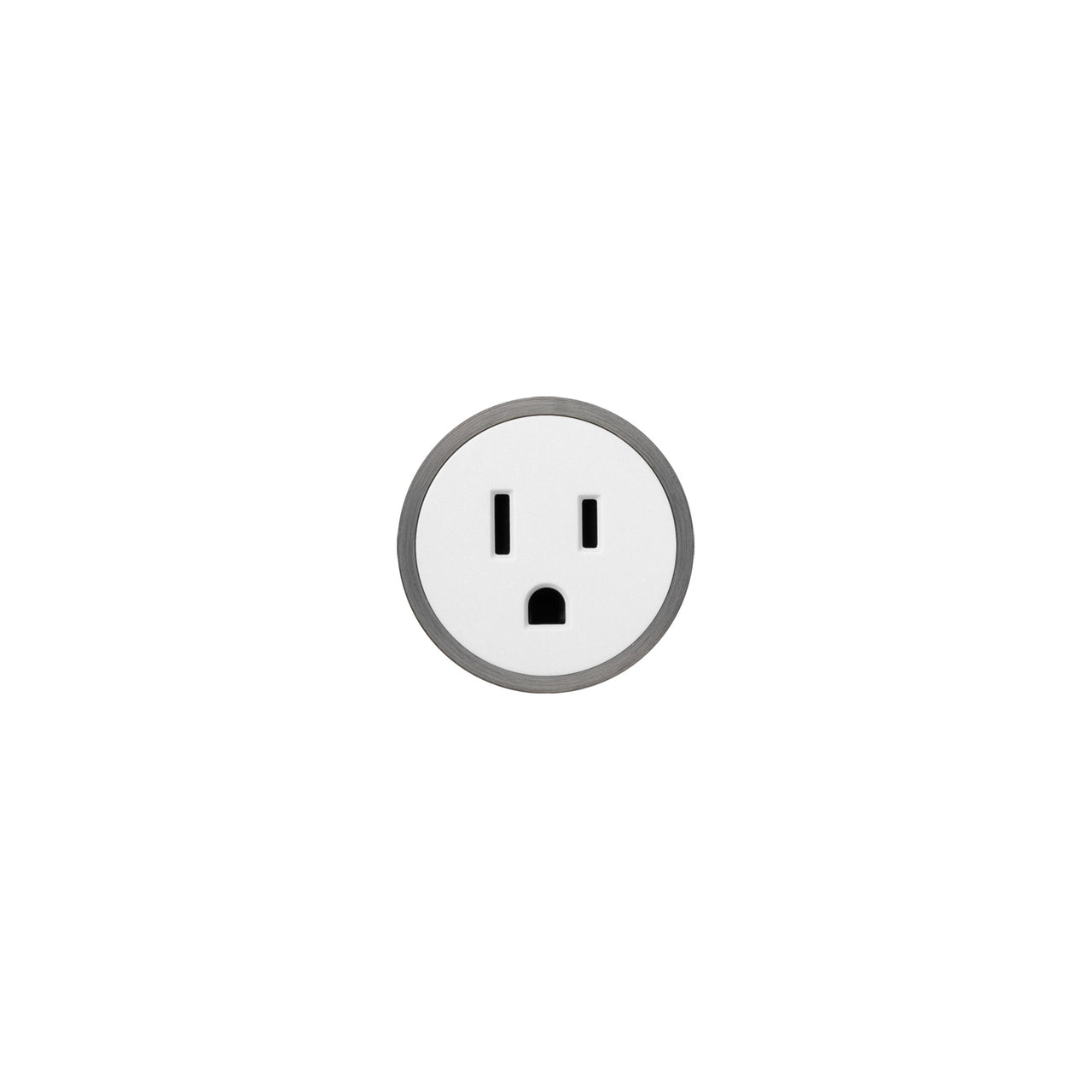

  • Trim Ring Diameter: 1-3/4" (44.45mm)

Panel Cutout

  • Surface mount: 1-3/8" (34.9mm) cutout
  • Flush mount: 1-3/8" (34.9mm) cutout with 1-3/4" [44.45mm] diameter counterbore at 5/32" [3.96mm] deep

Panel Thickness

  • 1/4 to 1-3/8” (adjustable lugs)

Electrical

  • 15/20 amp @ 125V

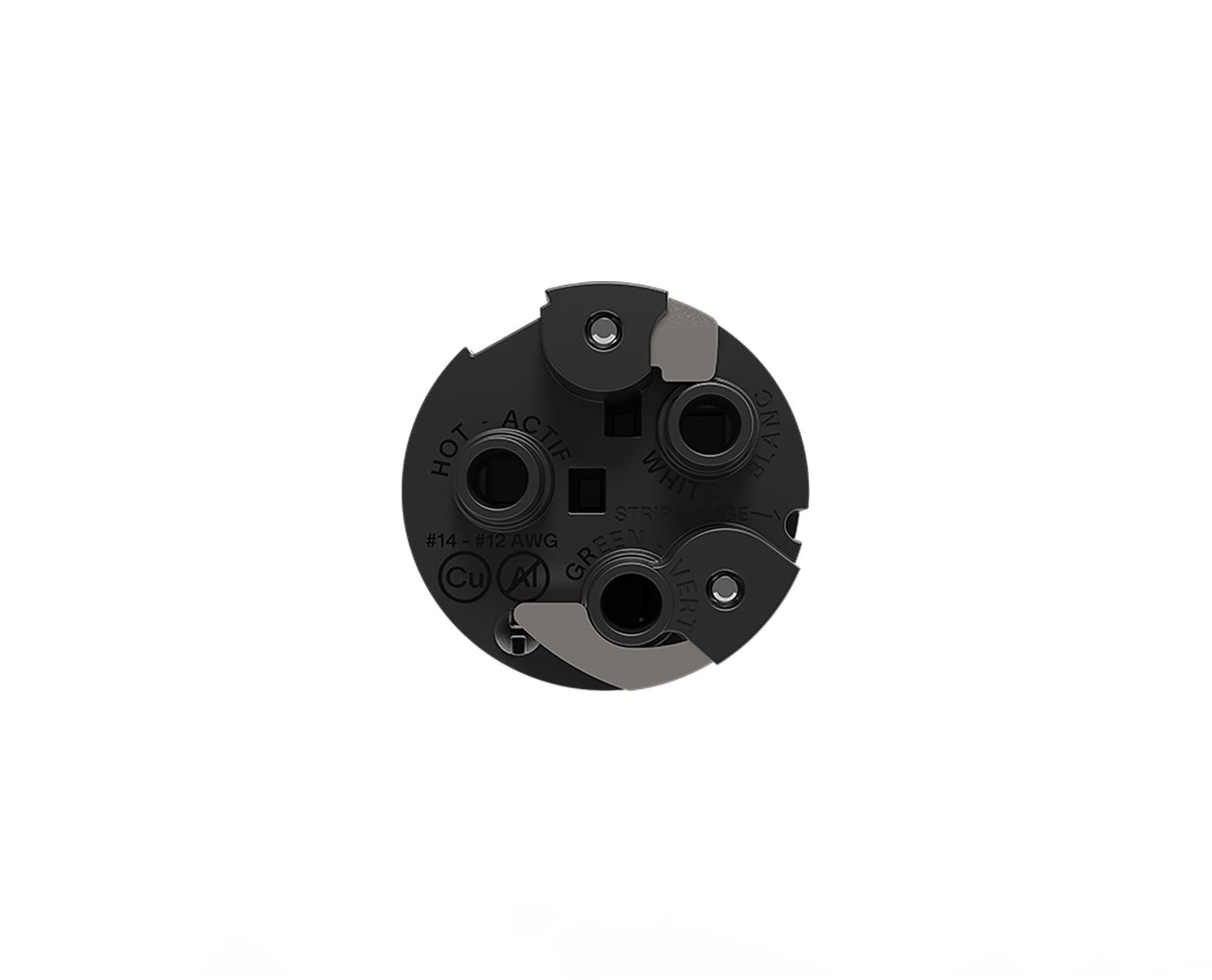

Wiring

  • 14 AWG for 15 amp
  • 12 AWG for 20 amp
  • Strip wire to 3/8"

Cabling (Hardwired)

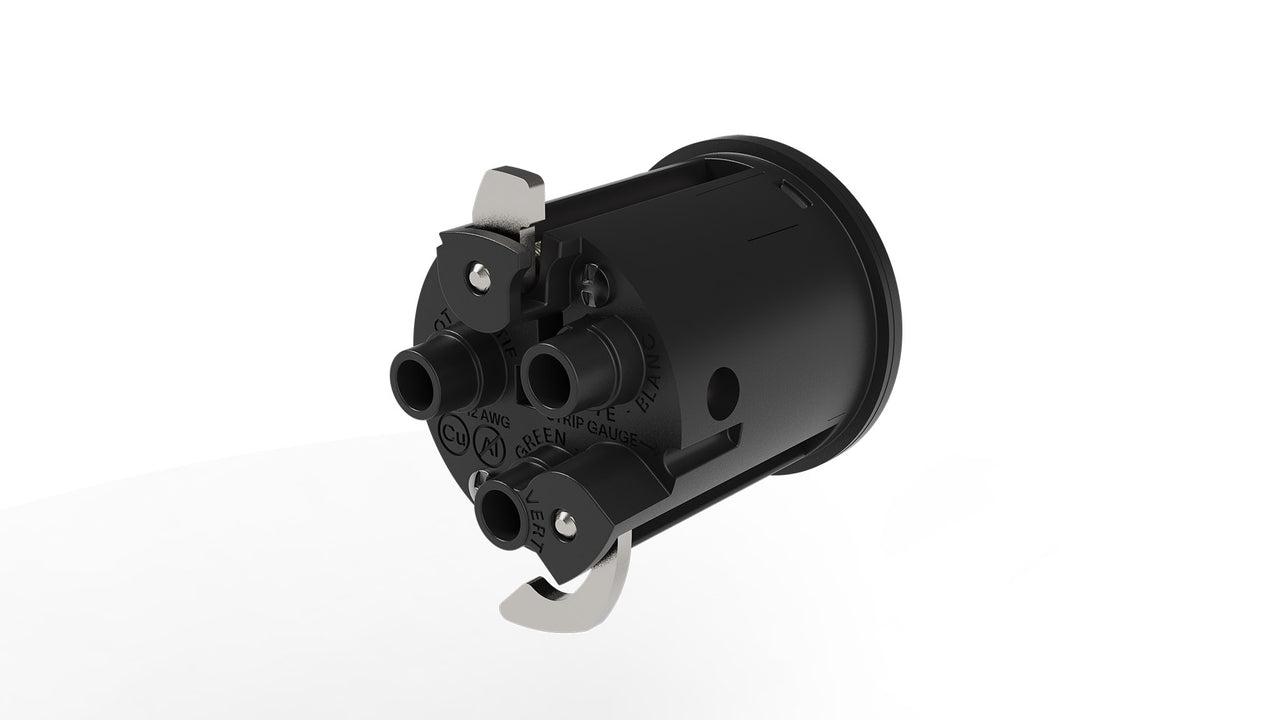

  • Included self-contained cap, optimized for Romex cable, eliminates the need for a junction box. The cap also allows daisy chaining, connecting multiple outlets in sequence for greater flexibility and efficiency.
  • If using a junction box, a junction box cover plate must be used.

Cover Plate

  • Cover plate is required for all installations.
  • Available finishes: White, Black, Sand, Clay, Espresso, and Graphite
  • All cover plates are paintable. For best results, use lacquer-based, oil-based, or polyurethane-based paint with a small detail spray gun (#3 tip) at approximately 60 psi. If using water-based paint, apply a clear protective topcoat for durability. Custom RAL colors are also available for orders of 100+ outlets.

Electrical Certification

  • ETL Listed for use in the US & Canada
  • Certified to UL 498 and CSA C22.2 No. 42
  • Horizontal Installations are not IP44 (Water) or IP54 (Dust) Rated

Tamper Resistant

  • Yes

Return Policy

30-Day Return Window

  • Returns are accepted within 30 days of your order date for a full refund or credit.
  • No returns after 30 days.

 Return Shipping

  • Customer is responsible for all return shipping costs.

Start a Return

 Questions? Visit our FAQ - How Do I Make an Exchange or Return?

What Our Customers Are Saying

average rating 4.9 out of 5
Based on 17 reviews
  • 5 Stars
    16 Reviews
  • 4 Stars
    1 Review
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Customer photos and videos
17 Reviews
Reviewed by Antonio S.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

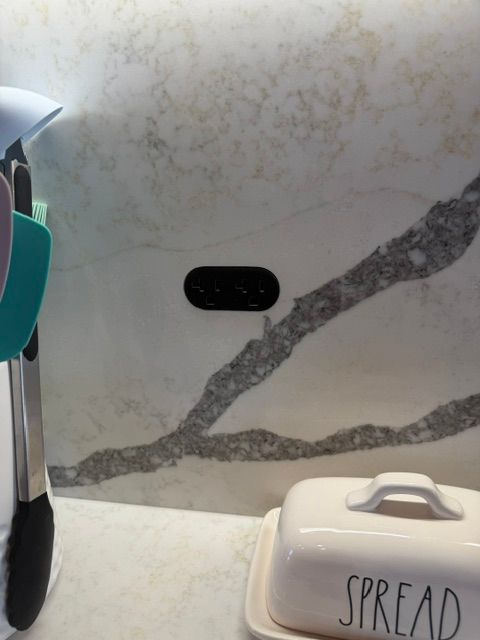

Prado outlet faces

Excellent service and fash shipping..the Prado outlets faces are great! My client is very happy! Thank you guys

Loading...
Was this helpful?
Reviewed by Sara G.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

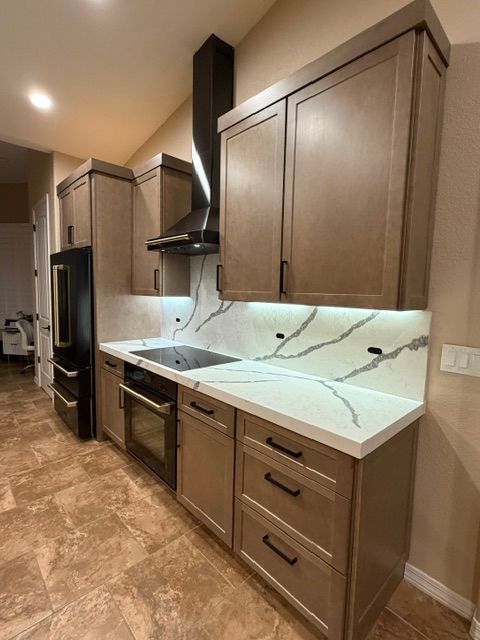

Little tricky due to tight drawer space but it worked!
