Installation Tool for Tight Spaces

$45.00
Thumbnail for Installation Tool for Tight Spaces Thumbnail for Installation Tool for Tight Spaces Thumbnail for Installation Tool for Tight Spaces
Installation Tool for Tight Spaces
Installation Tool for Tight Spaces
Installation Tool for Tight Spaces

Installation Tool for Tight Spaces

$45.00
SKU: 0024-38008
Designed for precision and speed, this optional tool simplifies Blade and Trio Series installations by ensuring perfect rear bracket alignment—key to smooth cable management arm performance. Ideal for tight spaces, high-volume manufacturing, or detail-focused installers, it’s a game-changer when access is limited or accuracy matters most. Whether on the factory floor or in the field, this tool boosts efficiency without changing our proven installation process.

Installation Process
  1. Fully extend the rear mounting bracket locator and tighten the 2 thumb screws to secure it in place.
  2. Locate the mounting fixture into the right side of the receptacle box cutout and tighten the thumb screws to lock the mounting fixture in position.

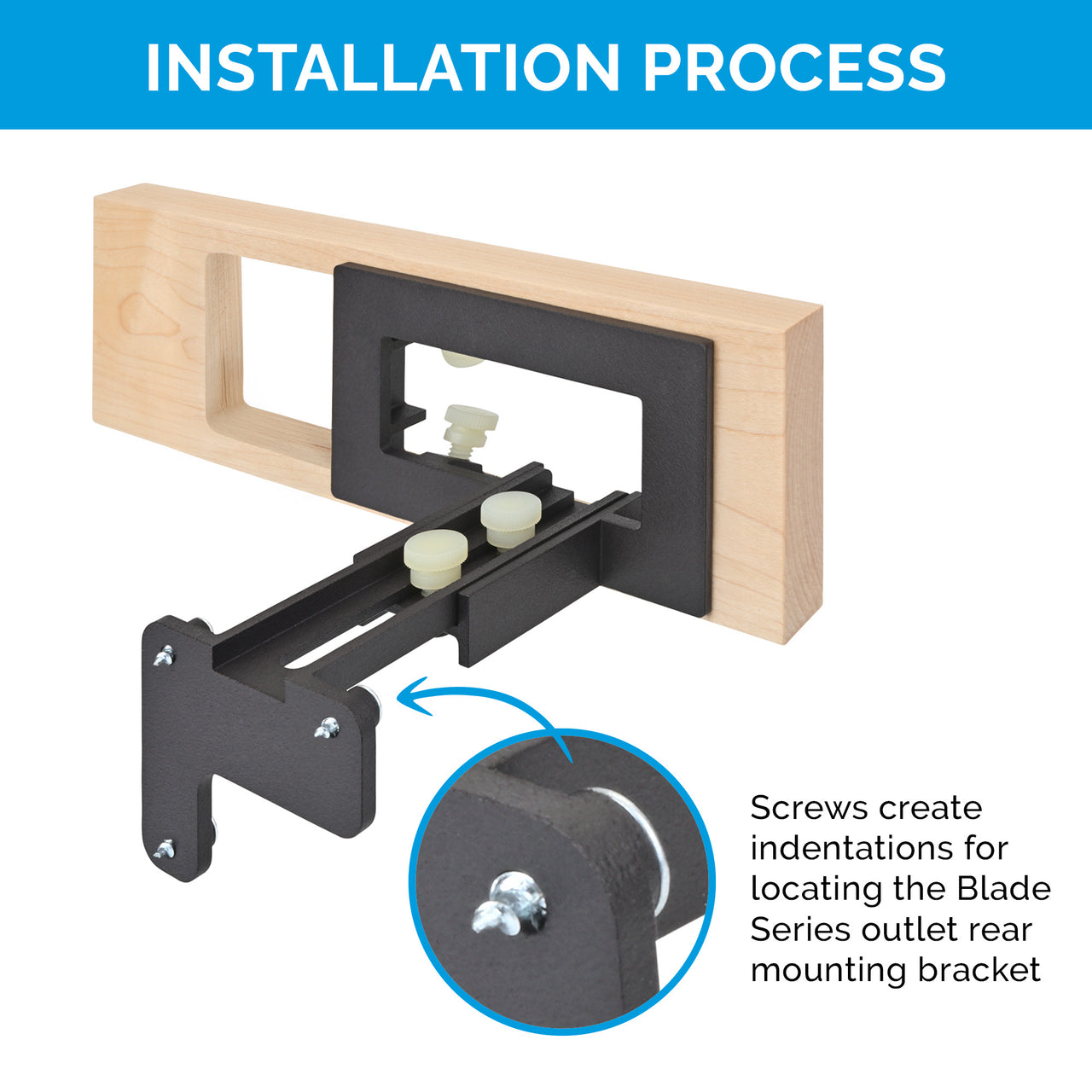

  3. Firmly close the drawer box, which will press the sharp screws into the back wall of the cabinet, leaving precise indentations that mark the perfect spot to install the rear mounting bracket.
  4. Remove the screws from the tool and install the rear mounting bracket of the in-drawer outlet at the marked locations using those same screws.
