15 amp Blade In Drawer Outlet - Deep Cabinet

$550.00

Choose Blade Duo or Blade

Pick Configuration

Select Finish

Choose Blade Duo or Blade

Pick Configuration

Select Finish

Thumbnail for 15 amp Blade In Drawer Outlet - Deep Cabinet

15 amp Blade In Drawer Outlet - Deep Cabinet

15 amp Blade In Drawer Outlet - Deep Cabinet

Name: 15 amp Blade In Drawer Outlet - Deep Cabinet
Brand: Docking Drawer
Price: 550.0 USD
Availability: InStock
Rating: 5.0 (2 reviews)

Rated 5.0 out of 5

Based on 2 reviews

$550.00

SKU: 1514-277W-X30

Choose Blade Duo or Blade

Pick Configuration

Select Finish

10 Day Lead Time

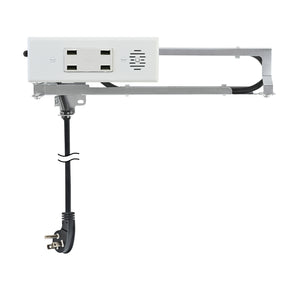

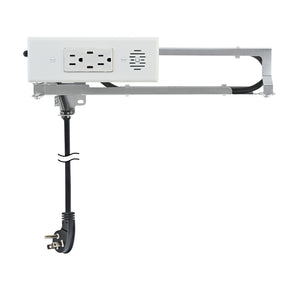

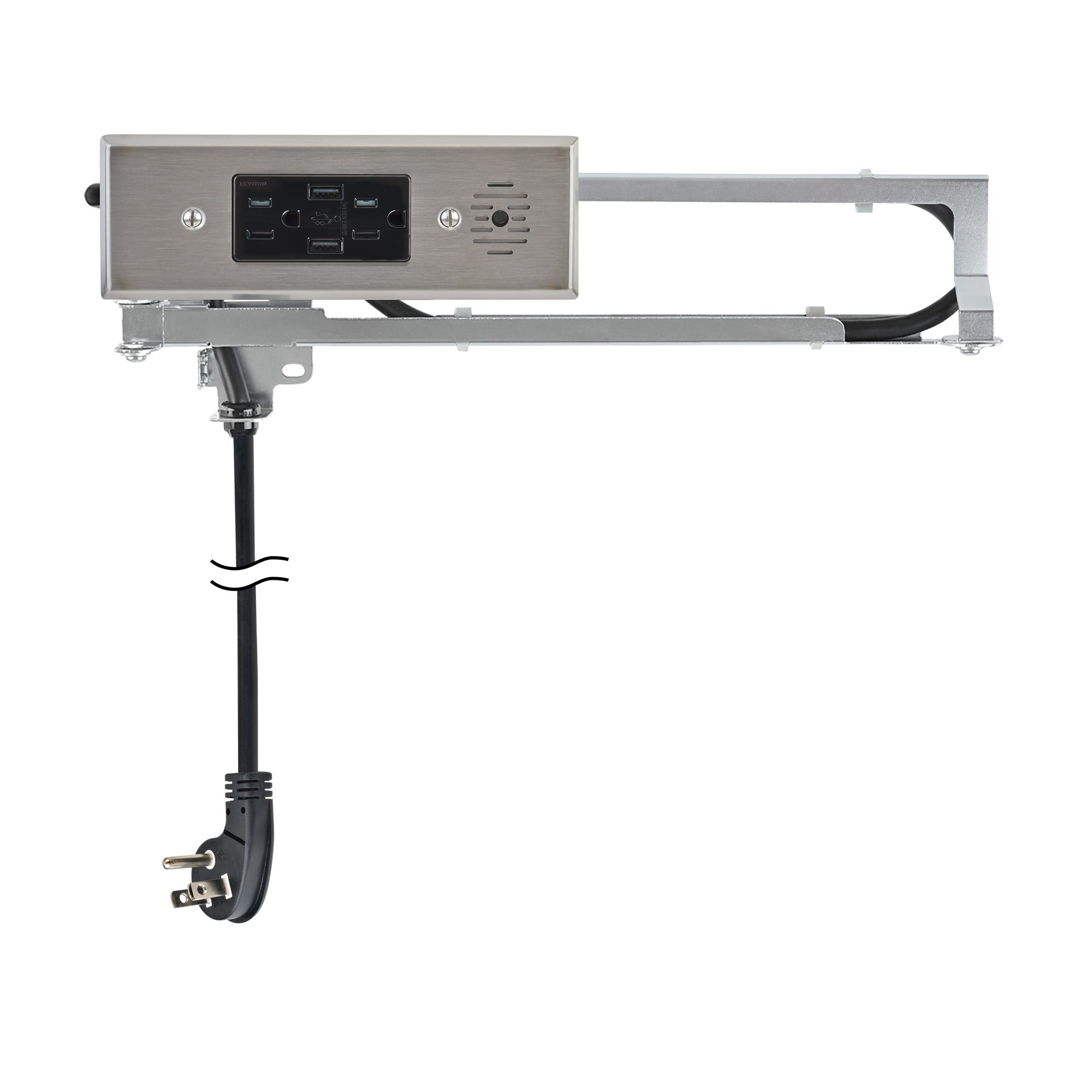

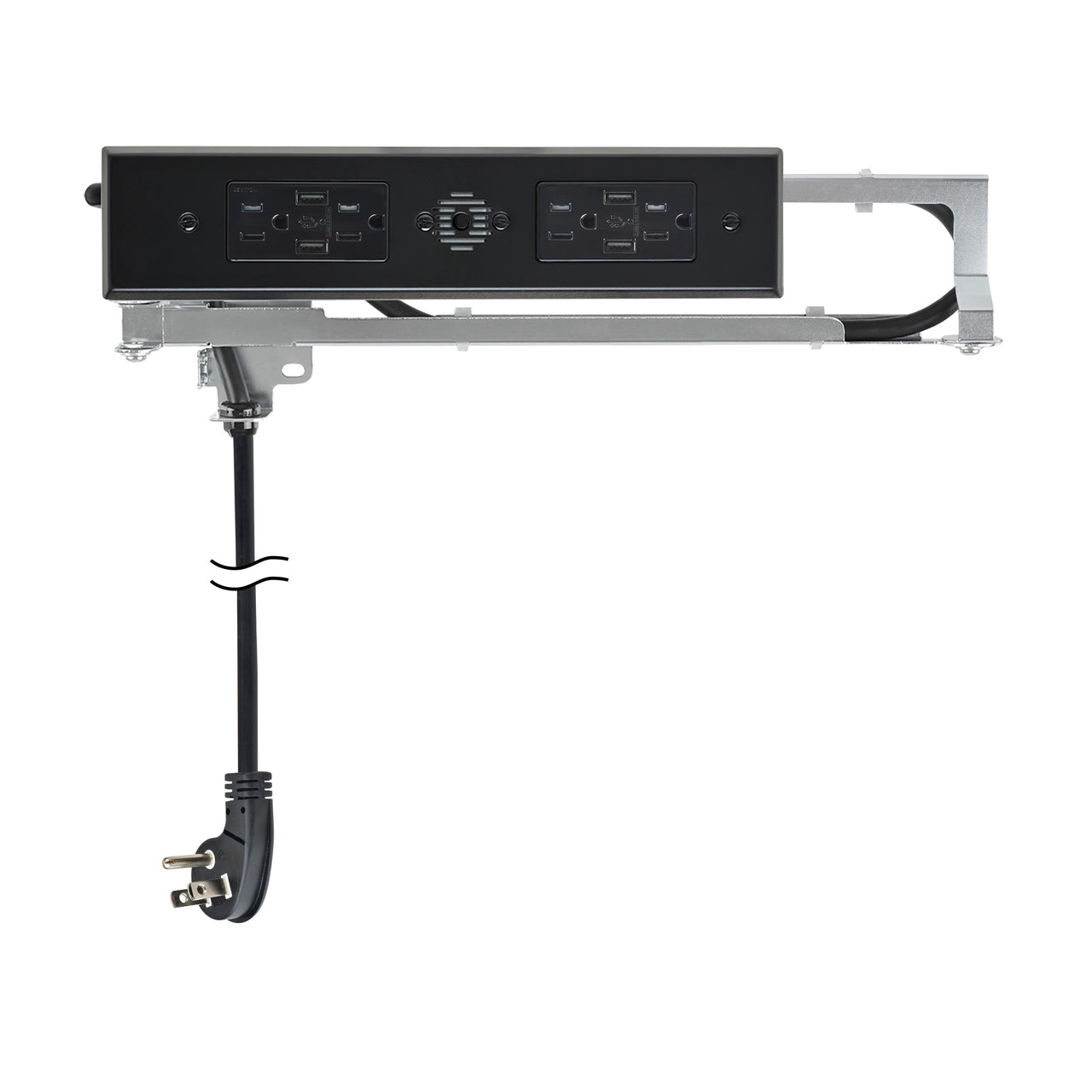

Get Organized with Blade Series Deep Cabinet Outlets

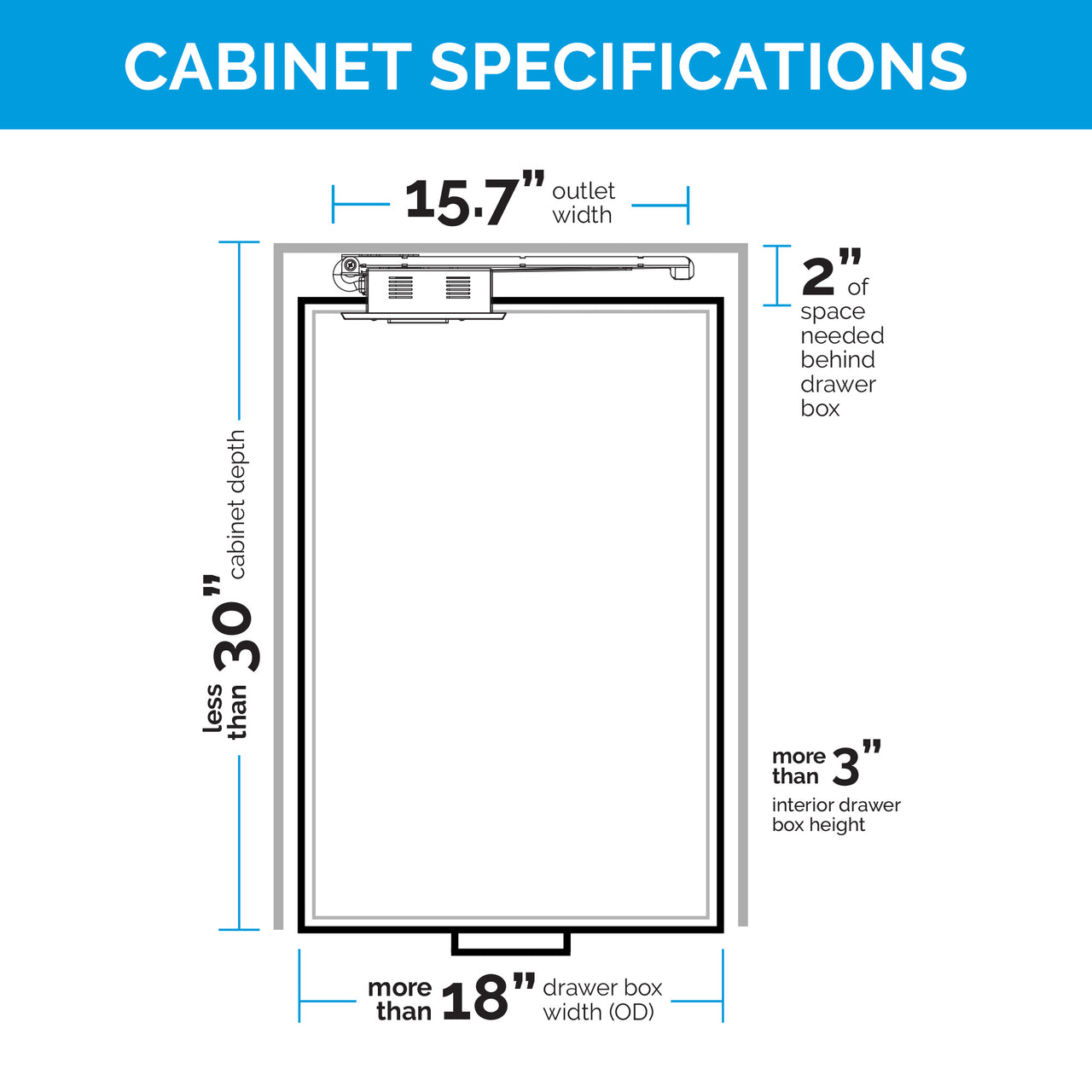

It’s time to declutter spaces in your home that have harder-to-reach power sources, such as kitchen islands, printer drawers, and base cabinets. Our Blade Series Deep Cabinet Outlets safely charge up to four devices or power up to two devices at a time, like all Blade Series outlets. Unlike our standard Blade Series outlets, these are purpose-built for applications with drawer slide lengths greater than 21”, which is a common requirement for deep kitchen islands. These outlets come equipped with cable management arms that are 15.7” wide (2.7” longer than our standard 13”) providing increased extension for seamless integration in deeper cabinets.

Smart Solutions

Customize your space with Docking Drawer's 15 amp Blade Deep Cabinet outlets, offered in a variety of finishes and configurations to match your aesthetic and needs. Choose from white, black, stainless steel, or brass finishes, all made with metal (not plastic) because we believe in providing you quality at the highest level. Select your preferred outlet configurations including AC plugs or USB-C (PD 30 & 65 Watt) and USB-A charging ports to create organized and functional spaces. Stay connected and eliminate the hassle of constantly plugging and unplugging your devices with our in-drawer outlets, making it effortless to use your devices whenever needed. Plus, Blade Series outlets are easily upgradable and serviceable over time, ensuring a future-proof and reliable in-drawer outlet solution.

Simple Installation

We have perfected and scrutinized every detail so that specifying outlets for your drawer is simple and straightforward. Our outlets offer effortless installation, fitting a variety of drawer types like shallow, tall, and vertical drawers. The product package includes fully assembled drawer outlets, drawer cutout templates, and other resources to help take out the guesswork. We also include the seven screws needed for a hassle-free setup. The Blade Duo and Blade Series outlets can be installed facing left, right, up, or down with just 2" of space needed behind the drawer box, and the 3.5’ outlet cord easily plugs into any outlet. These outlets seamlessly integrate into standard and custom cabinet sizes and are designed to work with soft-close drawers as well.

Safety Commitment

Safety is the top priority at Docking Drawer, and our outlets reflect that commitment. Equipped with an interlocking thermostat safety feature, our outlets de-energize when temperatures exceed 120°F/49°C, ensuring a secure environment. We refuse to cut corners, which is why we subject our outlets to rigorous cycle testing over 500,000 times—equivalent to a drawer opening and closing every 15 minutes for 30 years. Our cable management arms are strategically designed for your safety as well. The metal arms protect the power cord and use strain reliefs to allow the cord to flex and not wear through usage over time. All Blade Series in-drawer outlets are ETL Listed for use in the US & Canada, they are tamper-resistant as an added layer of protection. We are so passionate about the safety of our products that we offer an unheard-of 5-year warranty so that you can also feel confident in your investment.

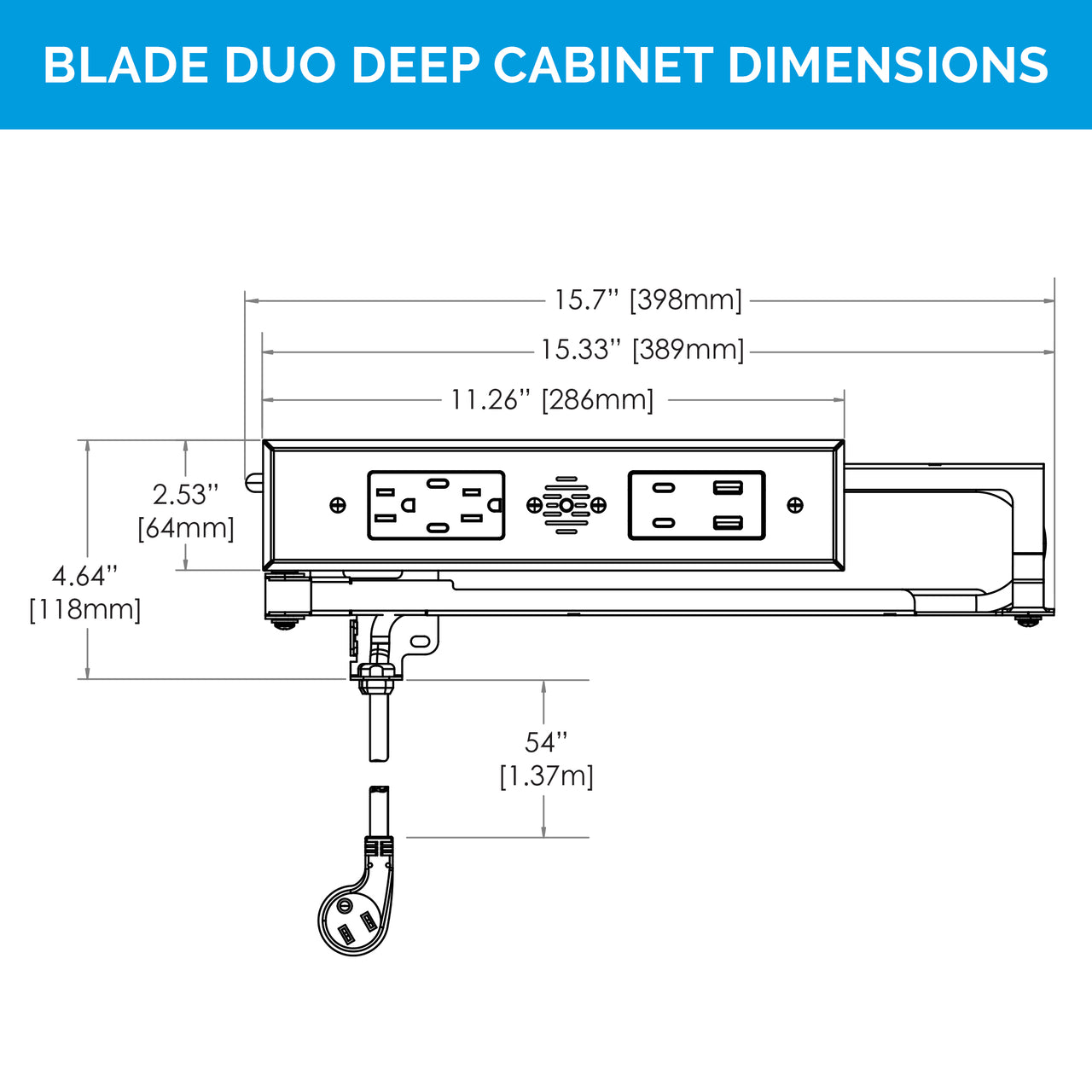

	Imperial	Metric
Outlet Width	15.7”	398mm
Outlet Height	4.64"	118mm
Outlet Depth	2.5"	64mm
Receptacle Box Depth	1.93"	49mm
Cover Plate Height	2.52"	64mm
Cover Plate Width	7.18"	182mm
Cover Plate Thickness	0.29"	7.5mm
Cable Management Arms Height	3"	76mm
Cord Length (measured from the rear mounting bracket)	42"	1.07m

#	Outlet Configuration	Outlet Specifications
1	2 AC & 2 USB-A	AC: 15 amps @ 120 VAC USB-A: 3.6 amps @ 5 VDC
2	4 USB-A	4.2 amps @ 5 VDC
3	2 AC & 2 USB-C (PD - 30 Watt)	AC: 15 amps @ 120 VAC USB-C (single port connected to PD device): 3 amps @ 9 VDC (30W) USB-C (single port connected to non-PD device): 3 amps @ 5 VDC (15W) USB-C (both ports connected): 3 amps @ 5 VDC (30W total power)
4	2 AC, 1 USB-C (PD - 30 Watt) & 1 USB-A	AC: 15 amps @ 120 VAC USB-C (non-PD device): 3 amps @ 5 VDC (15W) USB-A: 2.4 amps @ 5 VDC
5	2 AC - GFCI	15 amps @ 120 VAC
6	2 AC	15 amps @ 120 VAC

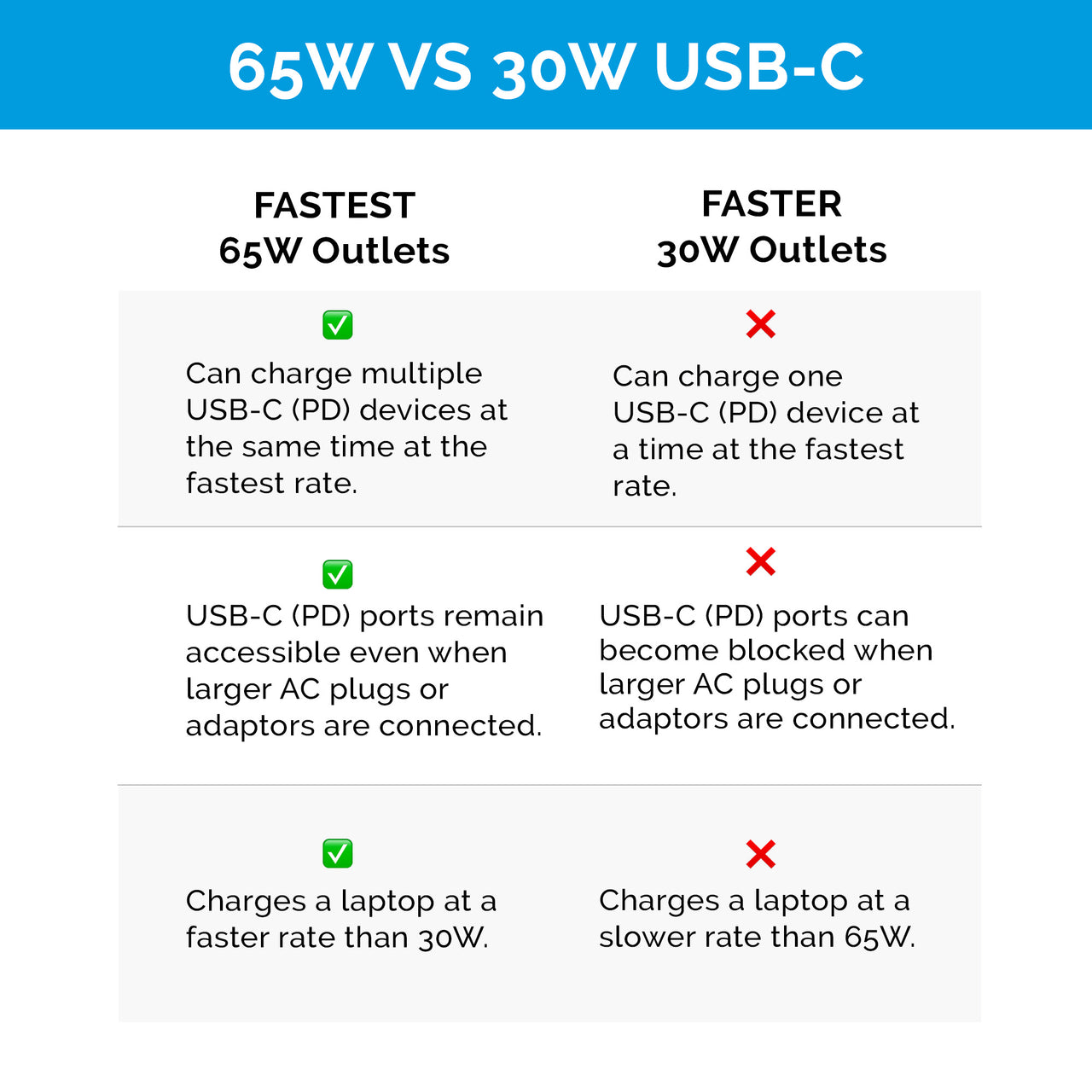

7	2 AC & 2 USB-C (PD - 65 Watt)	AC: 15 amps @ 120 VAC USB-C (PD) 65 Watt Shared USB-C (single port connected to PD device): 65W 5V/3A; 9V/3A; 12V/3A; 15V/3A; 20V/3.25A USB-C (both ports connected to PD devices): 65W total C1/C2: 5V/3A; 9V/3A; 12V/2.5A; 15V/2A; 20V/1.5A
8	(2) 30W USB-C & (2) USB-A	USB-C (PD): 30 Watt Shared USB-C (single port connected to PD device): 30W max 5V/3A:9V/3A:12V/2.5A;15V/2A;20V/1.5A USB-C (both ports connected): 15W each port C1:5V/3A C2:5V/3A USB-A (max with one or both ports connected) 12W total 5v/2.4A
