15 amp Blade In Drawer Outlet

$235.20

Outlet Configuration

Finish

Thumbnail for charging station Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 1514-170W, T5636-W Thumbnail for 1514-170B, T5636-W Thumbnail for 1514-170S, T5636-W Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet Thumbnail for 15 amp Blade In Drawer Outlet
charging station
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet

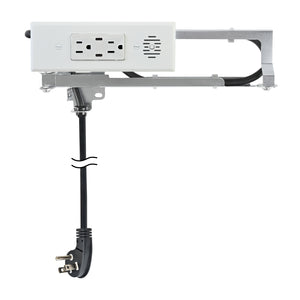

1514-170W, T5636-W
1514-170B, T5636-W
1514-170S, T5636-W
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet
15 amp Blade In Drawer Outlet

15 amp Blade In Drawer Outlet

Rated 4.9 out of 5
Based on 109 reviews
$235.20

SKU: 1514-160W

Get Organized with Blade Series Outlets

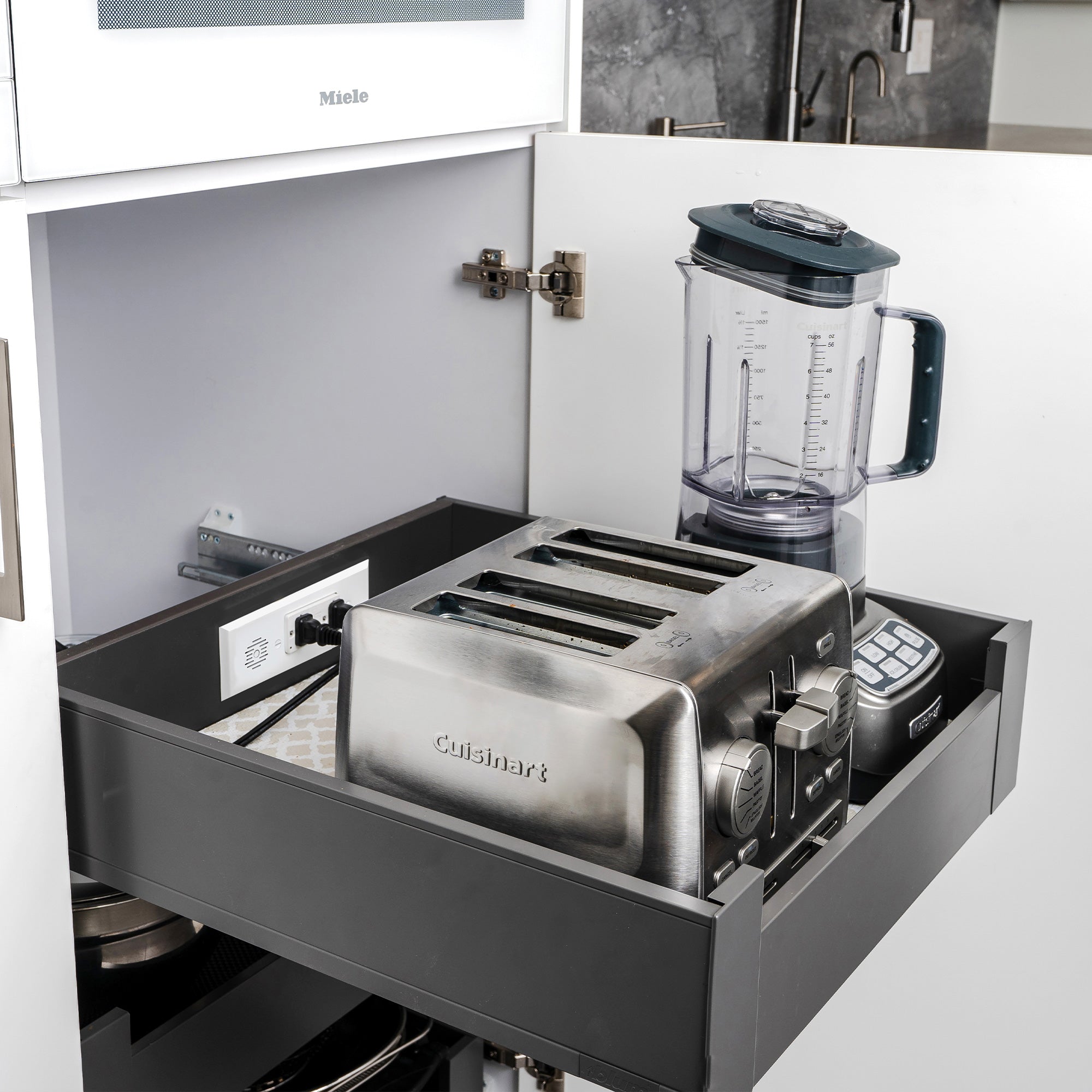

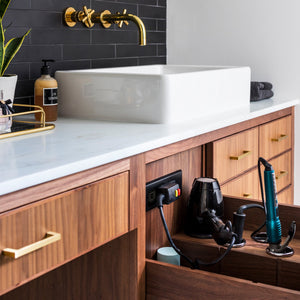

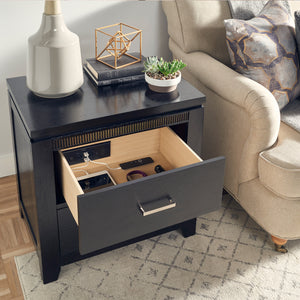

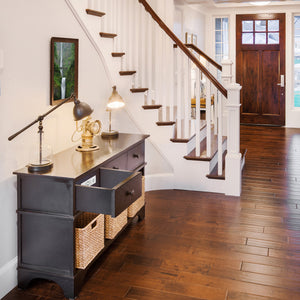

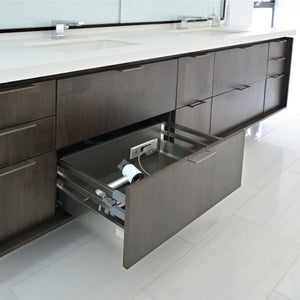

Streamline and declutter your countertops effortlessly with Docking Drawer's Blade Series outlets. Our 15 amp Blade In-Drawer Outlets are the ultimate solution for a neat and organized space. With the ability to safely charge up to four devices simultaneously or power up to two devices, these outlets are perfect for drawers in any kitchen, bathroom, makeup desk, entryway table, or wherever you need to install an outlet.

Smart Solutions

Customize your Docking Drawer 15 amp Blade In-Drawer Outlet to match your style and needs. Choose from white, black, stainless steel, or brass finishes, and select outlets featuring AC plugs or USB-C (PD 30 & 60 Watt) and USB-A charging ports. Stay effortlessly connected by keeping your devices plugged in at all times, eliminating the hassle of constantly plugging and unplugging hot tools, small appliances, and other devices. Plus, with easy replacement and upgrade options, our Blade Series outlets ensure a future-proof and reliable in-drawer outlet solution.

Simple Installation

Installation is a breeze with the Blade Series outlets. They are designed to fit various drawer types, including shallow, tall, narrow (as small as 9" wide), and vertical drawers. Choose the configuration that suits you best, whether it's facing left, right, up, or down. With just 2" of space required behind the drawer box (reduced to 1.25" with a spacer for limited spaces), our outlets can be seamlessly integrated into both standard and custom cabinet sizes using the seven screws included in the package. The 4.5' outlet cord conveniently plugs into any in-cabinet outlet.

Safety is Our Priority

At Docking Drawer, safety is our utmost priority. Our outlets are ETL Listed for use in the US & Canada and are tamper-resistant. They feature an interlocking thermostat safety feature that de-energizes the outlet when temperatures exceed 120°F/49°C, ensuring a secure and protected environment. Additionally, our outlets undergo rigorous cycle testing over 500,000 times, equivalent to a drawer opening and closing every 15 minutes for 30 years. Rest assured, every Docking Drawer Blade Series outlet is backed by a confident 5-year warranty.

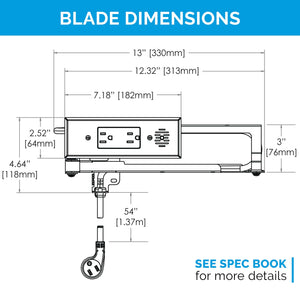

Imperial Metric
Outlet Width 13” 330mm
Outlet Height 4.64" 118mm
Outlet Depth 2.5" 64mm
Receptacle Box Depth 1.93" 49mm
Cover Plate Height 2.52" 64mm
Cover Plate Width 7.18" 182mm
Cover Plate Thickness 0.29" 7.5mm
Cable Management Arms Height 3" 76mm
Cord Length (15 amp) measured from the rear mounting bracket 54" 1.37m
Cord Length (20 amp) measured from the rear mounting bracket 36" 0.9m
# Outlet Configuration Outlet Specifications

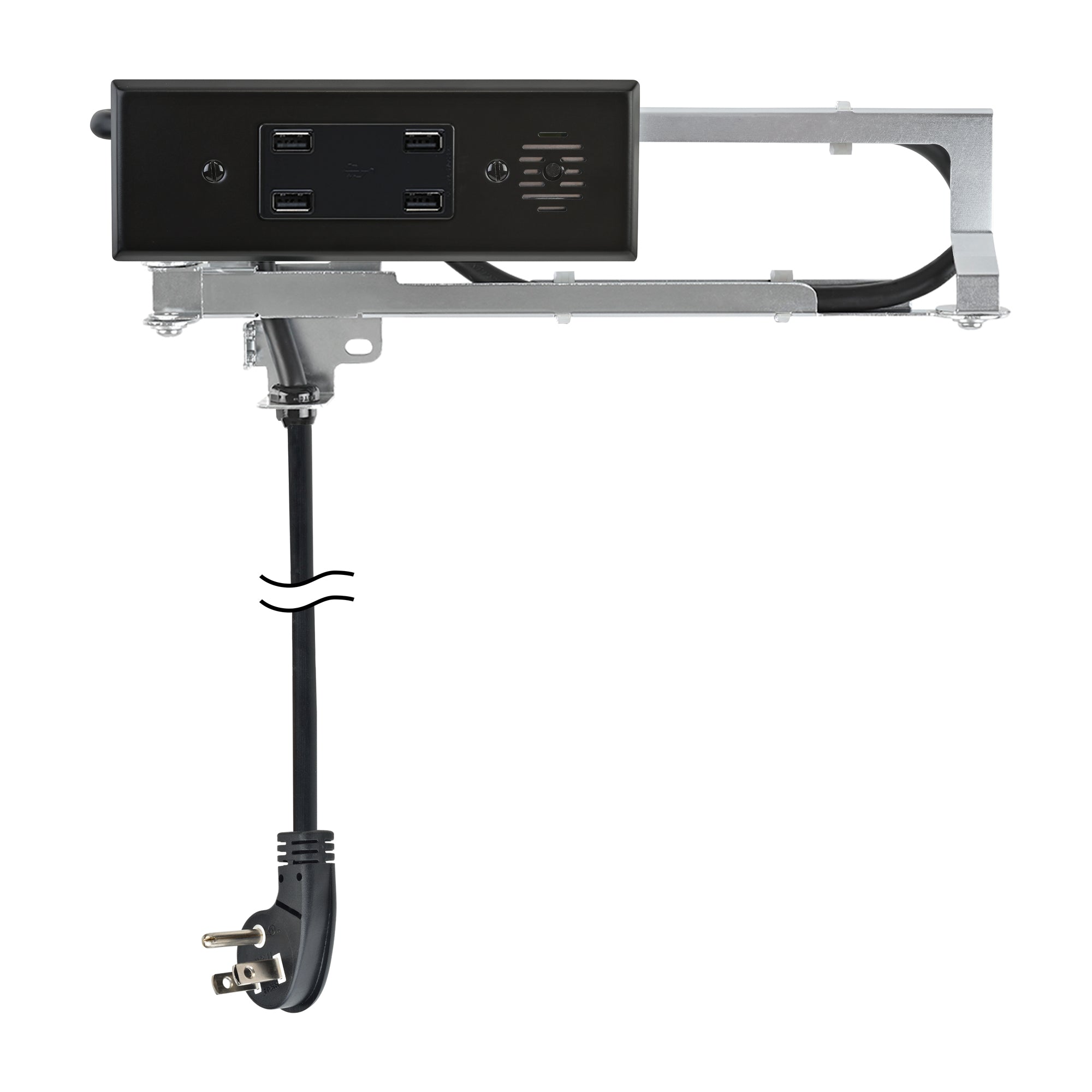

1 2 AC & 2 USB-A AC: 15 amps @ 120 VAC
USB-A: 3.6 amps @ 5 VDC
2 4 USB-A 4.2 amps @ 5 VDC
3 2 AC & 2 USB-C (PD - 30 Watt) AC: 15 amps @ 120 VAC
USB-C (single port connected to PD device): 3 amps @ 9 VDC (30W)
USB-C (single port connected to non-PD device): 3 amps @ 5 VDC (15W)
USB-C (both ports connected): 3 amps @ 5 VDC (30W total power)
4 2 AC, 1 USB-C (PD - 30 Watt) & 1 USB-A AC: 15 amps @ 120 VAC
USB-C (non-PD device): 3 amps @ 5 VDC (15W)
USB-A: 2.4 amps @ 5 VDC

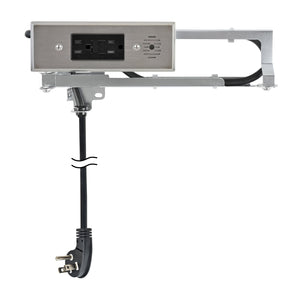

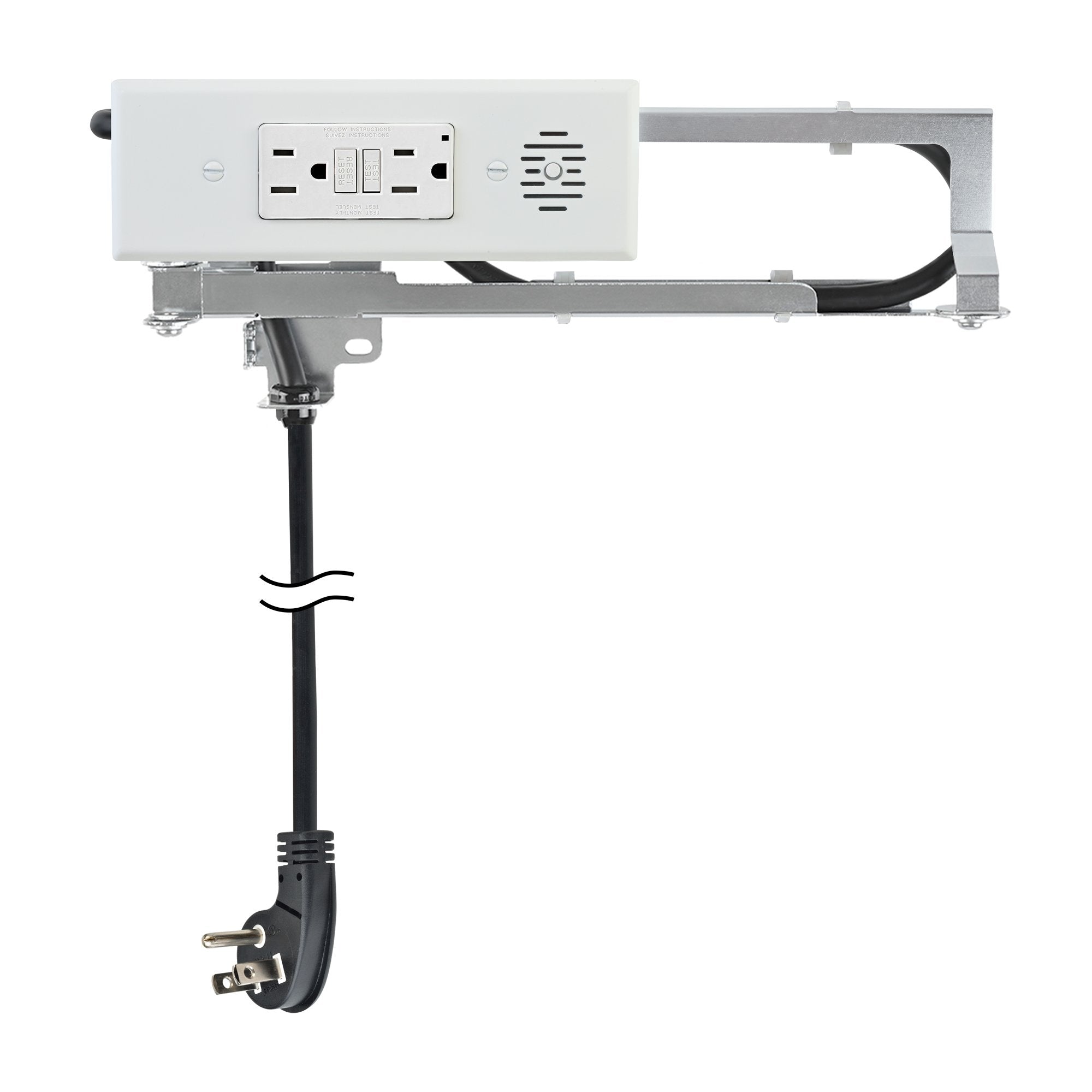

5 2 AC - GFCI 15 amps @ 120 VAC
6 2 AC 15 amps @ 120 VAC
7 2 AC & 2 USB-C (PD - 60 Watt) AC: 15 amps @ 120 VAC
USB-C (single port connected to PD device): 3 amps @ 20 VDC (60W)
USB-C (both ports connected to PD devices): 3 amps @ 9 VDC x 2 ports (60W)
USB-C (one or both ports connected to non-PD device): 3 amps @ 5 VDCx 2 ports (30W)

How to Plan Your Docking Drawer Project

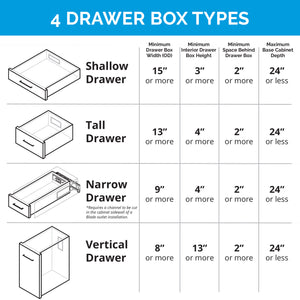

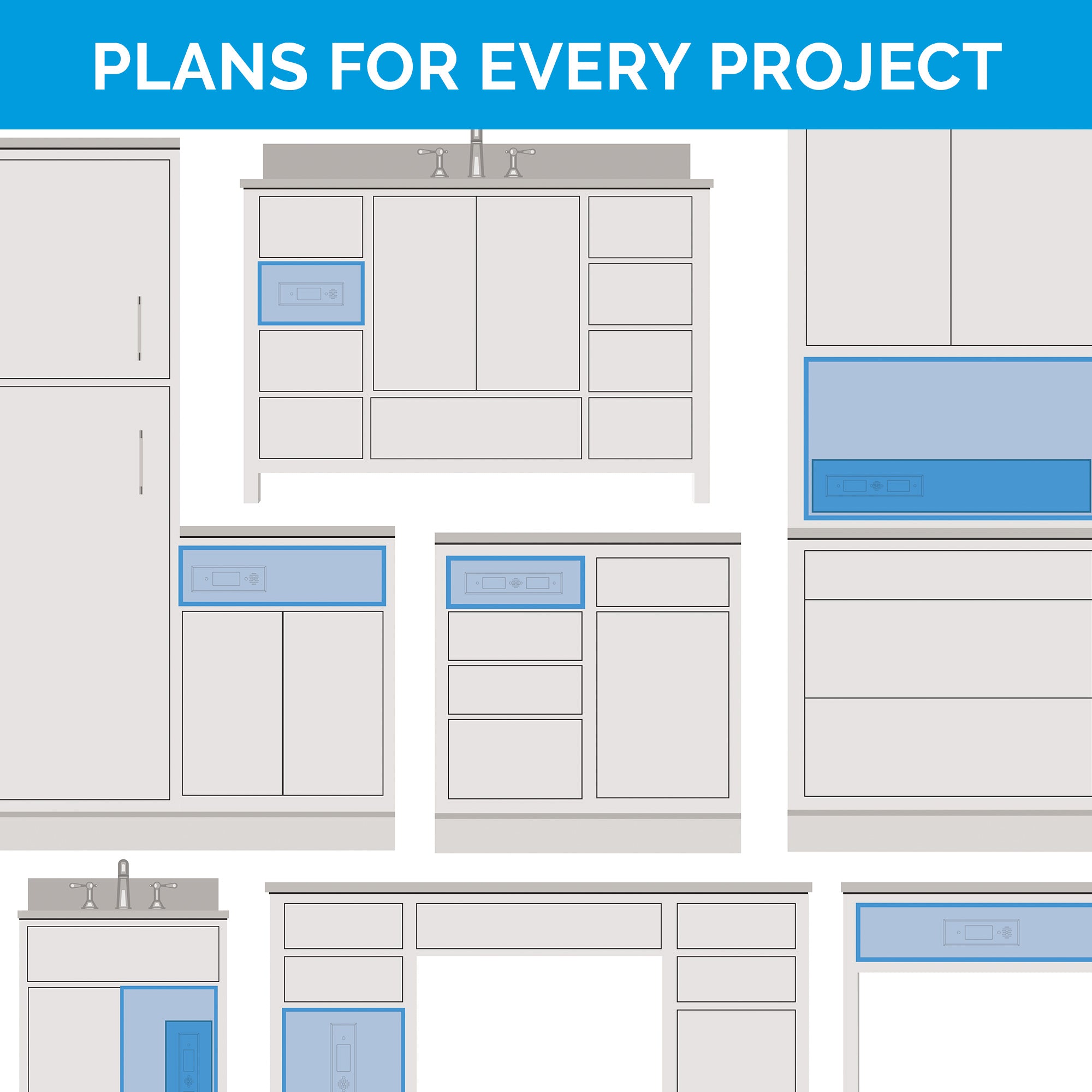

Every Docking Drawer Blade Series project starts by identifying your drawer box type. There are four basic drawer types to choose from - Shallow, Tall, Narrow, and Vertical. After identifying your drawer box type, measure the drawer box width (OD) to confirm the drawer is wide enough to accept a Docking Drawer Blade Series outlet.

Shallow

  • Minimum interior drawer box height: 3" or more
  • Minimum drawer box width (OD): 15" or more

Tall

  • Minimum interior drawer box height: 4" or more
  • Minimum drawer box width (OD): 13" or more

Narrow

  • Minimum interior drawer box height: 4" or more
  • Minimum drawer box width (OD): 9" or more and may require a channel to be added in the cabinet sidewall

Vertical

  • Minimum interior drawer box height: 13" or more
  • Minimum drawer box width (OD): 8" or more

Want more detailed specs to plan your project? Review our Blade Series Spec Book.

Project Planning in Canada

Docking Drawer outlets are ETL Listed for use in Canada. To plan your project, follow the planning details above and consider the following to comply with the CEC*:

In-Drawer USB Charging Stations for Canada

Specify Docking Drawer Blade Duo or Blade outlets with only USB ports. The ports remain energized and will charge devices when the drawer is closed.

In-Drawer AC Outlets for Canada

To add AC outlets inside of a cabinet, such as a bathroom vanity or a kitchen appliance garage, specify a 15 amp Docking Drawer Blade Duo or Blade outlet & the Safety Interlock Outlet with Blade Limit Switch (6015-1000W). The Safety Interlock Outlet with Blade Limit Switch de-energizes a Docking Drawer Blade Series outlets when the drawer begins to close.

*The Authorities Having Jurisdiction (AHJ) has the final say on whether an installation meets the requirements of the Canadian Electrical Code.

What Our Customers Are Saying

Write a Review
average rating 4.9 out of 5
Based on 109 reviews
  • 5 Stars
    102 Reviews
  • 4 Stars
    7 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Quality
Rated 5 out of 5
Ease of Installation
Rated 4 out of 5
Customer Service
Rated 4 out of 5
Customer photos and videos
Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal
Open user-uploaded video and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal
109 Reviews
Reviewed by Diana Z.
Verified Buyer
15 amp Refurbished Blade with 2 AC & 2 USB-A
Reviewing
15 amp Refurbished Blade with 2 AC & 2 USB-A
I recommend this product
Rated 5 out of 5
Review posted

Fantastic solution for a clean space - no clutter!

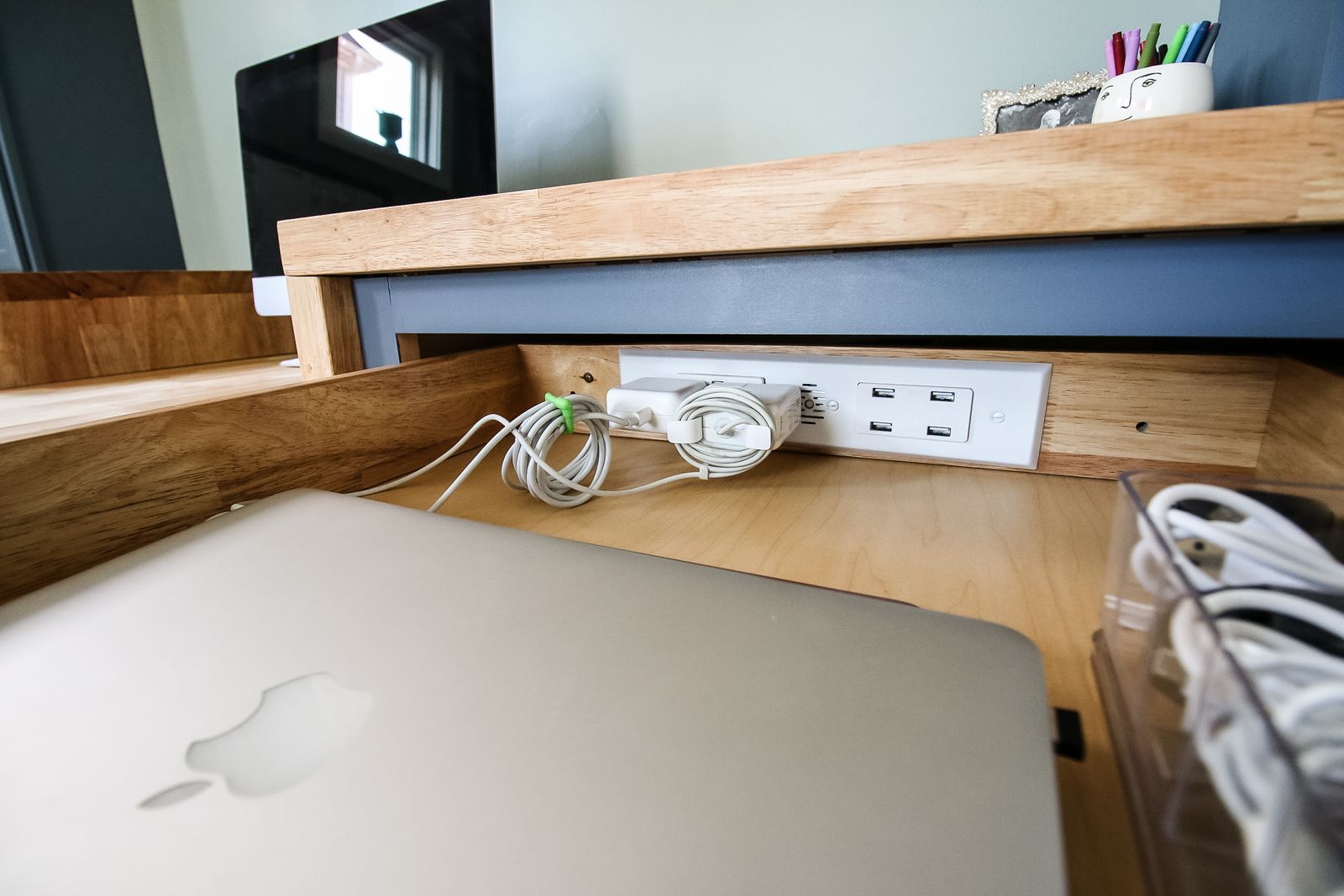

These worked out great! the cabinet instaler had never installed these before, but it was super simple for him! The electrician trimmed out new outlets where we requested, and after these were cut into the back of the cabinet, we simply plugged them in!
