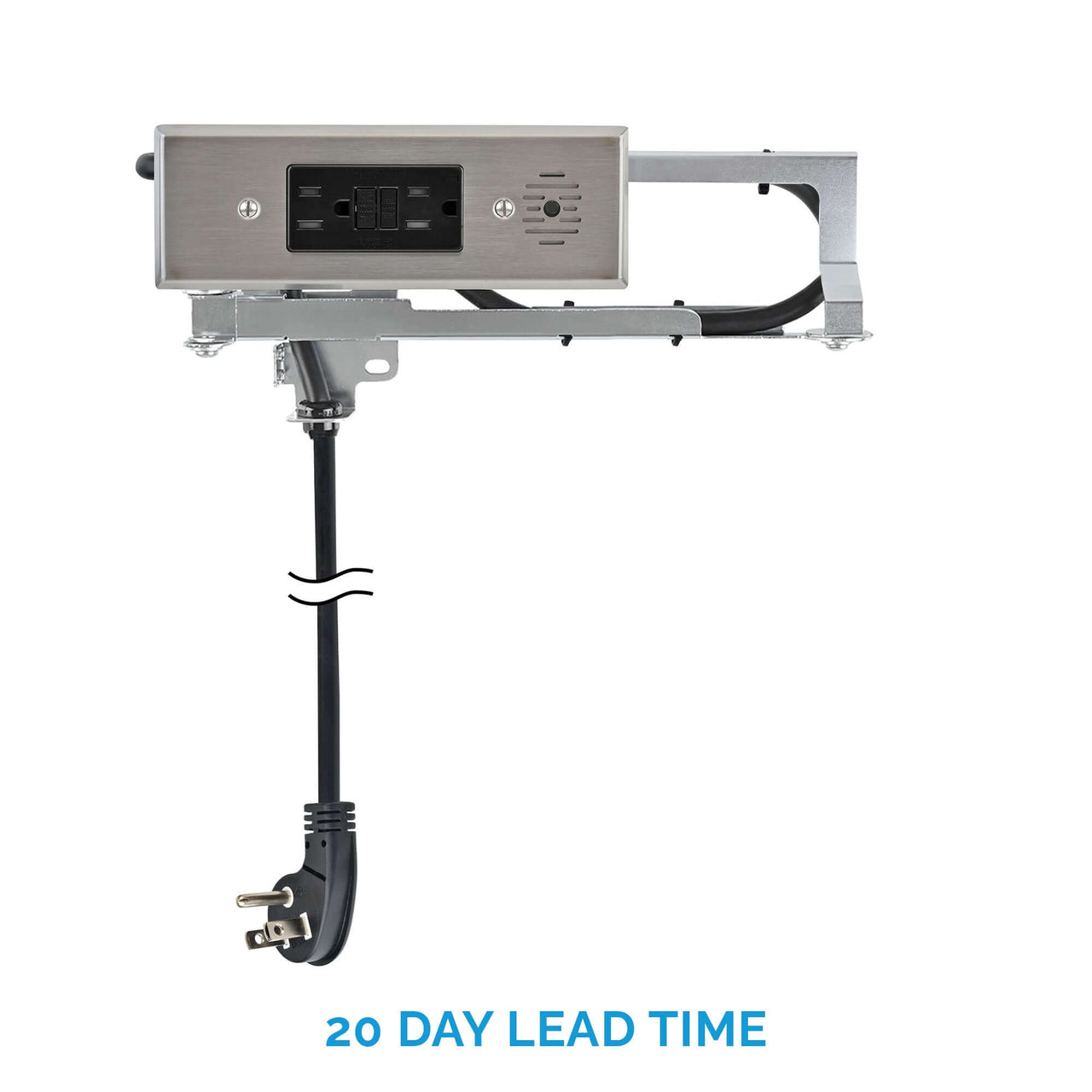

| Imperial | Metric | |
| Outlet Width | 11.16” | 283mm |
| Outlet Height | 4.64" | 118mm |
| Outlet Depth | 2.5" | 64mm |
| Receptacle Box Depth | 1.93" | 49mm |
| Cover Plate Height | 2.52" | 64mm |
| Cover Plate Width | 7.18" | 182mm |
| Cover Plate Thickness | 0.29" | 7.5mm |

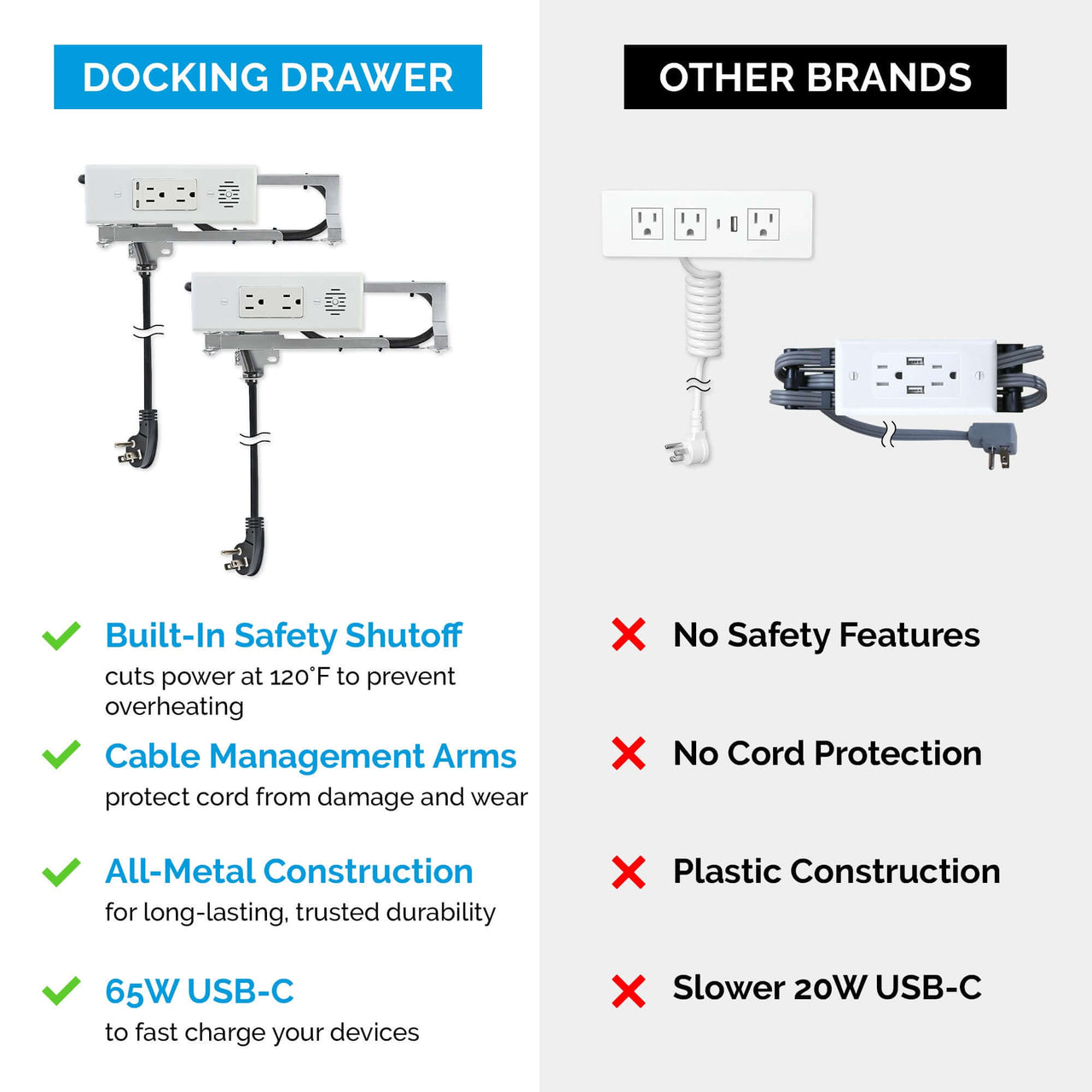

| Cable Management Arms Height | 3" | 76mm |
| Cord Length (15 amp) measured from the rear mounting bracket | 54" | 1.37m |
| Cord Length (20 amp) measured from the rear mounting bracket | 36" | 0.9m |
| # | Outlet Configuration | Outlet Specifications |

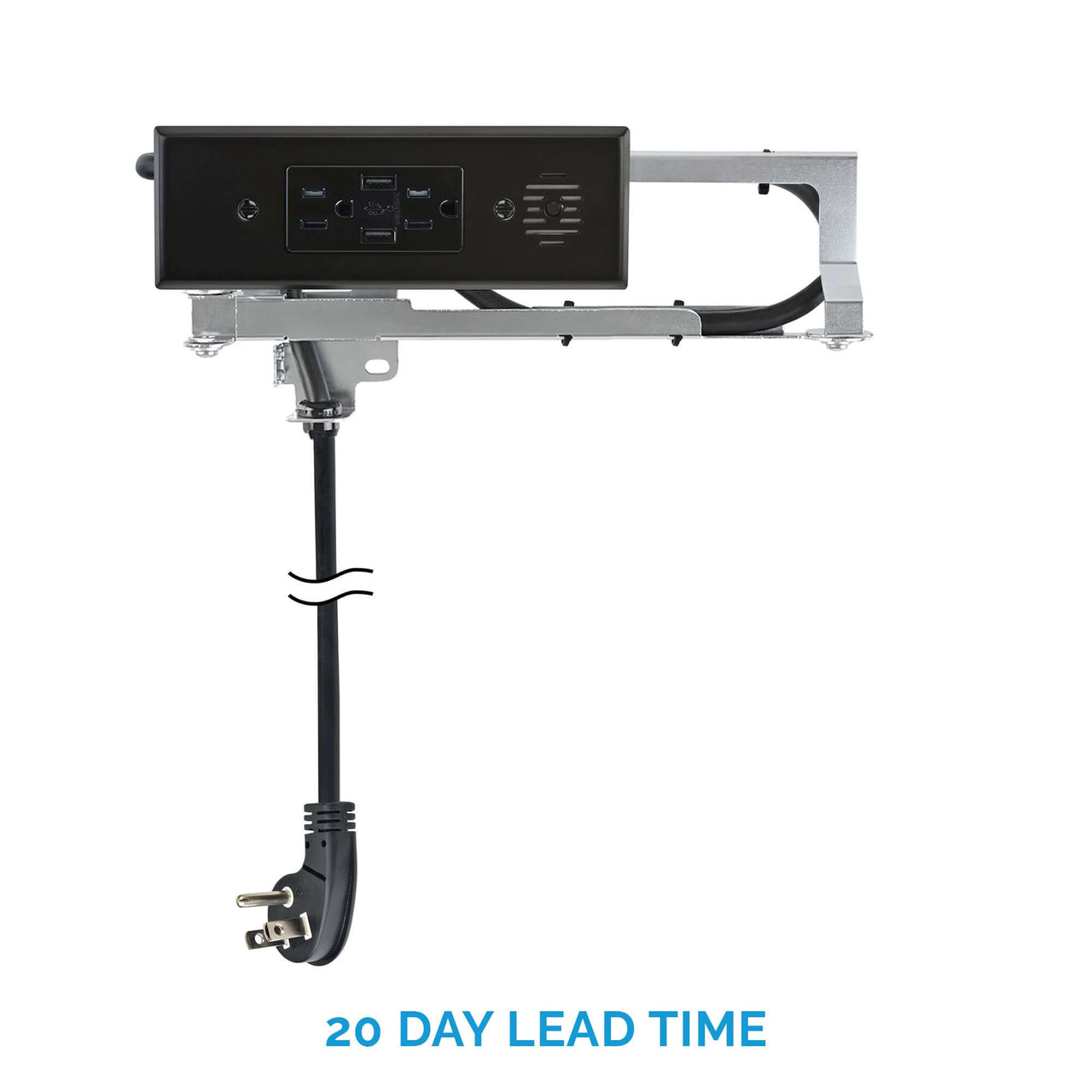

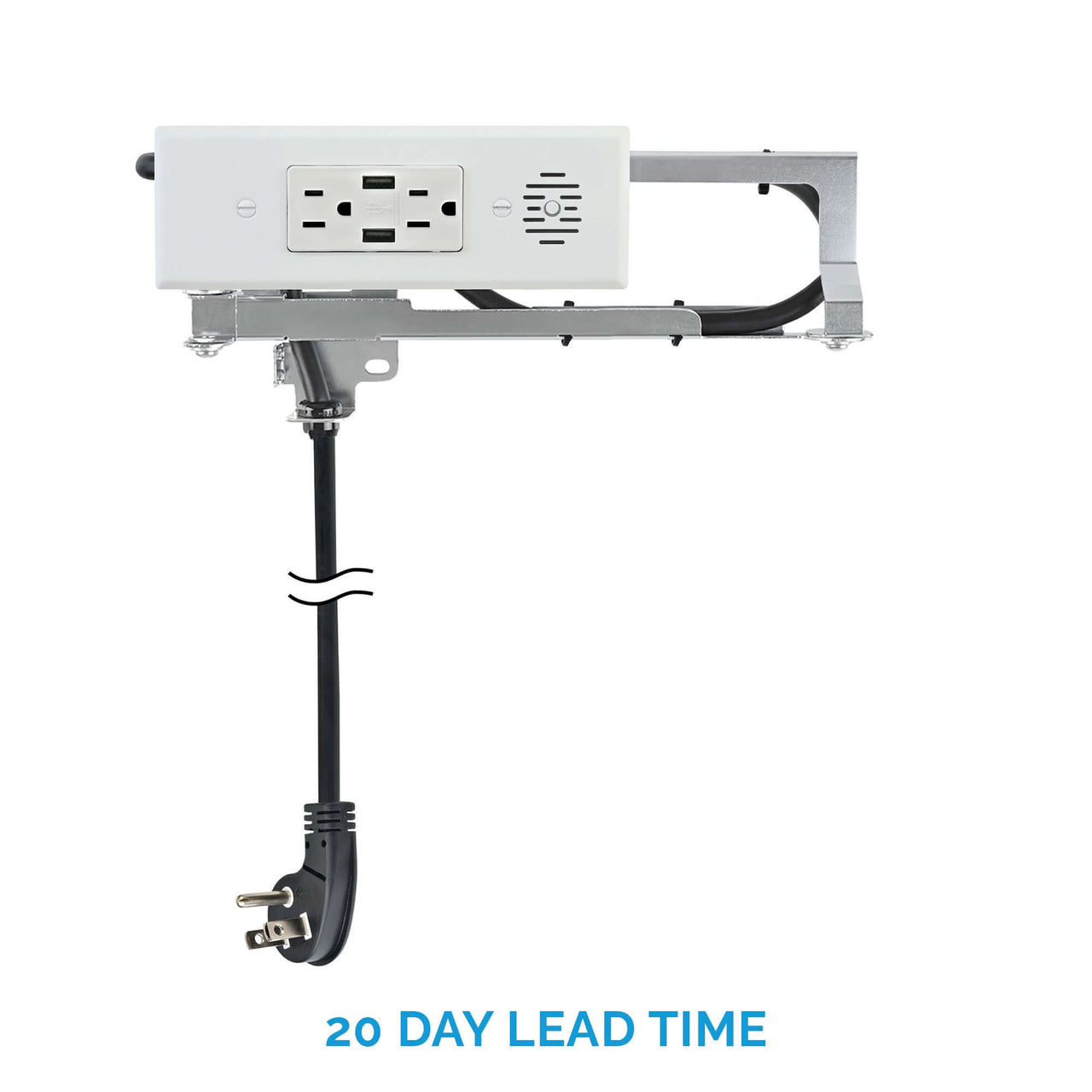

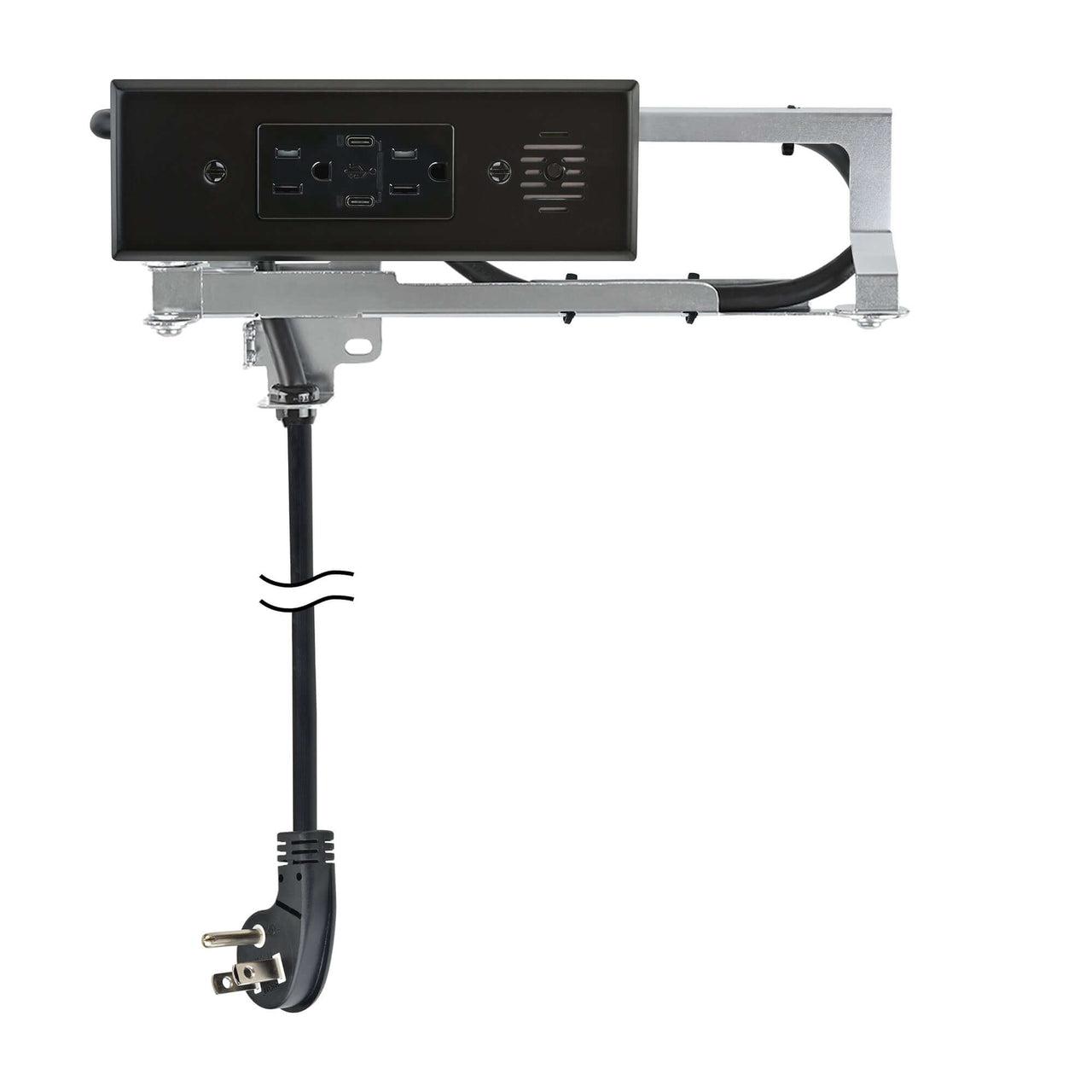

| 1 | (2) USB-A & (2) AC | AC: 15 amps @ 120 VAC USB-A: 3.6 amps @ 5 VDC |
| 2 | (4) USB-A | 4.2 amps @ 5 VDC |

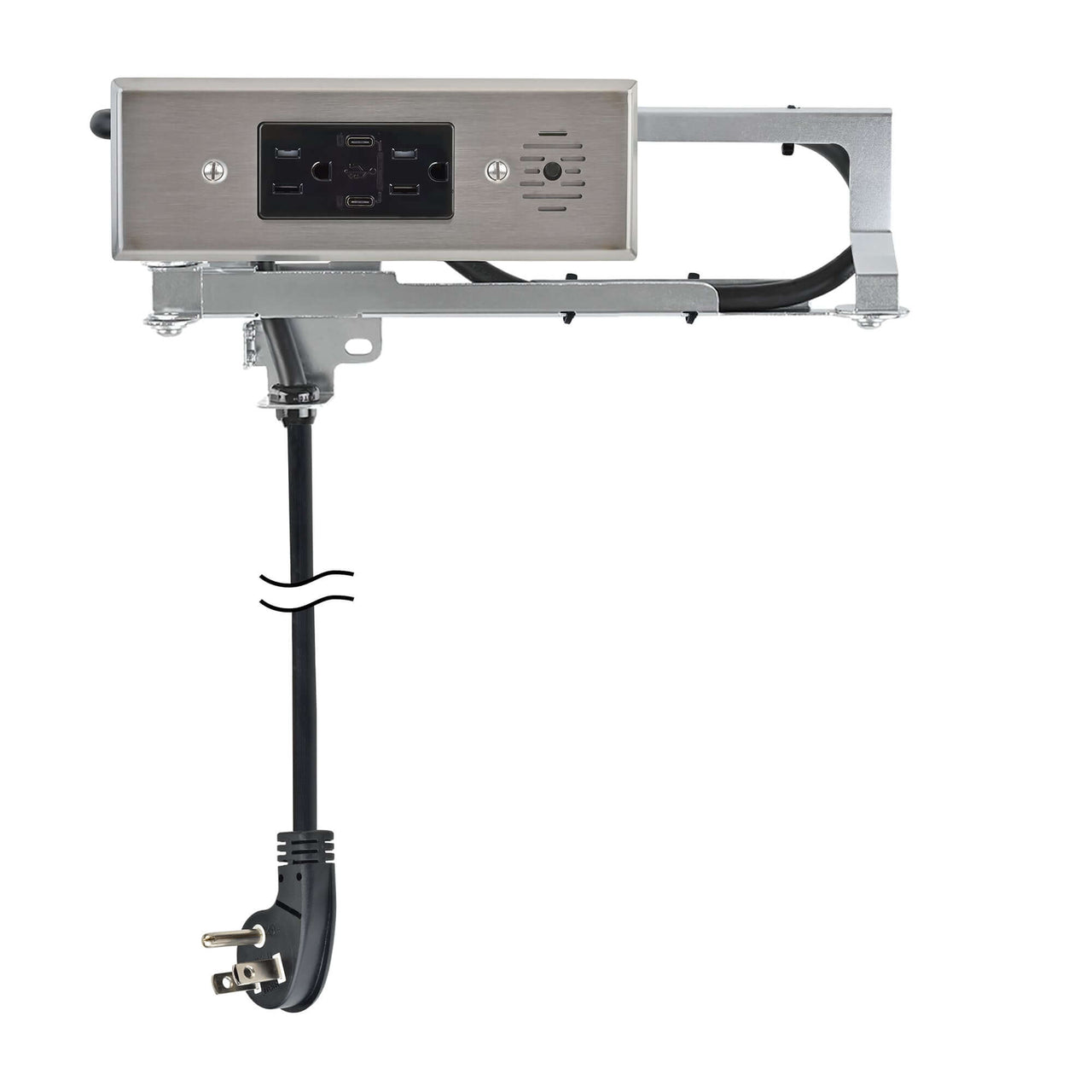

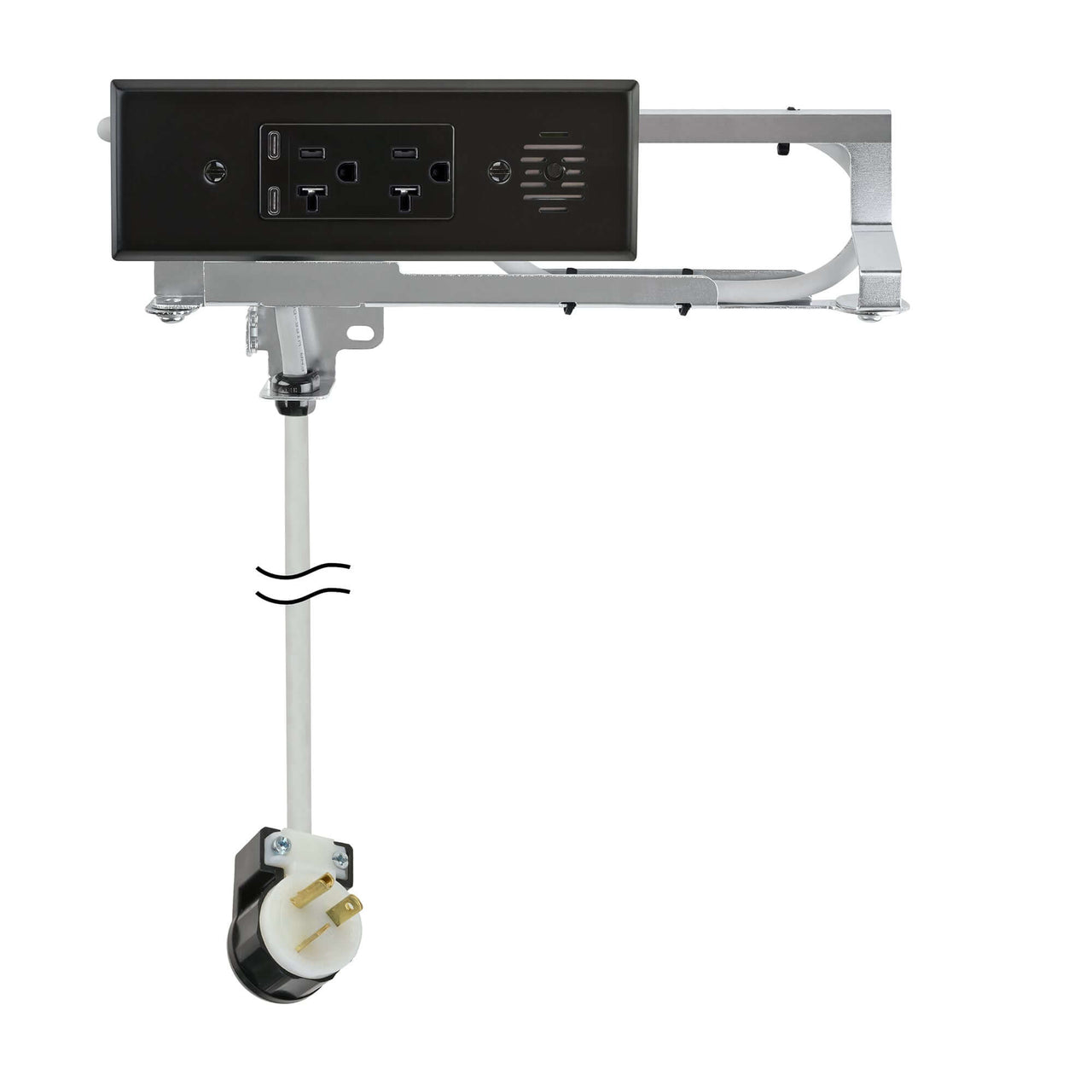

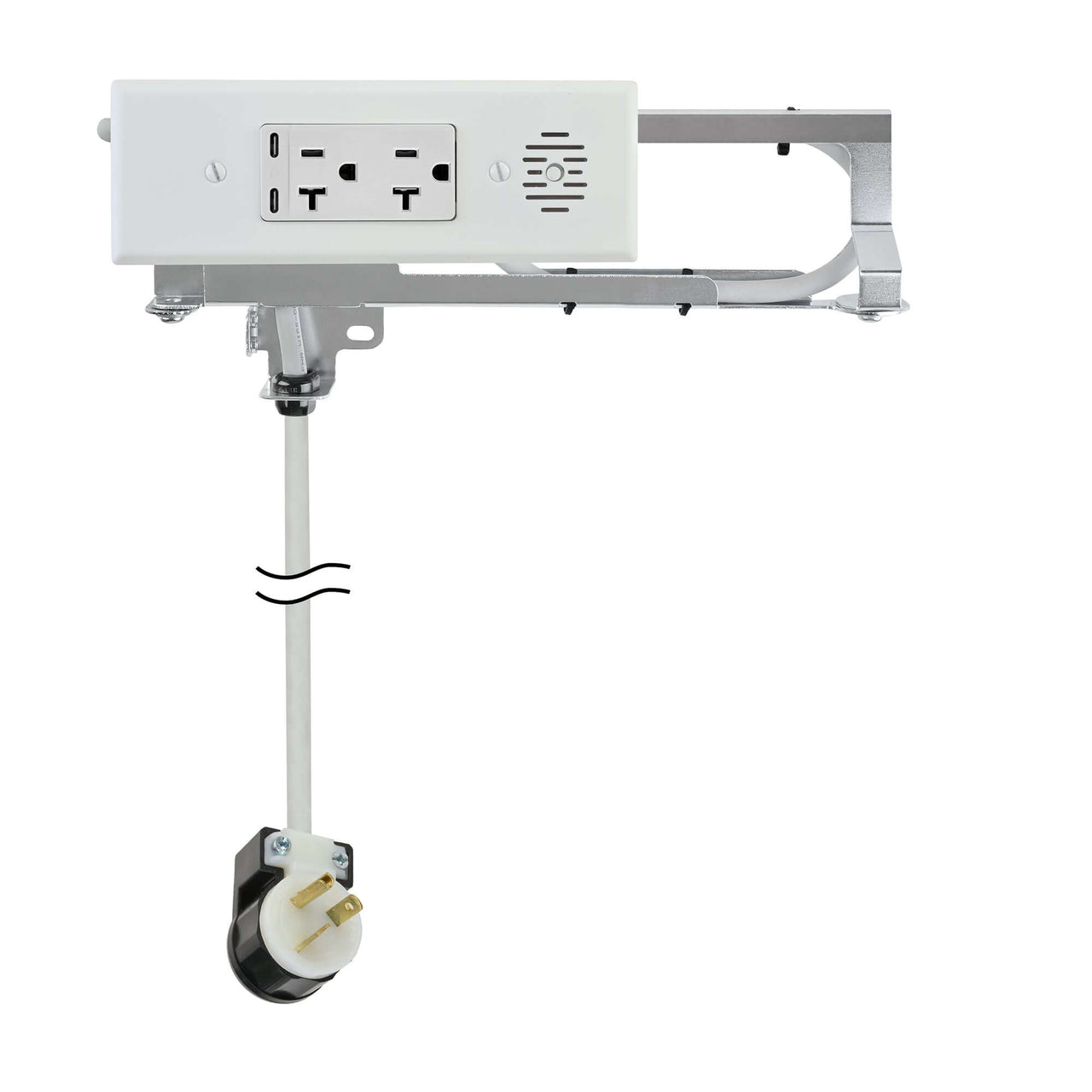

| 3 | (2) 30W USB-C & (2) AC | AC: 15 amps @ 120 VAC USB-C (single port connected to PD device): 3 amps @ 9 VDC (30W) USB-C (single port connected to non-PD device): 3 amps @ 5 VDC (15W) USB-C (both ports connected): 3 amps @ 5 VDC (30W total power) |
| 4 | (1) USB-C 30W, (1) USB-A & (2) AC | AC: 15 amps @ 120 VAC USB-C (non-PD device): 3 amps @ 5 VDC (15W) USB-A: 2.4 amps @ 5 VDC |
| 5 | (2) AC - GFCI | 15 amps @ 120 VAC |

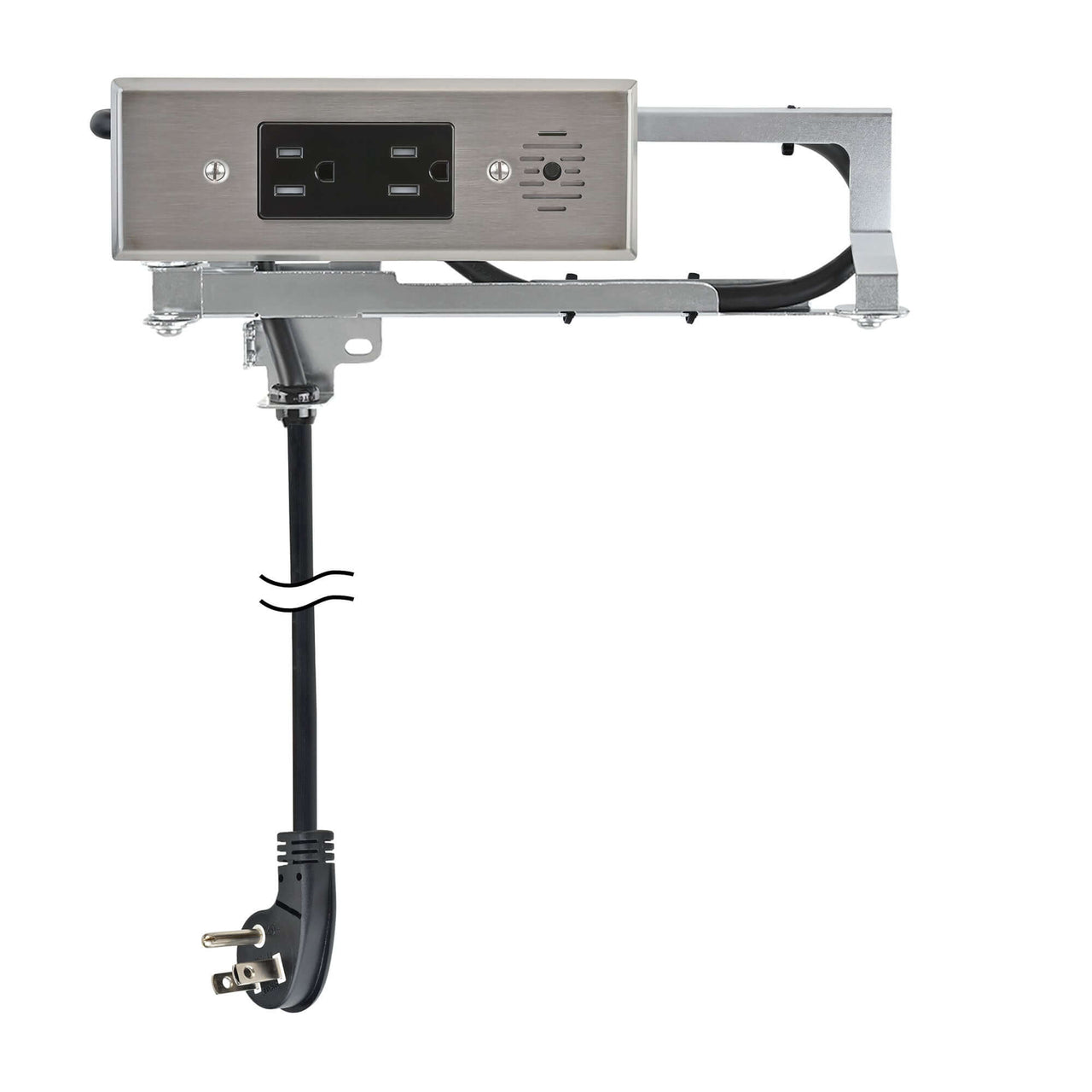

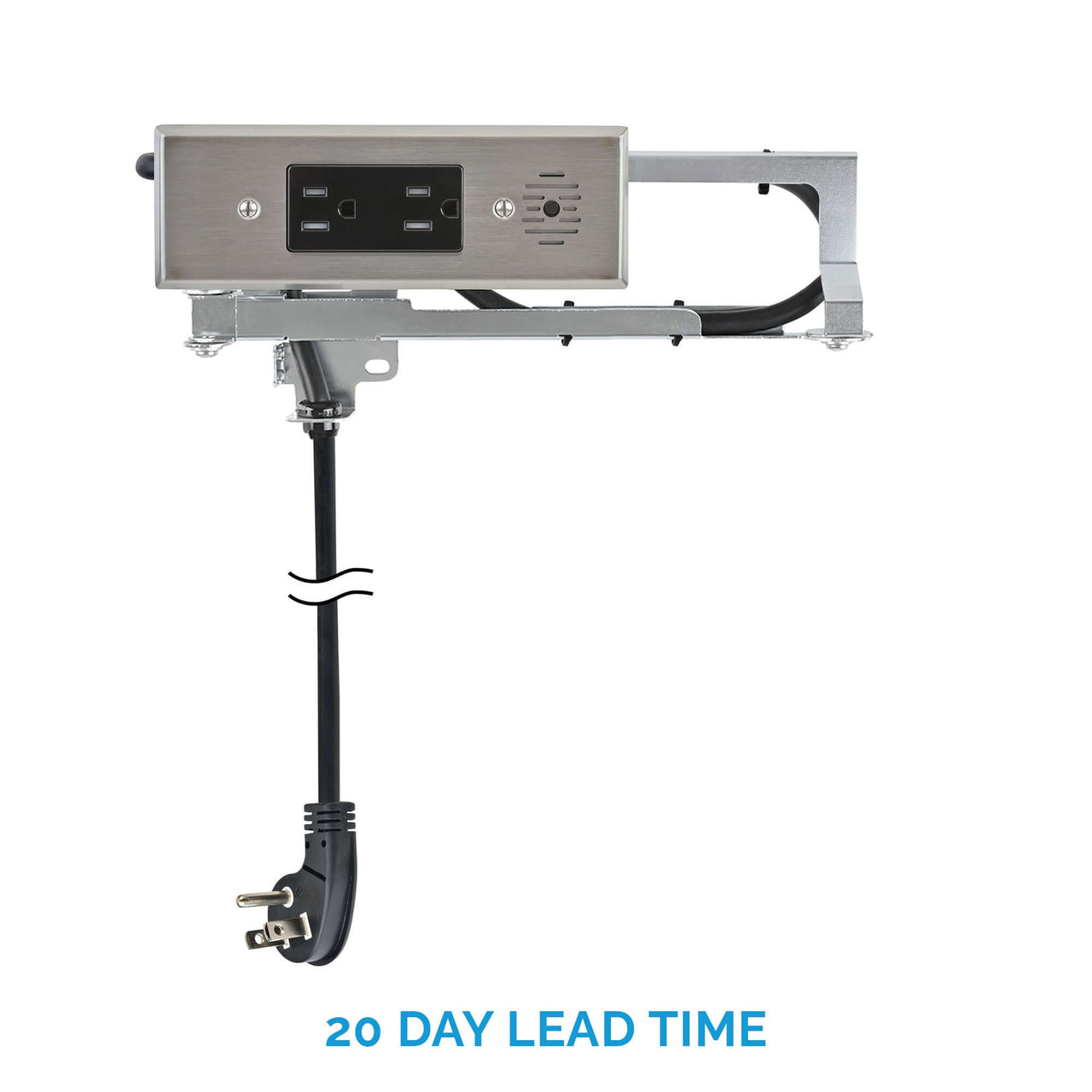

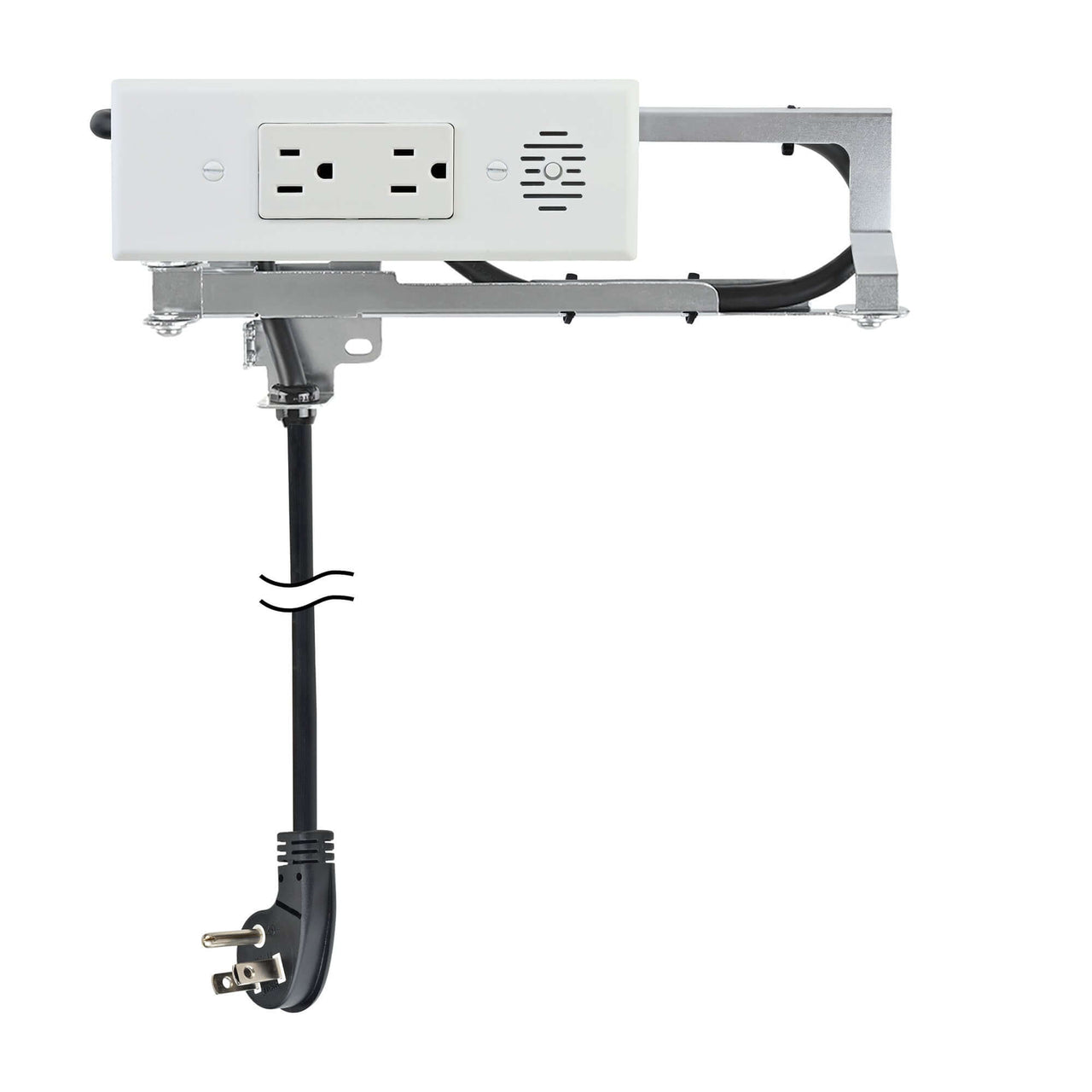

| 6 | (2) AC | 15 amps @ 120 VAC |
| 7 | (2) 65W & (2) AC | AC: 15 amps @ 120 VAC USB-C (PD) 65 Watt Shared USB-C (single port connected to PD device): 65W 5V/3A; 9V/3A; 12V/3A; 15V/3A; 20V/3.25A USB-C (both ports connected to PD devices): 65W total C1/C2: 5V/3A; 9V/3A; 12V/2.5A; 15V/2A; 20V/1.5A |
| 8 | (2) 30W USB-C & (2) USB-A | USB-C (PD): 30 Watt Shared USB-C (single port connected to PD device): 30W max 5V/3A; 9V/3A; 12V/3A; 15V/3A; 15V/2A; 20V/1.5A USB-C (both ports connected): 15W each port C1:5V/3A C2:5V/3A USB-A (max with one or both ports connected) 12W total 5v/2.4A |
| Quality |
Rated 5 out of 5
|
| Ease of Installation |
Rated 4 out of 5
|
| Customer Service |
Rated 4 out of 5
|
The instructions were VERY detailed up until the point of having to attach the bracket/arm to the back of the cabinet... that part became trial and error!
| Quality |
Rated 5 out of 5
|
|---|---|
| Ease of Installation |
Rated 4 out of 5
|
| Customer Service |
Rated 4 out of 5
|

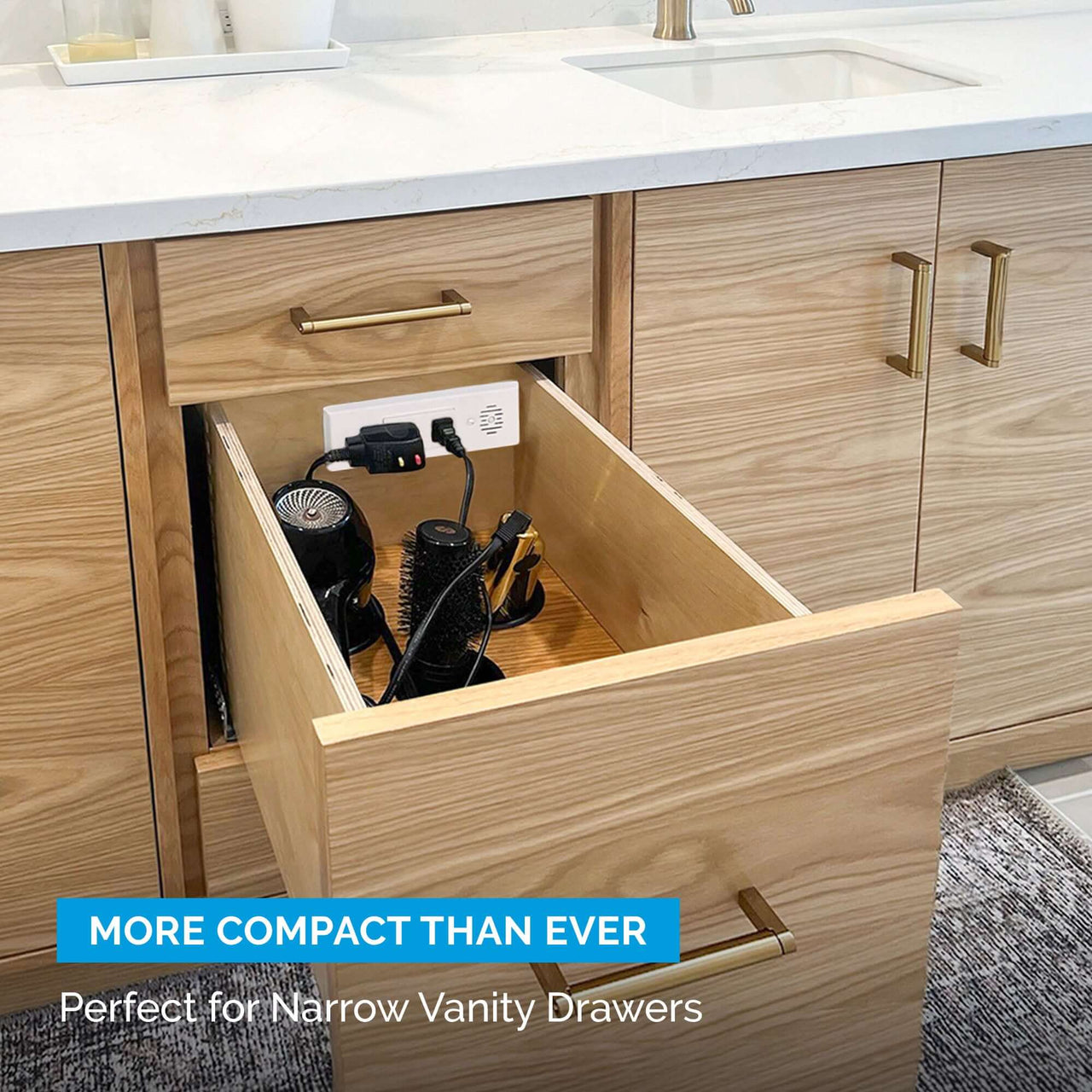

Needed a smaller unit for a narrow drawer and this fit perfectly. Custom Service (Vie) provided all the information necessary to make the purchase seamless. Also she suggested added details beyond just making the sale. Absolutely the best group of C/S reps in the industry. They know the products inside and out.
| Quality |
Rated 5 out of 5
|
|---|---|
| Ease of Installation |
Rated 5 out of 5
|
| Customer Service |
Rated 5 out of 5
|

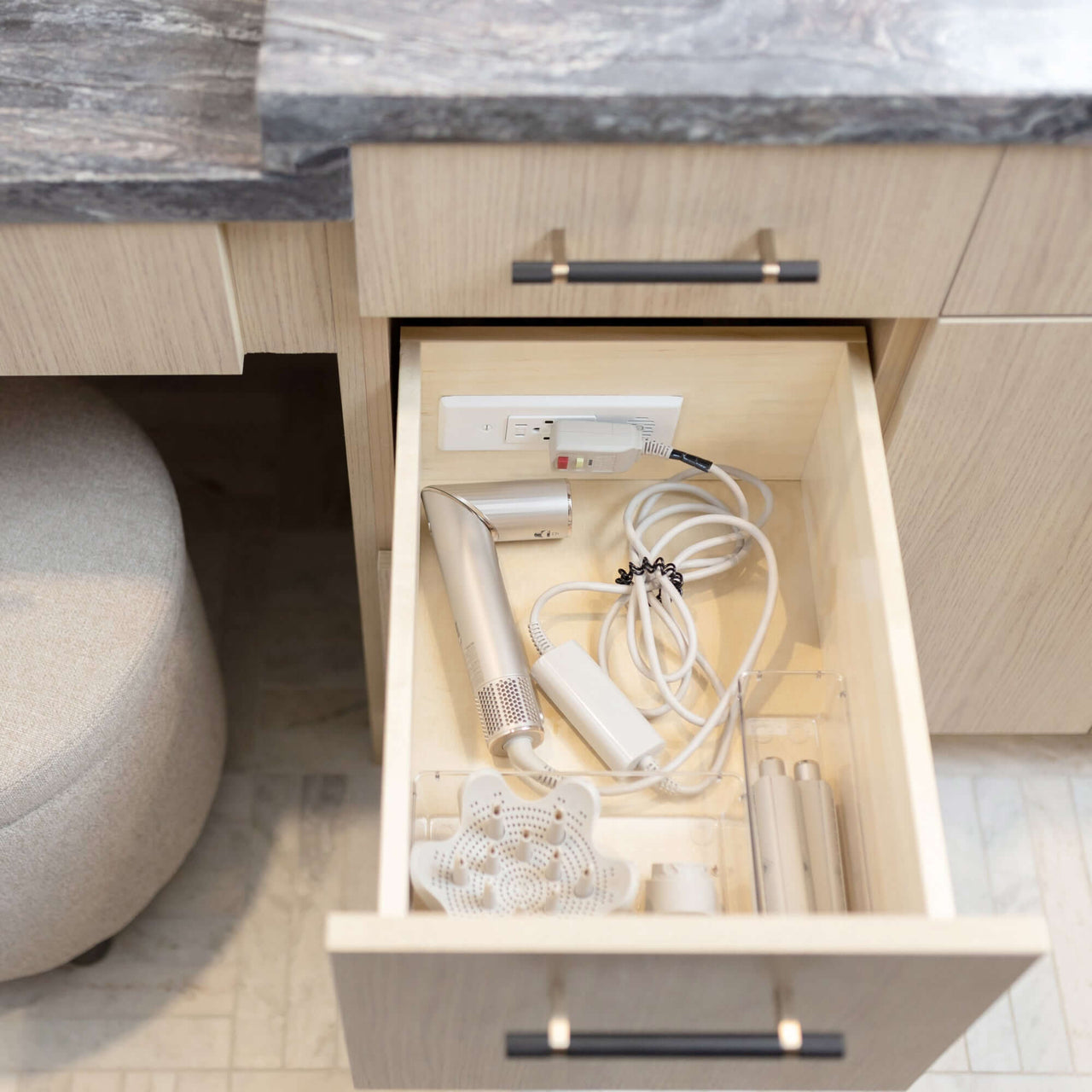

I recently purchased the Docking Drawer for my master bathroom vanity, and it has been a game-changer. We installed one on my husband’s side for all his shaving equipment (he has several machines) and another on my side for my hair tools like a hair dryer. Everything now stays neatly tucked away instead of cluttering the vanity surface.
My electrician mentioned the installation was very straightforward and had no complaints, which gave me extra confidence in the product’s quality. Overall, I’m very satisfied, the Docking Drawer is a smart, practical solution that makes the bathroom look cleaner and keeps our daily routines more convenient. I already recommended the product to my mother in-law and she is going to get it installed too!
| Quality |
Rated 5 out of 5
|
|---|---|
| Ease of Installation |
Rated 5 out of 5
|
| Customer Service |
Rated 5 out of 5
|

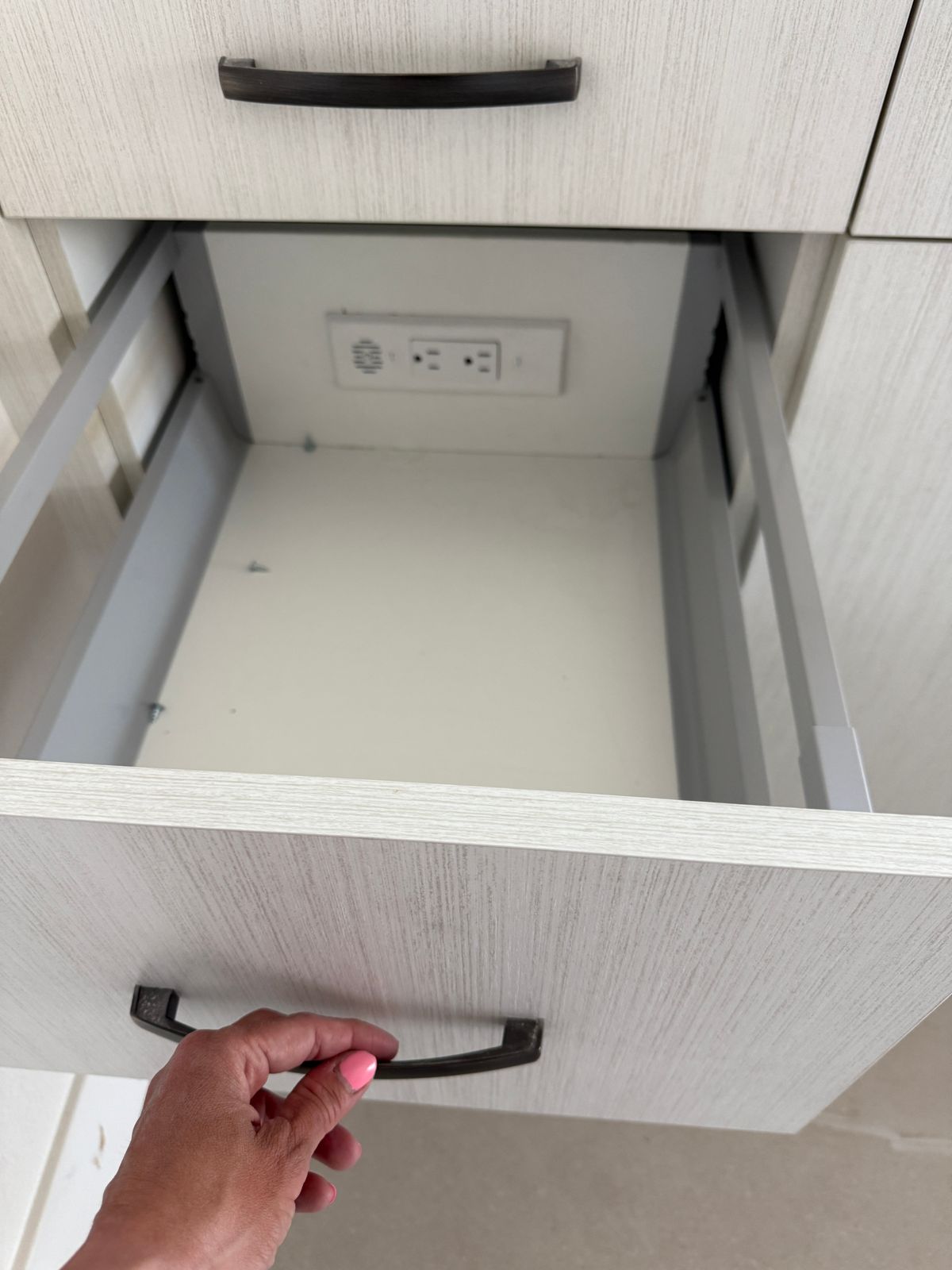

I ordered one of these to replace an outlet o. The side of our island. We could no longer have an outlet I. The outside of the island so when we had the island redesigned, I included a set of drawers and added this small docking drawer inside the top for things related to the grill and remotes for the patio and blinds. It was planned to have the DD installed prior to the new countertops being installed but I needed a smaller one (and had to return and wait) so I had to install it afterwards. It took some time considering the restricted space to work in but I finally got it and it works great. Thinking about one for the home office built in to come.
My biggest con is the website has soooo many options and info that it’s not easy to find which one is best suited. That feature could be simplified.
I’d highly recommend the docking drawer.
| Quality |
Rated 5 out of 5
|
|---|---|
| Ease of Installation |
Rated 3 out of 5
|
| Customer Service |
Rated 5 out of 5
|
