Prado Unifit Duplex Cover Plates
Choose a Cover Plate
Select a Finish
Simple Snap-Lock Mounting
Designed for a tool-free experience, these Duplex cover plates click securely onto the Prado Unifit outlet base. If your design palette evolves, the modular system allows you to remove the plate with a standard plug and swap finishes instantly. Refresh your space or replace covers without ever removing the outlet.
Belgium-Engineered Paintable Polymer
Available in six signature tones—White, Black, Sand, Clay, Espresso, and Graphite—these high-density plates are also fully field-paintable. To achieve a custom architectural match, apply a bonding primer followed by a polyurethane spray for a resilient, 0.12” low-profile finish built for high-traffic use.
Dual AC Material Integration

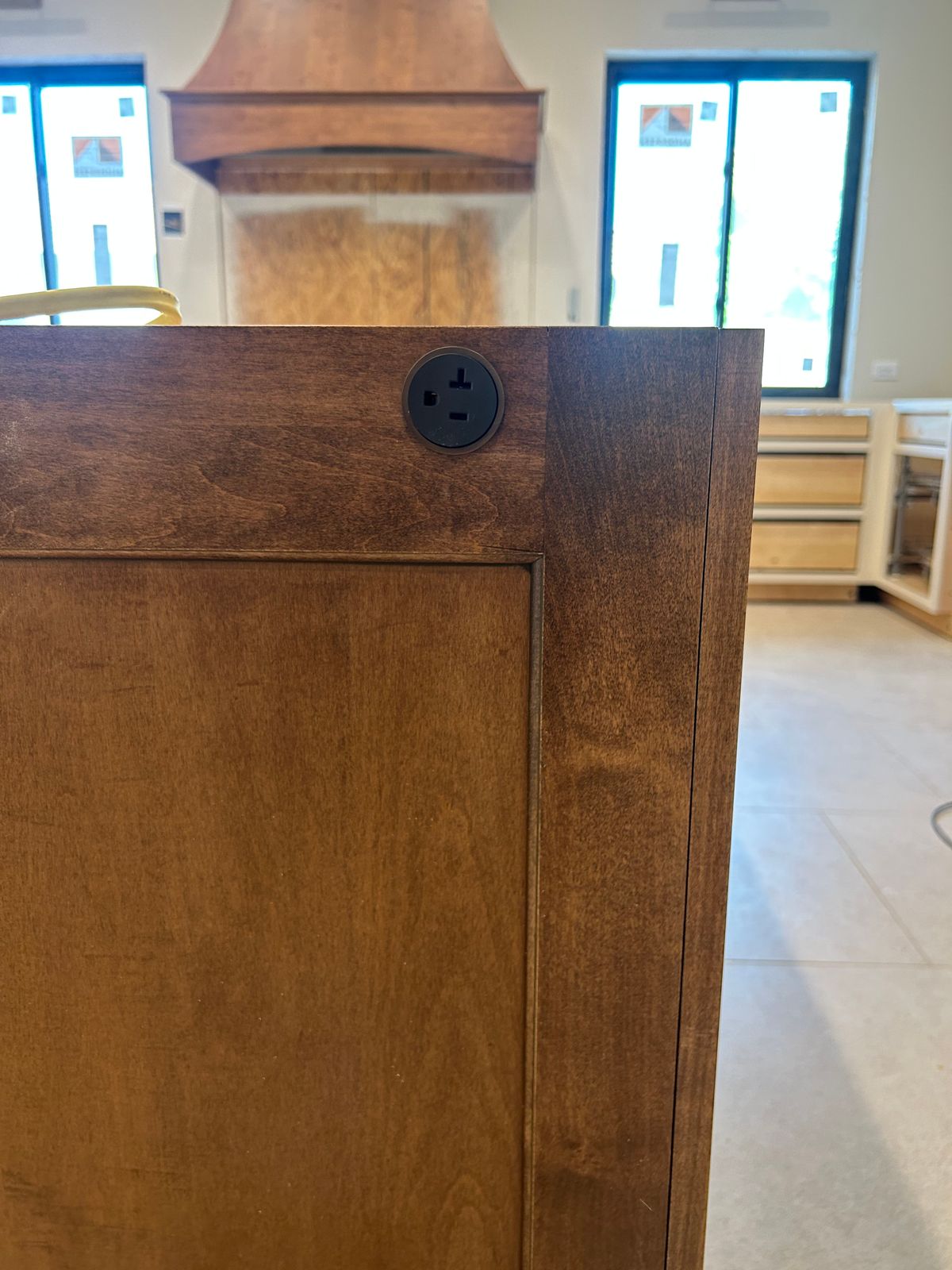

The Unifit system is the professional’s choice for integrating 2 AC power into luxury stone, tile, and custom millwork. Supporting thicknesses from 1/4” to 1-3/8”, it facilitates both surface-mount and flush-mount installs. This flexibility ensures a precise fit in kitchen backsplashes and islands where standard plastic outlets would compromise the design.
Dimensions
- Unifit Duplex Width: 2-7/8” [73mm]
- Unifit Duplex Height: 1-5/16” [3.3mm]
- Coverplate Thickness: 0.12” [3mm]
Material & Finish
- Material: High-Performance Paintable Polymer
- Standard Finish Options: White, Black, Sand, Clay, Stone, Espresso, and Graphite
- Custom Finish Options: custom RAL colored cover plates are available for larger orders
- Paintable: Yes. For a custom match, apply a bonding primer, then spray on a lacquer or polyurethane for a durable, low-profile finish that stands up to daily use
Compatability
- This is a Unifit Duplex cover plate accessory, not the receptacle itself
- 15 amp cover plates are compatible with 15 amp Unifit Duplex Outlet

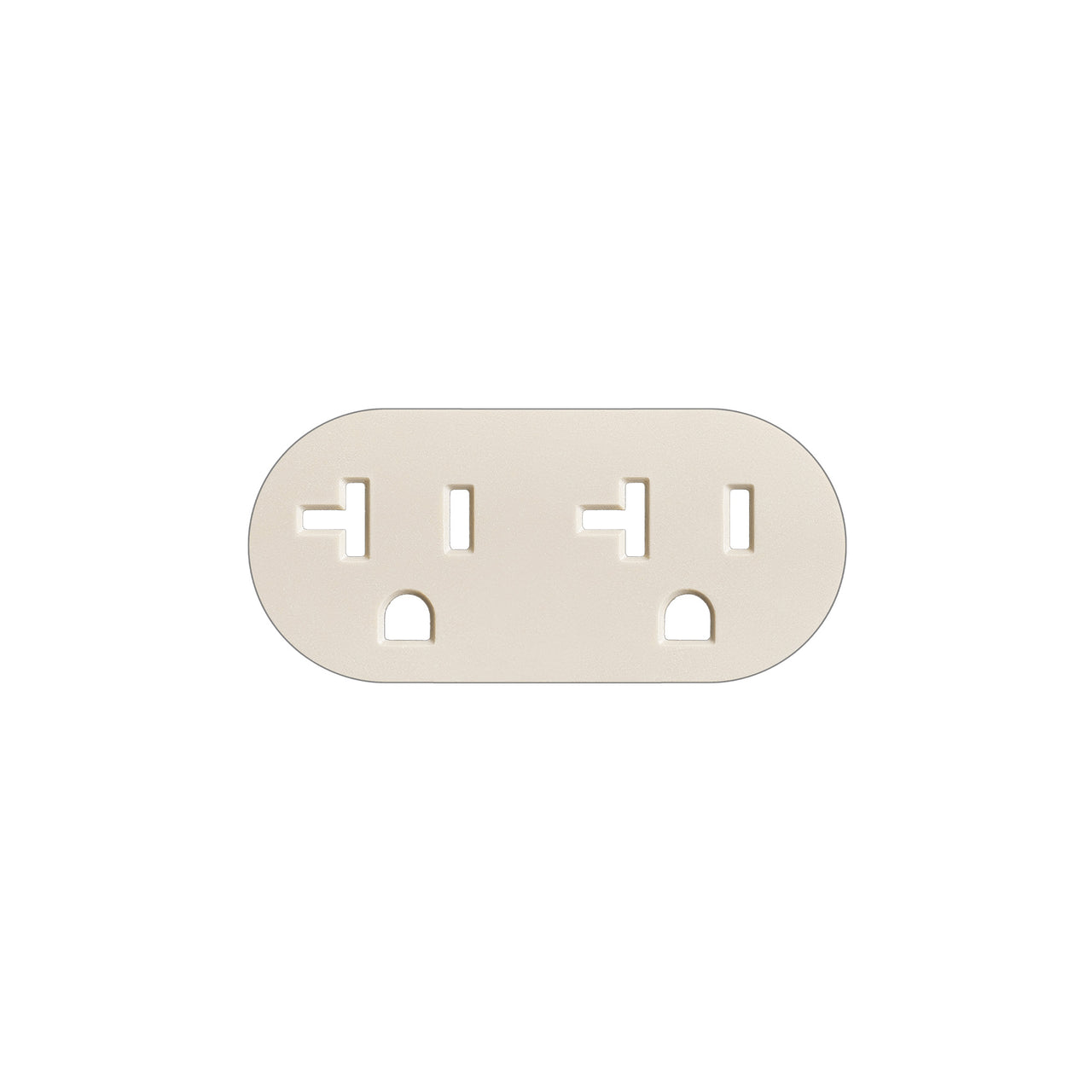

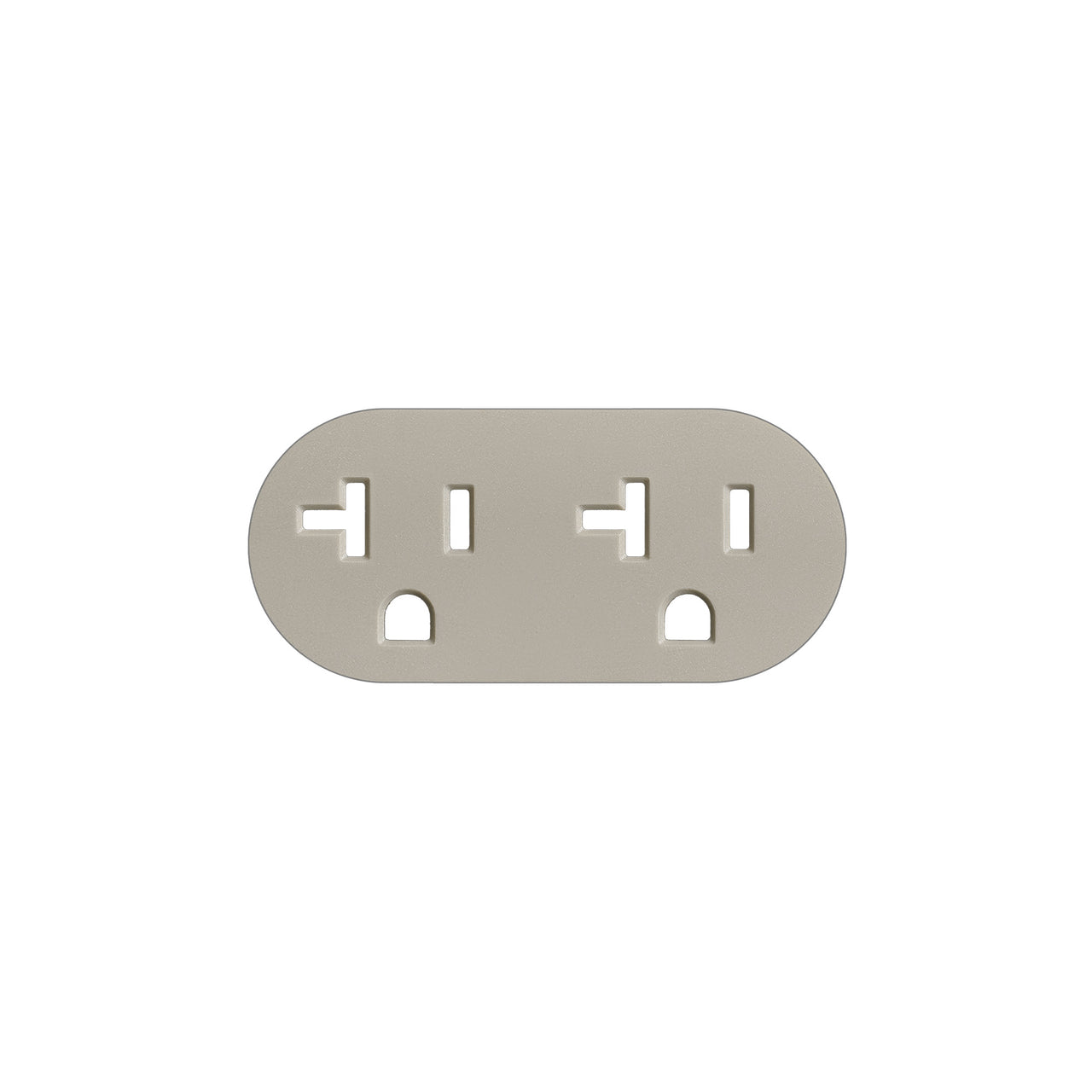

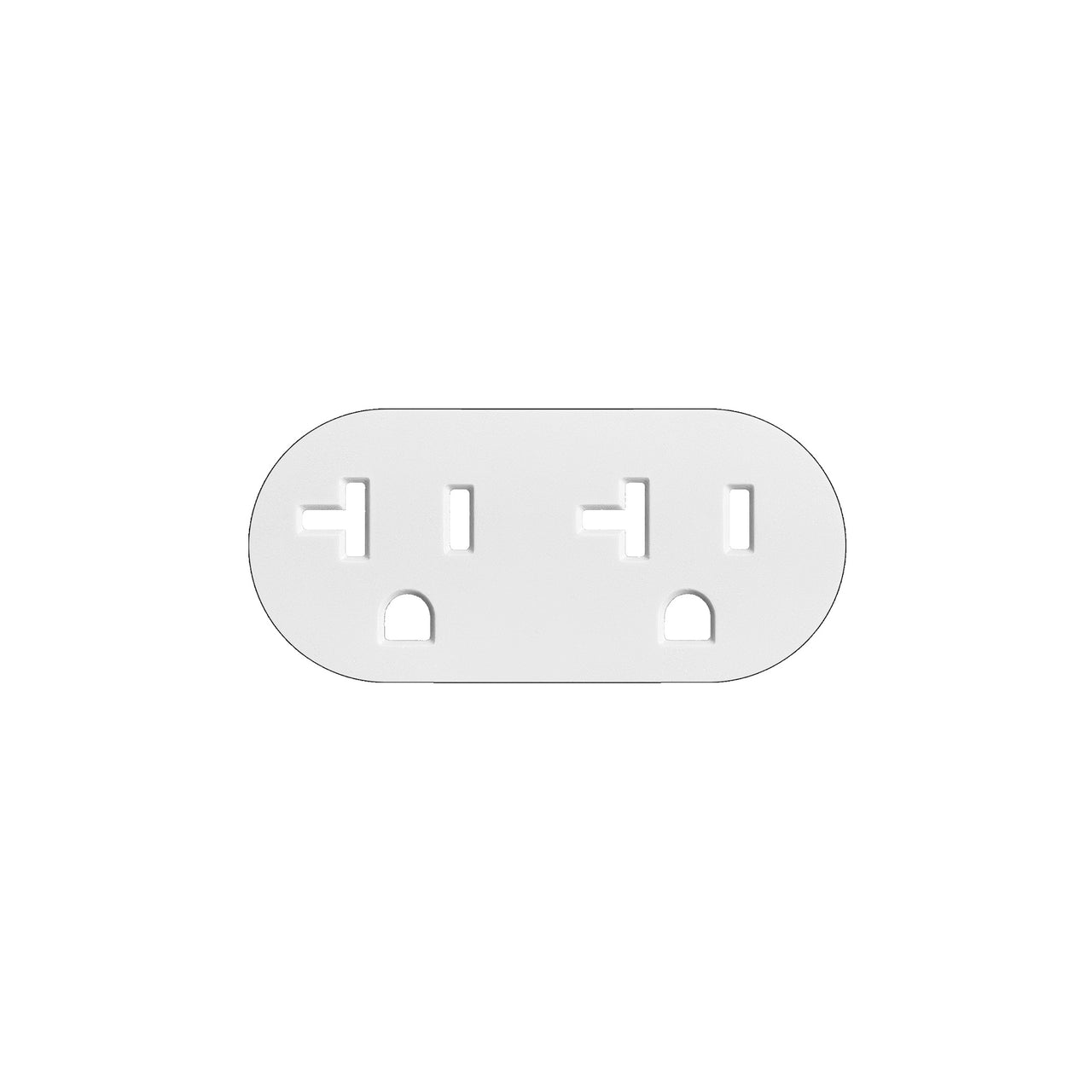

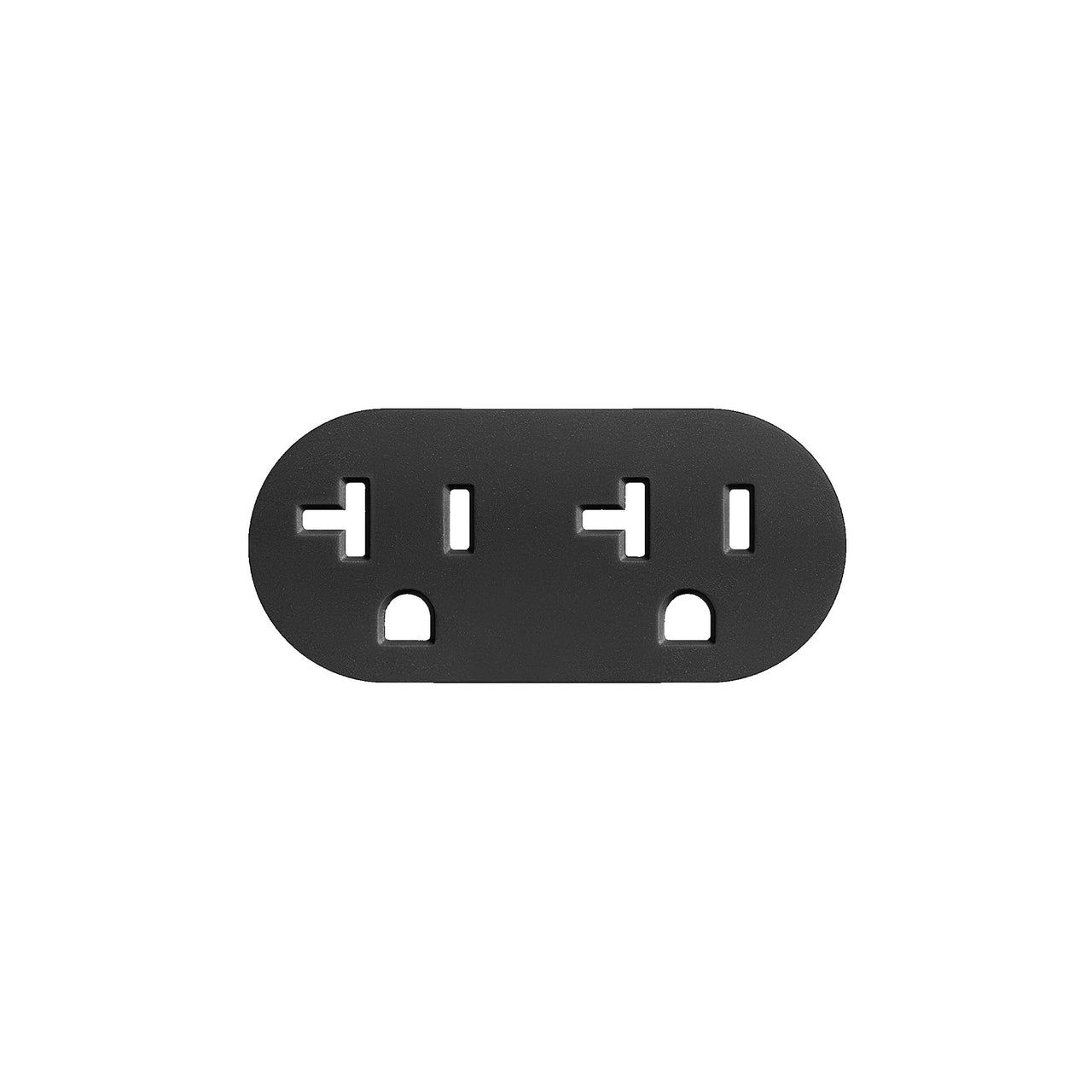

- 20 amp cover plates are compatible with 20 amp Unifit Duplex Outlet
Installation Requirements
- Application surfaces: Granite, quartz, stone, tile, drywall, and wood
- Cutout Size: 1-7/32” milled cutout
- Panel Thickness: 1/4 - 1-3/8” with adjustable lugs
- Mounting Styles: Surface Mount or Flush Mount
- For Flush Mount Countersink: Use a CNC machine to make the countersink hole. Alternatively, for wood you can use a 1/16” rabbeting router bit.
Electrical Note
- Because these are cover plates, they do not have their own voltage, wiring, or receptacle rating. They serve only as the trim piece for the 15 amp and 20 amp versions of the Prado Duplex Single Outlet. The actual electrical specs can be found with the corresponding outlet.
Warranty
- 1-Year Warranty
Electrical Certification
- When paired with the appropriate Prado Outlet, the assembly is ETL Listed for use in the US & Canada
- Certified to UL 498 and CSA C22.2 No. 42
- Horizontal Installations are not IP44 (Water) or IP54 (Dust) Rated
