6015-1000W

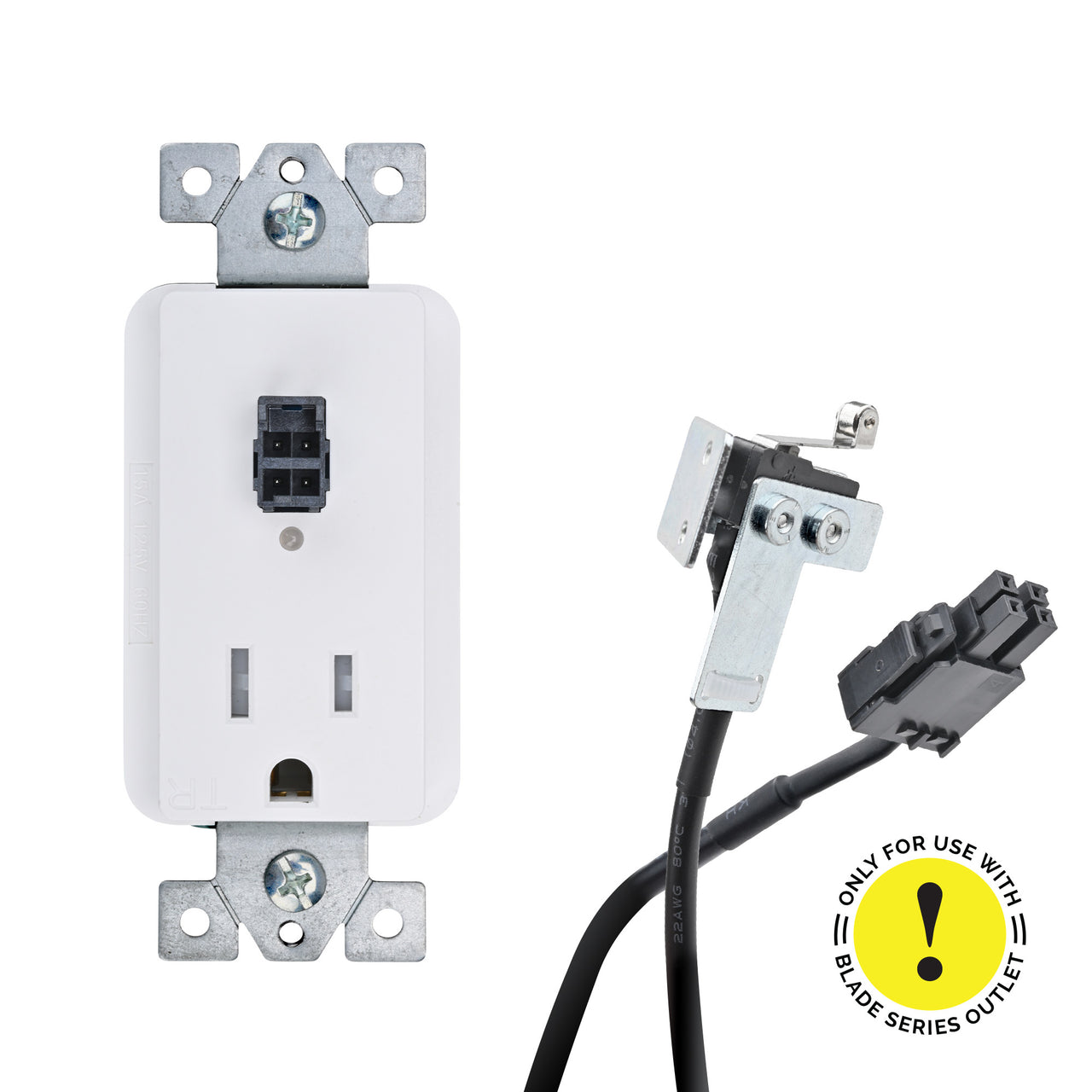

Docking Drawer Safety Interlock Outlet with Blade Limit Switch

Rated 5.0 out of 5
Based on 2 reviews

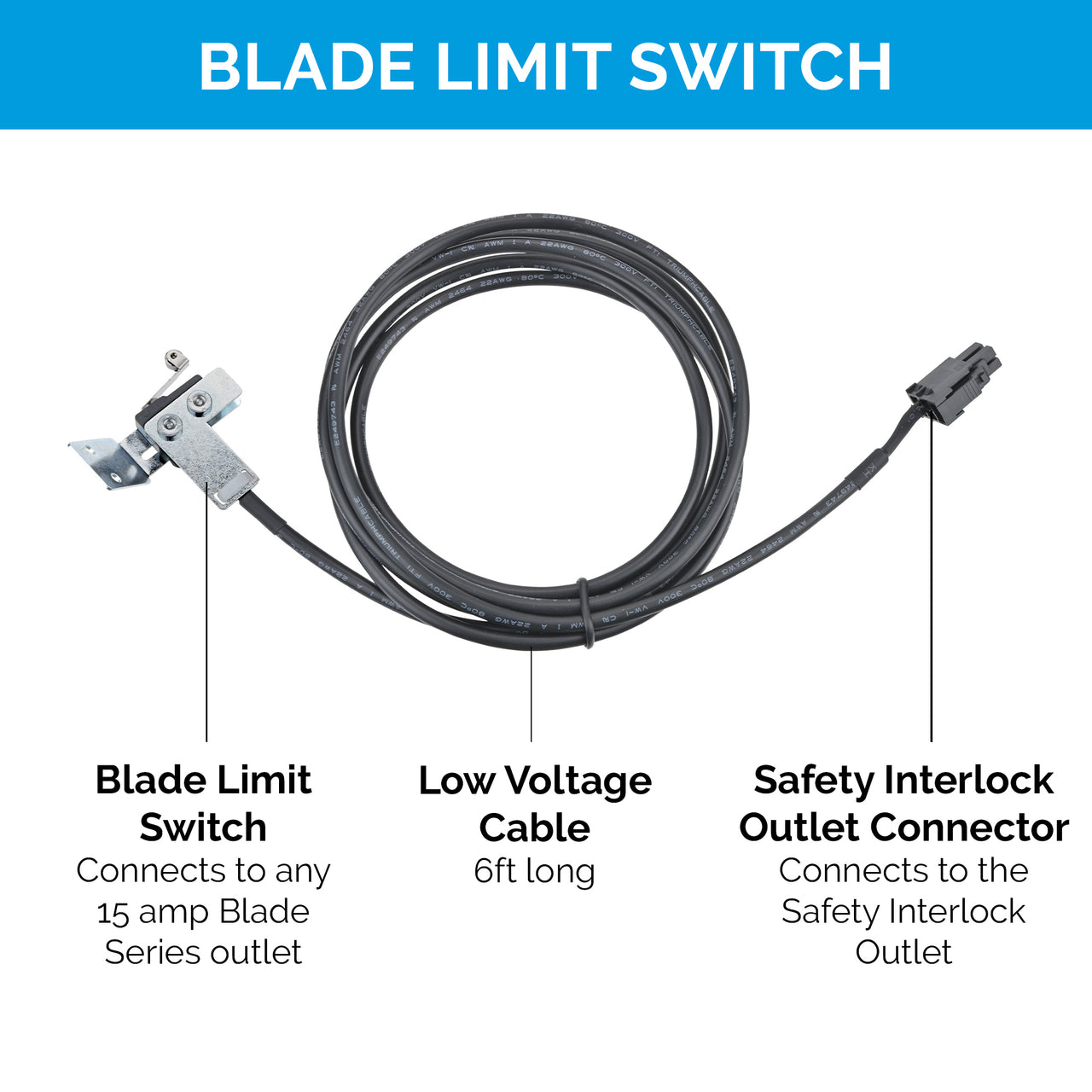

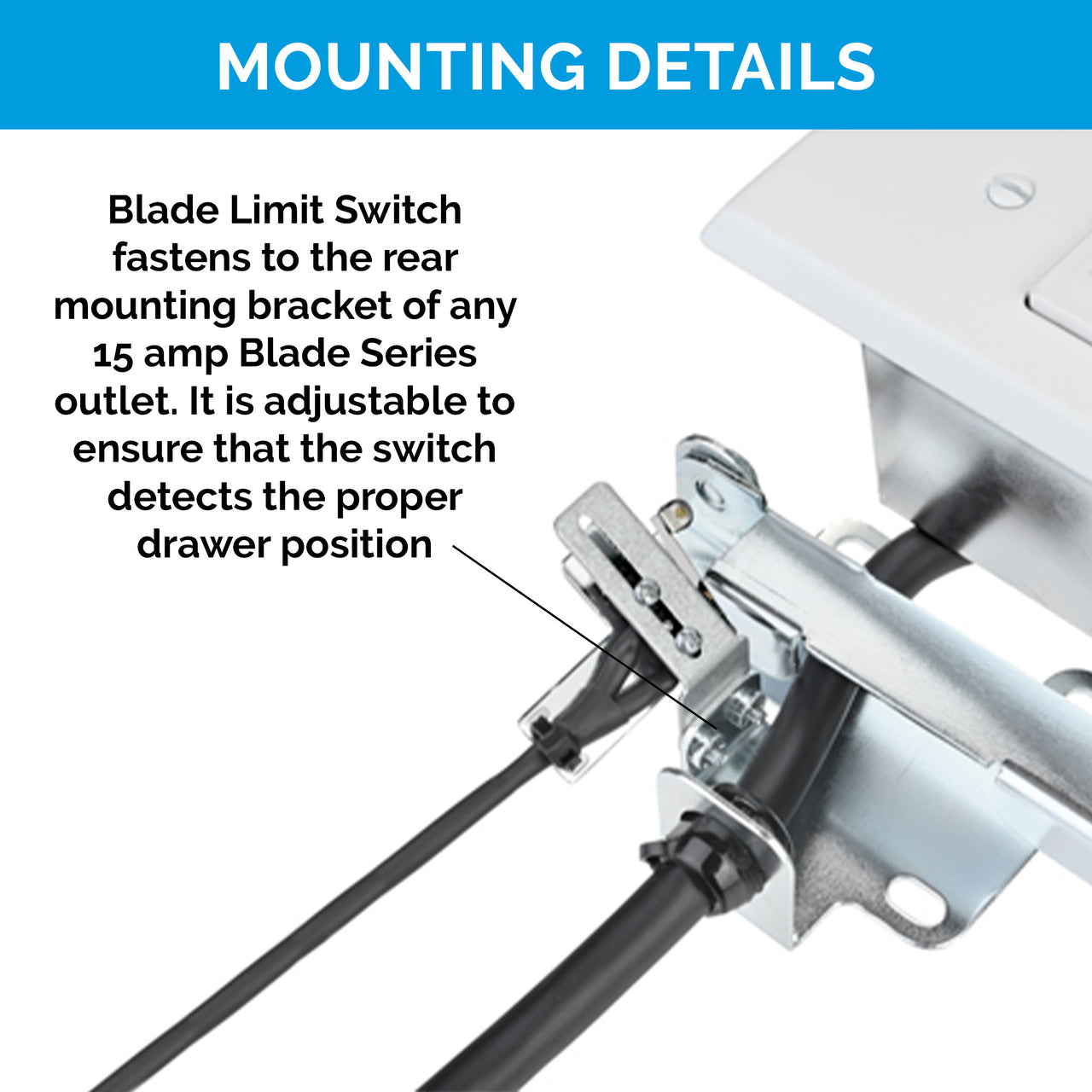

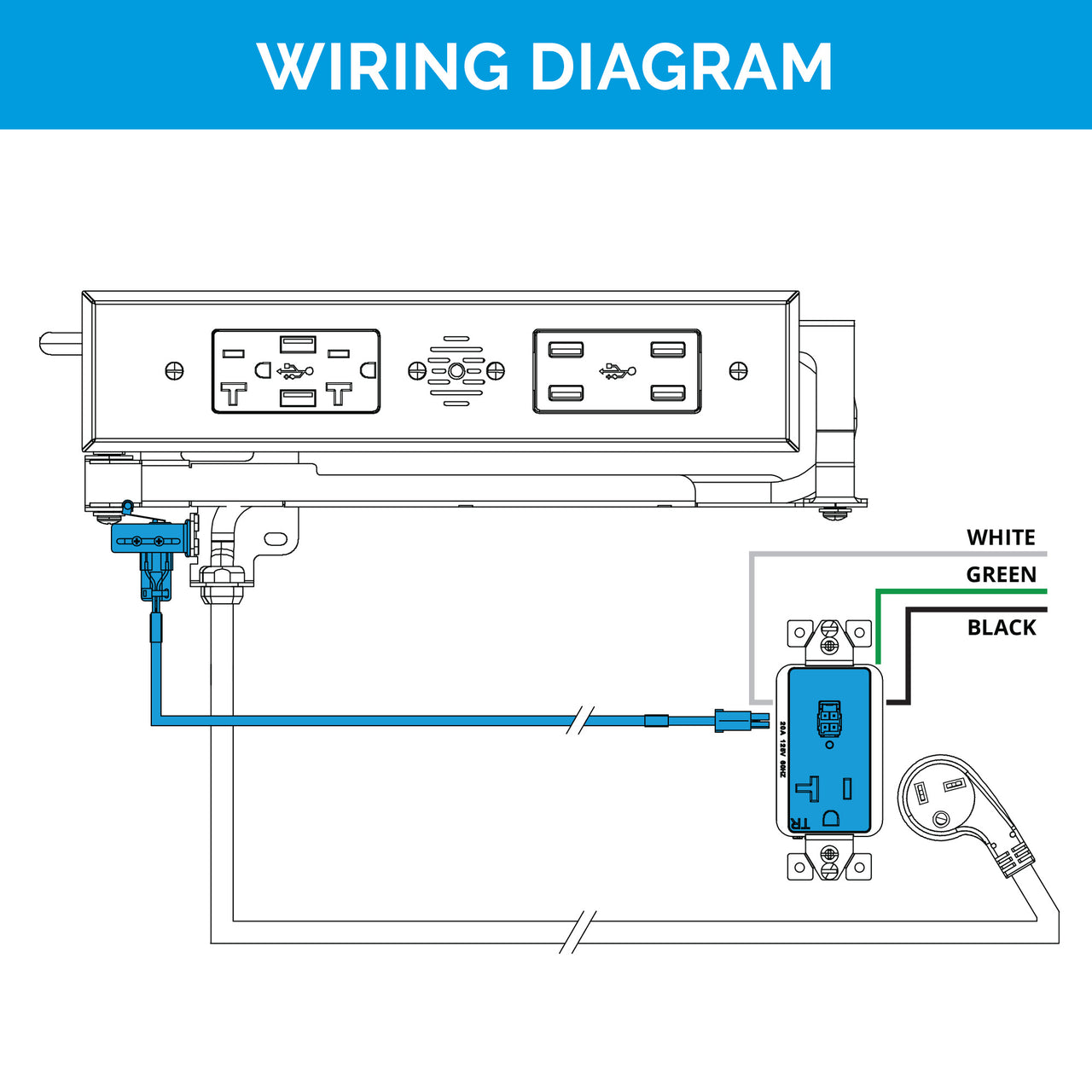

Blade Series Limit Switch mounts to any 15 amp Docking Drawer Blade Series outlet to detect the drawer position and will de-energize the outlet when the drawer starts to close.
Input100 - 125 VAC, 50/60 Hz
AC Output15A@125VAC, 1875 VA MAX
DC Output24VDC @ 100mA MAX
DC Power SupplyIEC Class II

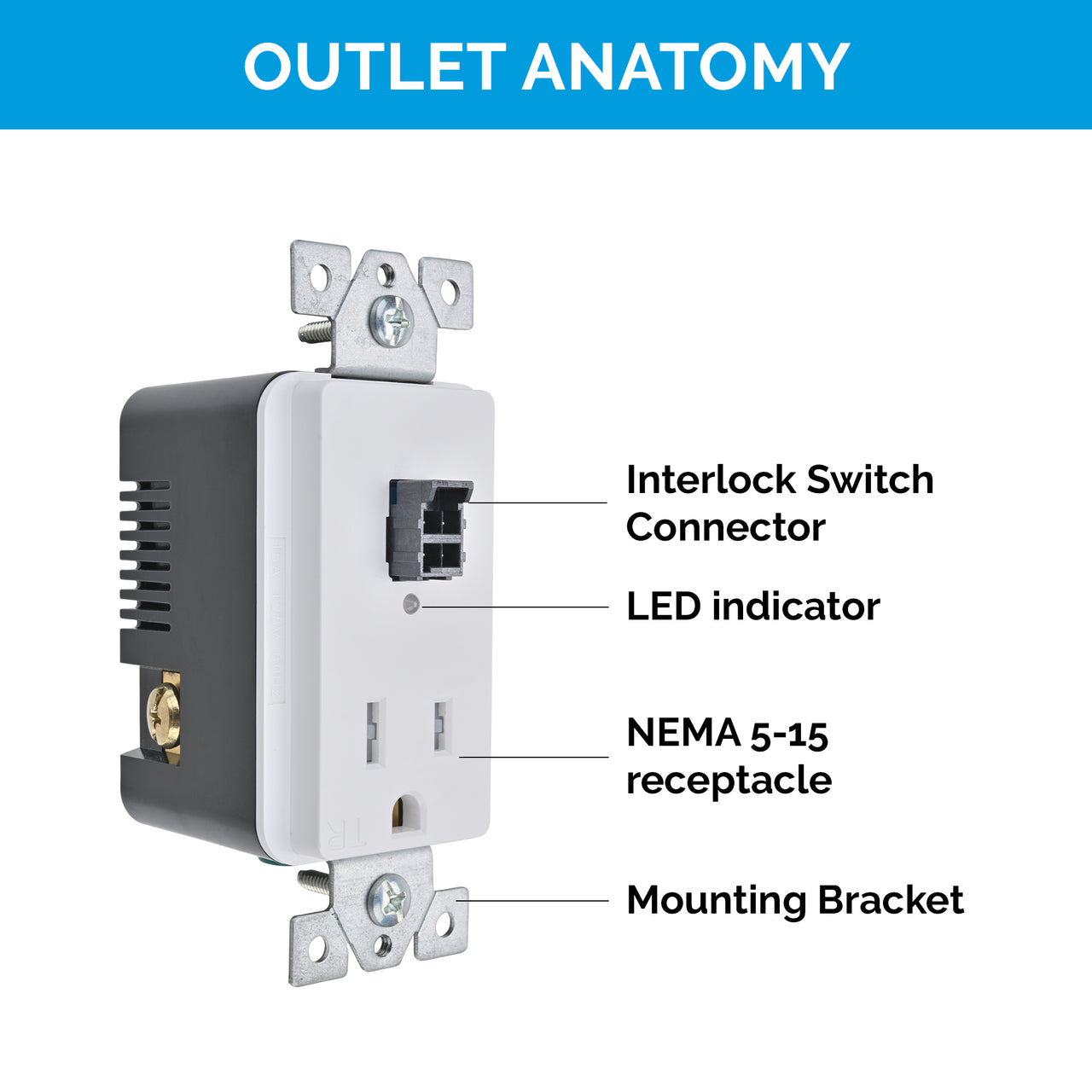

Number of Receptacles(1) NEMA 5-15R
Tamper ResistantYes
LED IndicatorYes
ConformanceUL60730, UL498, EN 61558, EN60730, EN62386
Environmental-10C to +50C, non condensing
Warranty2 Years

Spec Book

All the specs, measurements and drawings needed to plan your in-drawer outlet project.

DOWNLOAD NOW

Literature

Learn more about Docking Drawer Blade Series in-drawer outlets.

DOWNLOAD NOW

Installation Manual

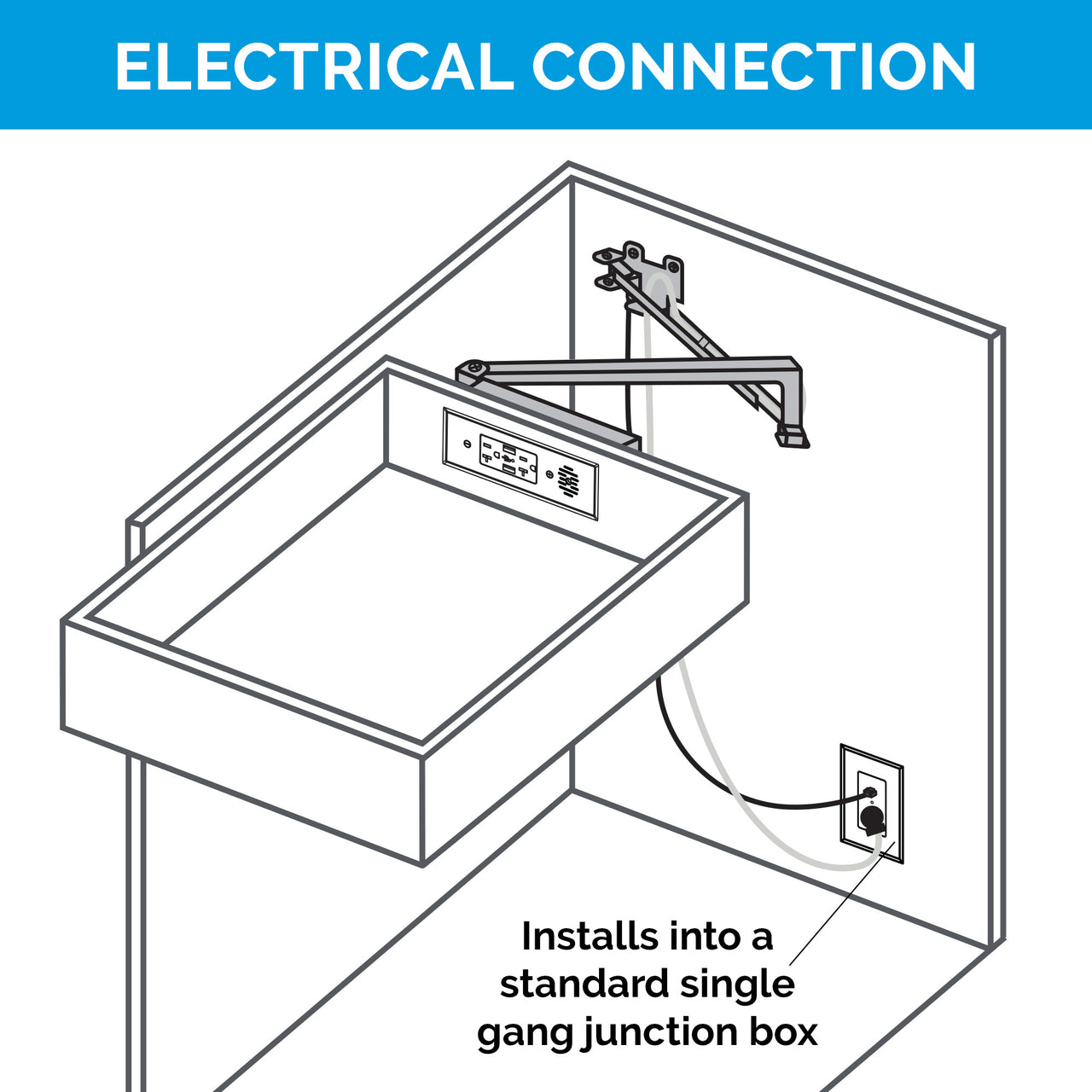

Safety Interlock Box installation is easy with our step by step guide.

DOWNLOAD NOW

Project Packs

Need a high volume order? Contact Us for special Project Packs pricing.

SUBMIT REQUEST
CUSTOMER REVIEWS

See What Our Customers Are Saying

average rating 5.0 out of 5
Based on 2 reviews
  • 5 Stars
    2 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Quality
Rated 5 out of 5
Ease of Installation
Rated 5 out of 5
Customer Service
Rated 5 out of 5

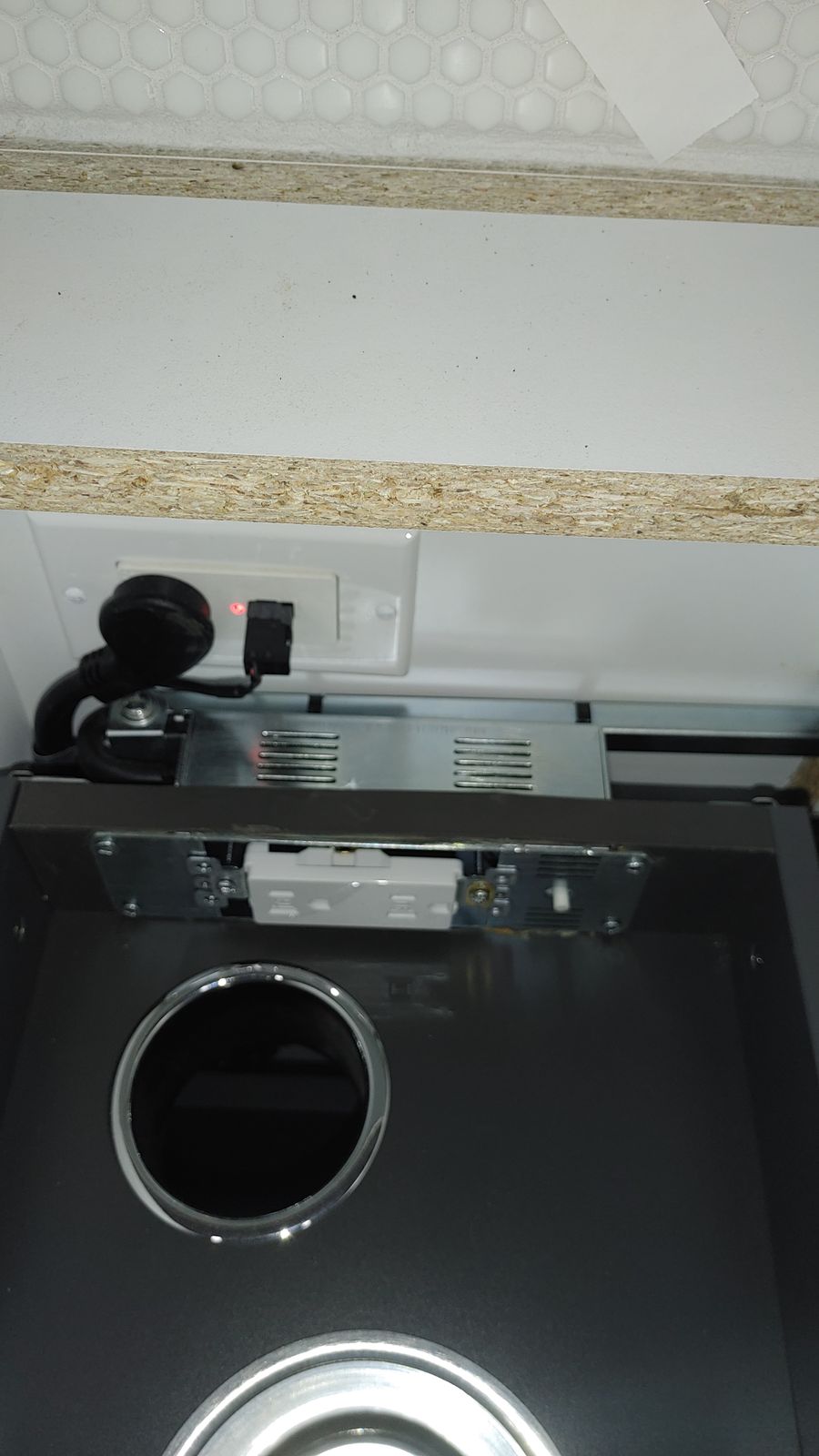

Customer photos and videos
2 Reviews
Reviewed by Mario P.
Verified Buyer
I recommend this product
Was this your first Docking Drawer project?
No
I am a -
Electrician
Rated 5 out of 5
Review posted

Safety Interlock

The safty interlock should be 15-20 amp. config with maximum 2400 watts @ 120Volts for more purposes like when it is instaled in the bathroom for hairdryer that pull usualy 1500 watts and may be more, the 20 amps. config give more range for the appliances connected between the specifications of the devise insted the 15 amps in the bathroom, it have more chances to work the most offten times near the maximum specs of the device (The safty interlock). In Canada, in the province of Québec whith our Code the config 15-20 sould be great for the appliances on the kitchin counter, and in accordance with our Code for the plugs instaled in less of 1.5 meters from the sink. Here it has to be 15-20 amps config. Sorry for my english, i'm french! If you have any questions, you could callme at 514 726 2096 or rpelect@hotmail.com
