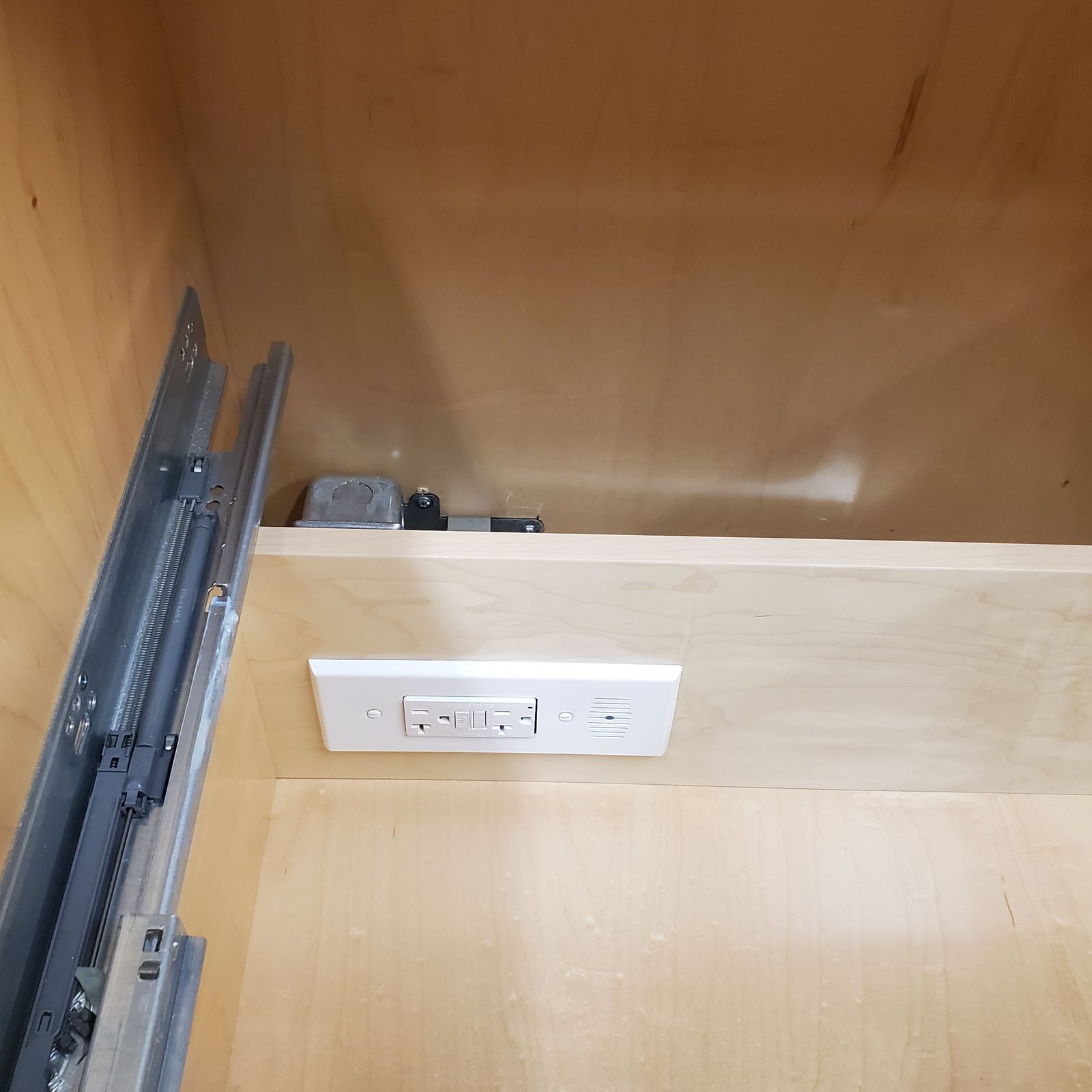

20 amp Blade In Drawer Outlet

How to Plan Your Docking Drawer Project

Every Docking Drawer Blade Series project starts by identifying your drawer box type. There are four basic drawer types to choose from - Shallow, Tall, Narrow, and Vertical. After identifying your drawer box type, measure the drawer box width (OD) to confirm the drawer is wide enough to accept a Docking Drawer Blade Series outlet.

Shallow

• Minimum interior drawer box height: 3" or more
• Minimum drawer box width (OD): 15" or more

Tall

• Minimum interior drawer box height: 4" or more
• Minimum drawer box width (OD): 13" or more

Narrow

• Minimum interior drawer box height: 4" or more
• Minimum drawer box width (OD): 9" or more and may require a channel to be added in the cabinet sidewall

Vertical

• Minimum interior drawer box height: 13" or more
• Minimum drawer box width (OD): 8" or more

Want more detailed specs to plan your project? Review our Blade Series Spec Book.

Project Planning in Canada

Docking Drawer outlets are ETL Listed for use in Canada. To plan your project, follow the planning details above and consider the following to comply with the CEC*:

In-Drawer USB Charging Stations for Canada

Specify Docking Drawer Blade Duo or Blade outlets with only USB ports. The ports remain energized and will charge devices when the drawer is closed.

In-Drawer AC Outlets for Canada

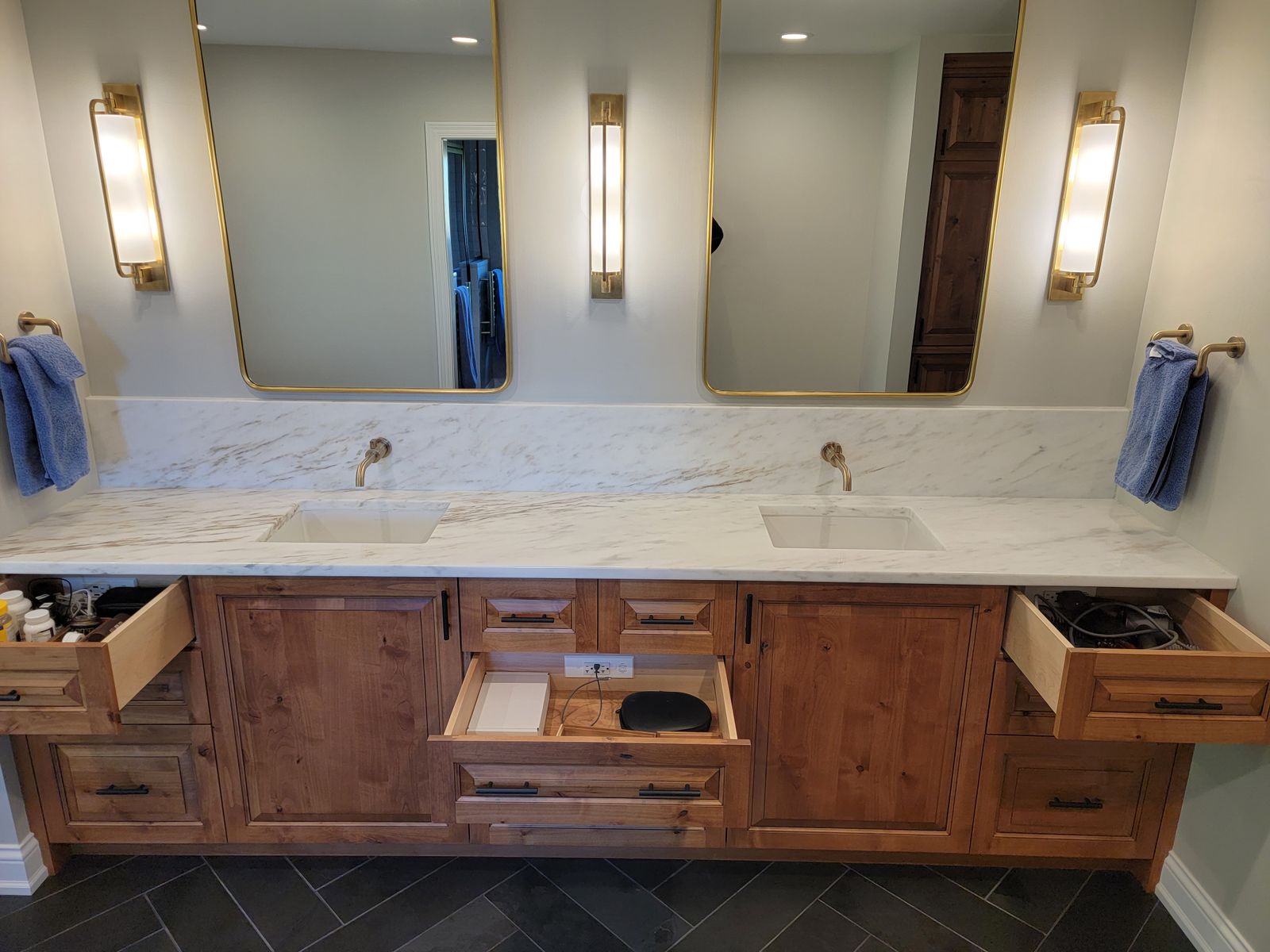

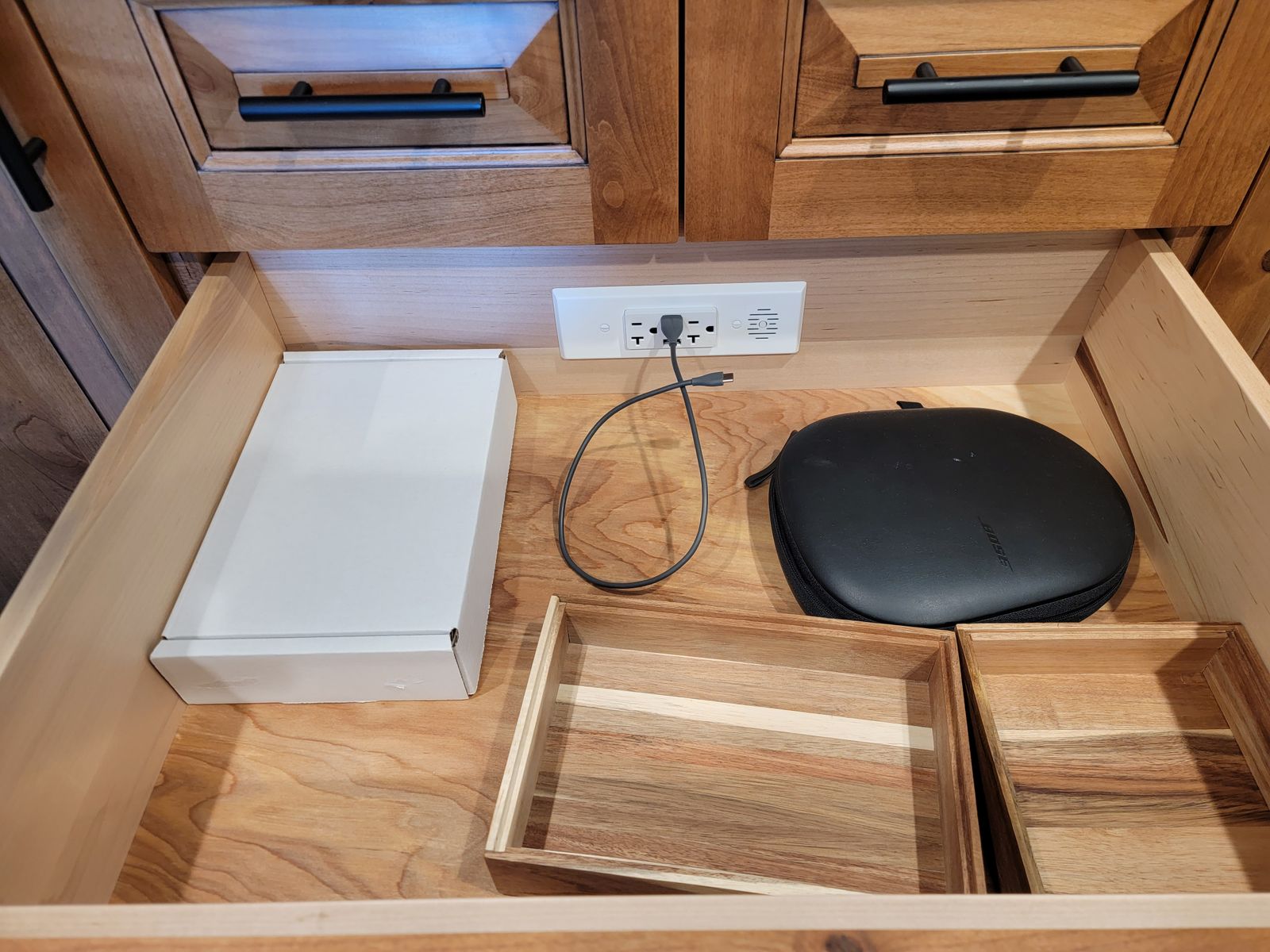

To add AC outlets inside of a cabinet, such as a bathroom vanity or a kitchen appliance garage, specify a 15 amp Docking Drawer Blade Duo or Blade outlet & the Safety Interlock Outlet with Blade Limit Switch (6015-1000W). The Safety Interlock Outlet with Blade Limit Switch de-energizes a Docking Drawer Blade Series outlets when the drawer begins to close.

*The Authorities Having Jurisdiction (AHJ) has the final say on whether an installation meets the requirements of the Canadian Electrical Code.
