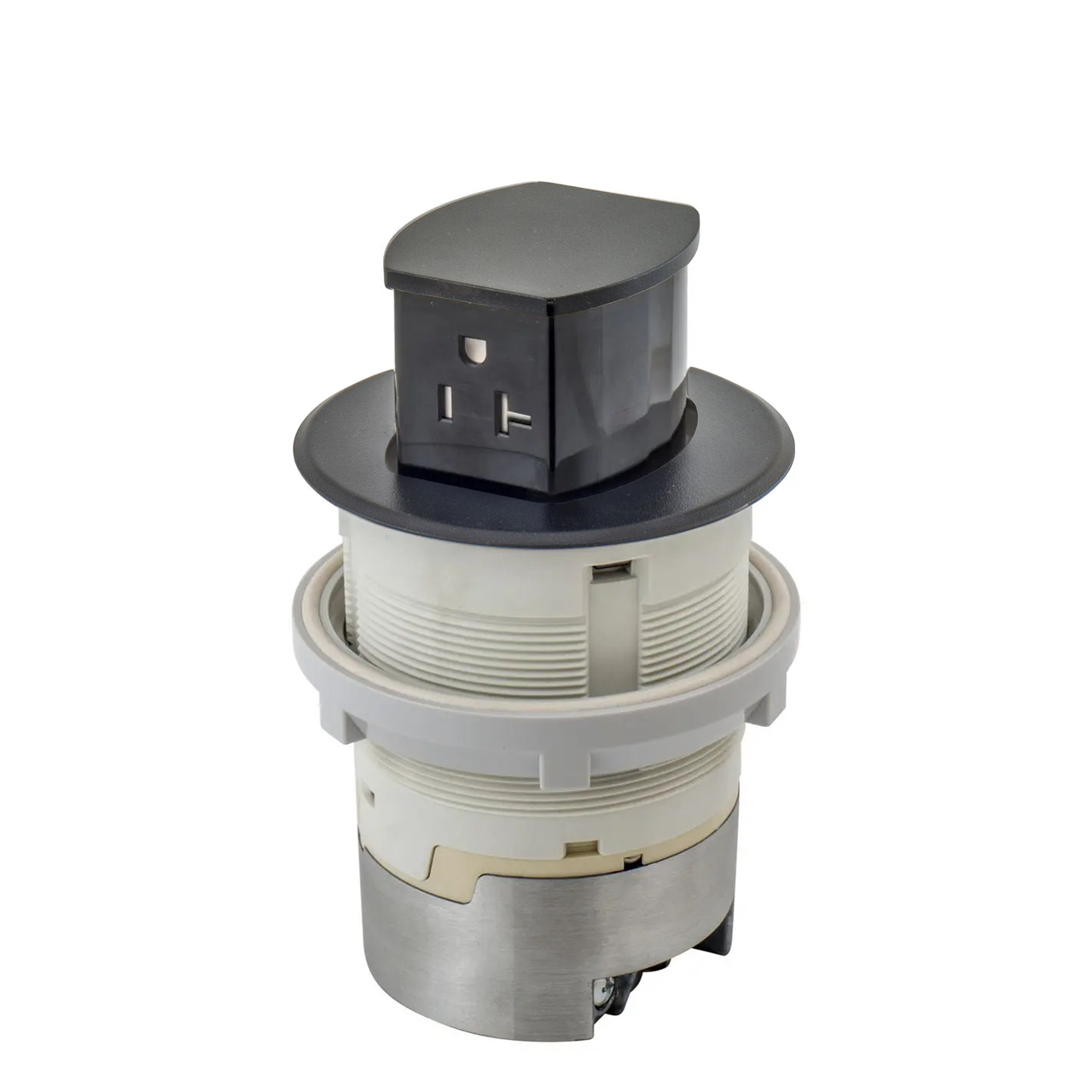

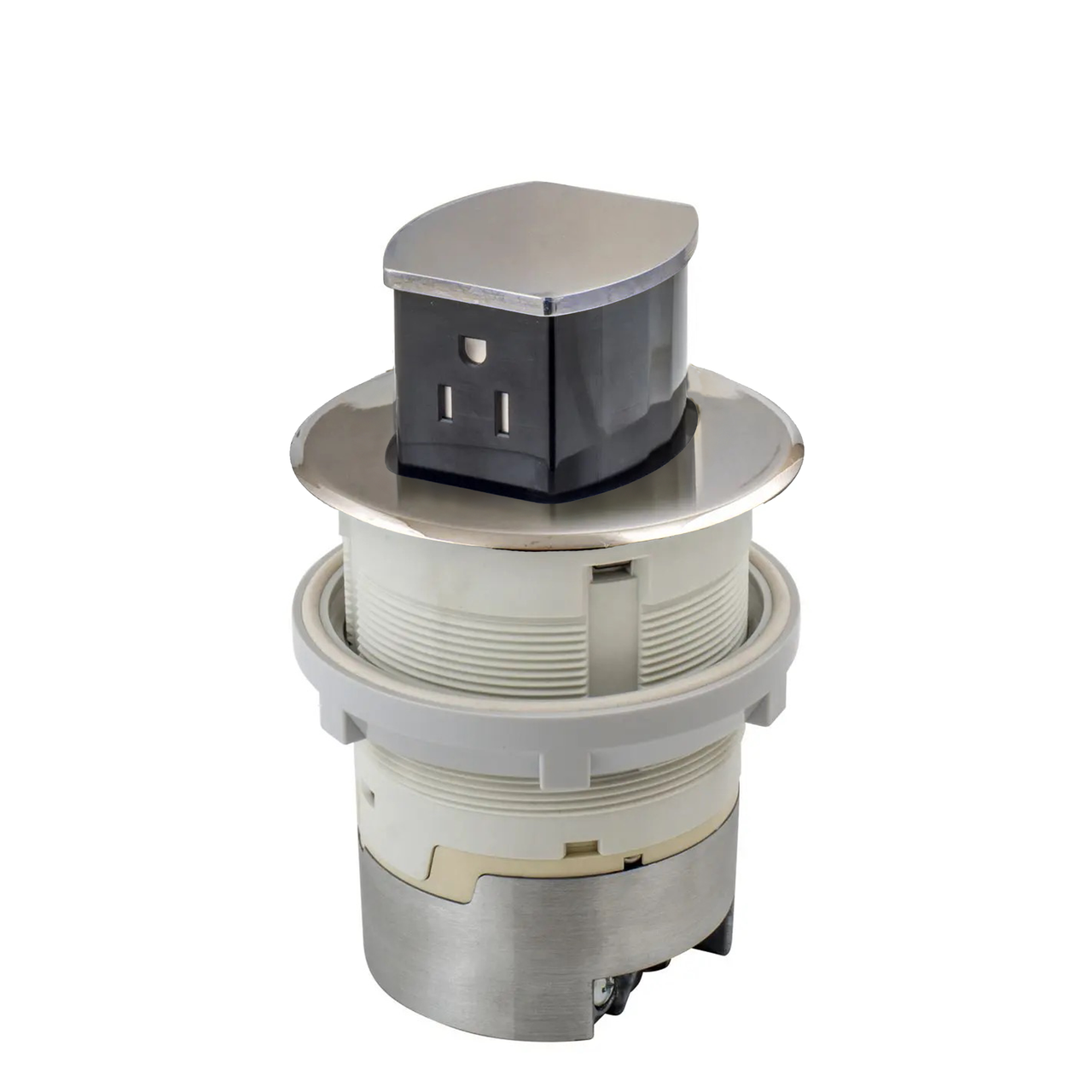

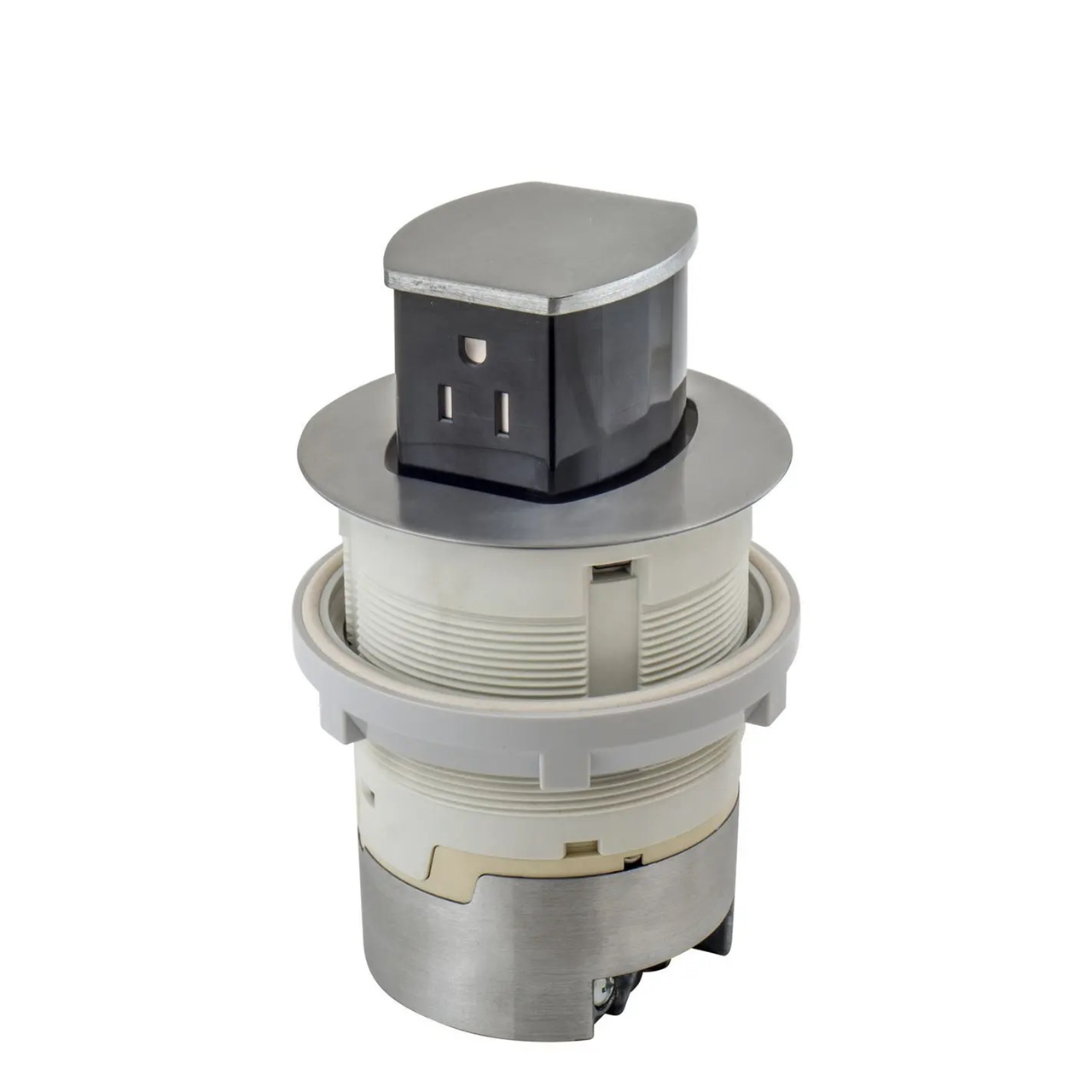

The Countertop Pop-Up unit includes 2 AC connections, featuring an upside-down AC outlet for accommodating those larger plugs often utilized with heavy-duty kitchen tools or even larger laptop chargers. Eliminating the need to awkwardly position small countertop appliances or string power cords across the conference table, the Countertop Pop-Up provides a convenient power source where you need it most.
With its minimalist design, including a mere 4" top diameter and an ultra-thin bezel measuring just 0.09" thick, the Tri-Power Pop-Up Outlet complements your countertops without being a distraction and can be mounted in 2 ways: a surface mounting style and a flush mounting style.
A surface mounting style offers the utmost ease of installation and will leave the outlet ring sitting just 2.5mm above the counter. The flush mounting style, requiring a few additional steps in the installation process, will result in a fully recessed outlet that will sit flush with your countertop when left in a closed position.
When you need to charge a device or power an appliance, a gentle press elevates the pop-up outlet to just 1.69" above the surface, holding true to its low-profile design. Among the most compact and shallow options on the market, these countertop pop-ups measure just a few inches deep, amplifying placement possibilities, especially on kitchen countertops.
Safe and Intentional Design
Aligning with Docking Drawer’s stringent quality standards, Hubbell Pop-Up Outlets are UL-listed for the US and Canada, having gone through rigorous testing to confirm cables can endure high electrical levels and prevent excessive electricity flow.
Proven to last for a minimum of 10,000 cycles, these splash-rated and tamper-resistant outlets are equipped with spill-proof technology (in both the up and down positions), making them great candidates for kitchen pop-ups. They’re safe for use in areas like kitchen countertops that are prone to water exposure. To ensure the utmost safety, these pop-up outlets require connection to a Ground Fault Circuit Interrupter (GFCI) protected circuit, adhering to NEC code requirements.
A skilled electrical contractor is essential for installing kitchen pop-up outlets, ensuring they meet NEC code standards for safety. Their tamper-resistant design further enhances the safety and reliability of these outlets in any kitchen setting, especially in households with young children.

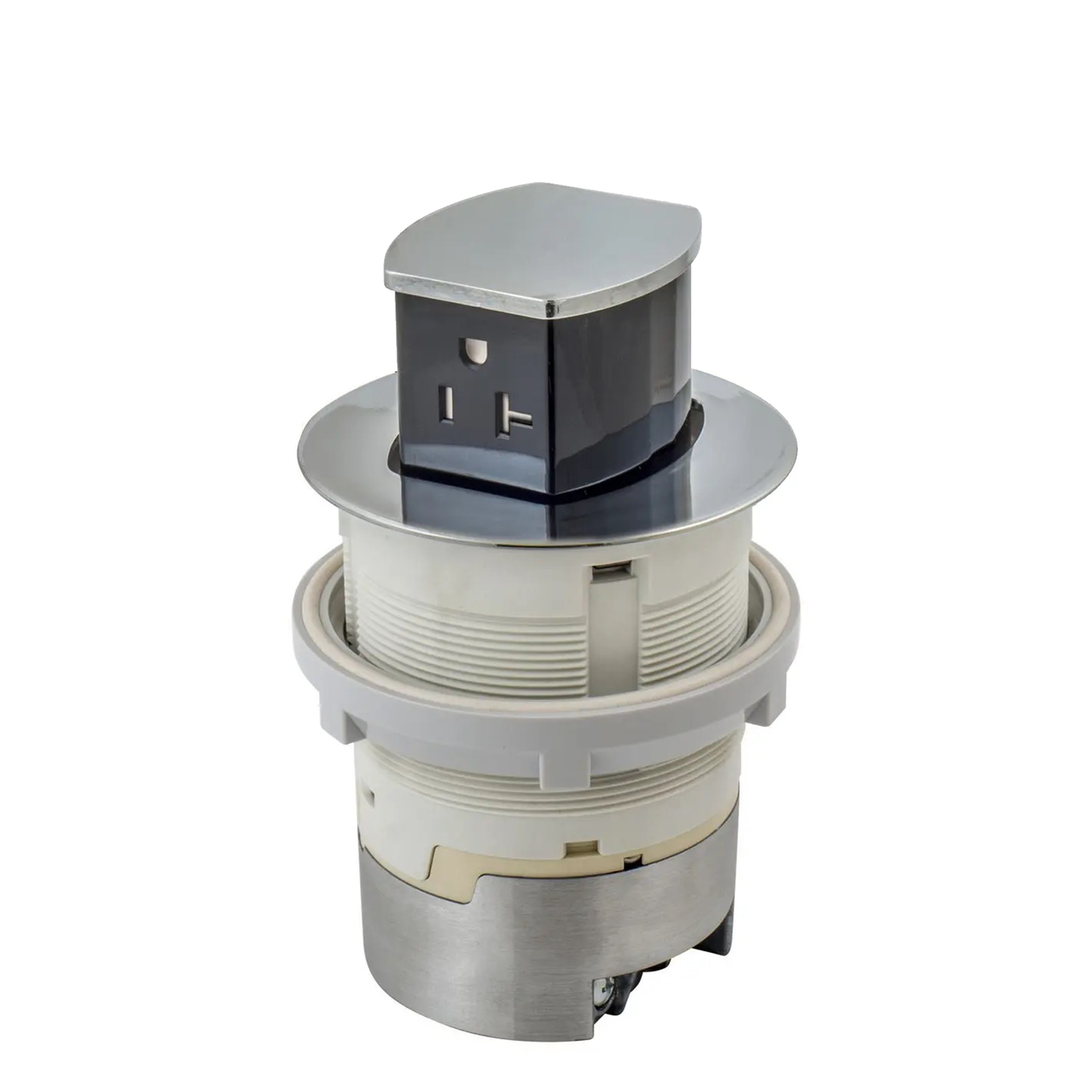

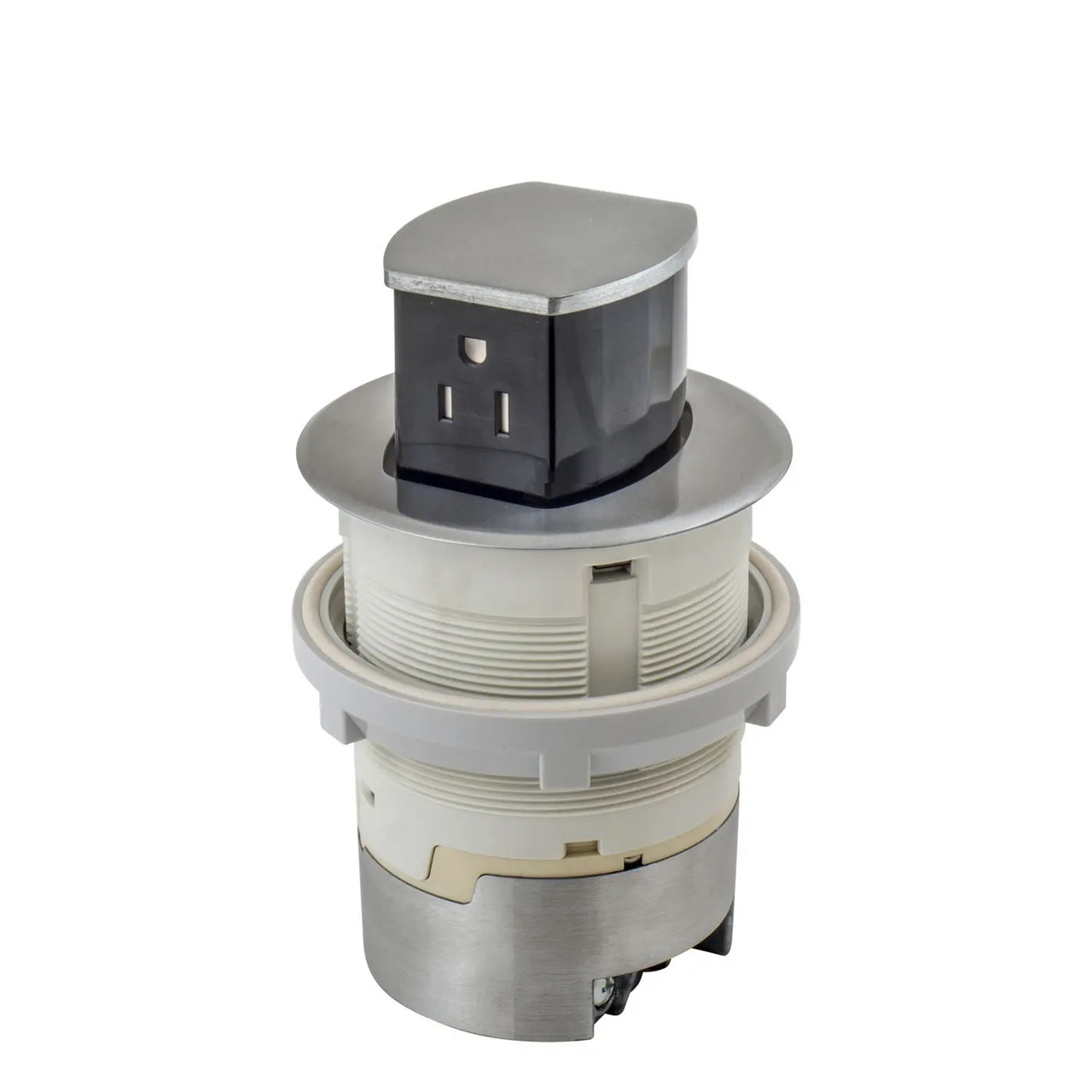

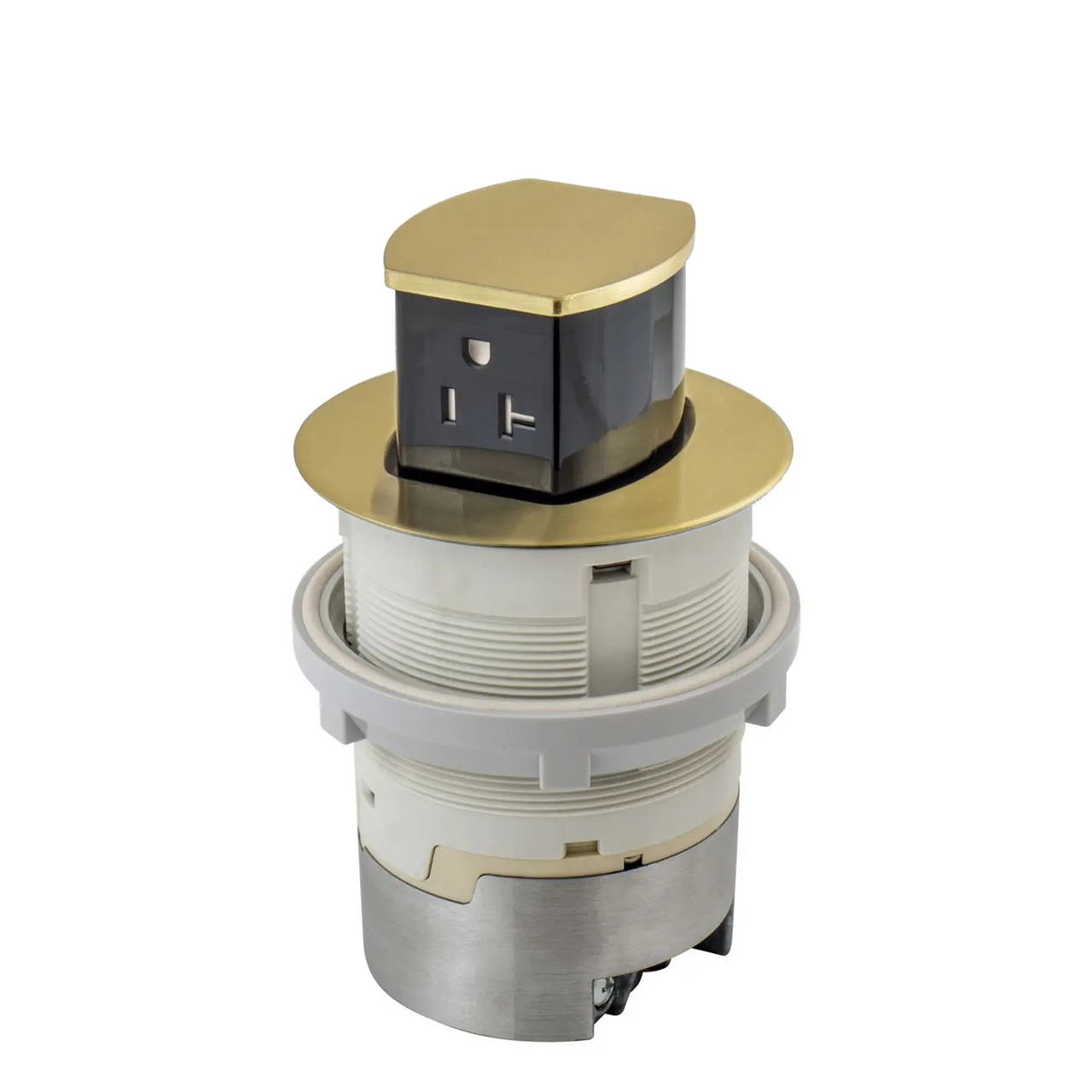

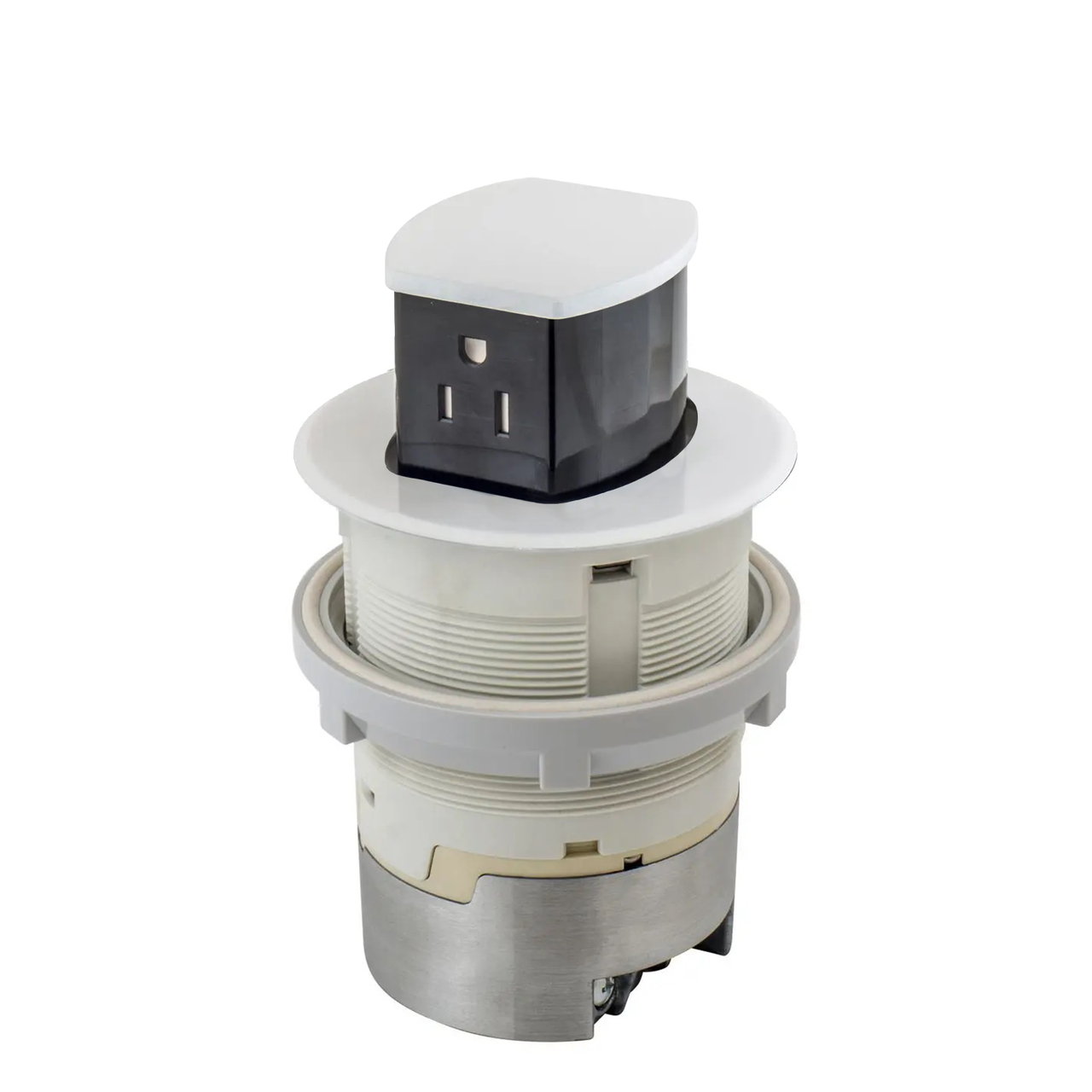

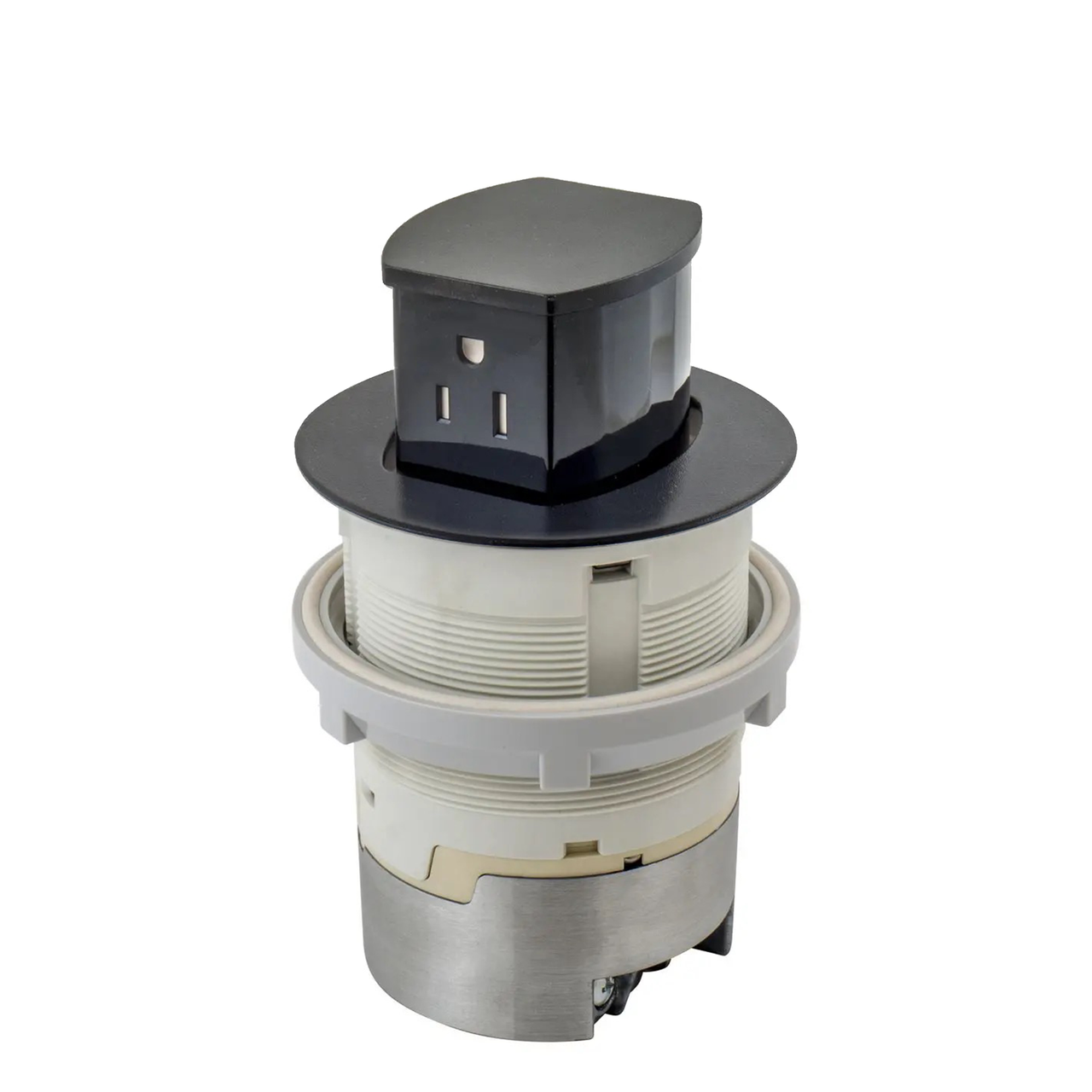

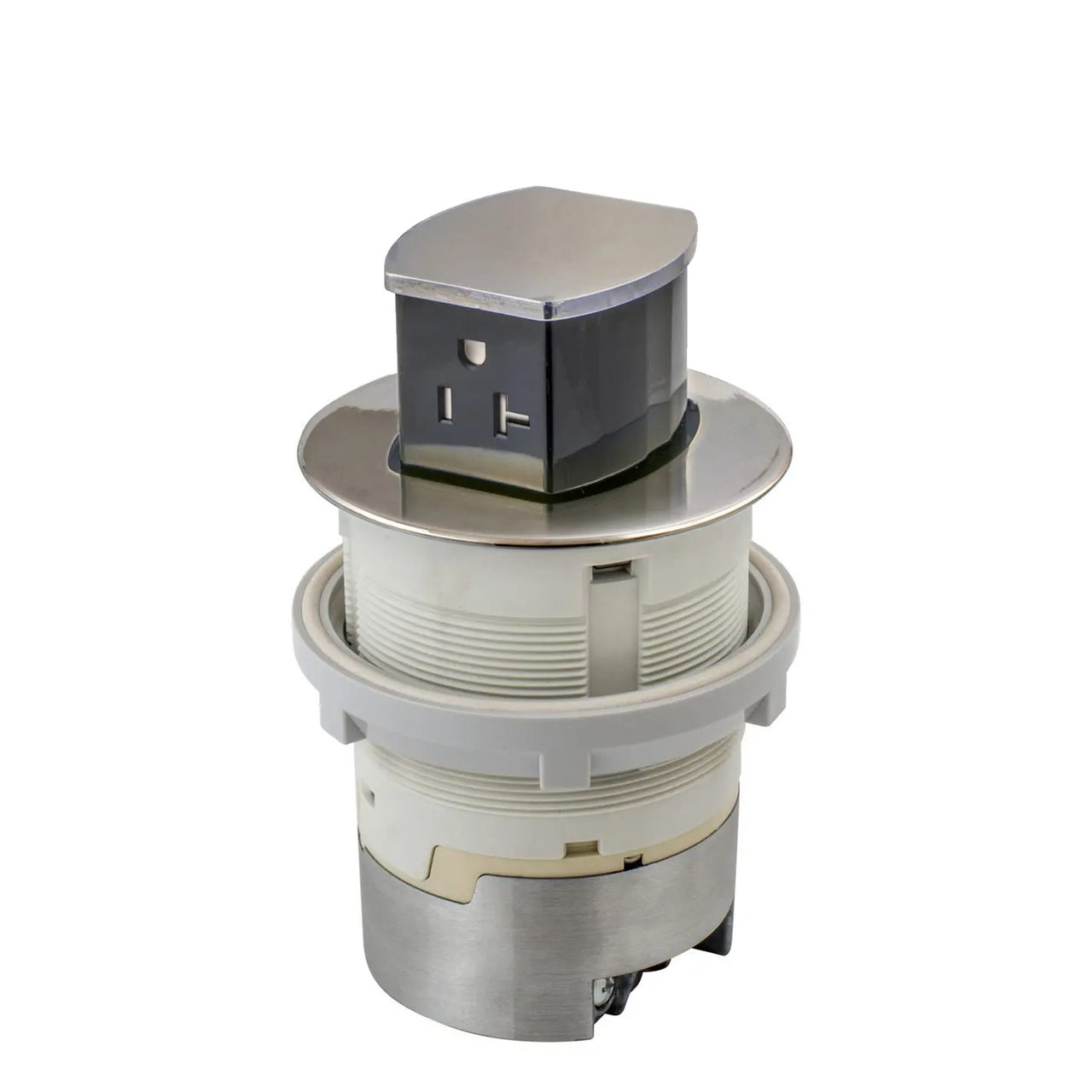

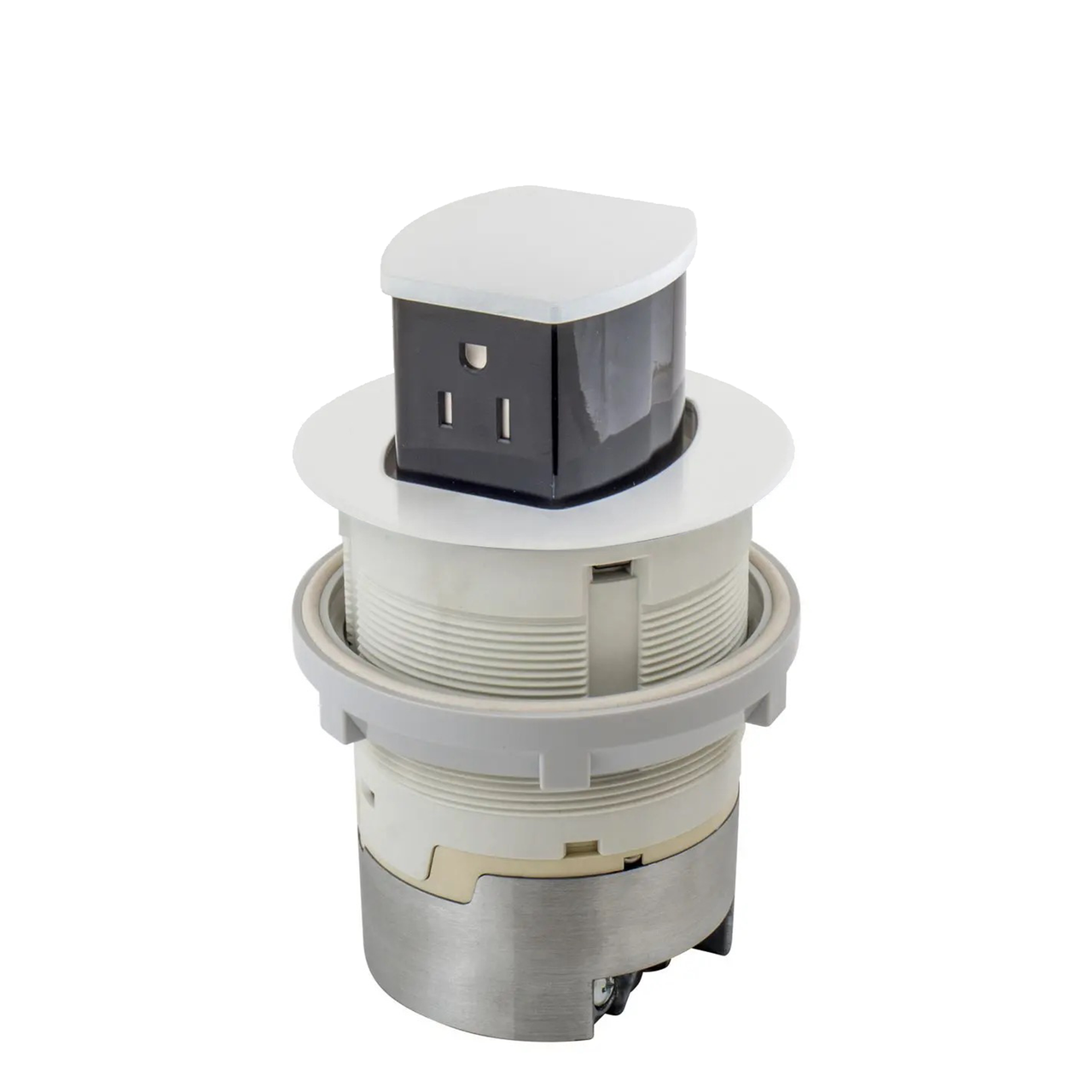

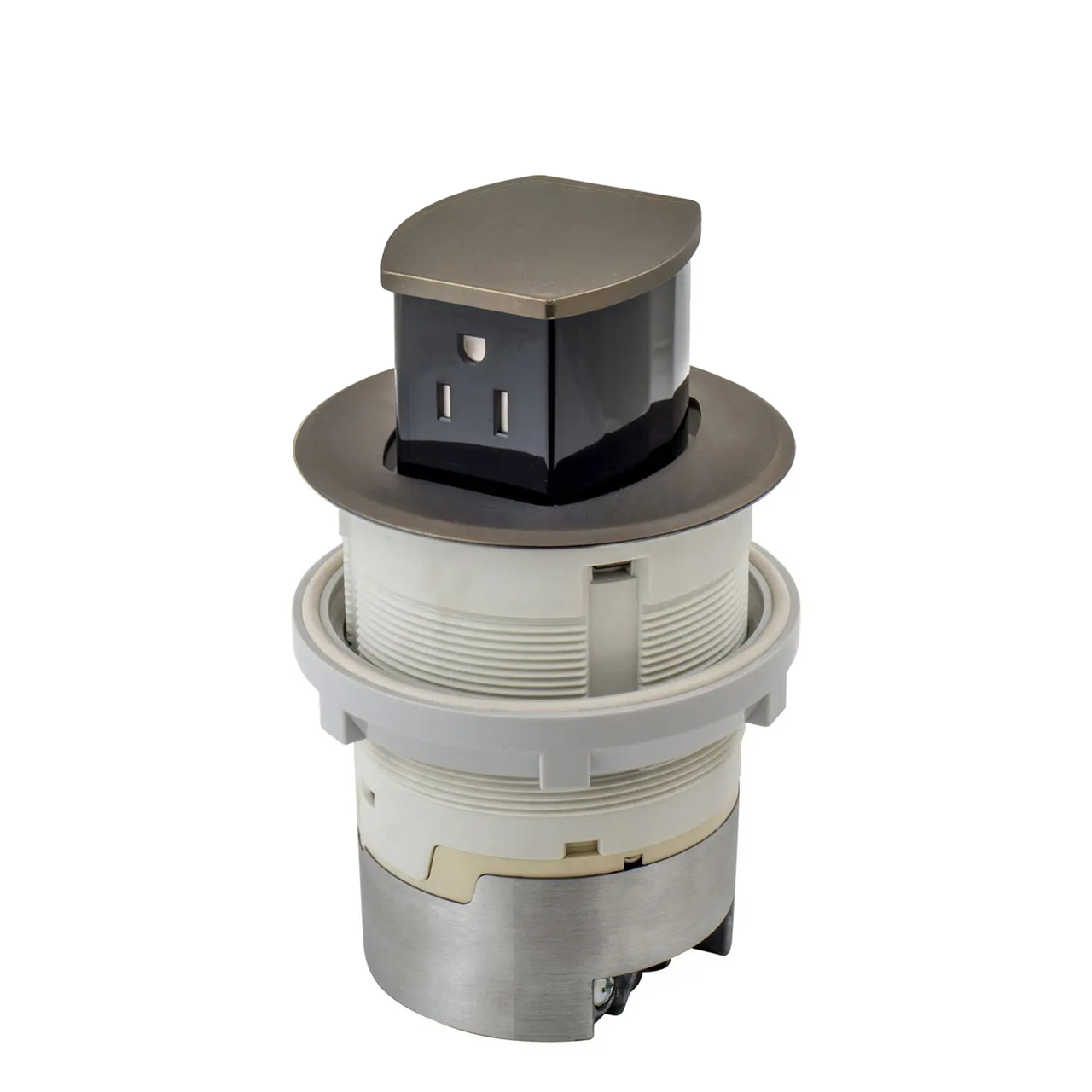

Elevating surfaces into practical charging stations, the Countertop Pop-Up Outlet promises tamper-resistant power accessibility — be it as a conference table, sideboard, or kitchen pop-up. Choose from seven finishes, including white, black, chrome, brass, bronze, aluminum, and nickel to integrate seamlessly with any aesthetic.
Tower Height: 1.69” [42.8mm]
Base Height: 4.7” [119mm]
Ring Thickness: .09” [2.3mm]
Available Space for Countertop: .56 - 2.13”
Base Diameter: 4” [101.6mm]
Outlet Configuration: 2 AC
Current / Amperage Rating: 20 amp
Voltage Rating: 125V
Tamper Resistant: Yes
Outlet Cut Out Size For Surface Mount: 3.5” outlet cut out and then the ring rests on top of the counter
For Flush Mount: 4” x .09” ring cut so the ring is flush mounted to the counter and the 3.5” outlet cut out is centered.
UL Listed - UL 223A Listed for the US
cUL Listed - CSA Approved: The outlet was tested by UL to CSA (Canadian Standards Association) standards.
406.5(E) [countertops], 406.5(F) [work surfaces], and 406.5(H) [seating areas]: Pop up complies when installed vertically and on a GFCI (Ground Fault Circuit Interrupter) protected circuit.
UL 498 Section 146: Built and listed to be water resistant to a half gallon of liquid spilled on the device.
*The Authorities Having Jurisdiction (AHJ) has the final say on whether an installation meets the requirements of the Electrical Code.
