Safety Interlock Disconnect with Magnetic Limit Switch
$87.95
Limit Switch State
Disconnect Specs
Input: 100 - 125 VAC, 50/60 HzAC
Output: 20A @ 125 VAC, 2500 VA MAX, 2 HP
Number of Receptacles: (0)
Tamper Resistant: Not Applicable
LED Indicator: No
Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
Environmental: -10C to +50C, non condensing
Warranty: 2 Years
Limit Switch Specs
Type of Limit Switch: Magnetic Limit Switch
Limit Switch Cable: 6 ft 24 VDC low voltage cable

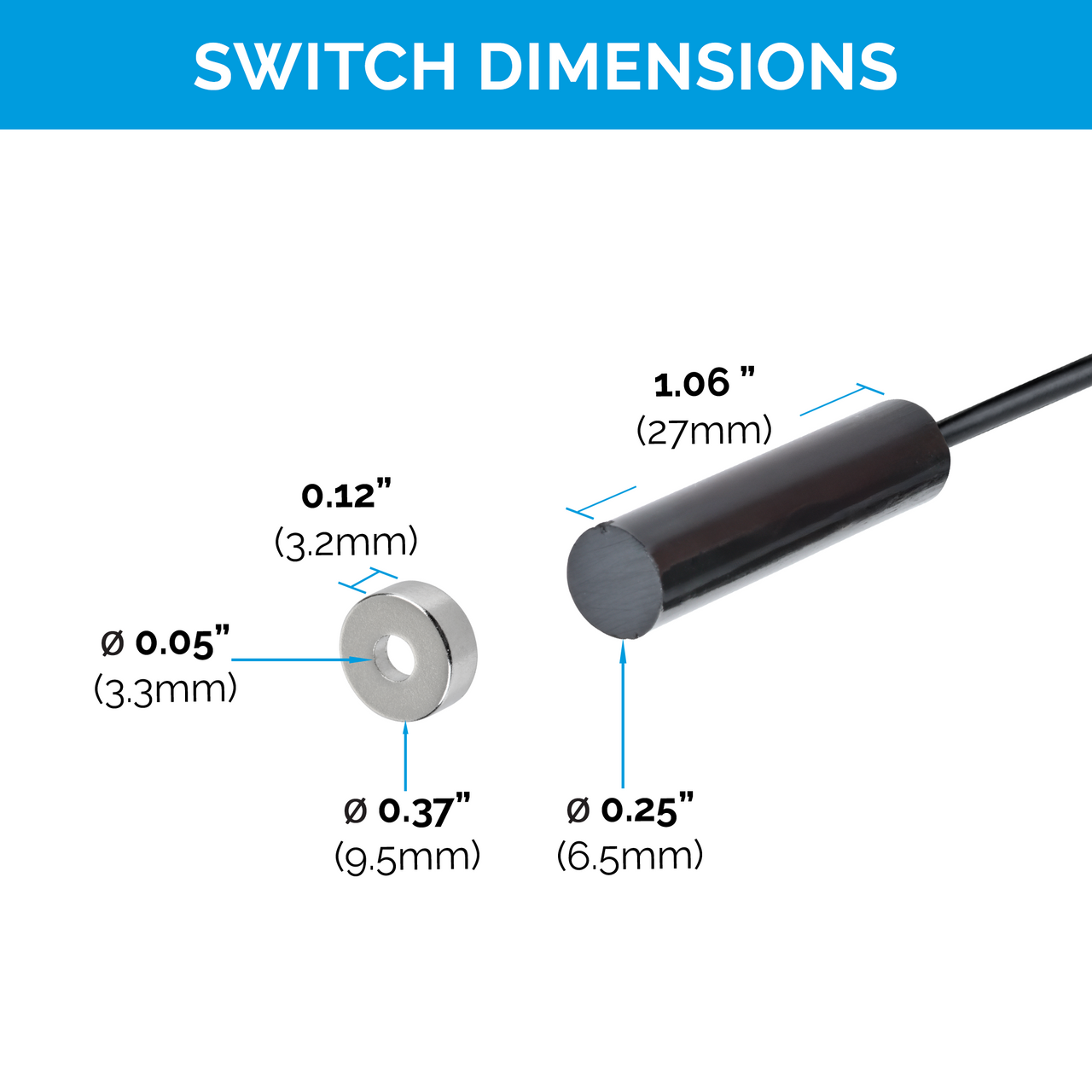

Switch Length: 1.06" (27mm)
Switch Diameter: 0.25" (6.5mm)
Magnet Width: 0.12" (3.2mm)
Magnet Diameter: 0.37" (9.5mm)
Mounting Details: Can be installed in any cabinet or enclosed space using one of the following methods: surface mounted with the included clamp and screw, or inset mounted directly into the cabinet.
Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
