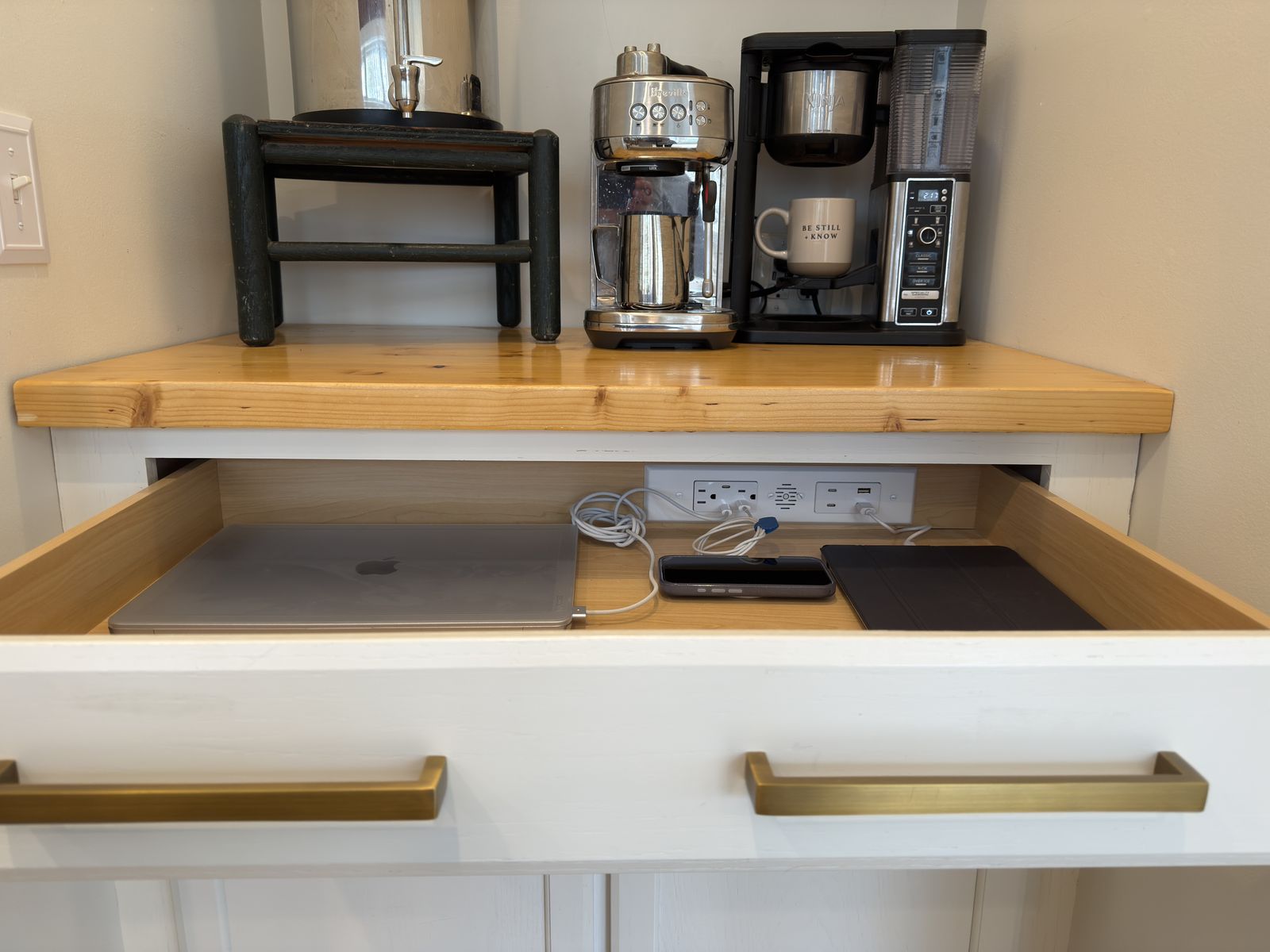

15 amp Blade Duo
Outstanding product and easy to install
Quality |
Rated 5 out of 5
|
---|---|
Ease of Installation |
Rated 5 out of 5
|
Customer Service |
Rated 5 out of 5
|
Imperial | Metric | |
Outlet Width | 13” | 330mm |
Outlet Height | 4.64" | 118mm |
Outlet Depth | 2.5" | 64mm |
Receptacle Box Depth | 1.93" | 49mm |
Cover Plate Height | 2.52" | 64mm |
Cover Plate Width | 11.26" | 286mm |
Cover Plate Thickness | 0.29" | 7.5mm |
Cable Management Arms Height | 3" | 76mm |
Cord Length (15 amp) measured from the rear mounting bracket | 54" | 1.37m |
Cord Length (20 amp) measured from the rear mounting bracket | 36" | 0.9m |
# | Outlet Configuration | Outlet Specifications |
1 | (2) USB-A & (2) AC | AC: 15 amps @ 120 VAC USB-A: 3.6 amps @ 5 VDC |
2 | (4) USB-A | 4.2 amps @ 5 VDC |
3 | (2) 30W USB-C & (2) AC | AC: 15 amps @ 120 VAC USB-C (single port connected to PD device): 3 amps @ 9 VDC (30W) USB-C (single port connected to non-PD device): 3 amps @ 5 VDC (15W) USB-C (both ports connected): 3 amps @ 5 VDC (30W total power) |
4 | (1) USB-C 30W, (1) USB-A & (2) AC | AC: 15 amps @ 120 VAC USB-C (non-PD device): 3 amps @ 5 VDC (15W) USB-A: 2.4 amps @ 5 VDC |
5 | (2) AC - GFCI | 15 amps @ 120 VAC |
6 | (2) AC | 15 amps @ 120 VAC |
7 | (2) 65W & (2) AC | AC: 15 amps @ 120 VAC USB-C (PD) 65 Watt Shared USB-C (single port connected to PD device): 65W 5V/3A; 9V/3A; 12V/3A; 15V/3A; 20V/3.25A USB-C (both ports connected to PD devices): 65W total C1/C2: 5V/3A; 9V/3A; 12V/2.5A; 15V/2A; 20V/1.5A |
8 | (2) 30W USB-C & (2) USB-A | USB-C (PD) 30 Watt Shared USB-C (single port connected to PD device): 30W max 5V/3A; 9V/3A; 12V/3A; 15V/3A; 15V/2A; 20V/1.5A USB-C (both ports connected): 15W each port C1:5V/3A C2:5V/3A USB-A (max with one or both ports connected) 12W total 5v/2.4A |
