Appliance In-Drawer Outlet Kit with Blade Limit Switch

$402.00

Pick Configuration

Appliance In-Drawer Outlet Kit with Blade Limit Switch

$402.00

SKU: 0290-15/266W-1000

This Appliance In-Drawer Outlet Kit with Safety Switch comes with everything needed to connect and protect up to 4 devices in your powered drawer. The Blade Series Limit Switch mounts to the Blade Series outlet to detect the drawer position and de-energize the powered drawer as it begins to close.

Enhanced Safety for Powered Drawers

Simplify your setup with this kit, offering a seamless solution for powering devices within the drawer with added peace of mind. While every Docking Drawer outlet comes equipped with an integrated safety feature designed to automatically de-energize power when surrounding temperatures exceed 120°F, this kit adds another layer of safety and added peace of mind by ensuring that the drawer is completely de-energized when closed.

Smart Safety Technology

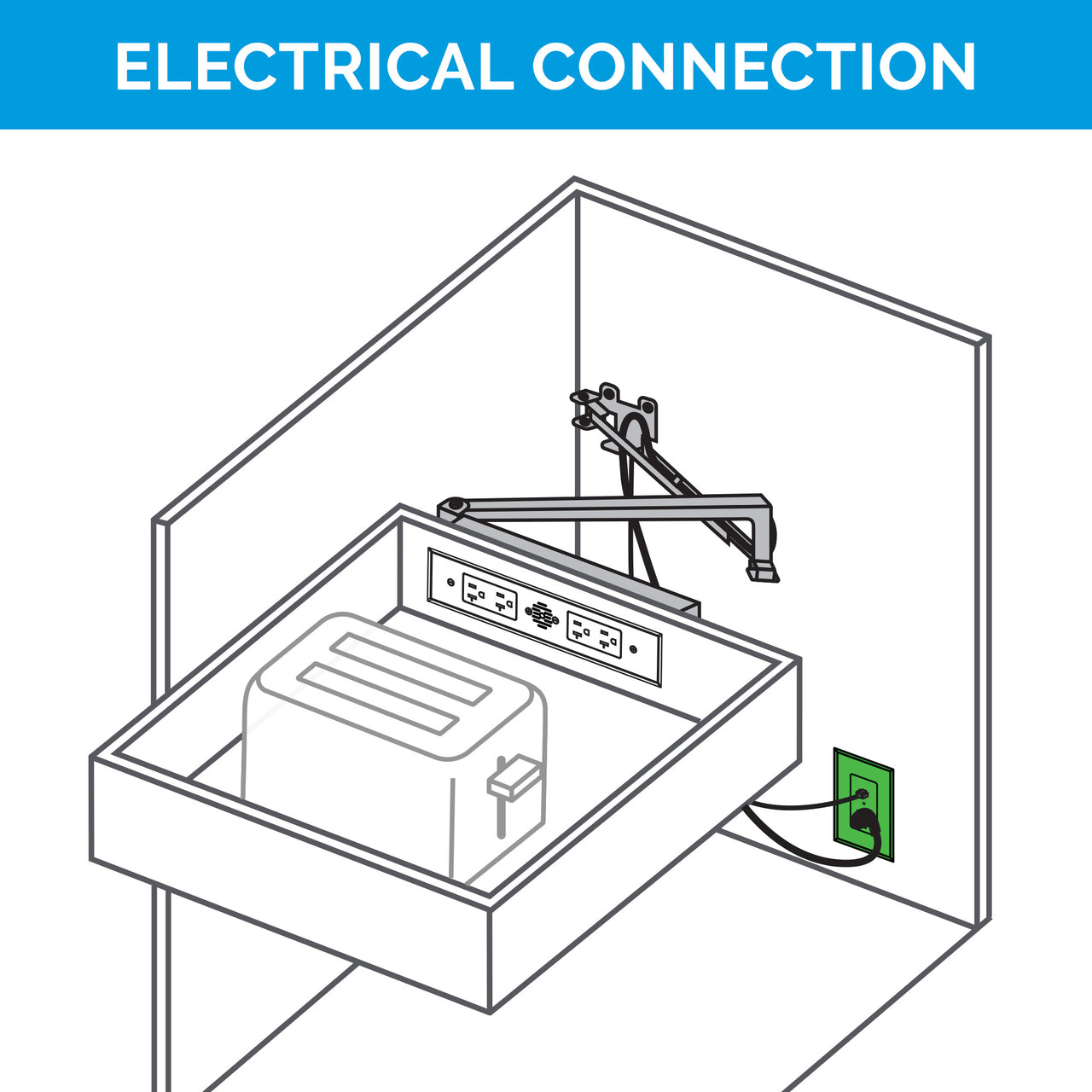

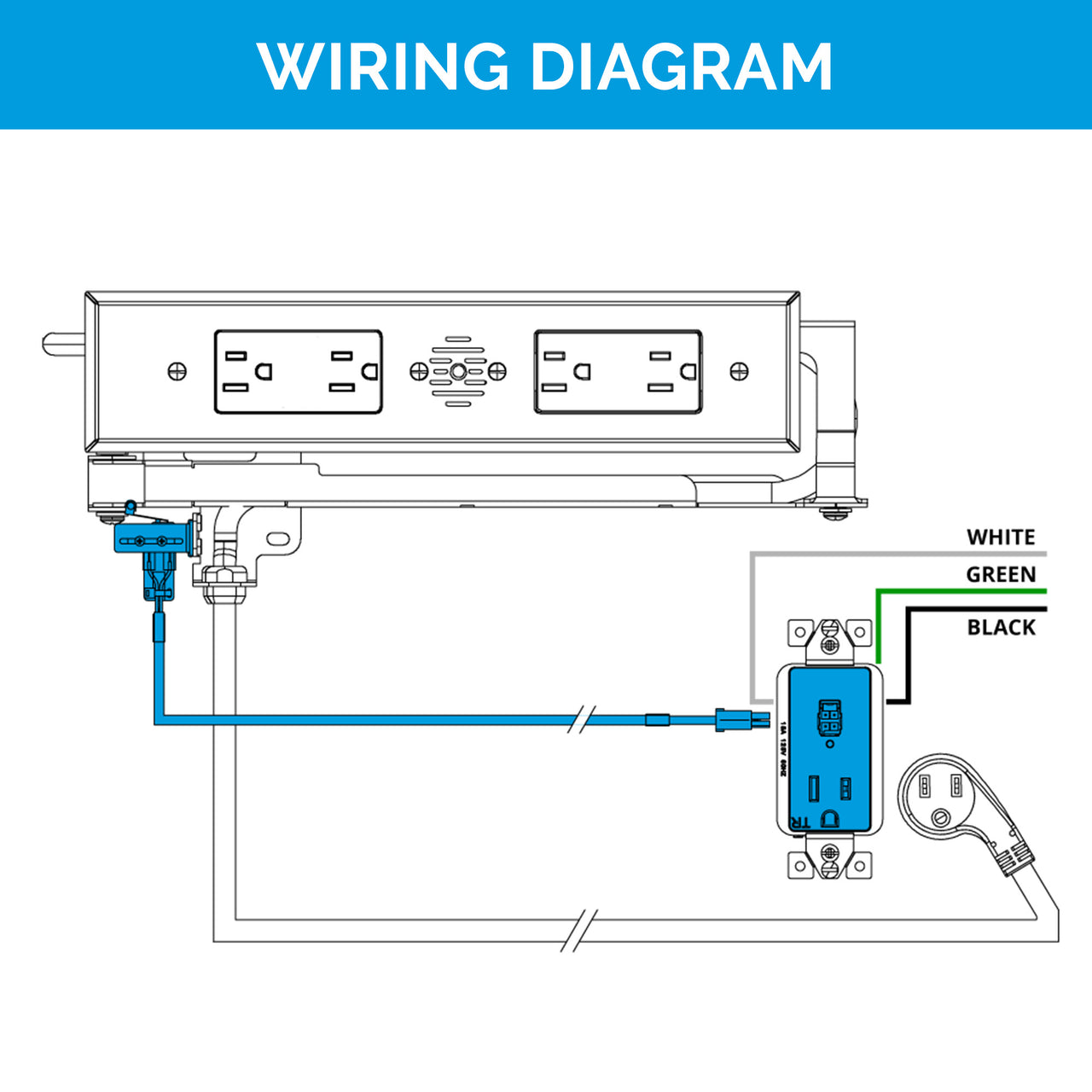

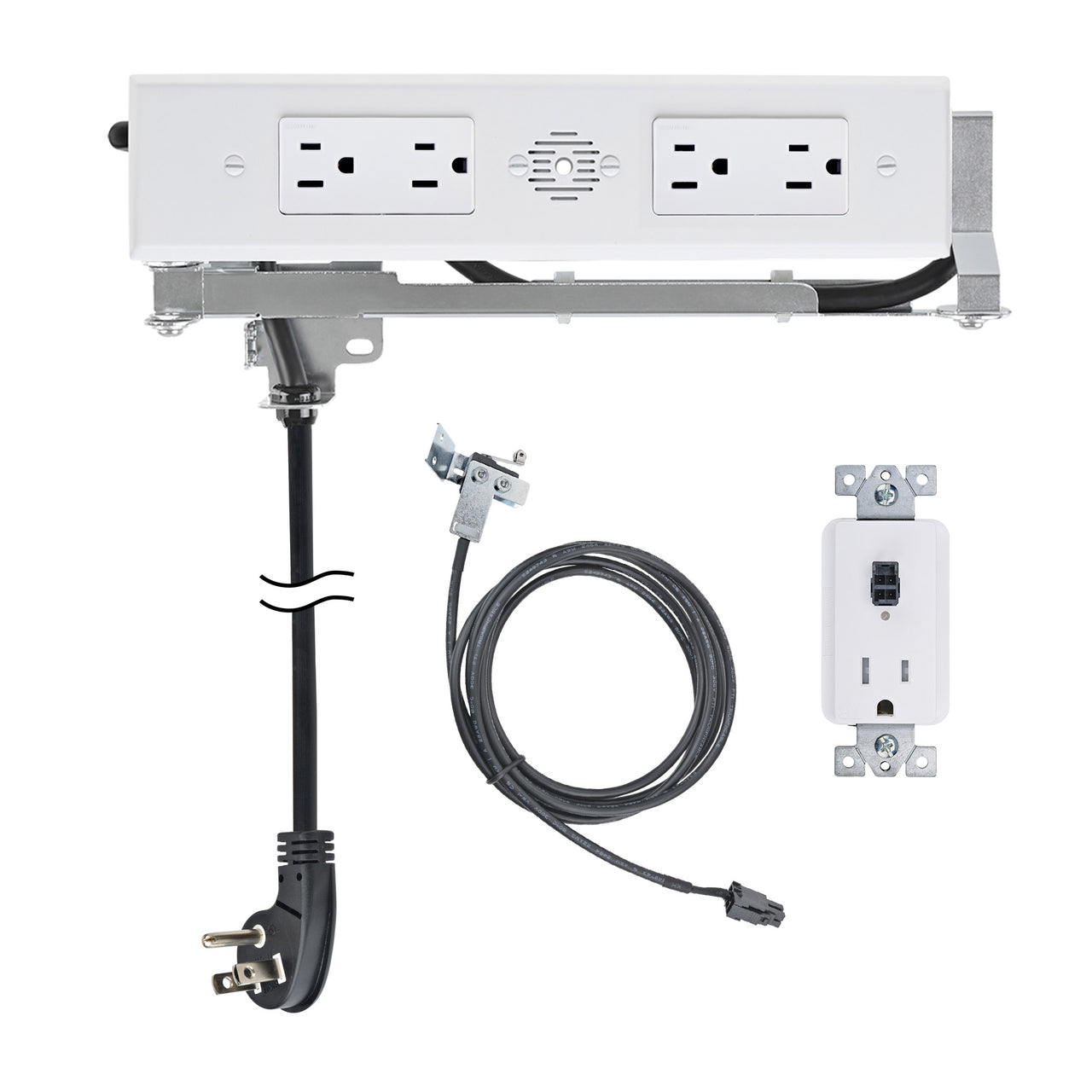

This all-inclusive kit features (1) Blade Duo Outlet, (1) Safety Interlock Outlet, and (1) Blade Limit Switch, providing everything you need in one convenient package. The Safety Interlock Outlet replaces the single gang outlet that will power your drawer outlet, the Blade Series Outlet installs with ease into your drawer using only a few basic tools, and the Limit Switch fastens to the rear mounting bracket of your Blade Series outlet. When the drawer begins to open, the switch is depressed, turning ON your in-drawer outlet. As the drawer begins to close, the switch is expanded, triggering the Safety Interlock Outlet to de-energize the connected Docking Drawer outlet. The Blade Limit Switch can be adjusted to de-energize the drawer at a preferred position.

Enhanced Organization

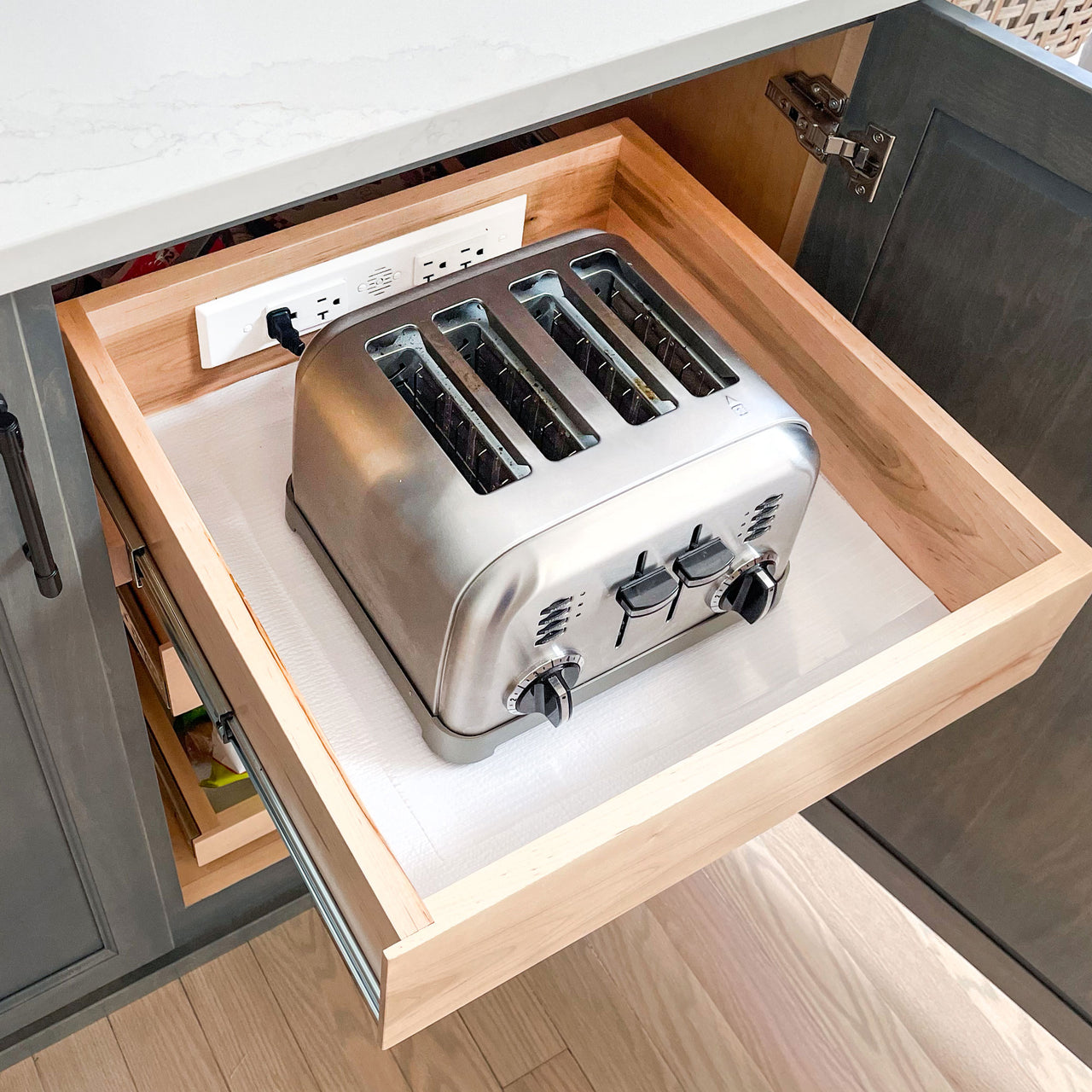

Designed for use in the bathroom vanity or kitchen appliance drawers, you will quickly experience the convenience of keeping devices connected and ready while otherwise stowed neatly out of sight, eliminating bulky countertop clutter for more organized and functional spaces.

Compliance and Seamless Installation

All products included in this kit are ETL Listed for use in both the US and Canada, and comply with CEC regulatoins for AC outlets within the cabinet.

*The Authorities Having Jurisdiction (AHJ) has the final say on whether an installation meets the requirements of the Canadian Electrical Code.

15 amp Safety Interlock Outlet Specs

  • Input: 100 - 125 VAC, 50/60 Hz
  • AC Output: 15A@125VAC, 1875 VA MAX, 1/2 HP
  • DC Output: 24VDC @ 100mA MAX
  • DC Power Supply: IEC Class II
  • Number of Receptacles: (1) NEMA 5-15R
  • Tamper Resistant: Yes
  • LED Indicator: Yes
  • Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
  • Environmental: -10C to +50C, non condensing
  • Warranty: 2 Years

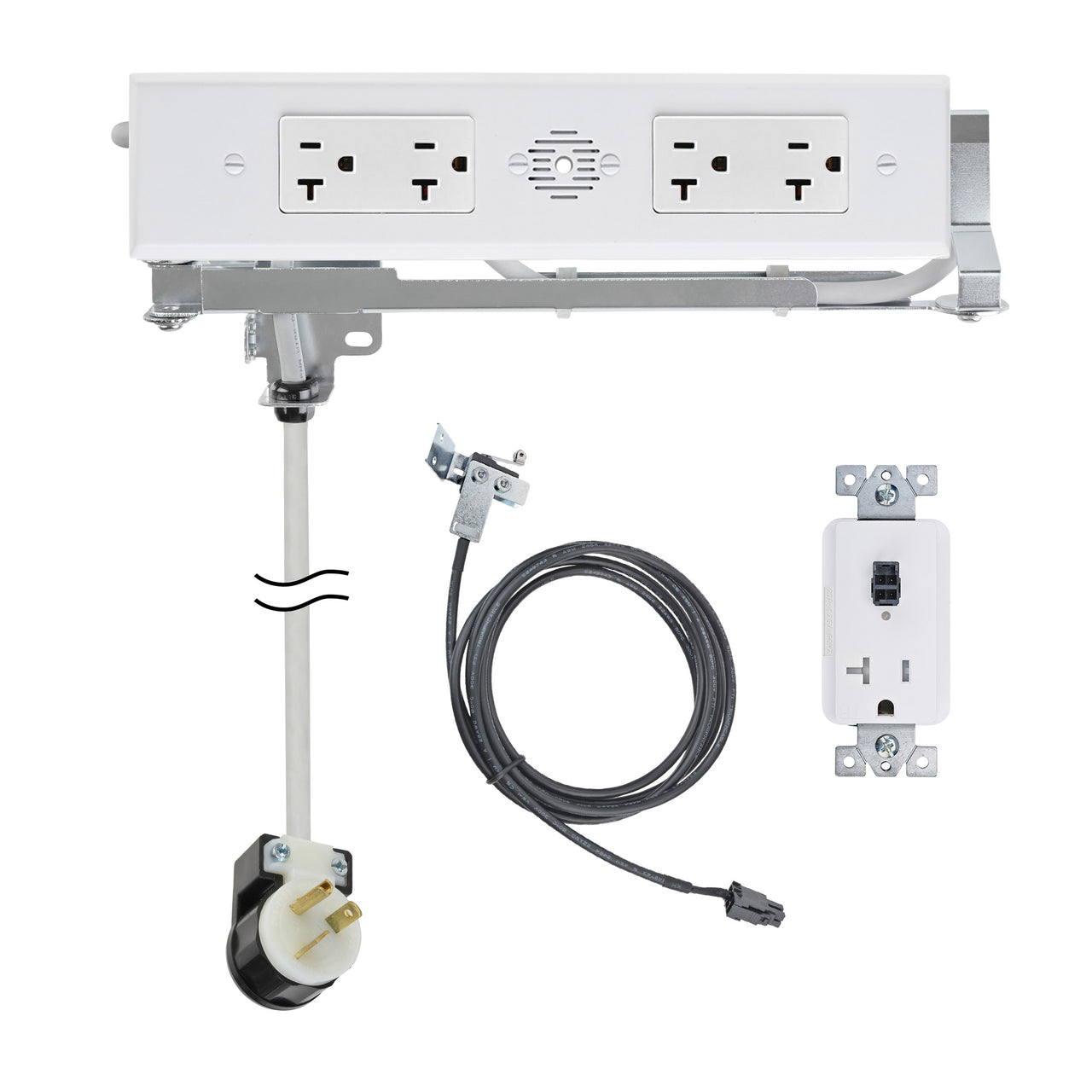

20 amp Safety Interlock Outlet Specs

  • Input: 100 - 125 VAC, 50/60 Hz
  • AC Output: 20A@125VAC, 2500 VA MAX, 1/2 HP
  • DC Output: 24VDC @ 100mA MAX
  • DC Power Supply: IEC Class II
  • Number of Receptacles: (1) NEMA 5-20R
  • Tamper Resistant: Yes
  • LED Indicator: Yes
  • Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
  • Environmental: -10C to +50C, non condensing
  • Warranty: 2 Years

Limit Switch Specs

  • Type of Limit Switch: Blade Series Limit Switch
  • Limit Switch Cable: 6 ft low voltage cable

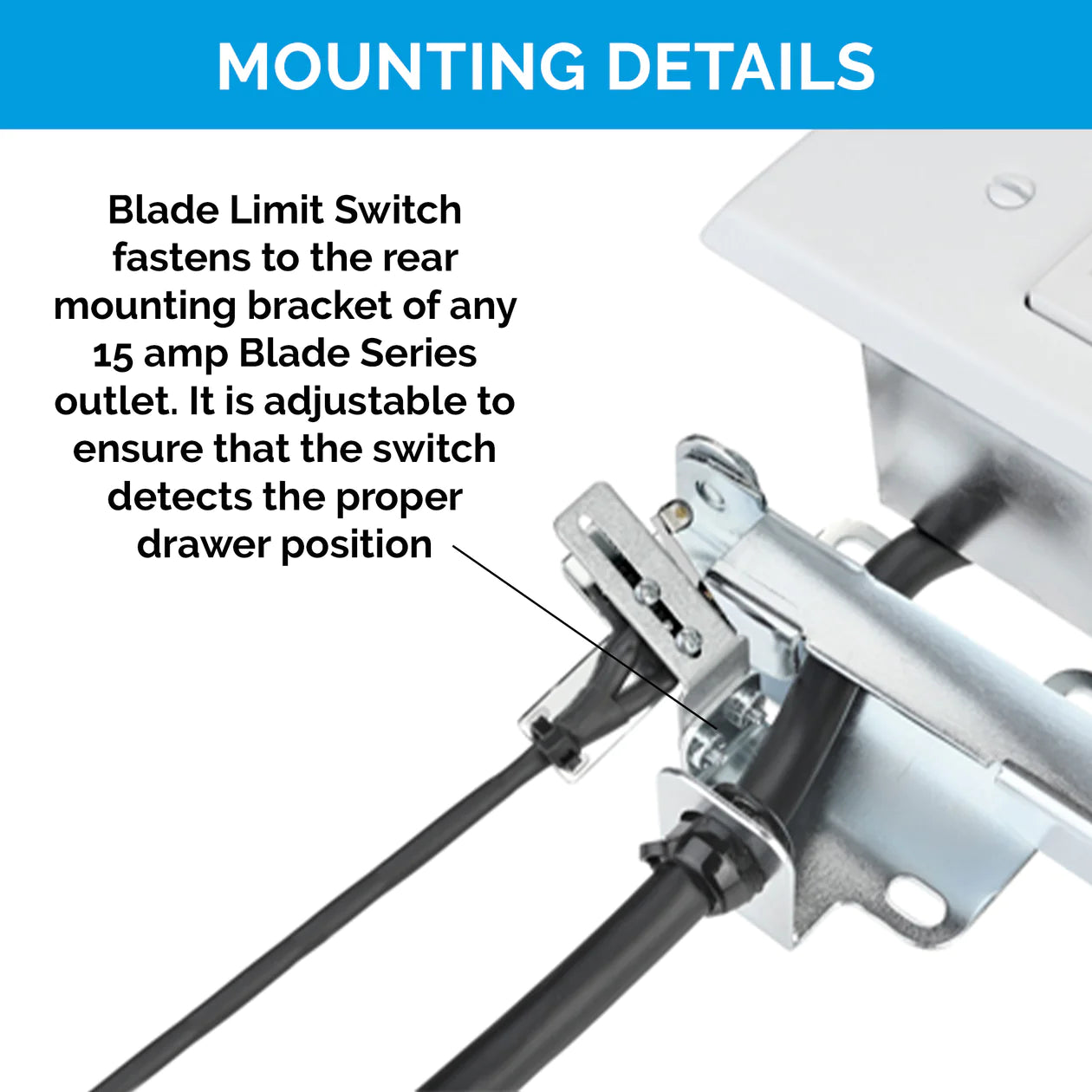

  • Mounting Details: Fastens to the rear mounting bracket of any 15 amp Blade Series outlet
  • Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42

Dimensions:

  • Outlet Width: 13” [330mm]
  • Outlet Height: 4.64" [118mm]
  • Outlet Depth: 2.5" [64mm]
  • Receptacle Box Depth: 1.93" [49mm]
  • Cover Plate Height: 2.52" [64mm]
  • Cover Plate Width: 11.26" [286mm]
  • Cover Plate Thickness: 0.29" [7.5mm]
  • Cable Management Arms Height: 3" [76mm]
  • Cord Length (15 amp) measured from the rear mounting bracket: 54" [1.37m]
  • Cord Length (20 amp) measured from the rear mounting bracket: 36" [.9m]

Warranty:

  • 5 Years

15 amp Outlet Specifications:

  • 4 AC
  • Max Amperage: 15 amps @ 120 VAC

20 amp Outlet Specifications

  • 4 AC
  • Max Amperage: 20 amps @ 120 VAC

Return Policy

60 Days
