Fire Guard Outlet Kit
Pick Configuration
Proactive Protection
A Consumer Reports analysis of National Fire Incident Reporting System (NFIRS) showed more than half of all house fires throughout a seven-year span had appliances –like dishwashers, refrigerators and microwaves– listed as the primary cause. Our Fire Guard Outlet was designed to connect to these common fire culprits and proactively reduce the risk of costly fire and smoke damage. At the first sign of smoke or rapidly rising heat, the device will sound an alarm, light up red and immediately cut power to the outlet and all connected devices BEFORE a fire breaks out. This added layer of safety protects the home and adds peace of mind in an increasingly automated world.
Simple Installation

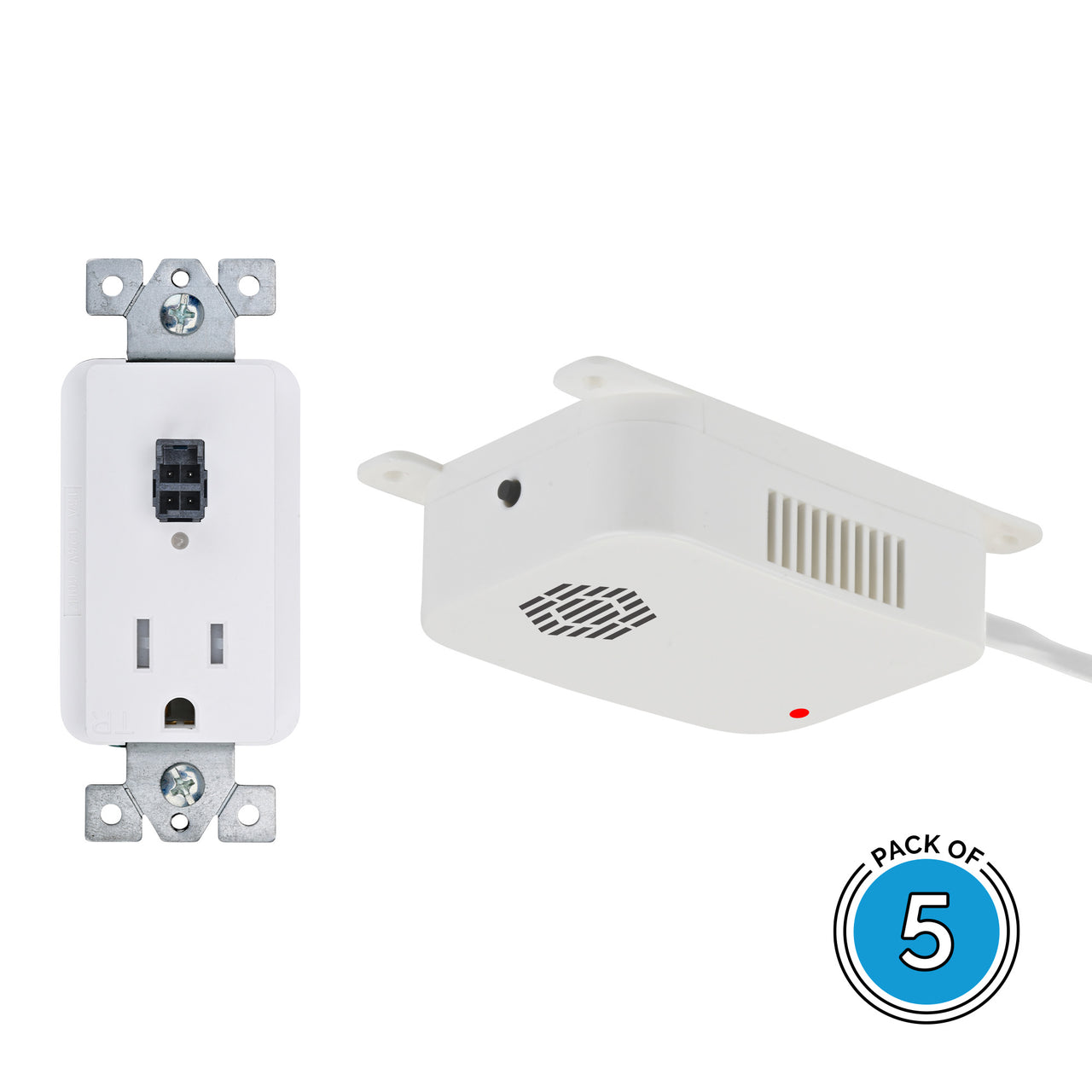

The single gang electrical outlet (with one NEMA 5-15 or 5-20 receptacle and one interlock switch connector) will replace your existing junction box, and the smoke and heat sensor should mount alongside select devices and appliances. While installation does involve working with electrical components, it's relatively easy, particularly for those with basic electrical knowledge. For anyone lacking experience or comfort with electrical work, it's advisable to seek professional assistance for a safe and precise installation.
Versatile Application
Use the Fire Guard Outlet as an added layer of safety with dishwashers, gas dryers, audio/visual closets, 3D printers, microwaves, lithium battery charging stations, grow lights and other devices that are left powered on while unattended. This can also be used in infrequently visited areas of the home such as crawl spaces, attics and basements where larger equipment is often stowed, powered and unmonitored.
Code-Compliant
Safety is at the core of everything we do at Docking Drawer, which is why we rigorously test all outlets and obtain the appropriate recognition and safety listings. The Fire Guard Outlet holds Electrical Testing Laboratories (ETL) Listing as an Interlock device, emphasizing its safety and functionality. It is intended for supplementary protection and does not take the place of an approved smoke detector, as required by code.
15 amp Outlet Specs
- Input: 100 - 125 VAC, 50/60 Hz
- AC Output: 15A@125VAC, 1875 VA MAX, 1/2 HP
- DC Output: 24VDC @ 100mA MAX
- DC Power Supply: IEC Class II
- Number of Receptacles: (1) NEMA 5-15R
- Tamper Resistant: Yes
- LED Indicator: Yes
- Certified to UL498 and CSA C22.2 No. 42
- Environmental: -10C to +50C, non condensing
- Warranty: 2 Years
20 amp Outlet Specs
- Input: 100 - 125 VAC, 50/60 Hz
- AC Output: 20A@125VAC, 2500 VA MAX, 1/2 HP
- DC Output: 24VDC @ 100mA MAX
- DC Power Supply: IEC Class II
- Number of Receptacles: (1) NEMA 5-20R
- Tamper Resistant: Yes
- LED Indicator: Yes
- Certified to UL498 and CSA C22.2 No. 42
- Environmental: -10C to +50C, non condensing
- Warranty: 2 Years
Disconnect Specs
- Input: 100 - 125 VAC, 50/60 HzAC
- Output: 20A @ 125 VAC, 2500 VA MAX, 2 HP
- Number of Receptacles: (0)
- Tamper Resistant: Not Applicable
- LED Indicator: No
- Certified to UL60730-1, UL 60730-2, CSA E60730-1, and CSA E60730-2
- Environmental: -10C to +50C, non condensing
- Warranty: 2 Years
Sensor Specs
- Type of Sensor: Smoke and Heat Sensor
- Cable: 10 ft low voltage cable
- Sensor Length: between mounting holes: 3.4” (86.1mm)
- Sensor Width: between mounting holes: 1.8” (46.5mm)
- Sensor Height: 1” (25.4mm)
- Smoke Sensitivity: 1.06 ± .26% per foot
- Mounting Details: Use 4 screws to mount near the appliance or device that will generate smoke or heat, positioning as high up as possible or above the smoke or heat source.
- Audible Alarm: Yes
- LED: Yes
- Manual Reset: Yes
- Temperature Alarm: Fixed set point 54°C ± 2°C (129°F ± 4°F) and ≥10°C (18°F) per minute temperature rise
- Certified to UL/CSA 60730-2-9 (control and heat sensing only). The smoke sensing function is not listed to any UL or CSA standard. This product cannot be used as a substitute for a Listed smoke alarm or smoke detector as required by code.
- Warranty: 2 Years
Return Policy
60 Days
