20 amp Blade In Drawer Outlet - Deep Cabinet


SKU: 2012-170W-X30

4 Week Lead Time

Eliminate Clutter with Blade Duo Deep Cabinet Outlets

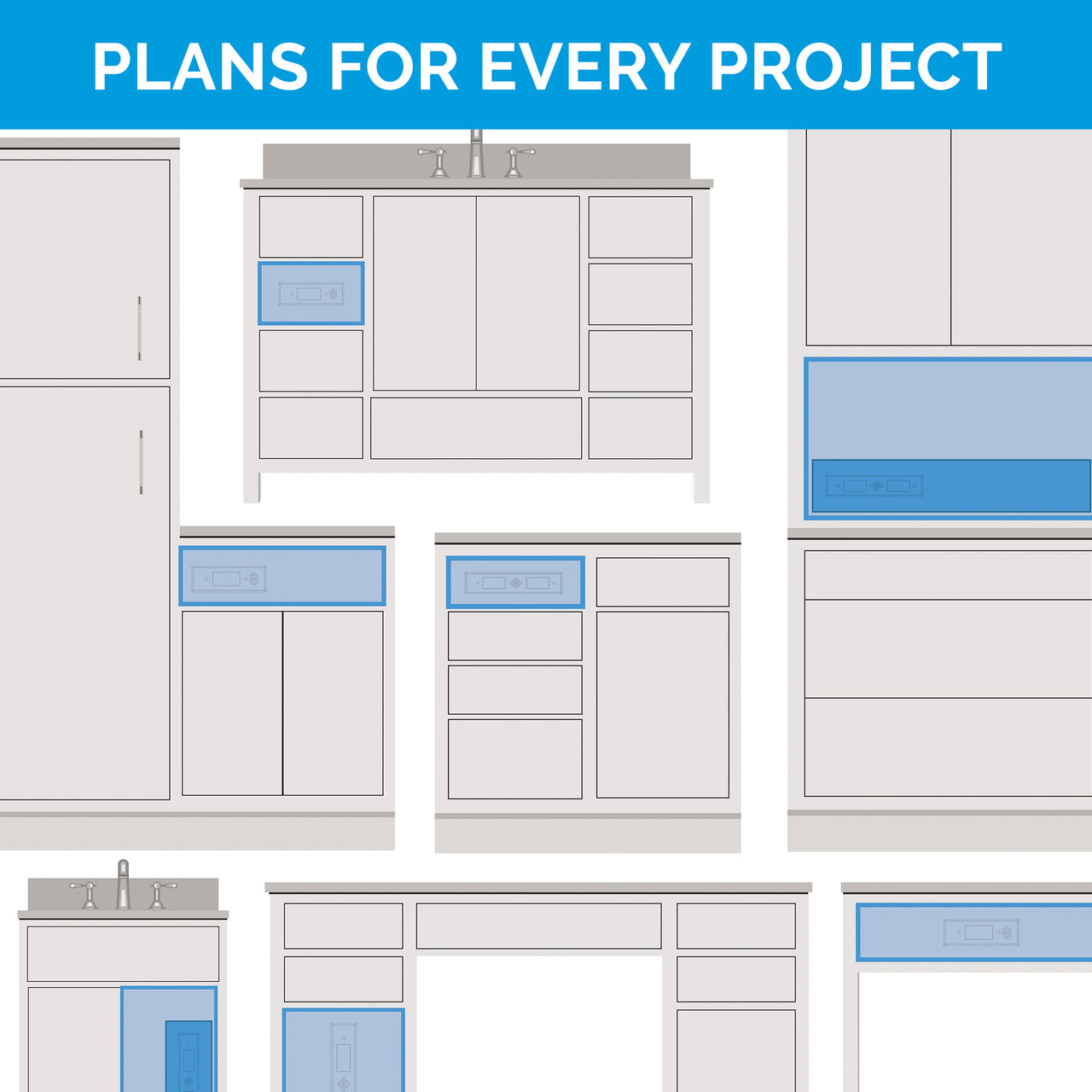

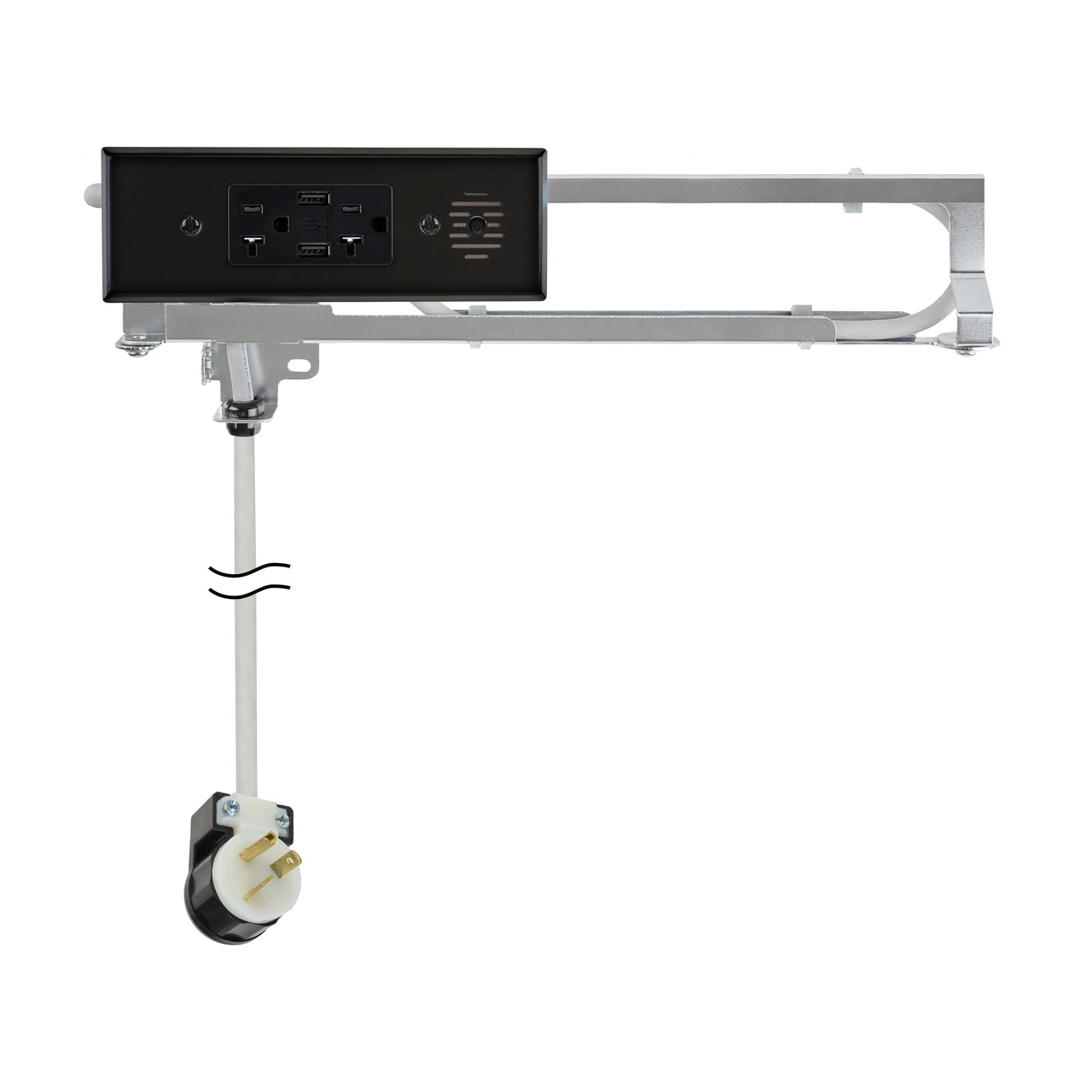

Discover the power of organization with Docking Drawer's Blade Series Deep Cabinet Outlets, ideal for spaces with larger depths like kitchen islands, printer drawers, and base cabinets. They are specifically designed for drawer slide lengths greater than 21", a common feature for deep kitchen island spaces. They also integrate seamlessly in deeper cabinets, thanks to their 15.7" wide cable management arms (2.7" longer than our standard 13"). As with all Blade Series outlets, our Blade Deep Cabinet Outlets safely charge up to four devices or power up to two devices at a time.

Smart Solutions

Customize your space with Docking Drawer's 20 amp Blade Deep Cabinet outlets, available in various finishes and configurations to match your style and needs. Crafted with quality metal (not plastic), choose from white, black, stainless steel, or brass finishes. Select your preferred outlet configuration including AC plugs or USB-C (PD 30 & 60 Watt) and USB-A charging ports, creating organized and functional spaces. Stay connected without constant plugging and unplugging, as our in-drawer outlets make using your devices effortless. Plus, Blade Series outlets are intentionally designed to be easily replaced or upgraded as technology changes, so you can rest assured your in-drawer outlet solution is future-proof.

Simple to Specify

Our outlets are meticulously built, not only to provide you with best-in-class quality but also to ensure the installation process is as simple as possible. Blade Series Deep Cabinet Outlets effortlessly fit various drawer types including shallow, tall, and vertical drawers—not to mention, they are designed to work with soft-close drawers. The product package includes fully assembled drawer outlets, drawer cutout templates, and other resources to streamline the process. With the seven included screws, the Blade Duo and Blade Series outlets can be installed facing left, right, up, or down, requiring just 2" of space behind the drawer box. The 2’ outlet cord easily plugs into any 20 amp outlet, seamlessly integrating into standard and custom cabinet sizes.

Safety is Our Priority

Safety is the top priority at Docking Drawer, and our outlets reflect that commitment. Built with an interlocking thermostat safety feature, our outlets de-energize when temperatures exceed 120°F/49°C, ensuring a secure environment. Our dedication to safety is evident in our rigorous cycle testing— we subject our outlets to over 500,000 cycles, equivalent to a drawer opening and closing every 15 minutes for 30 years. Designed with your safety in mind, our metal cable management arms protect the power cord by using strain reliefs, which allow cord flexibility without wear over time. All Blade Series in-drawer outlets are ETL Listed for use in the US & Canada, they are tamper-resistant for additional protection. We want you to share in the high level of confidence we have in the durability of our products, which is why we back them with an exceptional 5-year warranty.

Imperial Metric
Outlet Width 15.7” 398mm
Outlet Height 4.64" 118mm
Outlet Depth 2.5" 64mm
Receptacle Box Depth 1.93" 49mm
Cover Plate Height 2.52" 64mm
Cover Plate Width 7.18" 182mm
Cover Plate Thickness 0.29" 7.5mm
Cable Management Arms Height 3" 76mm
Cord Length (measured from the rear mounting bracket) 24" .6m
# Outlet Configuration Outlet Specifications
1 2 AC & 2 USB-A AC: 20 amps @ 120 VAC
USB-A: 3.6 amps @ 5 VDC
2 4 USB-A 4.2 amps @ 5 VDC
3 2 AC & 2 USB-C (PD - 30 Watt) AC: 20 amps @ 120 VAC
USB-C (single port to non-PD device): 3 amps @ 5 VDC (15Wconnected to PD device): 3 amps @ 9 VDC (30W)
USB-C (single port connected)
USB-C (both ports connected): 3 amps @ 5 VDC (30W total power)
4 2 AC, 1 USB-C (PD - 30 Watt) & 1 USB-A AC: 20 amps @ 120 VAC
USB-C (non-PD device): 3 amps @ 5 VDC (15W)
USB-A: 2.4 amps @ 5 VDC
5 2 AC - GFCI 20 amps @ 120 VAC
6 2 AC 20 amps @ 120 VAC
7 2 AC & 2 USB-C (PD - 60 Watt) AC: 20 amps @ 120 VAC
USB-C (single port connected to PD device): 3 amps @ 20 VDC (60W)
USB-C (both ports connected to PD devices): 3 amps @ 9 VDC x 2 ports (60W)
USB-C (one or both ports connected to non-PD device): 3 amps @ 5 VDCx 2 ports (30W)
