15 amp Countertop Pop-Up by Hubbell

$185.00

Finish

Mounting Style

15 amp Countertop Pop-Up by Hubbell

$185.00

SKU: RCT200W

UL-listed for the US and Canada, the Countertop Pop-Up offers 2 AC connections with the choice of a flush or surface mounting style. A surface mounting style offers the utmost ease of installation and will leave the outlet ring sitting just 2.5mm above the counter. The flush mounting style, requiring a few additional steps in the installation process, will result in a fully recessed outlet that sits flush with your countertop.

Want to add a power cord kit? Click Here.

Fast & Convenient Power Source

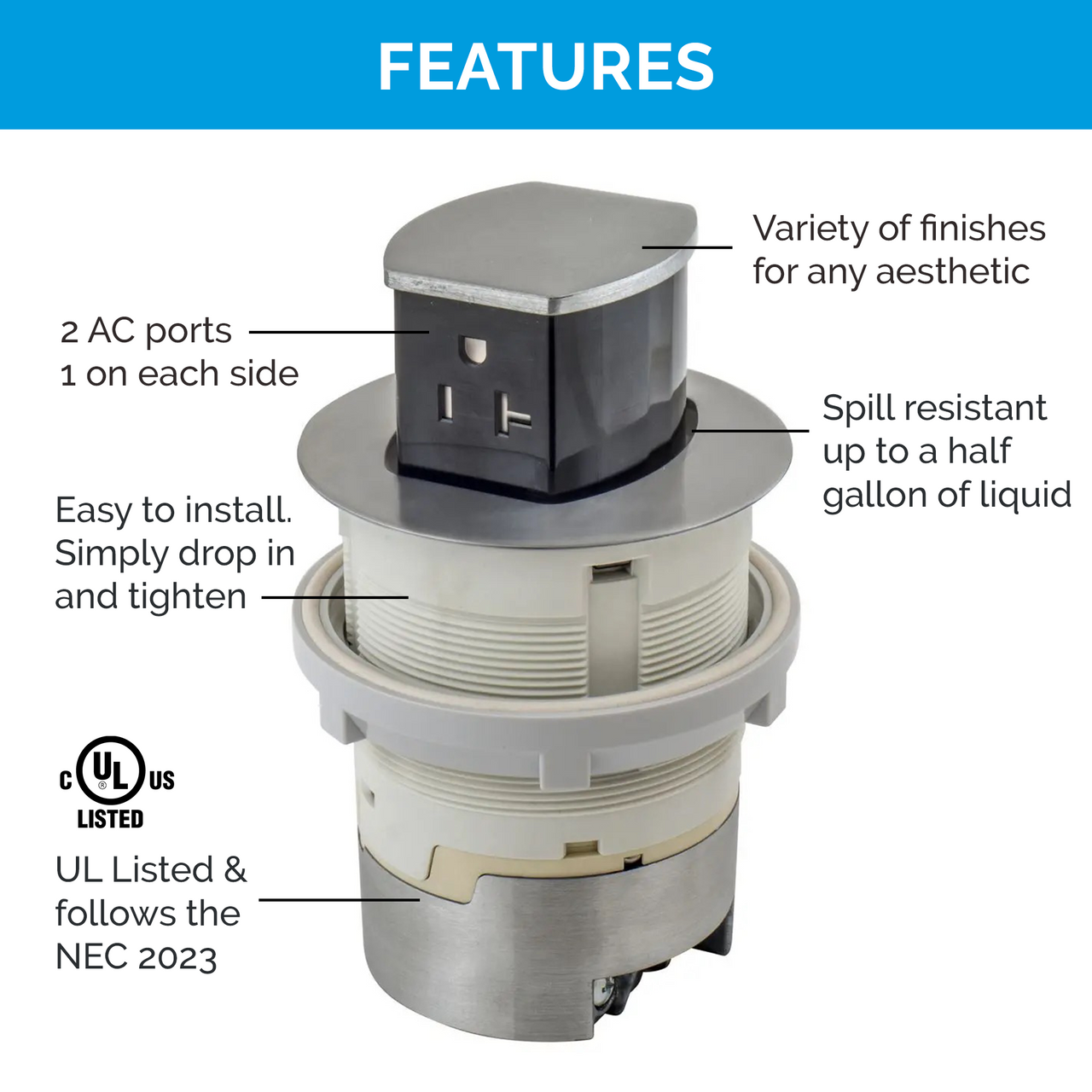

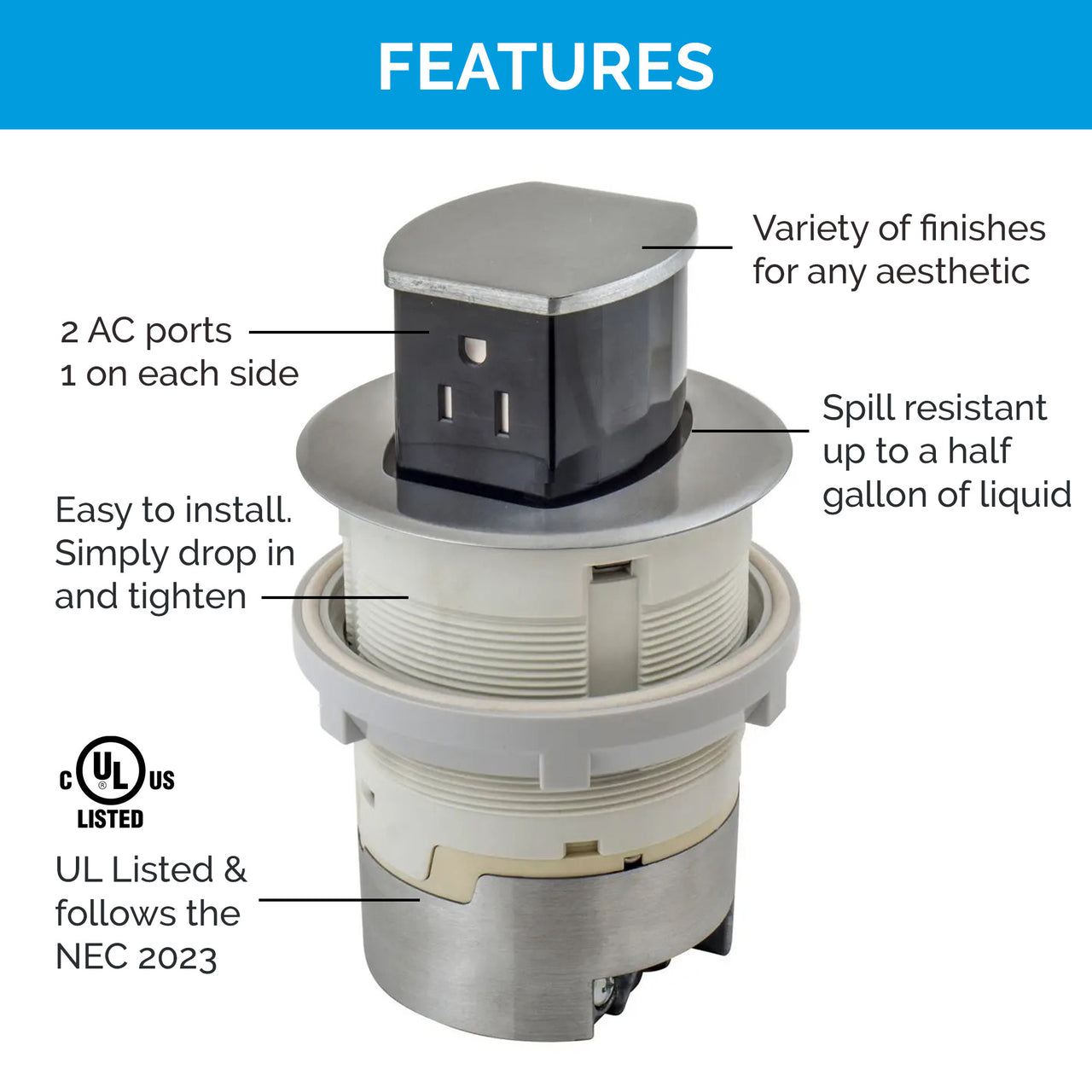

The Countertop Pop-Up offers 2 AC connections, featuring an upside-down AC outlet for accommodating those larger plugs often utilized with heavy-duty kitchen tools or even larger laptop chargers. Eliminating the need to awkwardly position small countertop appliances or string power cords across the conference table, the Countertop Pop-Up provides a convenient power source where you need it most.

Seamless Integration

With its minimalist design, including a mere 4" top diameter and an ultra-thin bezel measuring just 0.09" thick, the Tri-Power Pop-Up Outlet complements your countertops without being a distraction and can be mounted in 2 ways: a surface mounting style and a flush mounting style.

A surface mounting style offers the utmost ease of installation and will leave the outlet ring sitting just 2.5mm above the counter, while the flush mounting style requires a few additional installation steps but results in a fully recessed outlet that sits flush with your countertop.

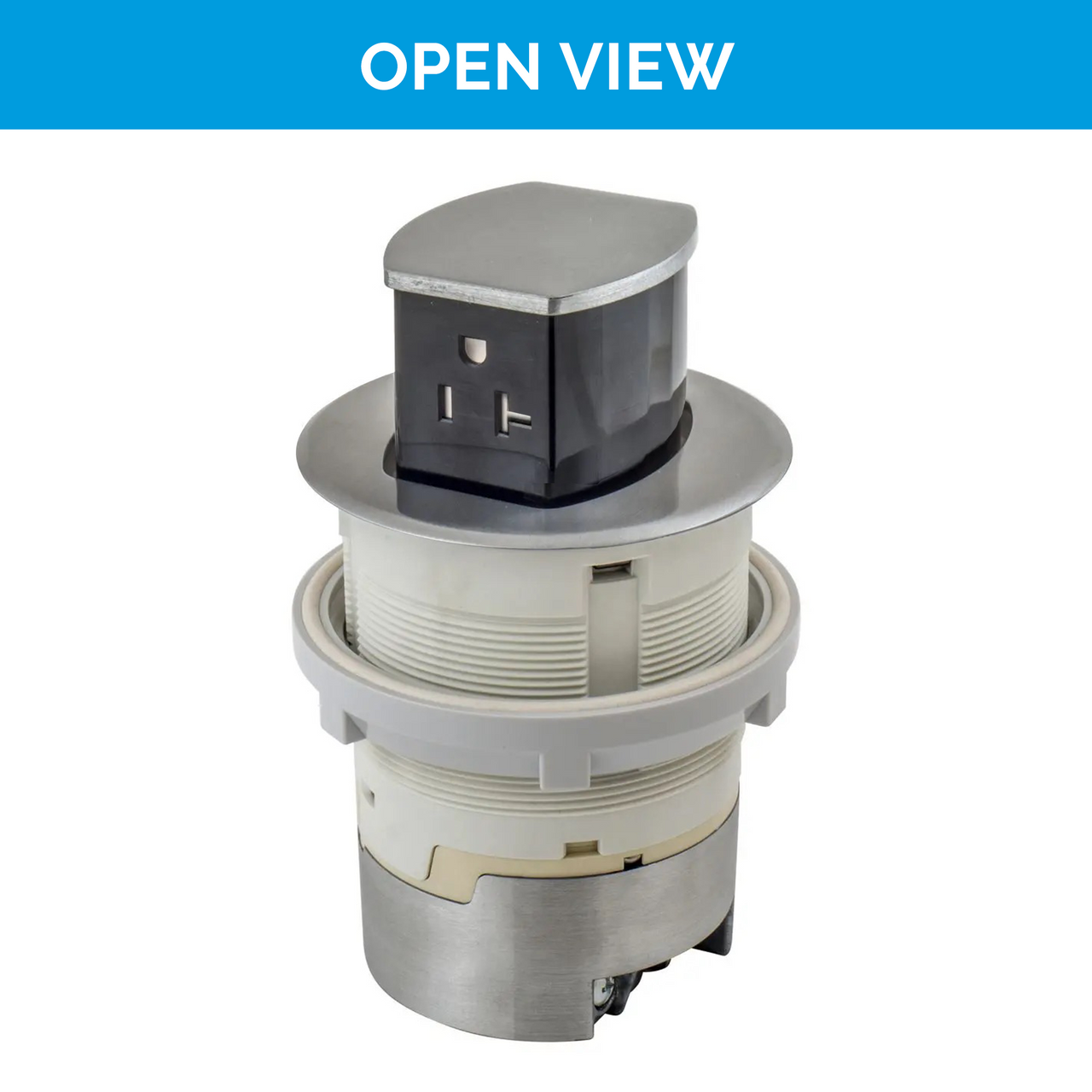

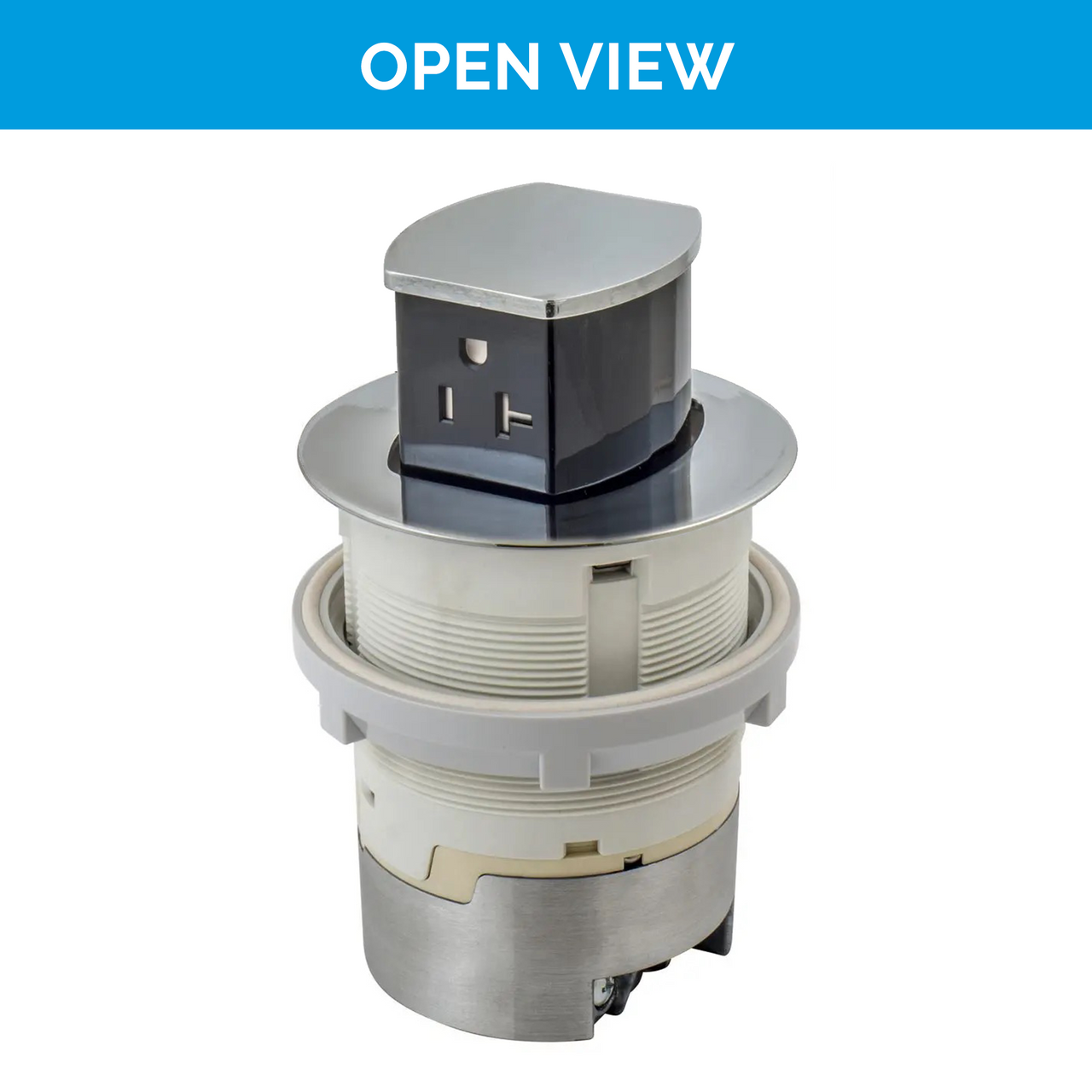

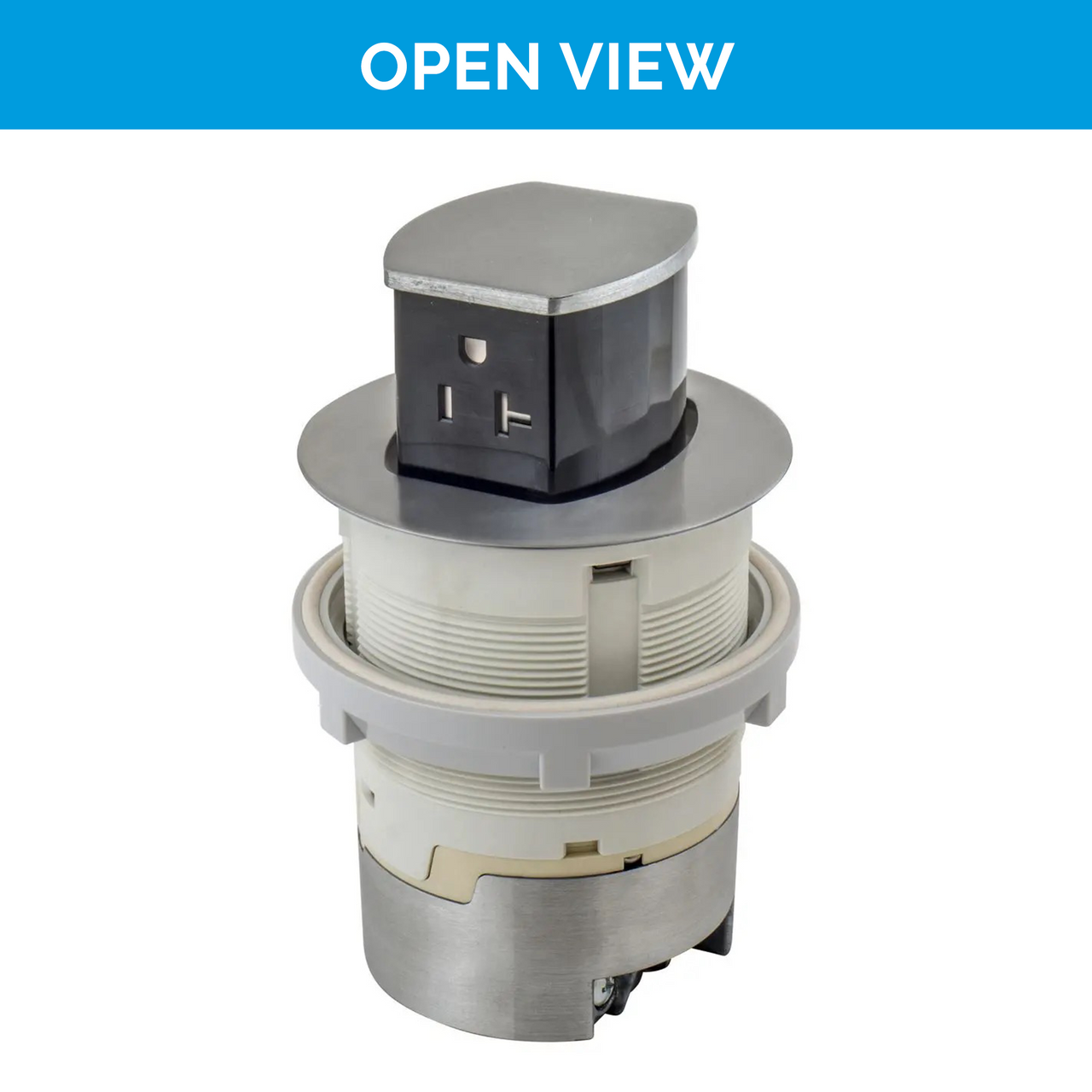

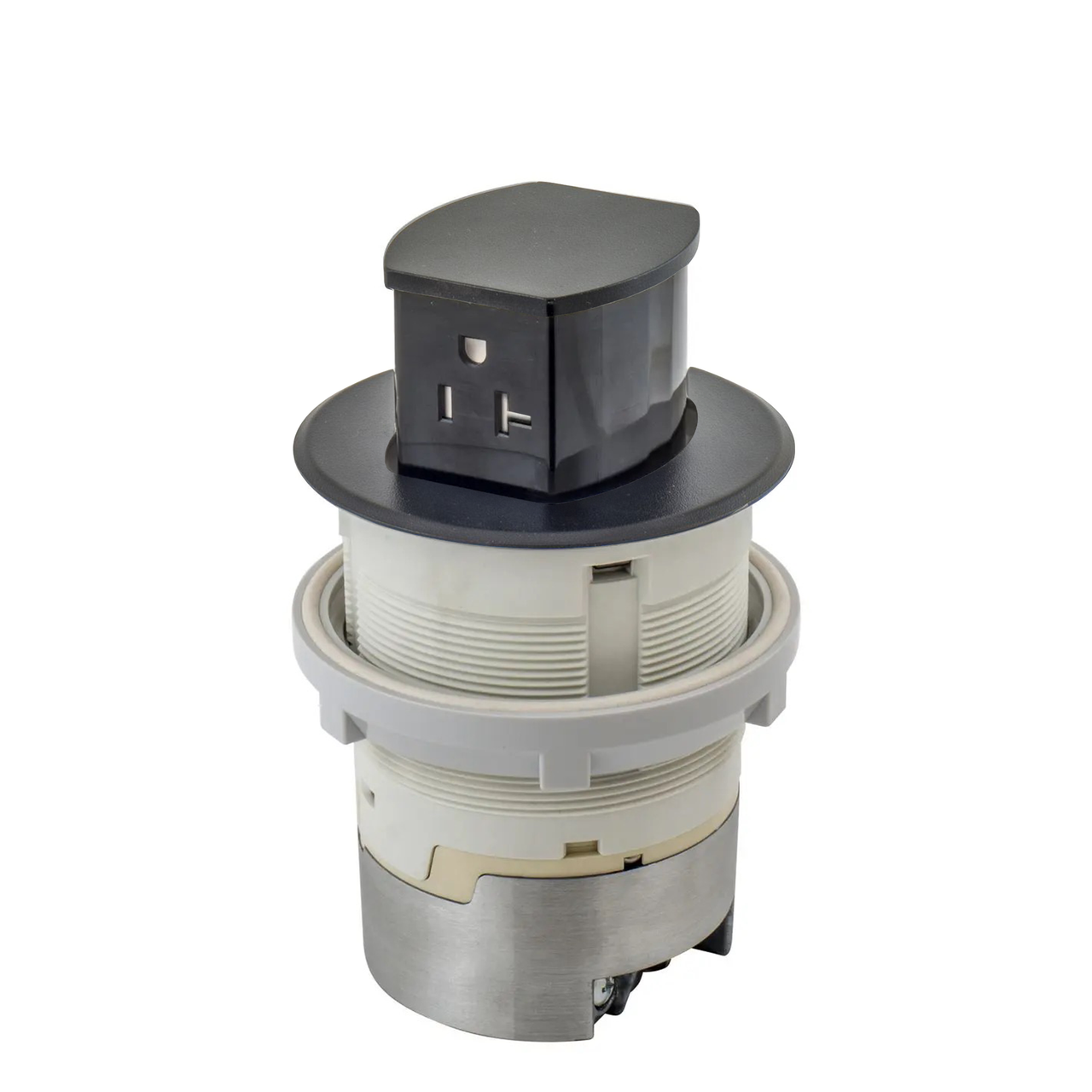

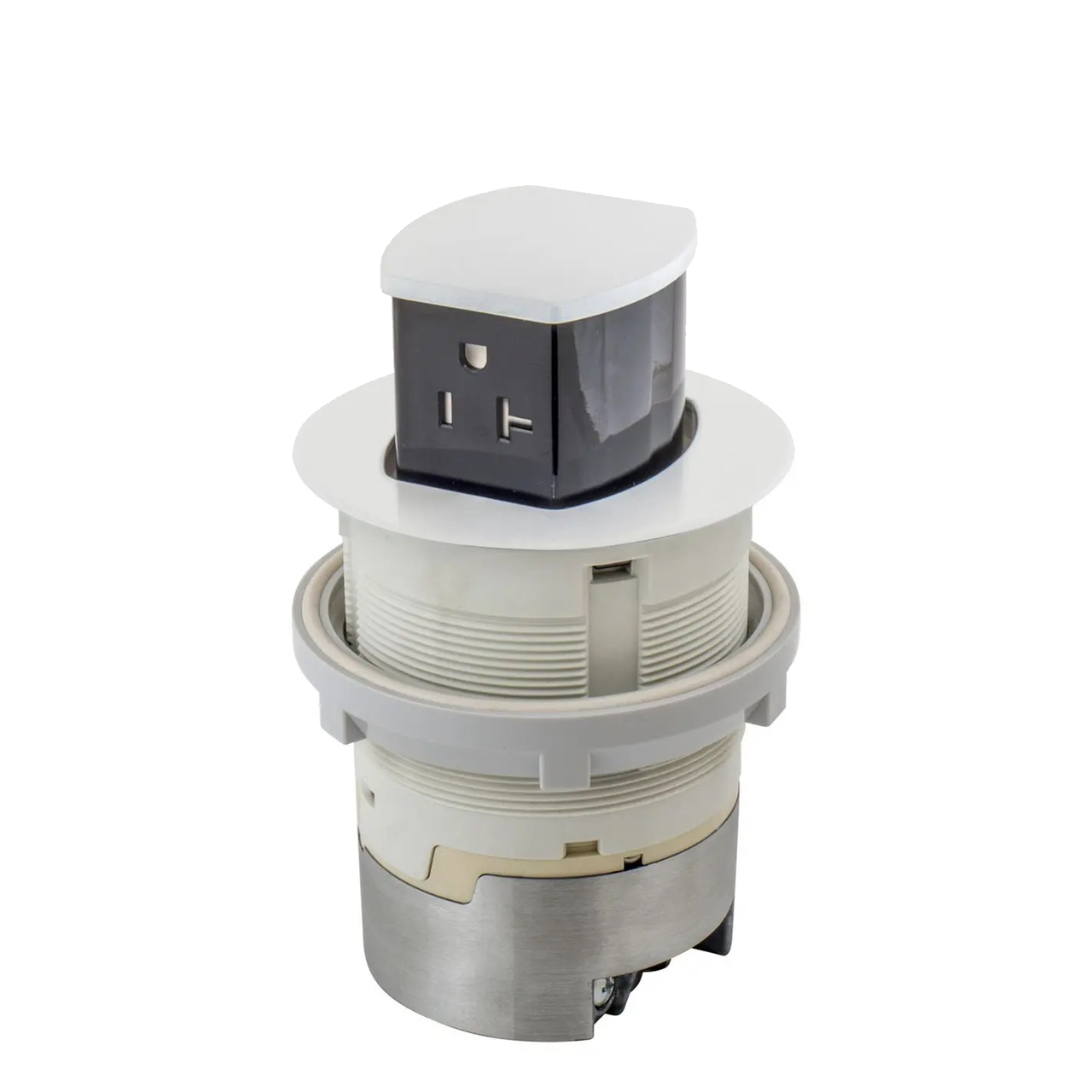

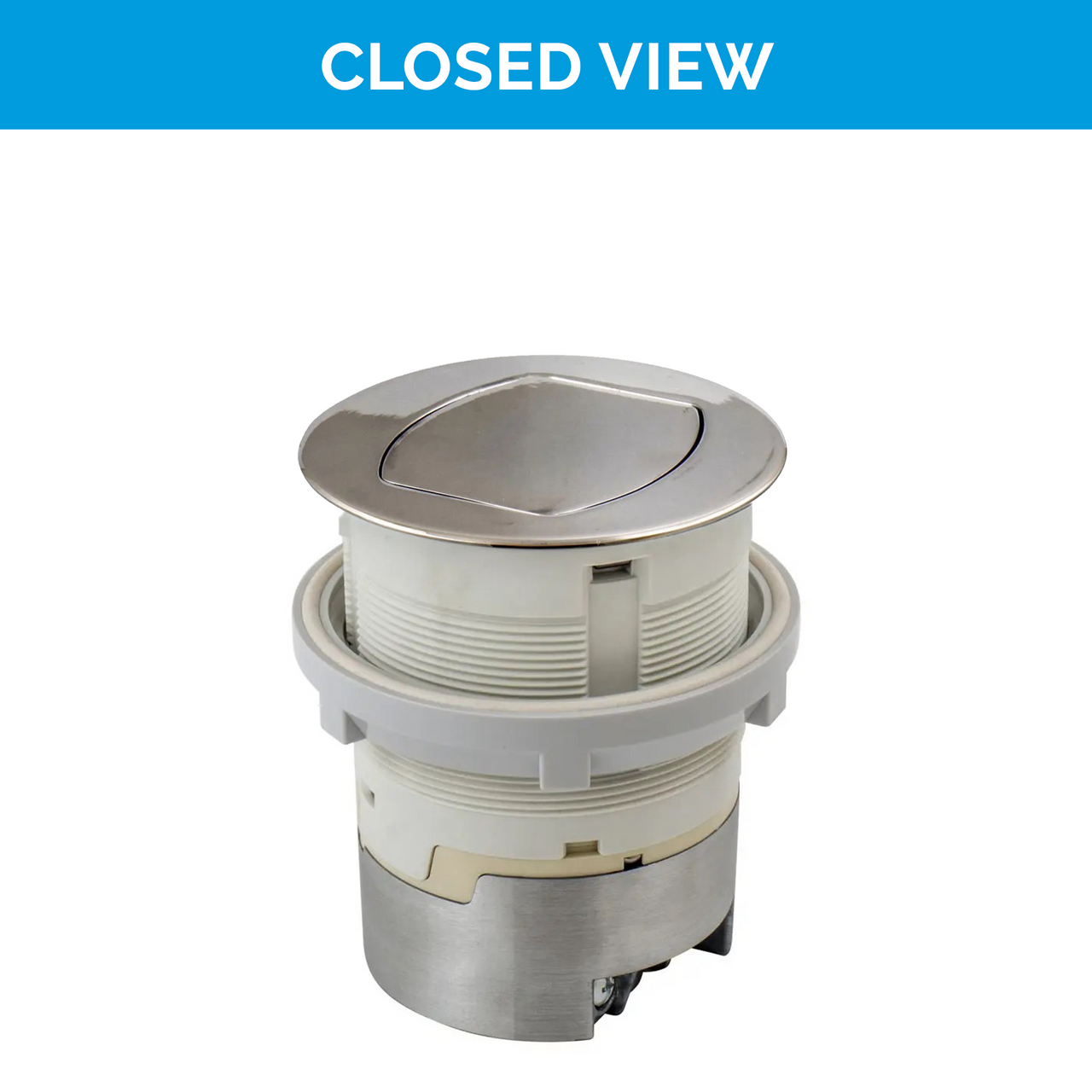

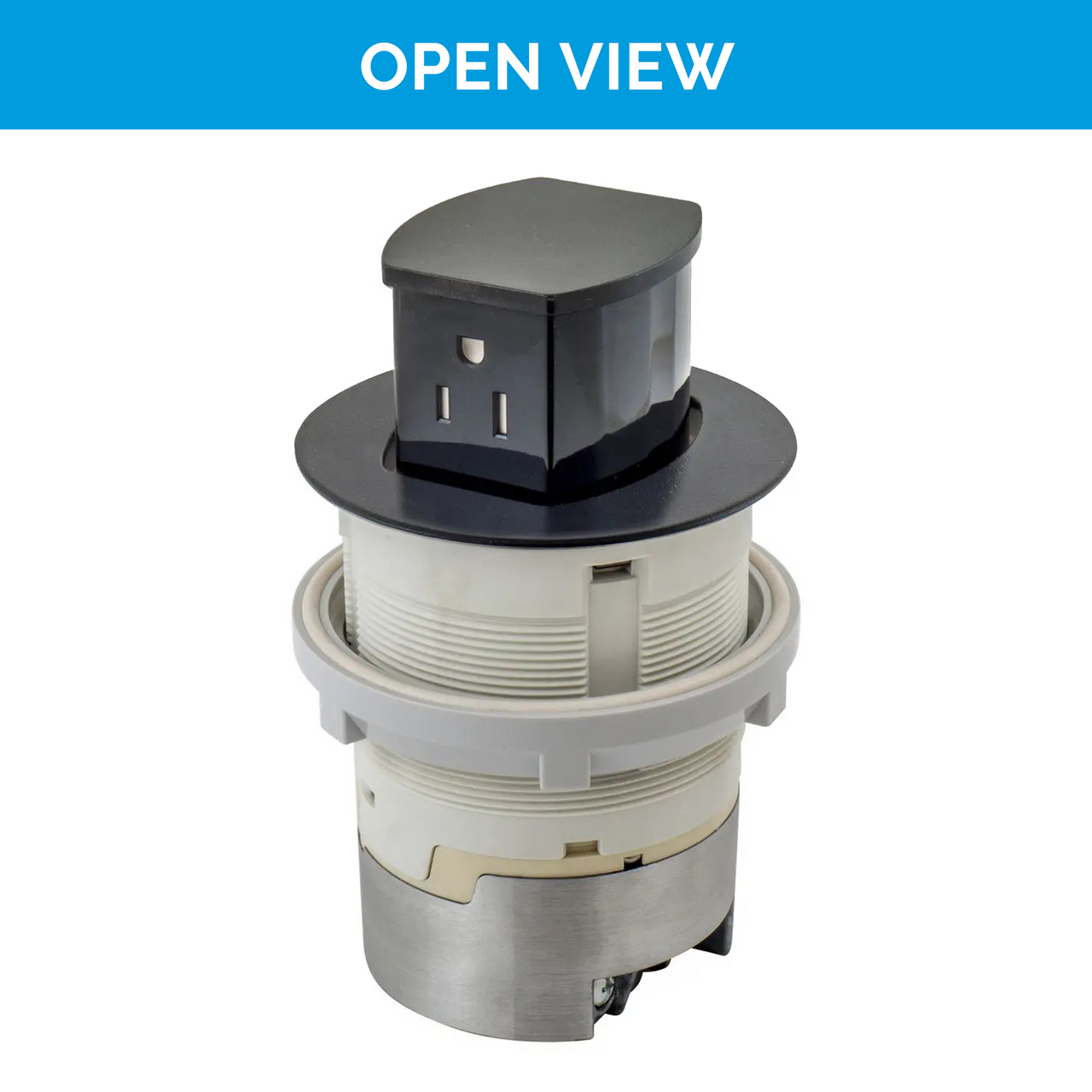

When you need to charge a device or power an appliance, a gentle press elevates the pop-up outlet to just 1.69" above the surface, holding true to its low-profile design. Among the most compact and shallow options on the market, these countertop receptacles measure just a few inches deep, amplifying placement possibilities, especially on kitchen countertops.

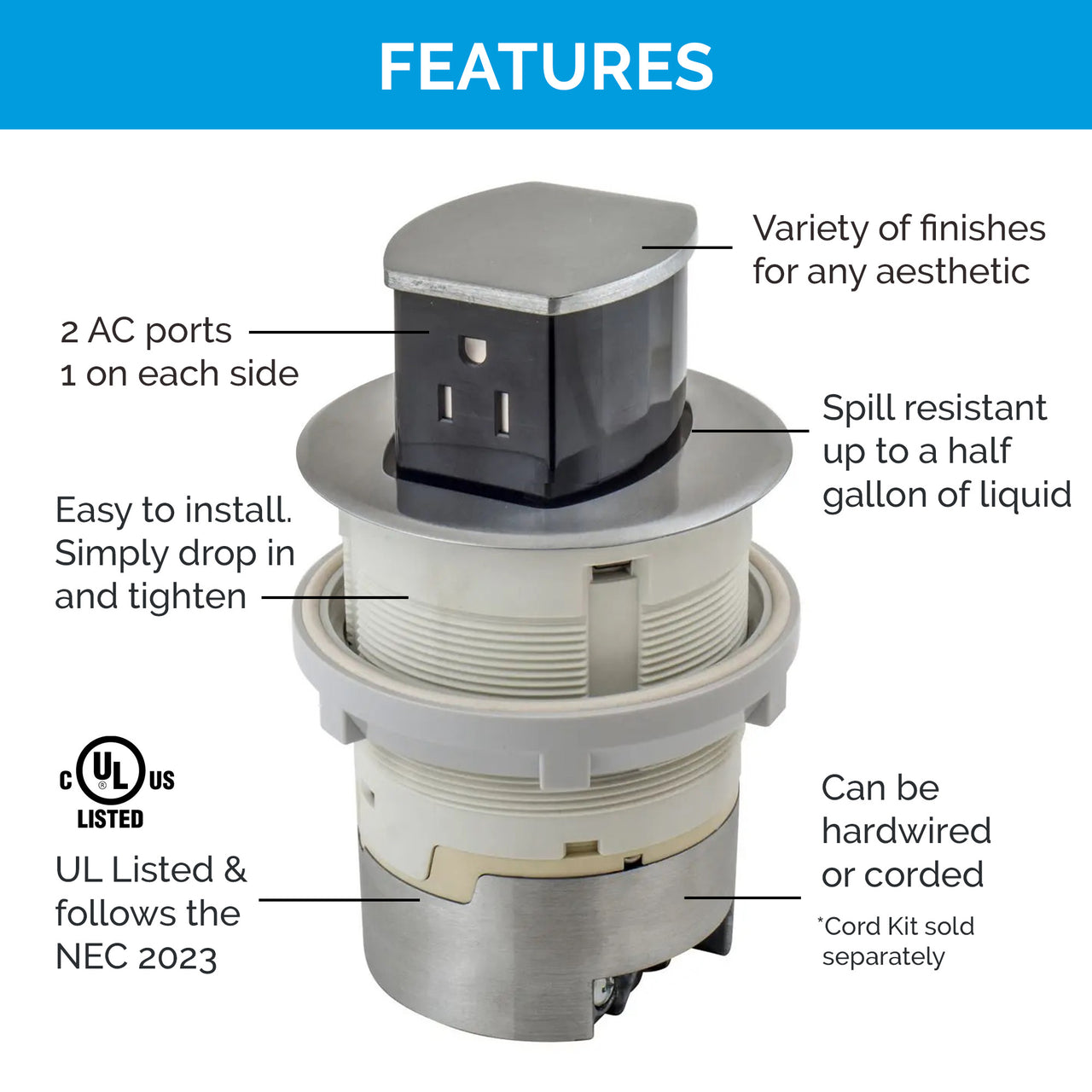

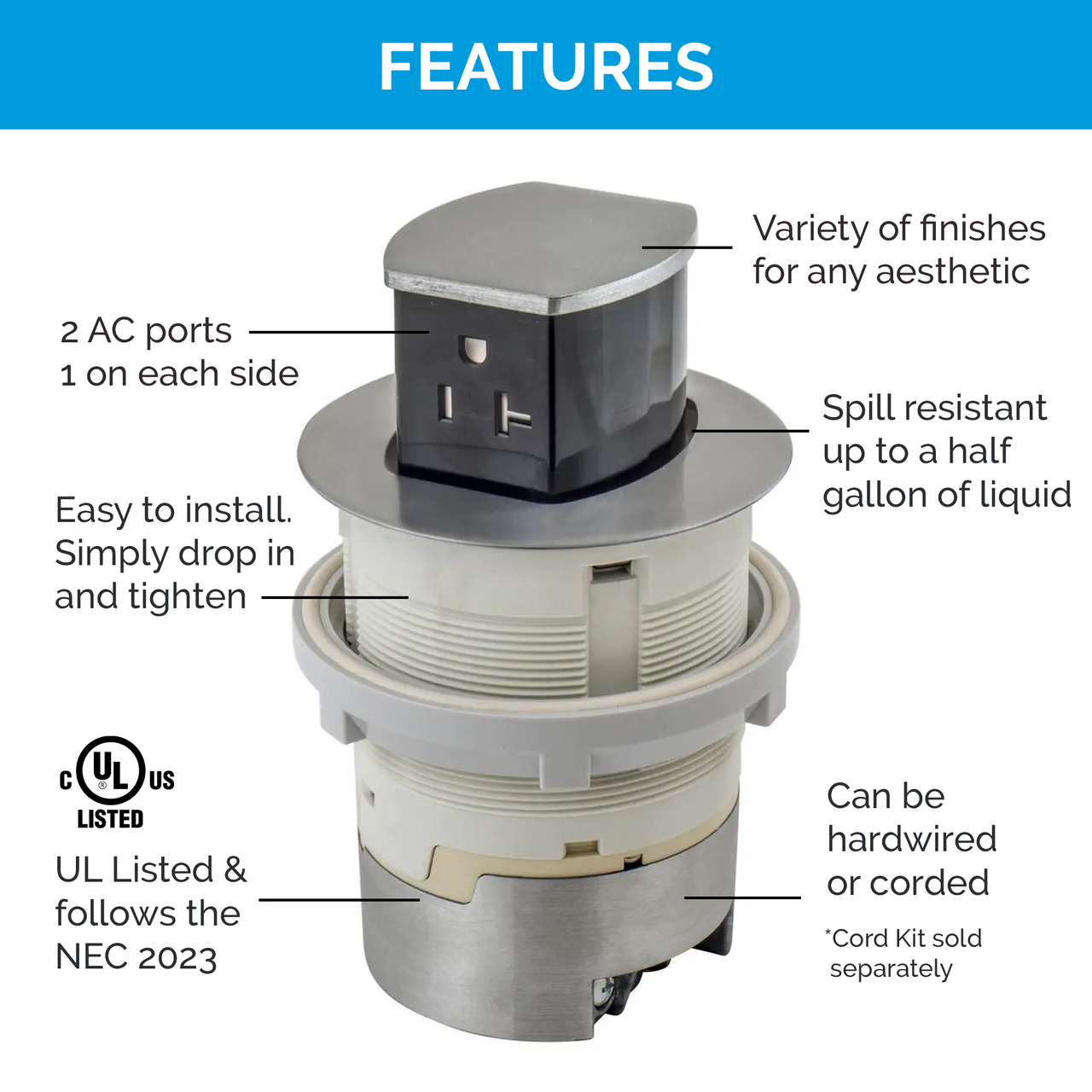

Safe & Intentional Design

Aligning with Docking Drawer’s stringent quality standards, Hubbell Pop-Up Outlets are UL-listed for the US and Canada, having gone through rigorous testing to confirm cables can endure high electrical levels and prevent excessive electricity flow.

Proven to last for a minimum of 10,000 cycles, these tamper-resistant outlets are equipped with spill-proof technology (in both the up and down positions), making them great candidates for kitchen pop-ups. They’re safe for use in areas like kitchen countertops that are prone to water exposure. To ensure the utmost safety, the pop-up outlet requires connection to a Ground Fault Circuit Interrupter (GFCI) protected circuit, adhering to NEC code requirements.

A skilled electrical contractor is essential for installing kitchen pop-up outlets, ensuring they meet NEC code standards for safety. Their tamper-resistant design further enhances the safety and reliability of these outlets in any kitchen setting, especially in households with young children.

Endless Versatility

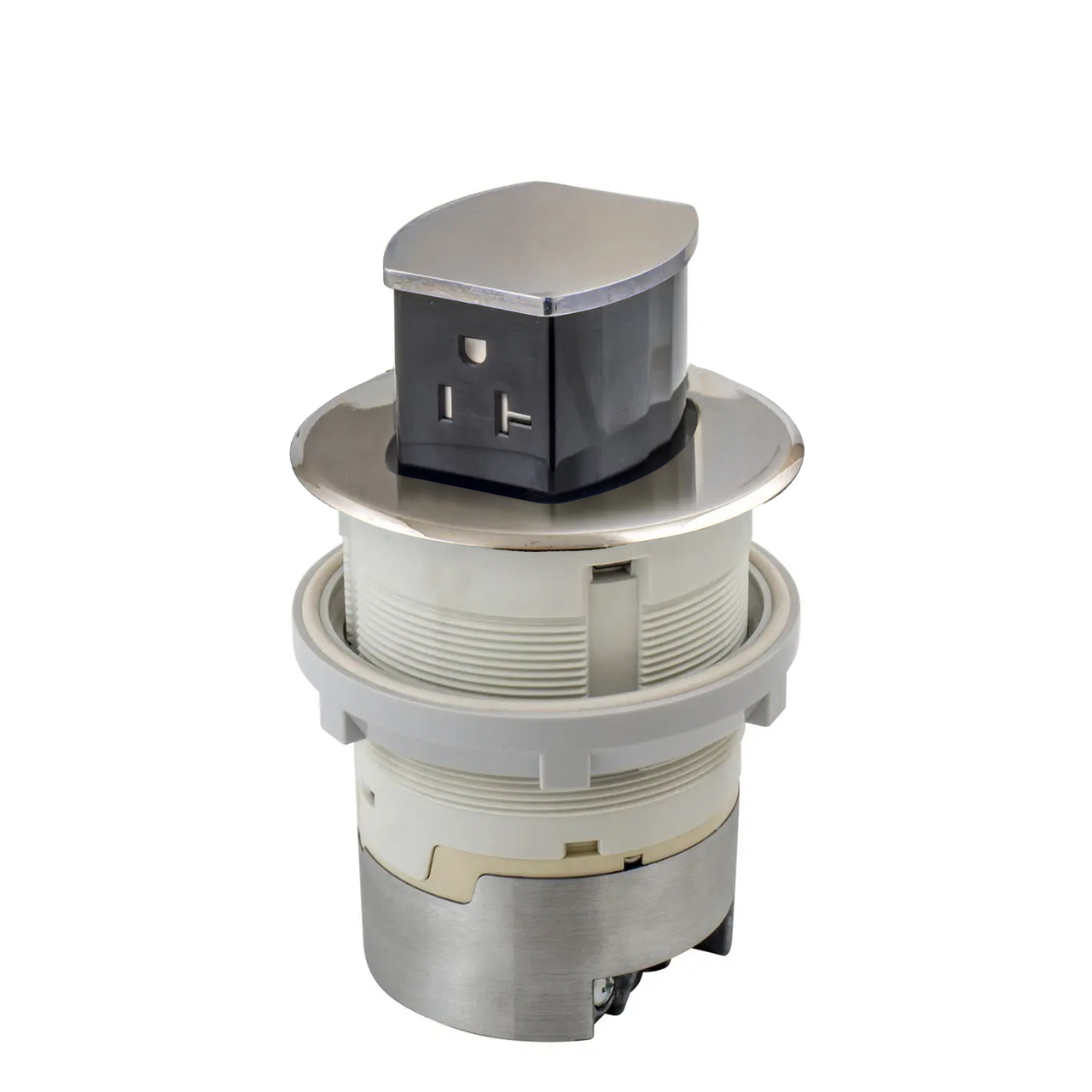

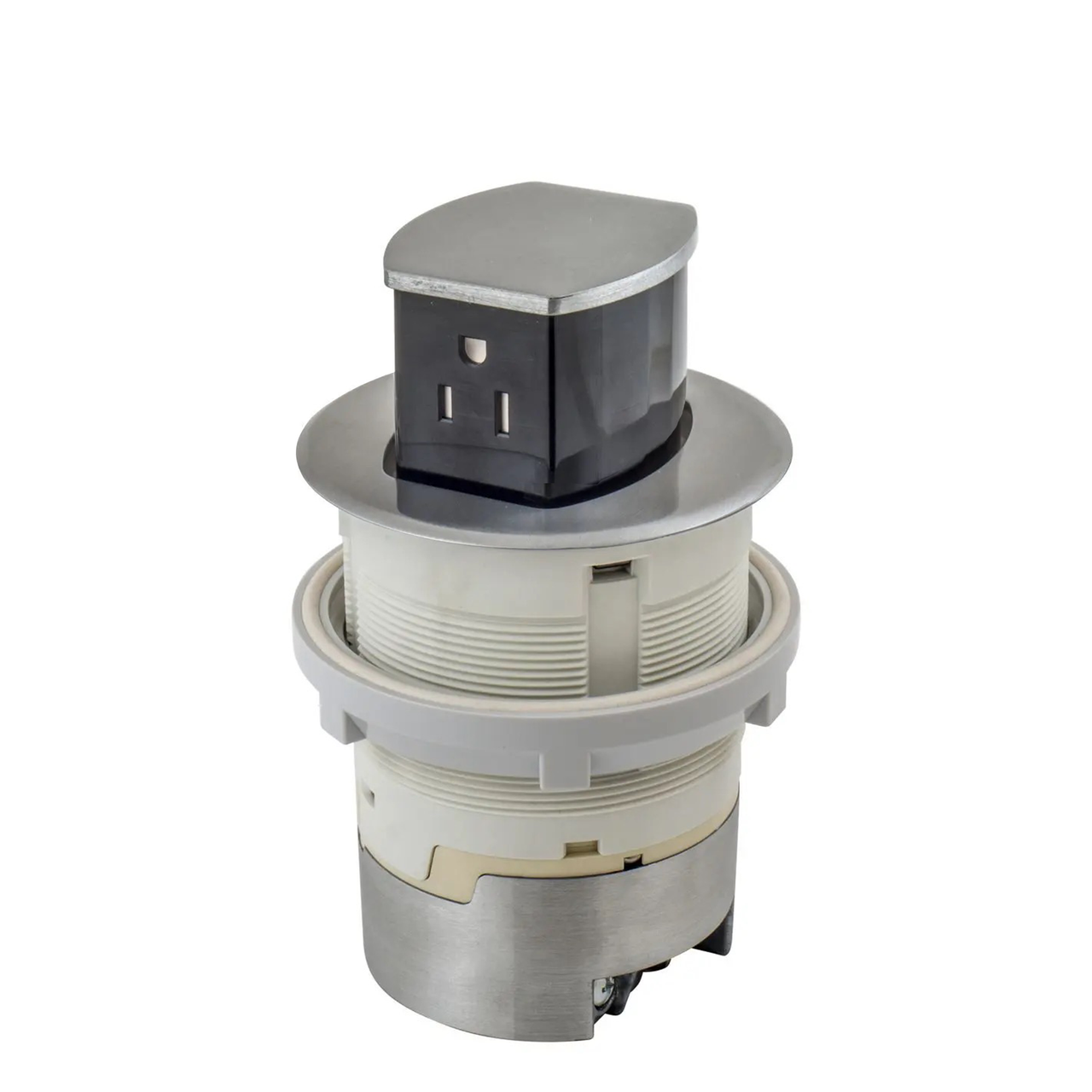

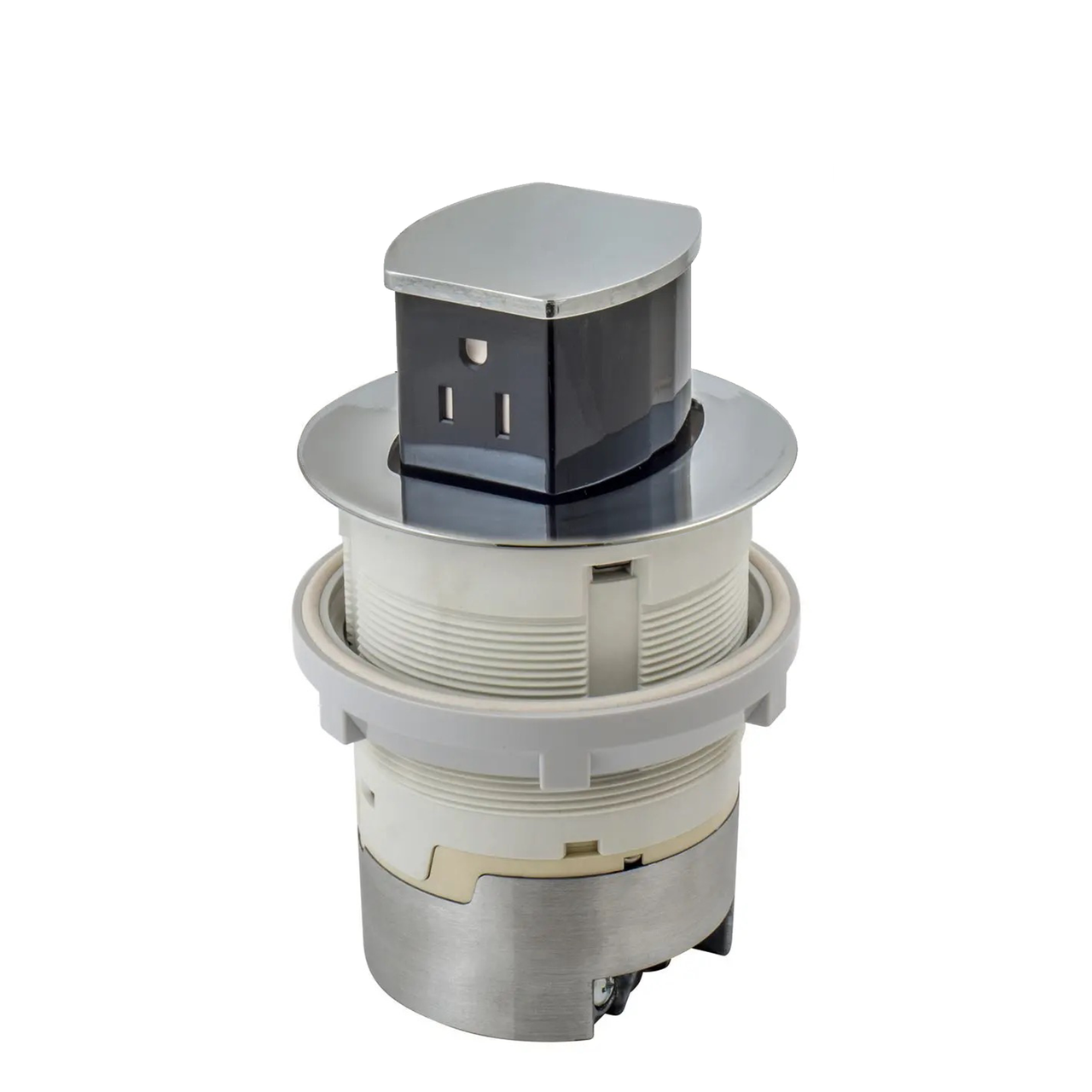

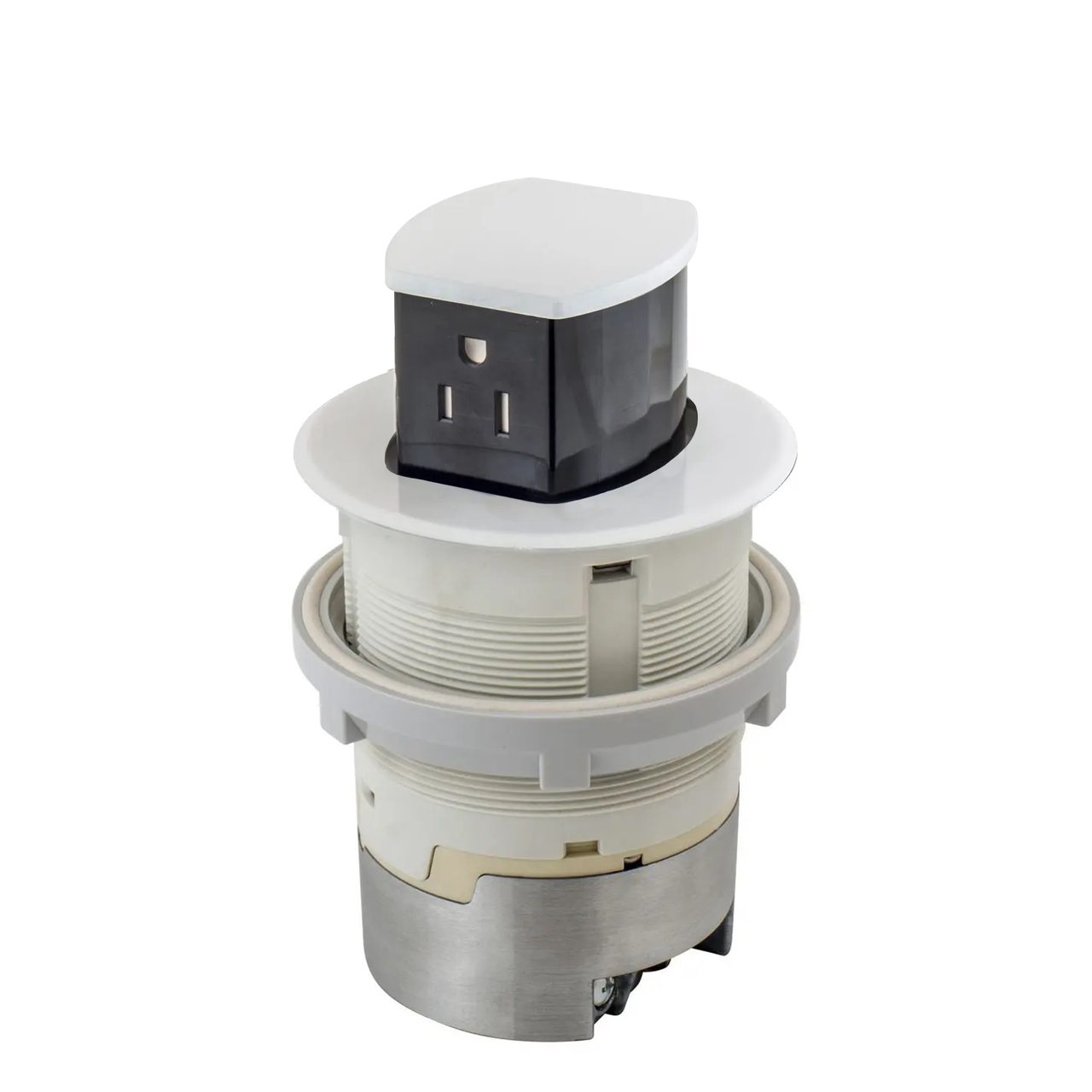

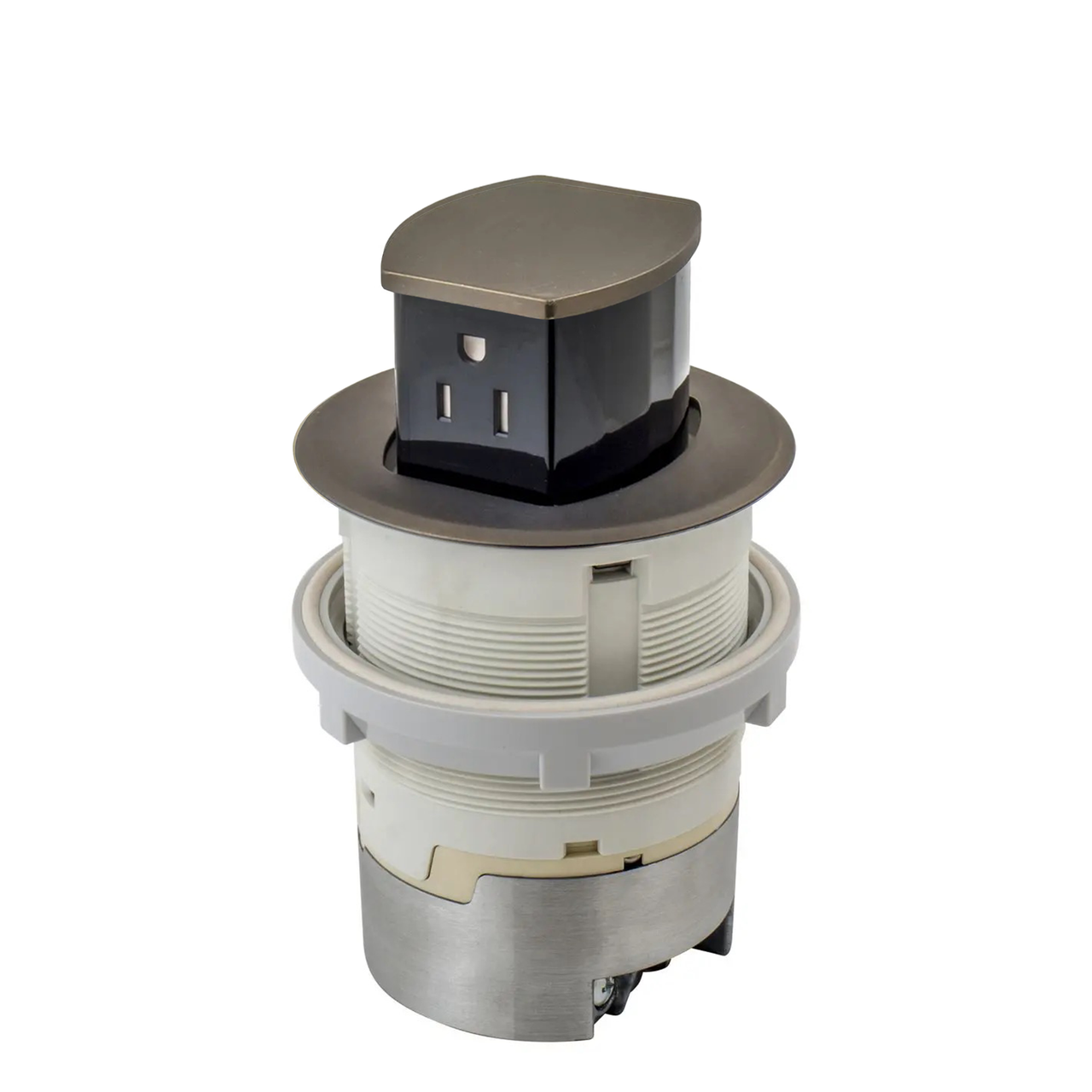

Elevating surfaces into practical charging stations, the Countertop Pop-Up Outlet promises tamper-resistant power accessibility – be it as a conference table, sideboard, or kitchen pop-up. Choose from seven finishes, including white, black, chrome, brass, bronze, aluminum, and nickel to integrate seamlessly with any aesthetic.

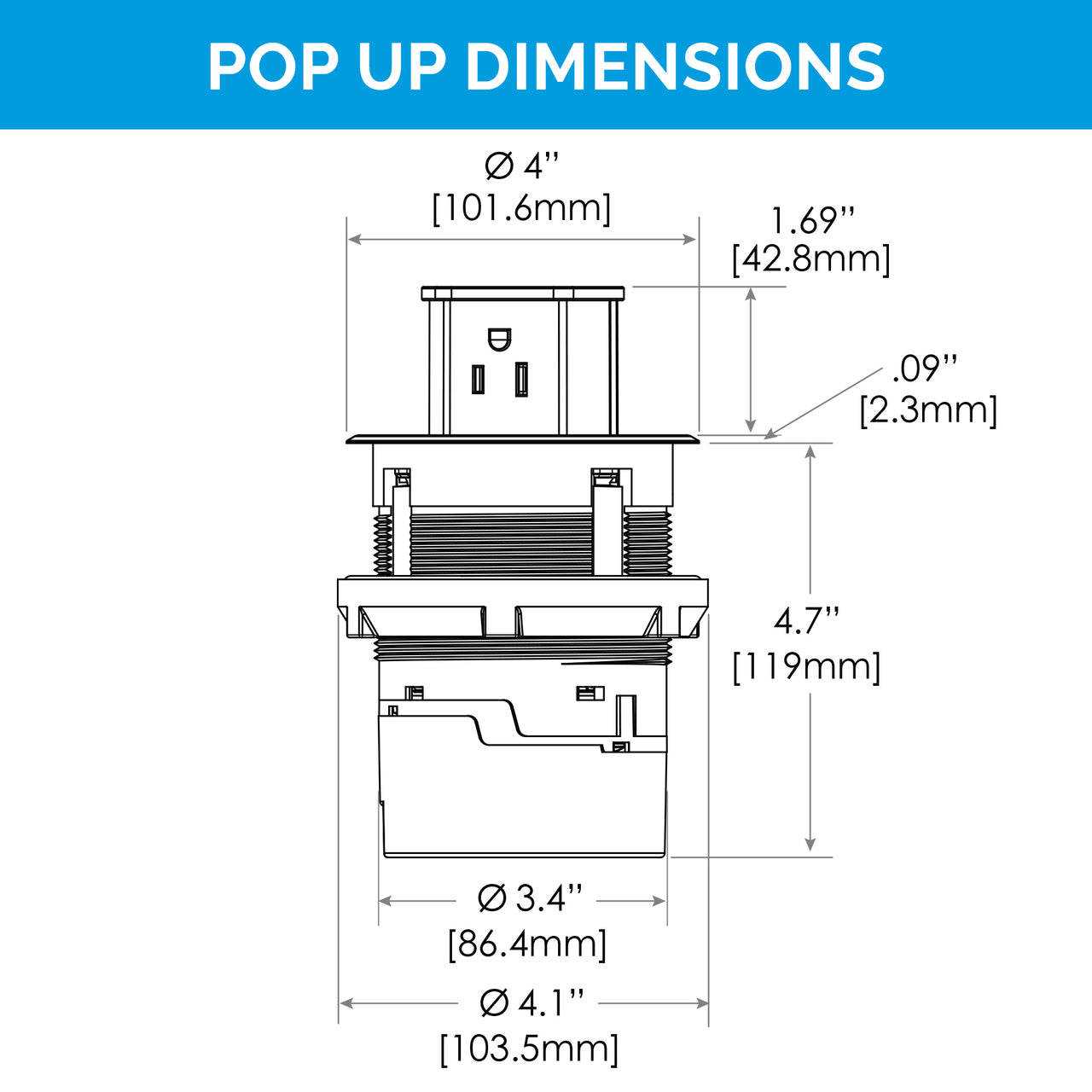

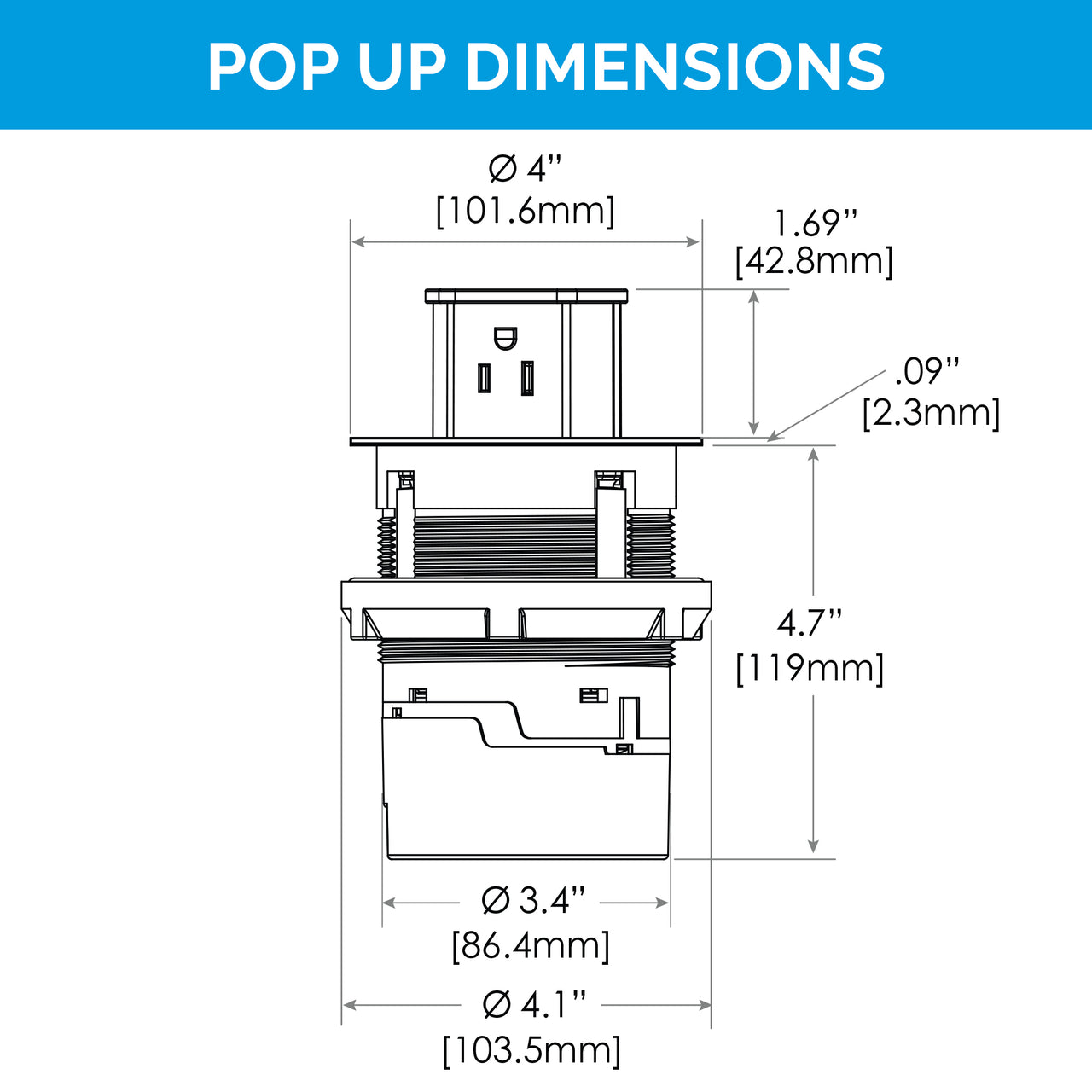

Outlet Dimensions

  • Tower Height: 1.69” [42.8mm]
  • Base Height: 4.7” [119mm]
  • Ring Thickness: .09” [2.3mm]
  • Available Space for Countertop: .56 - 2.13”
  • Base Diameter: 4” [101.6mm]

Electrical Specs

  • Outlet Configuration: 2 AC
  • Current / Amperage Rating: 15 amp
  • Voltage Rating: 125V
  • Tamper Resistant: Yes

1-Year Warranty

Outlet Cut Out Size

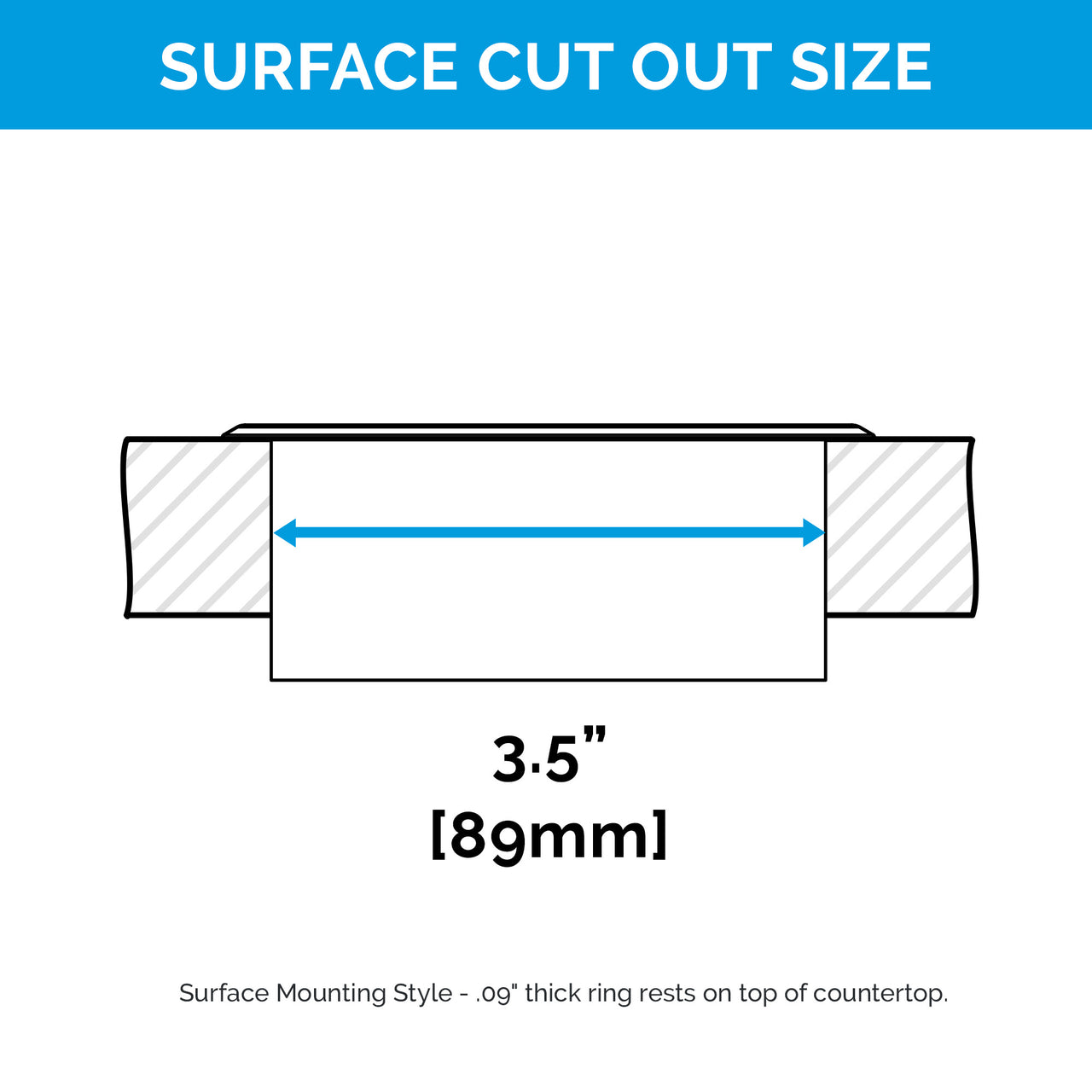

  • For Surface Mount: 3.5” outlet cut out and then the ring rests on top of the counter

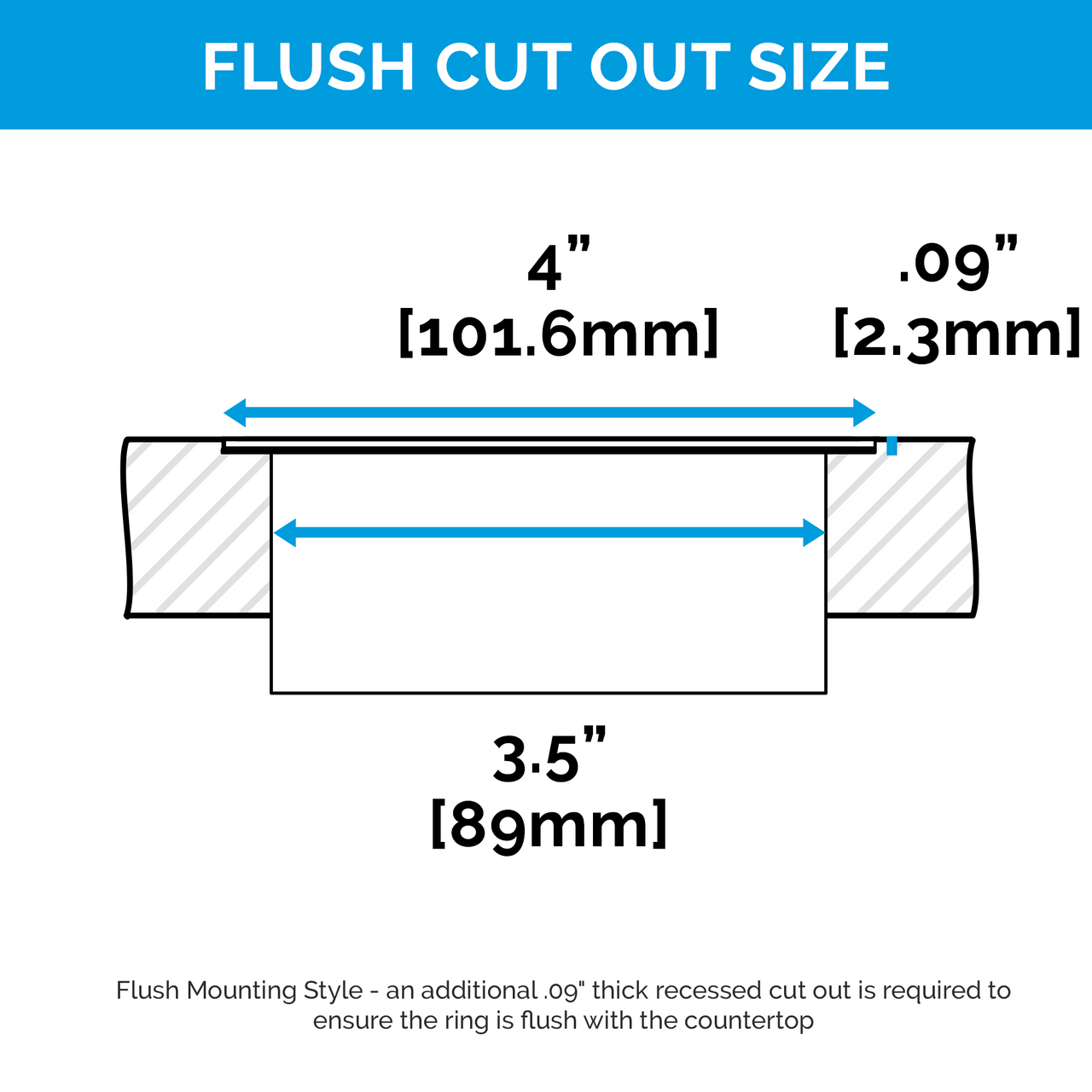

  • For Flush Mount: 4” x .09” ring cut so the ring is flush mounted to the counter and the 3.5” outlet cut out is centered.

Electrical Certifications*

  • UL Listed - UL 223A Listed for the US
  • UL Listed - CSA Approved for Canada: The outlet ​​was tested by UL to CSA (Canadian Standards Association) standards.
  • 406.5(E) [countertops], 406.5(F) [work surfaces], and 406.5(H) [seating areas]: Pop up complies when installed vertically and on a GFCI (Ground
  • Fault Circuit Interrupter) protected circuit.
  • UL 498 Section 146: Built and listed to be water resistant to a half gallon of liquid spilled on the device.

*The Authorities Having Jurisdiction (AHJ) has the final say on whether an installation meets the requirements of the Canadian Electrical Code.

Return Policy

30 days

Restocking Fee

No returns after 30 days

Choose a Location

Select a location for the pop-up outlet that meets the following requirements:

  • Has 5” of space underneath the countertop that will not interfere with any drawers, appliances or other parts of your cabinetry
  • Countertop thickness is between .56"-2.50" [14.3-63.5mm]
  • If using a Docking Drawer cord kit (sold separately), ensure a power outlet is within reach of the cord

Choose an Outlet

How many devices do you want to connect?

  • Up to 2 devices: Choose the 15 amp or 20 amp Countertop Pop Ups by Hubbell which offer 2 AC ports
  • Up to 4 devices: Choose the 15 amp or 20 amp Tri-Power Countertop Pop Ups by Hubbell which offer 1 AC, 1 USB-C (PD), 1 USB-A and QI Wireless charging top

Choose a mounting style

You can choose between a flush or surface mounting technique. A surface mounting style offers the utmost ease of installation and will leave the outlet ring sitting just 2.5mm above the counter. The flush mounting style, requiring a few additional steps in the installation process, will result in a fully recessed outlet that sits flush with your countertop.

Install the Outlet

  • Locate and drill the cut out in the countertop

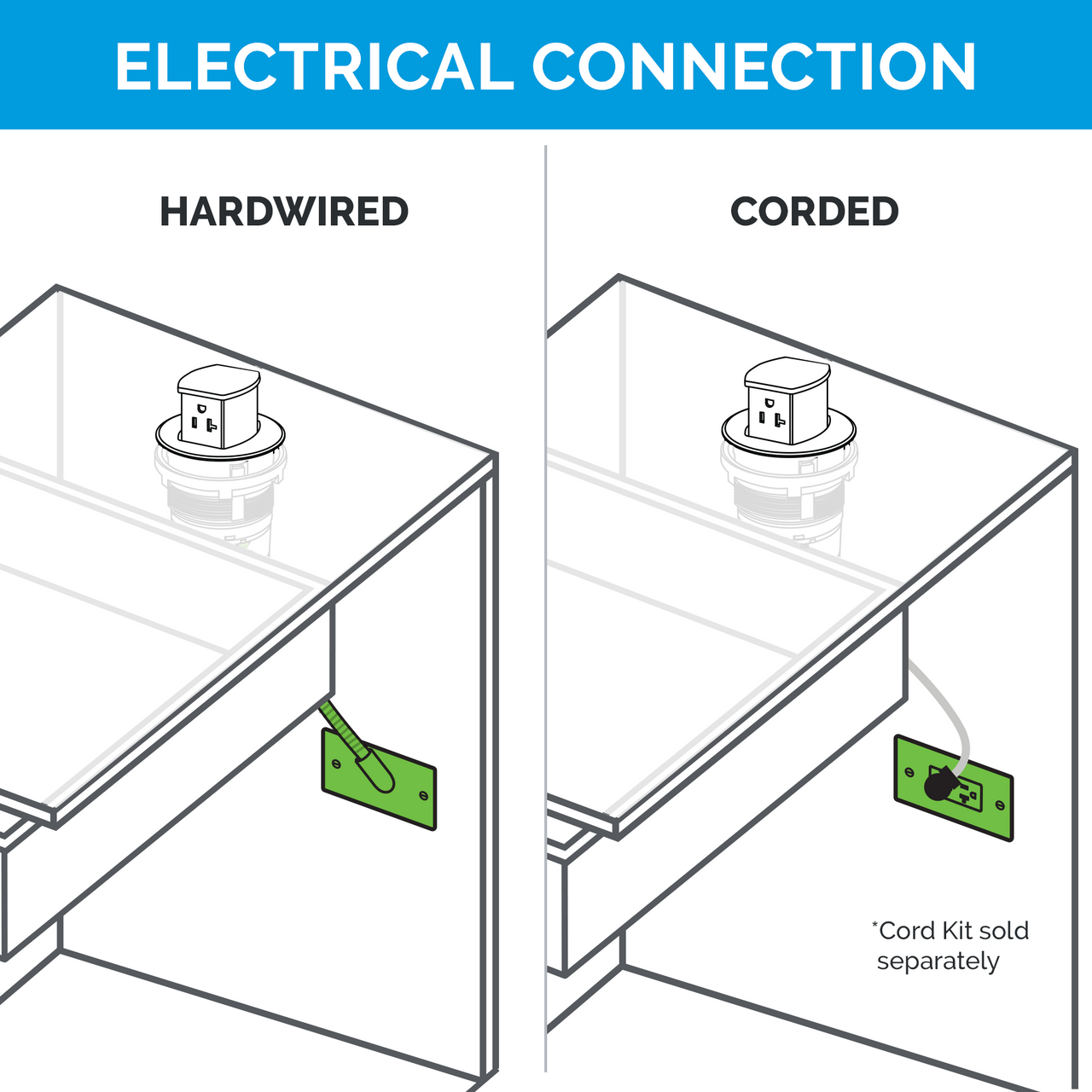

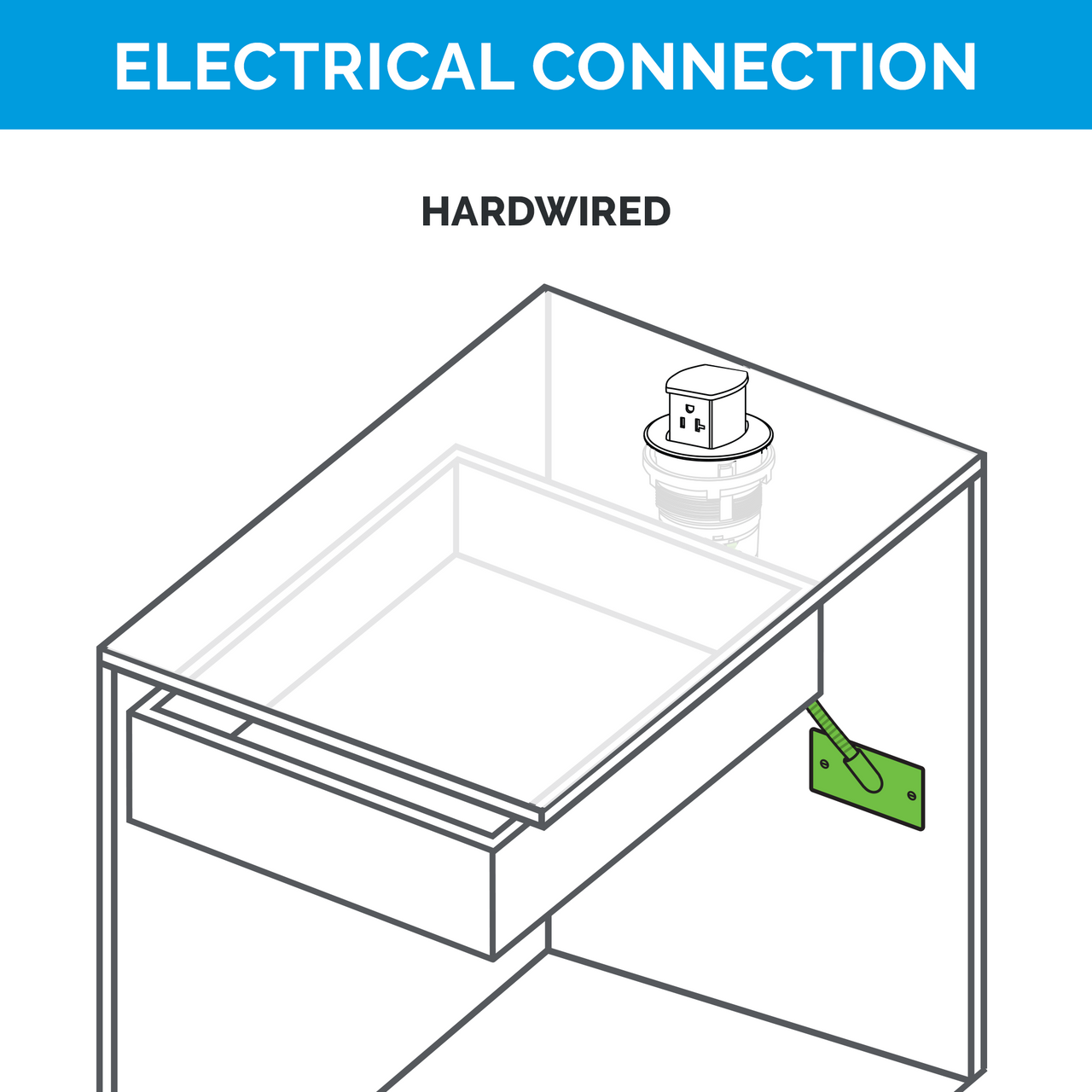

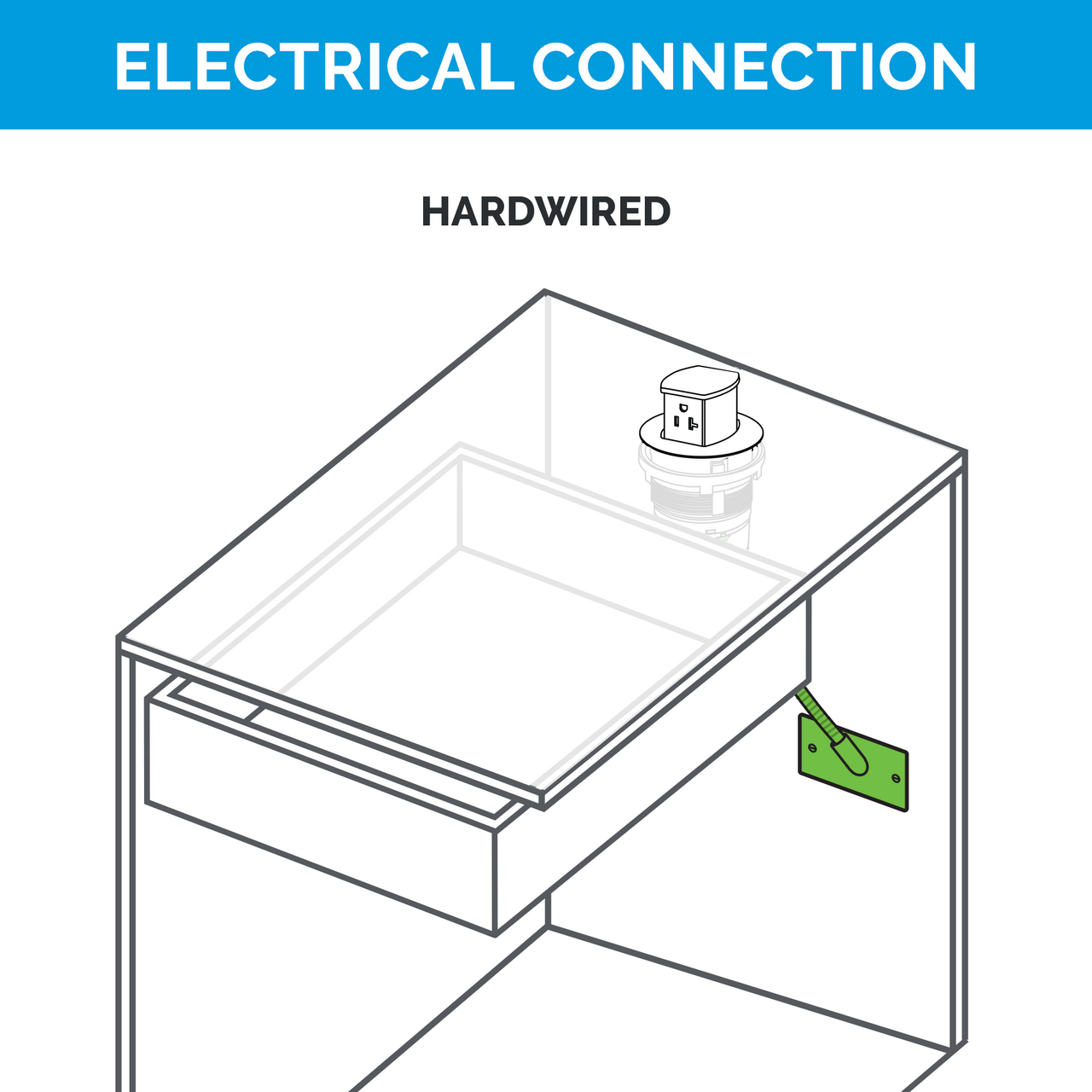

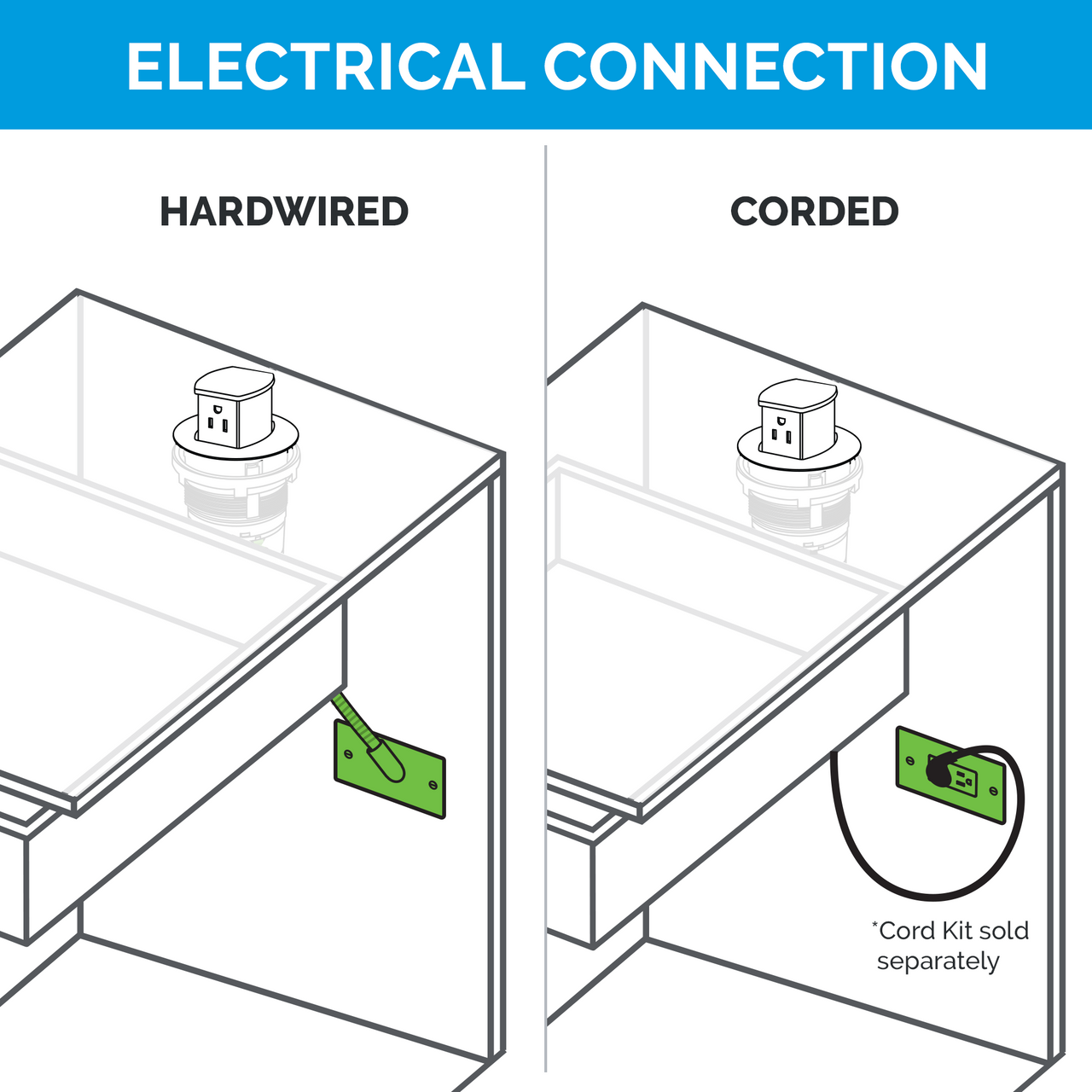

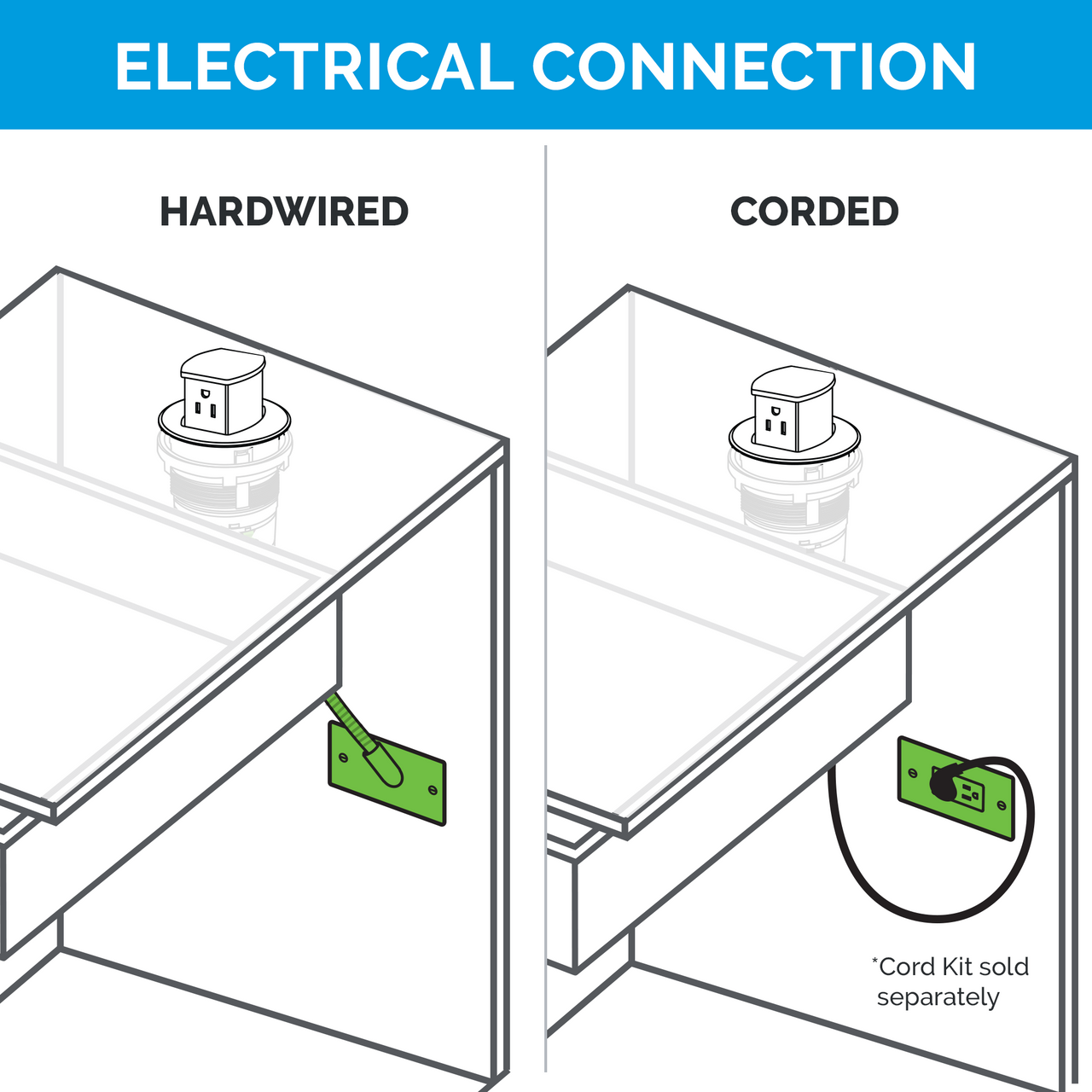

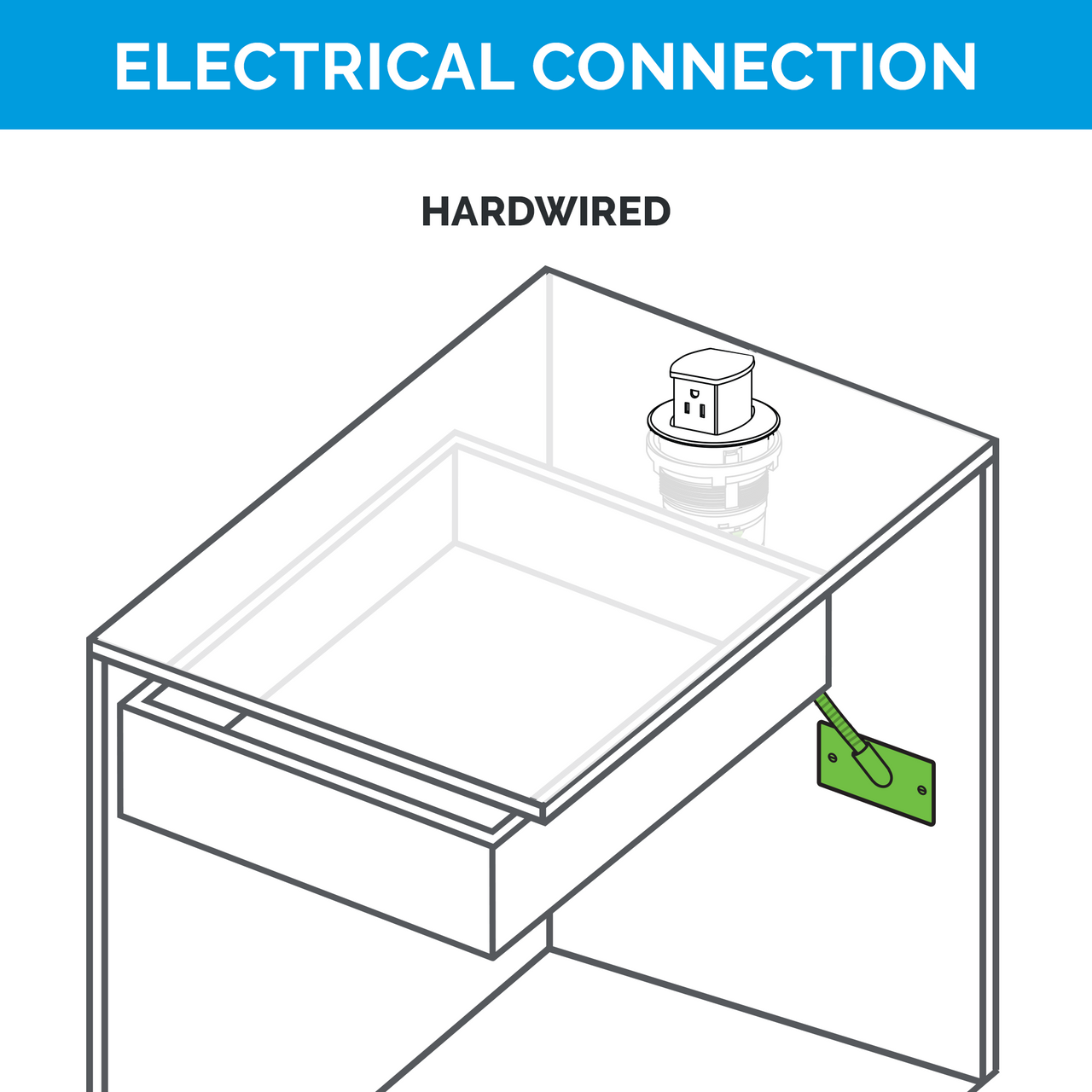

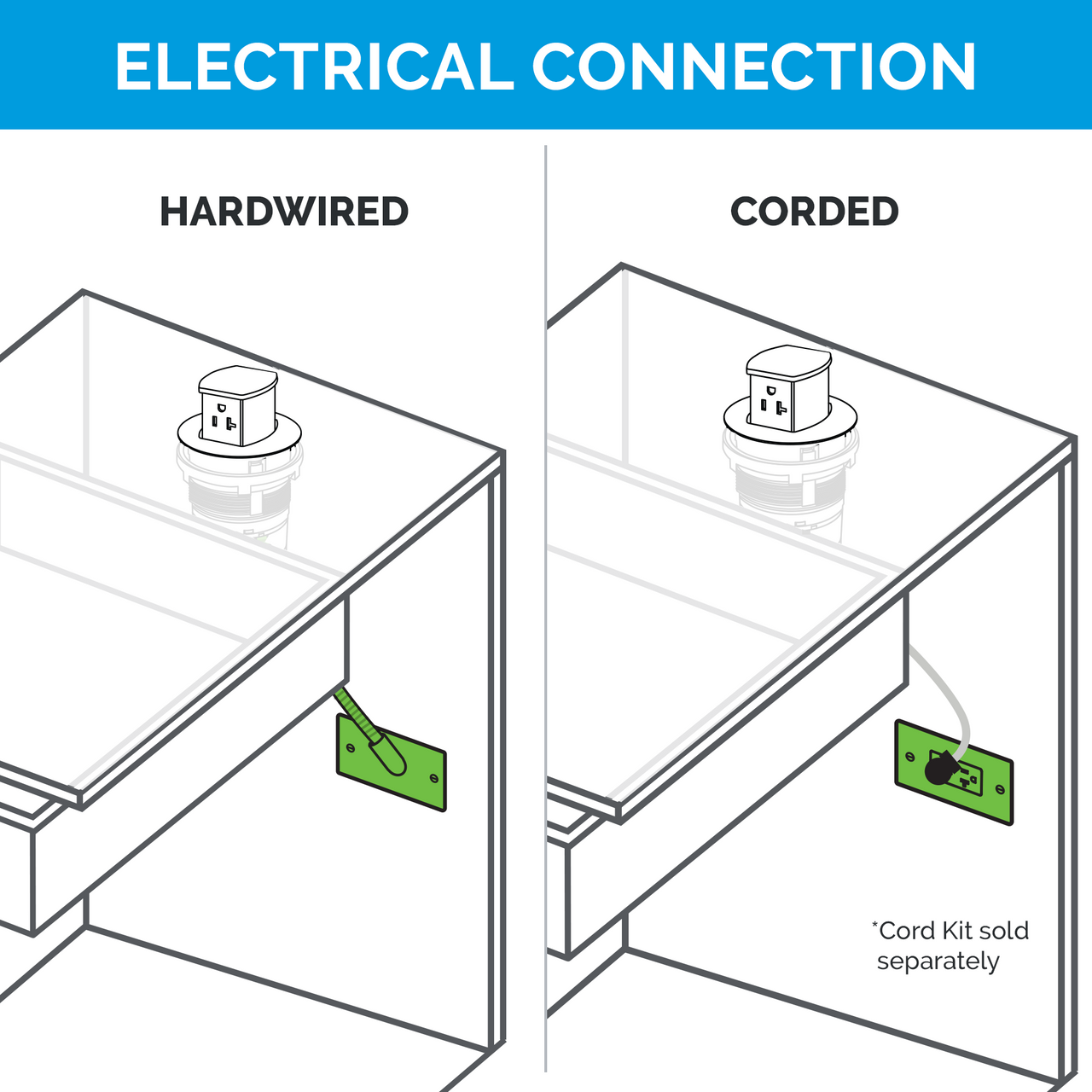

  • Remove the base from the housing and wire the unit by hardwiring or using Docking Drawer’s cord kit
  • Reattach the base and insert the pop up into the countertop opening
  • Hand tighten the lock nut to secure the pop up in place

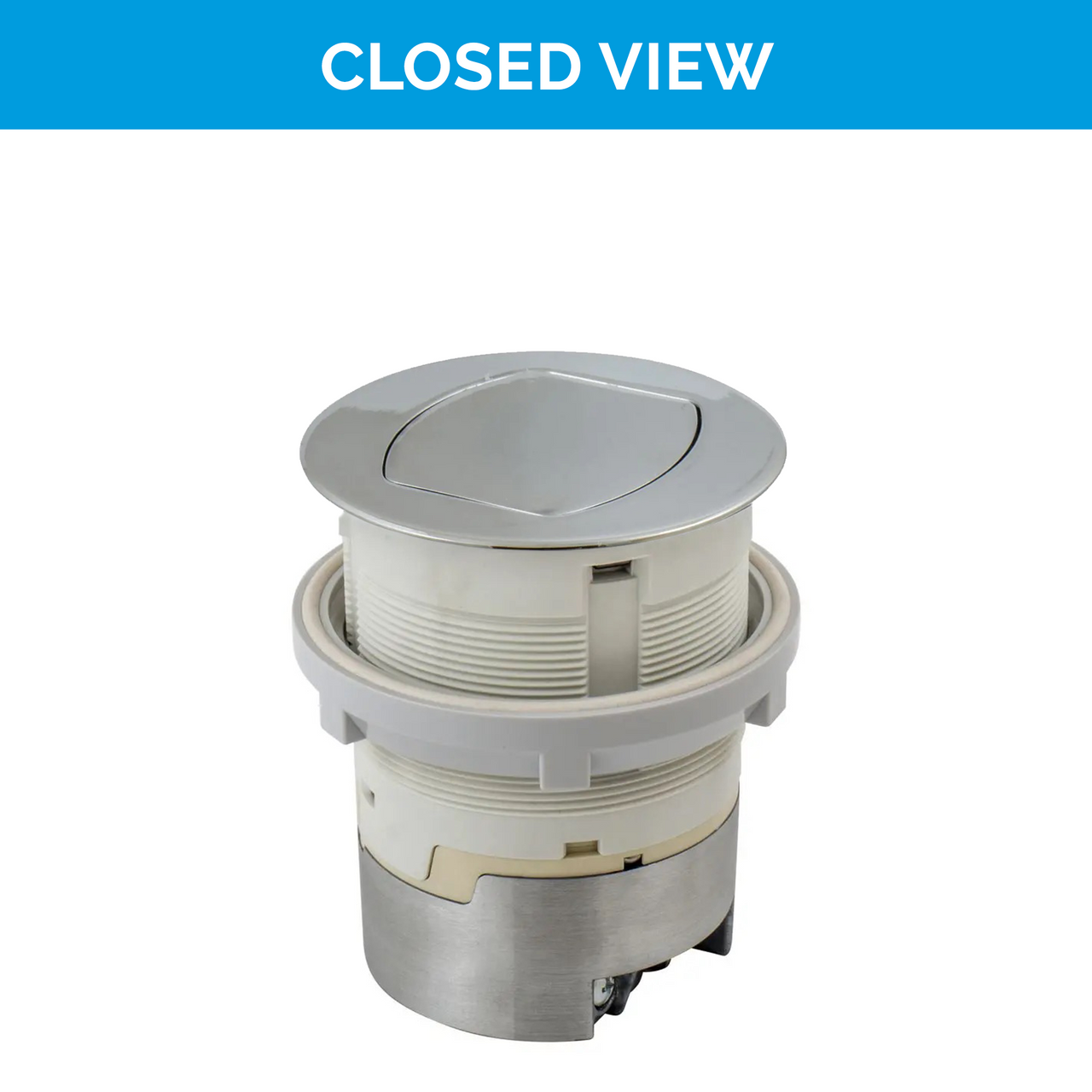

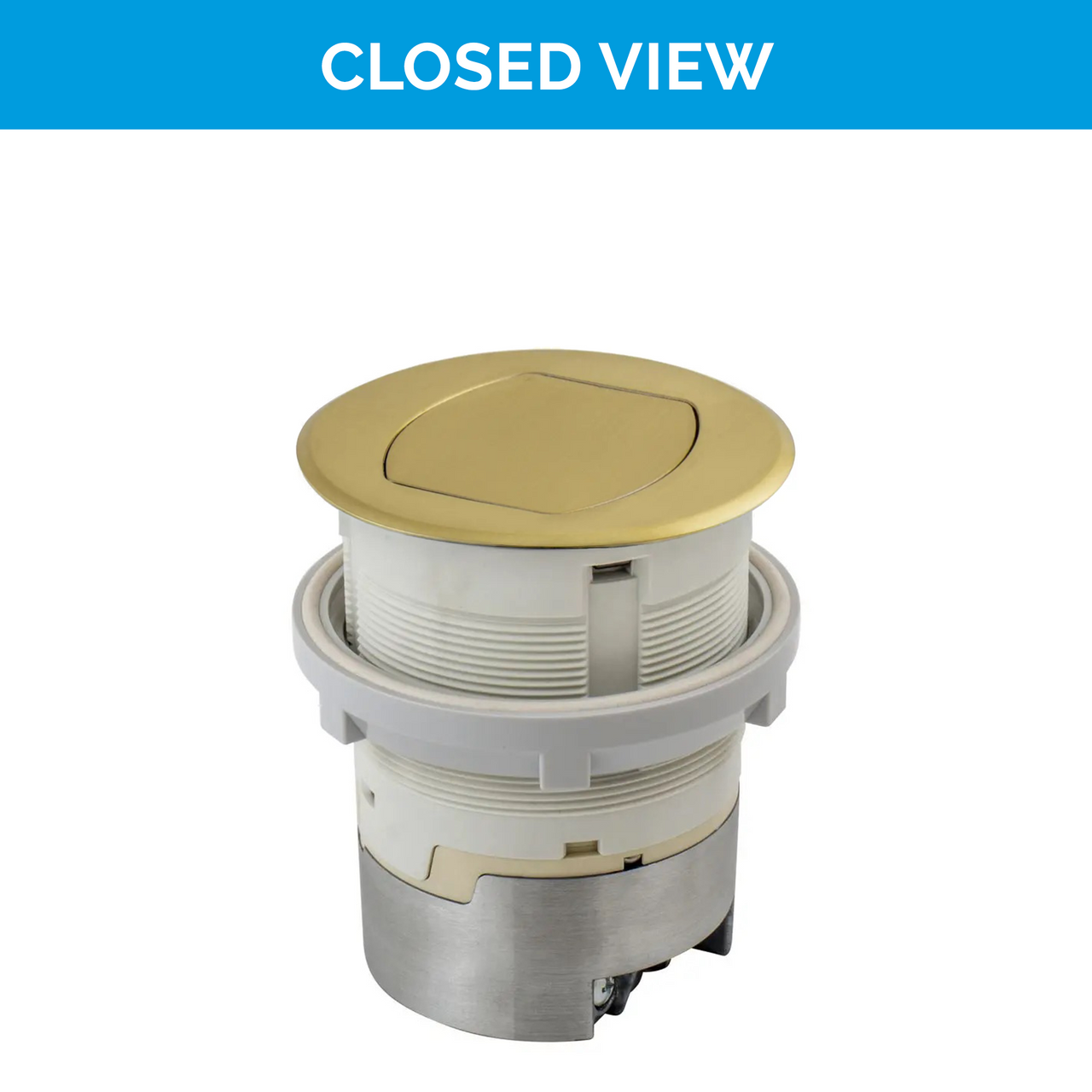

  • Press the cover to pop up the receptacle and press again to close
