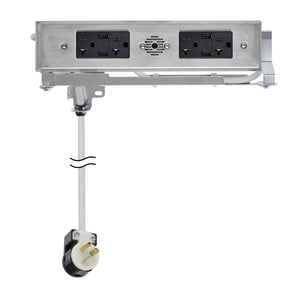

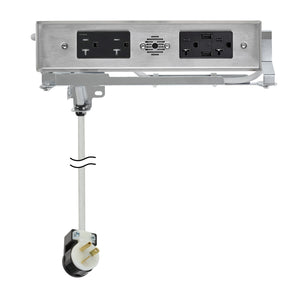

20 amp Blade Duo In Drawer Outlet

£396.00

Choose USB Charging Speed

Pick Configuration

Select Finish

20 amp Blade Duo In Drawer Outlet

Rated 4.5 out of 5
Based on 4 reviews
£396.00

SKU: 2012-277W

ETL Listed for use in the US & Canada, our 20 amp Blade Duo in-drawer outlets are simple to install into any drawer and feature an interlocking thermostat that cuts power to the outlet when surrounding temperatures exceed 120°F.

Elevate Your Drawer Organization with Blade Series Outlets

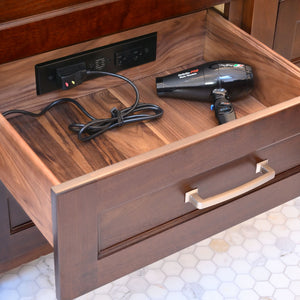

Revamp your countertops and conquer clutter with Docking Drawer's Blade Series outlets. Say goodbye to tangled cords and hello to a tidy space with our 20 amp Blade Duo In-Drawer Outlets. Whether you are planning a drawer upgrade in your kitchen, bathroom, makeup desk, or entryway table, these outlets can charge up to eight devices simultaneously or power up to four devices, making them the ideal choice for any in-drawer power solution.

Smart Solutions

Personalize your outlet with a range of finishes and configurations. Choose from white, black, stainless steel, or brass finishes, and select outlets featuring AC plugs or USB-C (PD 30 & 60 Watt) and USB-A charging ports. Staying connected has never been easier – keep your devices plugged in, eliminate the hassle of constant plugging and unplugging, and ensure your space remains organized and functional. You don't have to worry about your outlet becoming outdated, as our 20 amp Blade Duo Outlets are easily replaceable and upgradeable, promising a future-proof and reliable power solution.

Specify with Ease

Installation is simple with our outlets, catering to various drawer types, including shallow, tall, and vertical drawers. Customize the configuration to your liking, whether facing left, right, up, or down. With only 2" of space required behind the drawer box (reduced to 1.25" with a spacer for limited spaces), our outlets flawlessly integrate into standard and custom cabinet sizes. All you need are the seven screws thoughtfully included in the package, and you're good to go. The 4.5' outlet cord effortlessly plugs into any 20 amp in-cabinet outlet, ensuring a smooth setup process.

Safety is Our Priority

Safety is at the heart of our design. Docking Drawer outlets are ETL Listed for use in the US & Canada and are tamper-resistant, providing an added layer of protection. The interlocking thermostat safety feature ensures the outlet de-energizes when temperatures exceed 120°F/49°C, prioritizing your family's well-being. You can trust in the durability of our outlets, which undergo rigorous cycle testing over 500,000 times—equivalent to a drawer opening and closing every 15 minutes for 30 years. We back all Docking Drawer Blade Series outlets with a confident 5-year warranty, making your investment secure.

Imperial Metric
Outlet Width 13” 330mm
Outlet Height 4.64" 118mm
Outlet Depth 2.5" 64mm
Receptacle Box Depth 1.93" 49mm
Cover Plate Height 2.52" 64mm
Cover Plate Width 11.26" 286mm
Cover Plate Thickness 0.29" 7.5mm
Cable Management Arms Height 3" 76mm
Cord Length (15 amp) measured from the rear mounting bracket 54" 1.37m
Cord Length (20 amp) measured from the rear mounting bracket 36" 0.9m
# Outlet Configuration Outlet Specifications

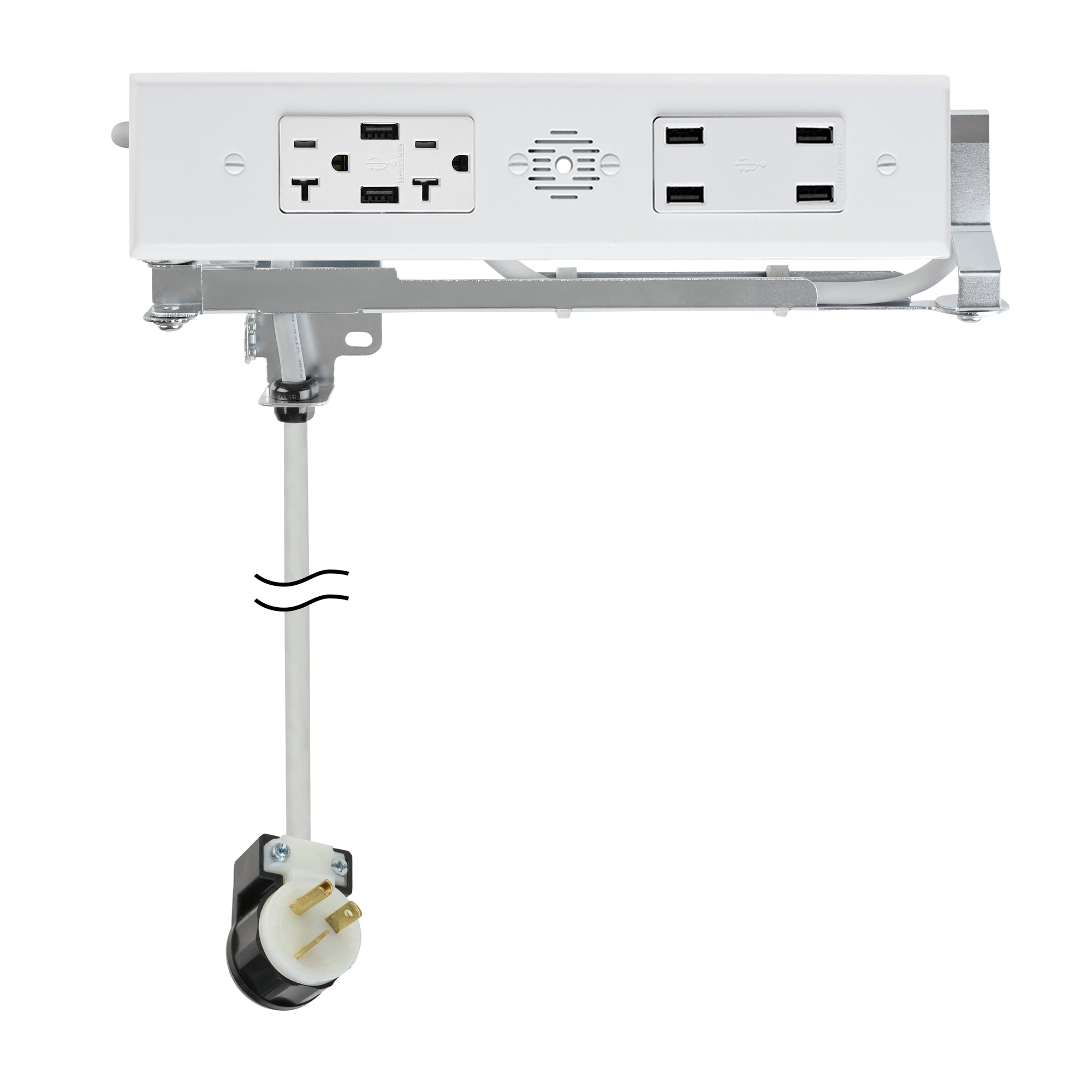

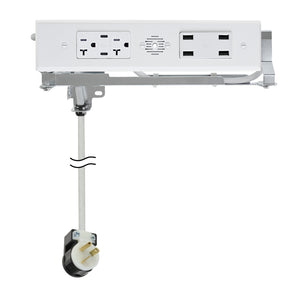

1 2 AC & 2 USB-A AC: 20 amps @ 120 VAC
USB-A: 3.6 amps @ 5 VDC
2 4 USB-A 4.2 amps @ 5 VDC
3 2 AC & 2 USB-C (PD - 30 Watt) AC: 20 amps @ 120 VAC
USB-C (single port to non-PD device): 3 amps @ 5 VDC (15Wconnected to PD device): 3 amps @ 9 VDC (30W)
USB-C (single port connected)
USB-C (both ports connected): 3 amps @ 5 VDC (30W total power)
4 2 AC, 1 USB-C (PD - 30 Watt) & 1 USB-A AC: 20 amps @ 120 VAC
USB-C (non-PD device): 3 amps @ 5 VDC (15W)
USB-A: 2.4 amps @ 5 VDC
5 2 AC - GFCI 20 amps @ 120 VAC

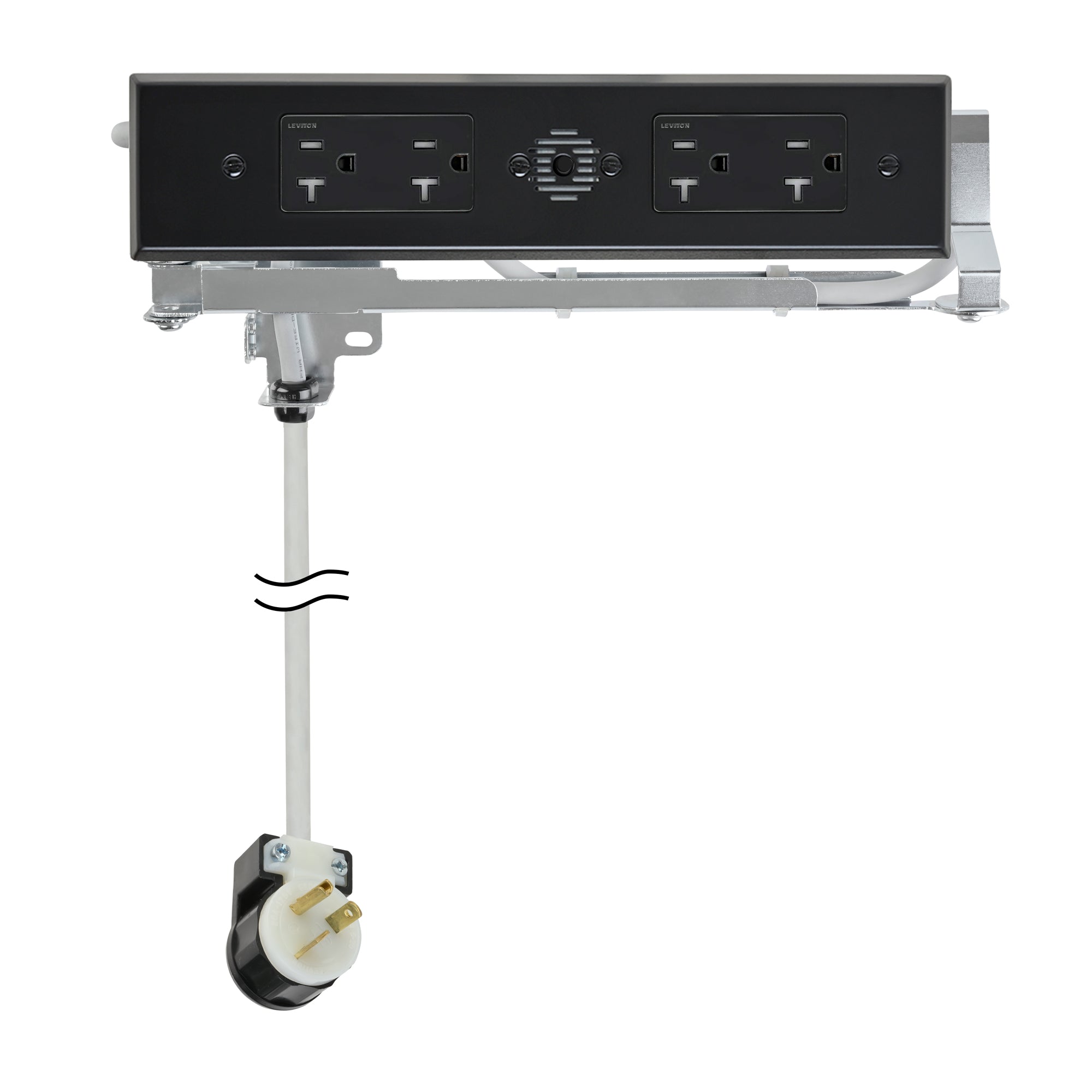

6 2 AC 20 amps @ 120 VAC
7 2 AC & 2 USB-C (PD - 65 Watt) AC: 20 amps @ 120 VAC
USB-C (PD) 65 Watt Shared
USB-C (single port connected to PD device): 65W 5V/3A; 9V/3A; 12V/3A; 15V/3A; 20V/3.25A
USB-C (both ports connected to PD devices): 65W total C1/C2: 5V/3A; 9V/3A; 12V/2.5A; 15V/2A; 20V/1.5A

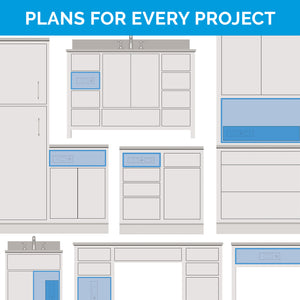

How to Plan Your Docking Drawer Project

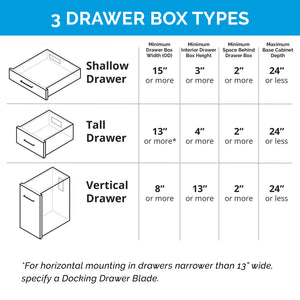

Every Docking Drawer Blade Series project starts by identifying your drawer box type. There are four basic drawer types to choose from - Shallow, Tall, Narrow, and Vertical. After identifying your drawer box type, measure the drawer box width (OD) to confirm the drawer is wide enough to accept a Docking Drawer Blade Series outlet.

Shallow

  • Minimum interior drawer box height: 3" or more
  • Minimum drawer box width (OD): 15" or more

Tall

  • Minimum interior drawer box height: 4" or more
  • Minimum drawer box width (OD): 13" or more

Narrow

  • Minimum interior drawer box height: 4" or more
  • Minimum drawer box width (OD): 9" or more and may require a channel to be added in the cabinet sidewall

Vertical

  • Minimum interior drawer box height: 13" or more
  • Minimum drawer box width (OD): 8" or more

Want more detailed specs to plan your project? Review our Blade Series Spec Book.

Do I Need a 15 or 20 amp Docking Drawer Blade Series Outlet?

We often get asked this when it comes to choosing the right outlet for your drawer, especially when it comes to bathroom vanity projects where the outlet is used to power hair dryers and curling irons. See the answer here.

Project Planning in Canada

Docking Drawer outlets are ETL Listed for use in Canada. To plan your project, follow the planning details above and consider the following to comply with the CEC*:

In-Drawer USB Charging Stations for Canada

Specify Docking Drawer Blade Duo or Blade outlets with only USB ports. The ports remain energized and will charge devices when the drawer is closed.

In-Drawer AC Outlets for Canada

To add AC outlets inside of a cabinet, such as a bathroom vanity or a kitchen appliance garage, specify a 15 amp Docking Drawer Blade Duo or Blade outlet & the Safety Interlock Outlet with Blade Limit Switch (6015-1000W). The Safety Interlock Outlet with Blade Limit Switch de-energizes a Docking Drawer Blade Series outlets when the drawer begins to close.



*The Authorities Having Jurisdiction (AHJ) has the final say on whether an installation meets the requirements of the Canadian Electrical Code.
